WT600S-65 Basic Variable-Speed Peristaltic Pump

WT600S-65 peristaltic pump adopts DC brushless motor drive, powerful, free maintenance. Stainless steel housing, easy to clean and corrosion resistant. Has basic function such as start/stop, reversible direction, full speed, fast cleaning and adjust speed, state memory, power-down memory. Control the start/stop, reversible direction, adjusts the speed via external analog quality, the time dispensing function.RS485 communication, MODBUS protocol is available. IP65 high protection grade, suitable for harsh working environment such as humidity and dust.

Flow: 1.5~6600mL/min
Max: 2 Channels

Functions and Features

• Large torque, can drive multi-channels and various types of pump heads.
• Four-figure digital LED indicator displays working speed.
• LEDindicator displays the reversible direction, internal control, external control, footswitch and other working mode.
• Key operation, convenient and fast.
• Start/stop, reversible direction, full speed, adjust speed, state memory (power down memory).
• Time dispensing function, it realizes the repeat timing quantitative dispensing liquid.
• Speed resolution 1 rpm,speed range 0~600 rpm/min.
• Stainless steel housing, easy to clean, effectively prevent the erosion of various organic solvents.
• The circuit board is sprayed with three anti paint processes to achieve dust and moisture-proof effect.
• Super anti-interference feature, wide input voltage range, acceptable for complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator, external analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• It can be controlled by an external foot switch or dispensing controller to start and stop, thus achieving the easy dispending function.
• The protection level of WT600S-65 peristaltic pump can reach IP65, and the shell is designed with full sealing, which is suitable for more stringent environmental applications, such as places with high humidity or water splashing.

Specifications

  • Flow range: 1.5~6600mL/min
  • Speed range: 30~600rpm
  • Speed resolution: 1rpm
  • Speed accuracy: <3%
  • Power supply: AC 100~240V,50Hz/60Hz
  • Power consumption: <200W
  • External control: External control analog 0-5V,0-10V,4-20mA External control start and stop, External control input level5V,12V,24V
  • Communication interface: RS485 communication interface, MODBUS protocol is available.
  • Working environment: Temperature 0 ~ 40℃, relative humidity<80%
  • IP grade: IP65
  • Dimension (L×W×H): 337×199×235mm
  • Driver weight: 6.9 kg



WT600S Applicable Pump Heads and Tubings, Flow Parameters

Drive type Suitable pump heads Channel Tubing size (mm) Flow rate (mL/min) per channel

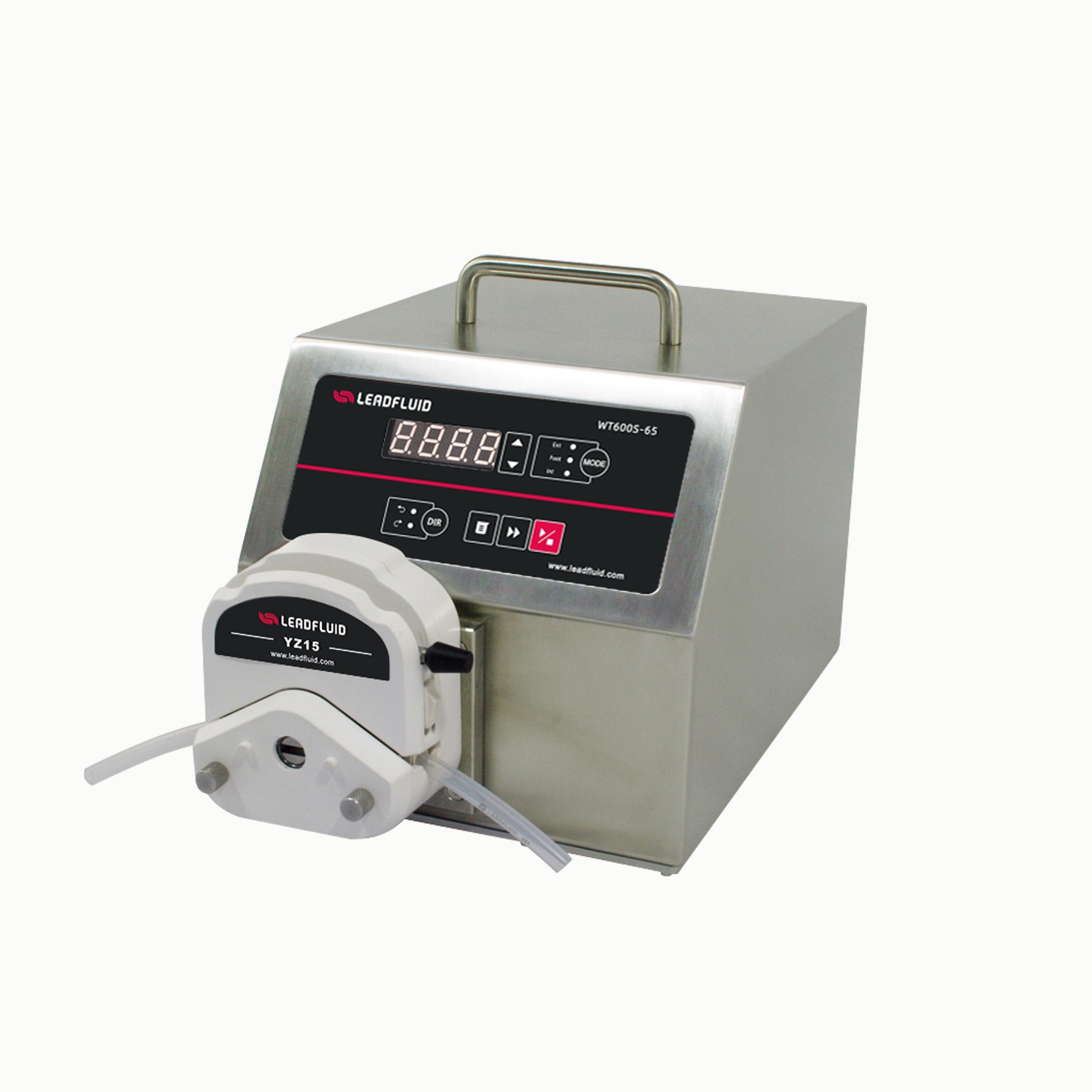

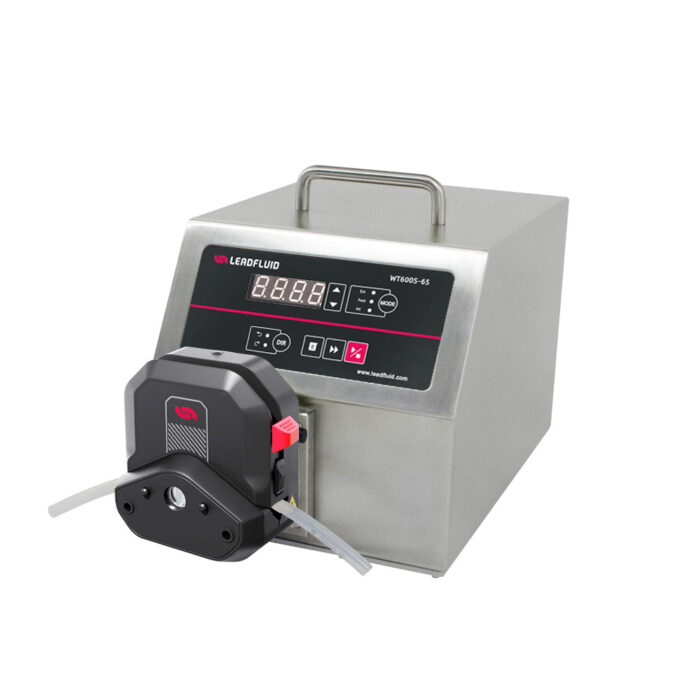

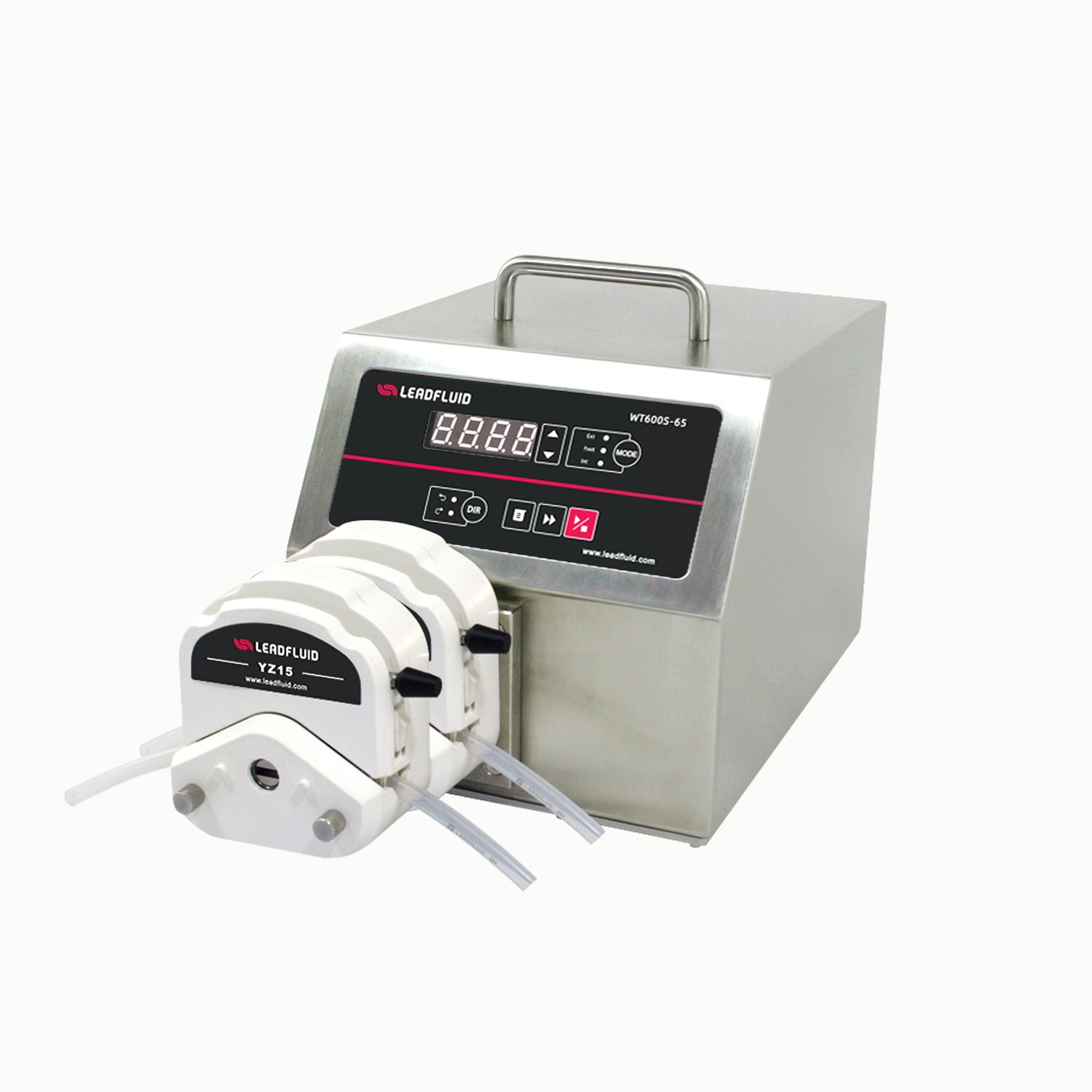

WT600S-65 YZ15/YZ15T 1,2 13#14#19#16#25#17#18# 1.5~2562

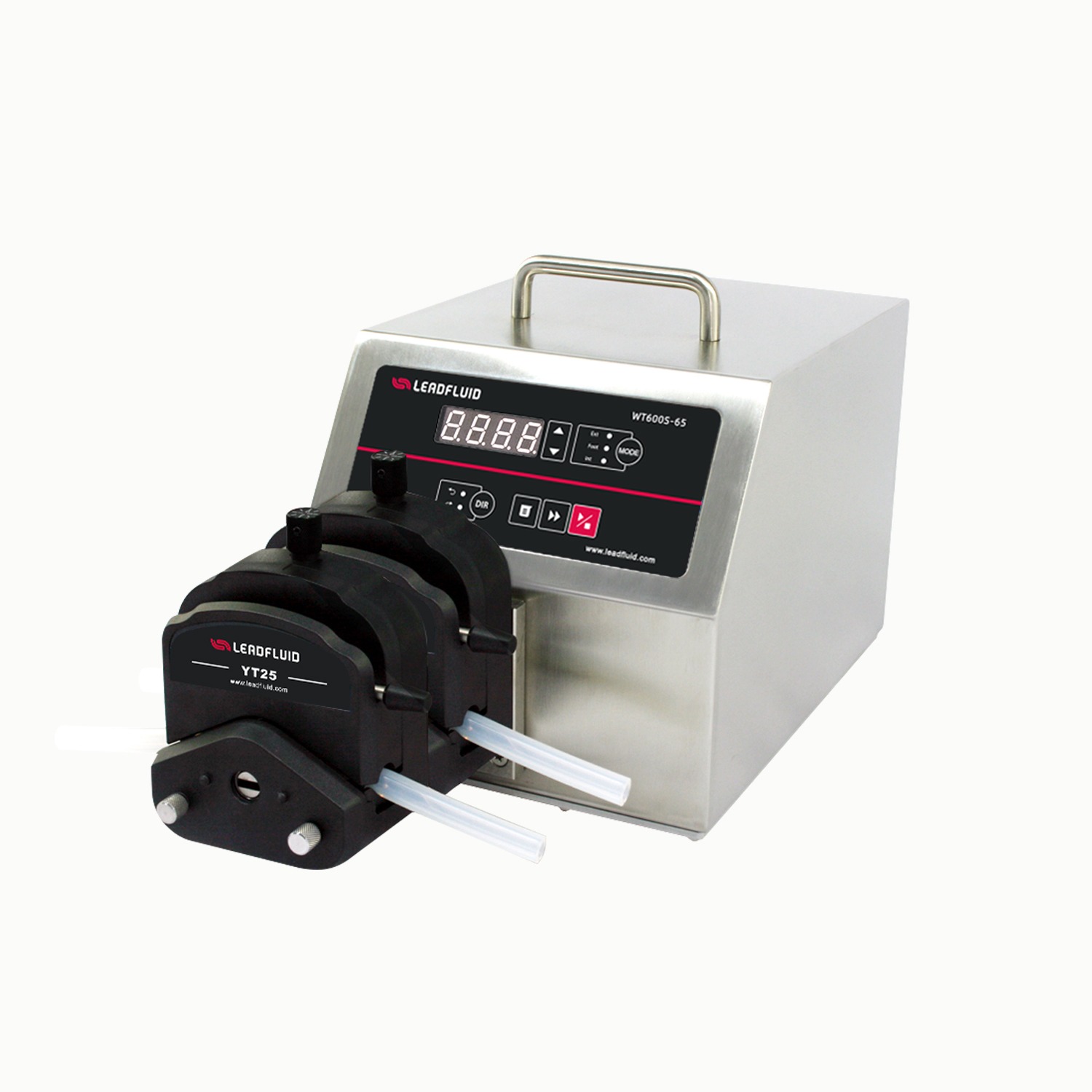

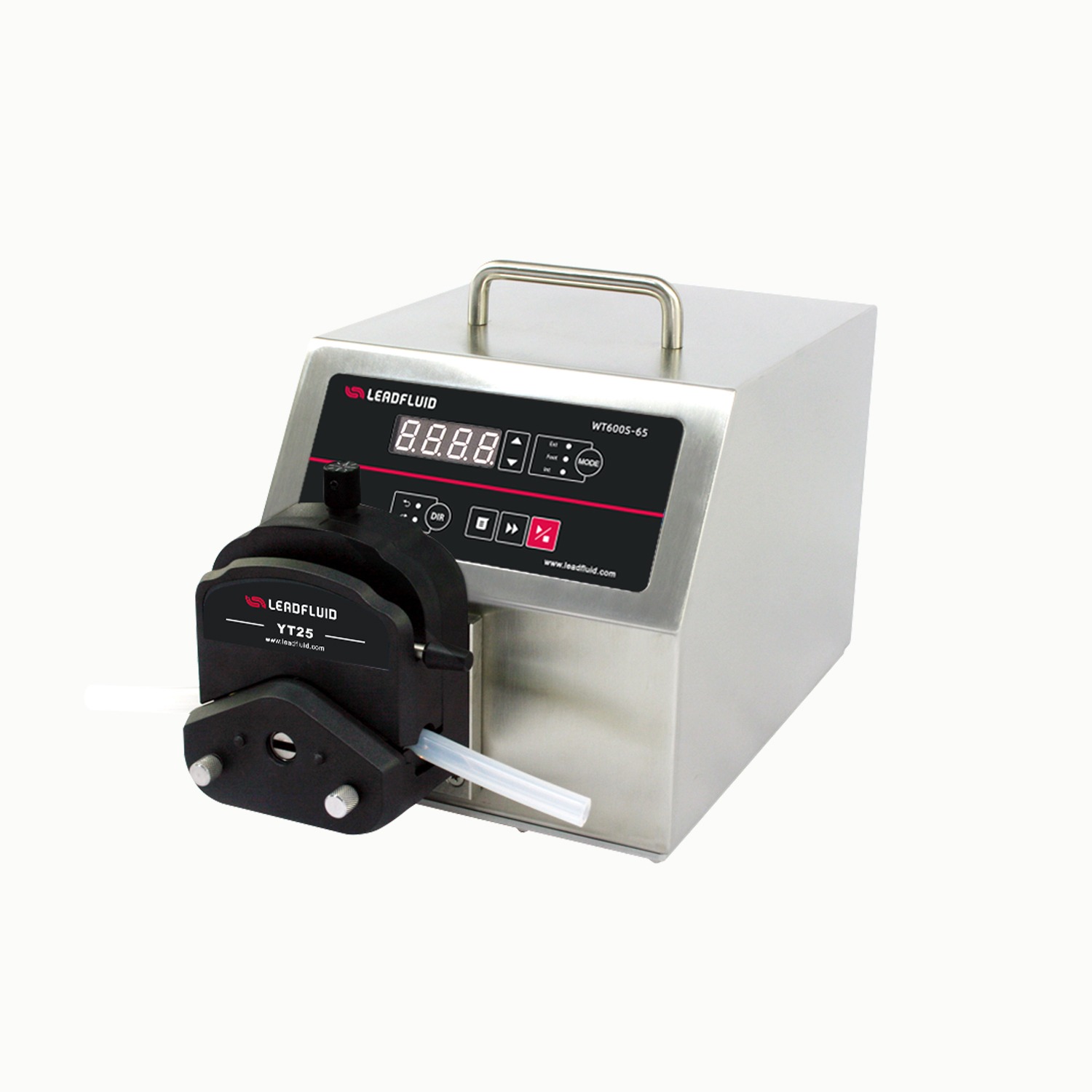

YT25 1,2 114#116#15#24#35#36# 7.2~3000
KZ25 1 15#24#35#36# 93~6600

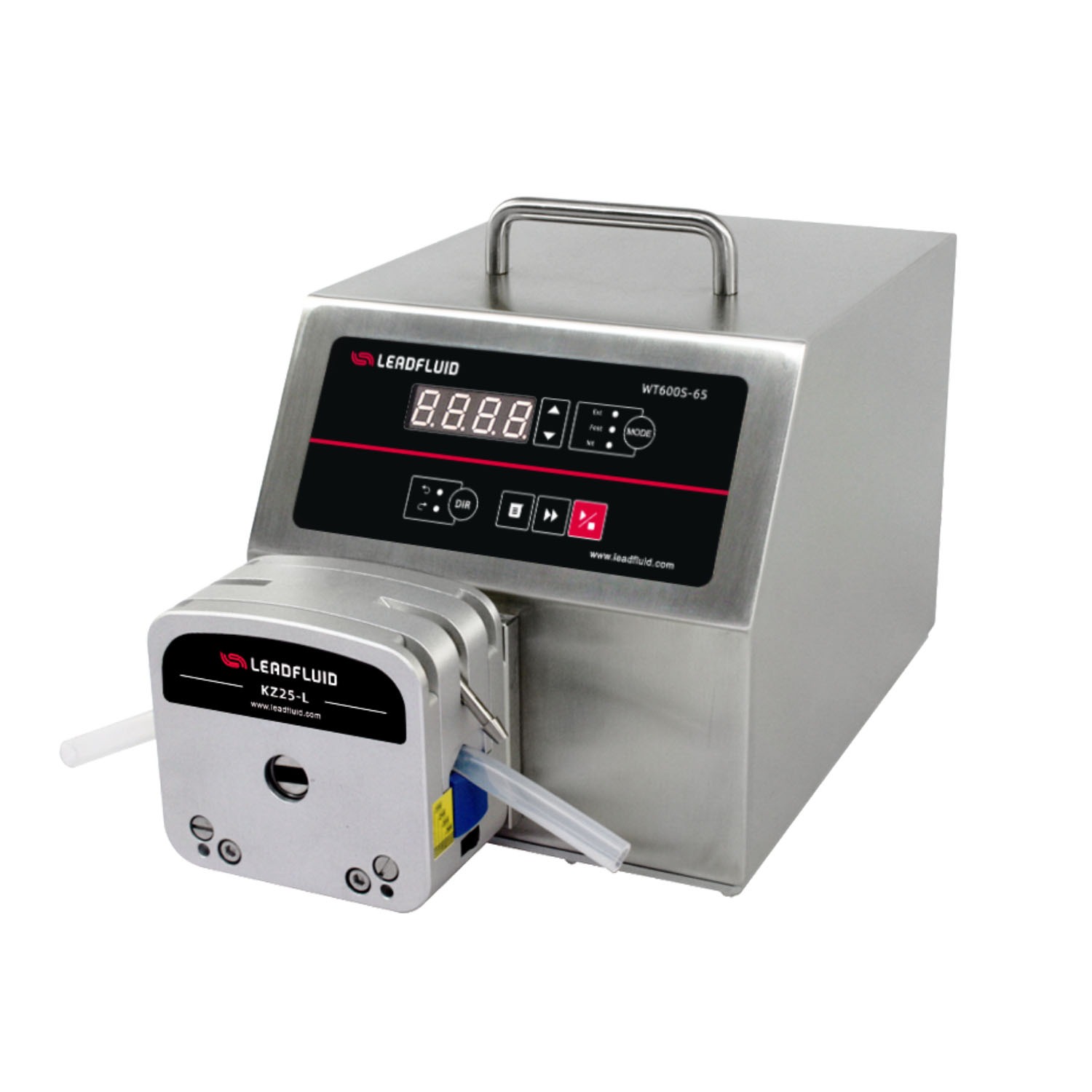

KZ25-L 1 15#24#35#36# 93~6600

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

Dimension(mm)

Statement:The final explanation right of above information belongs to Lead Fluid.
