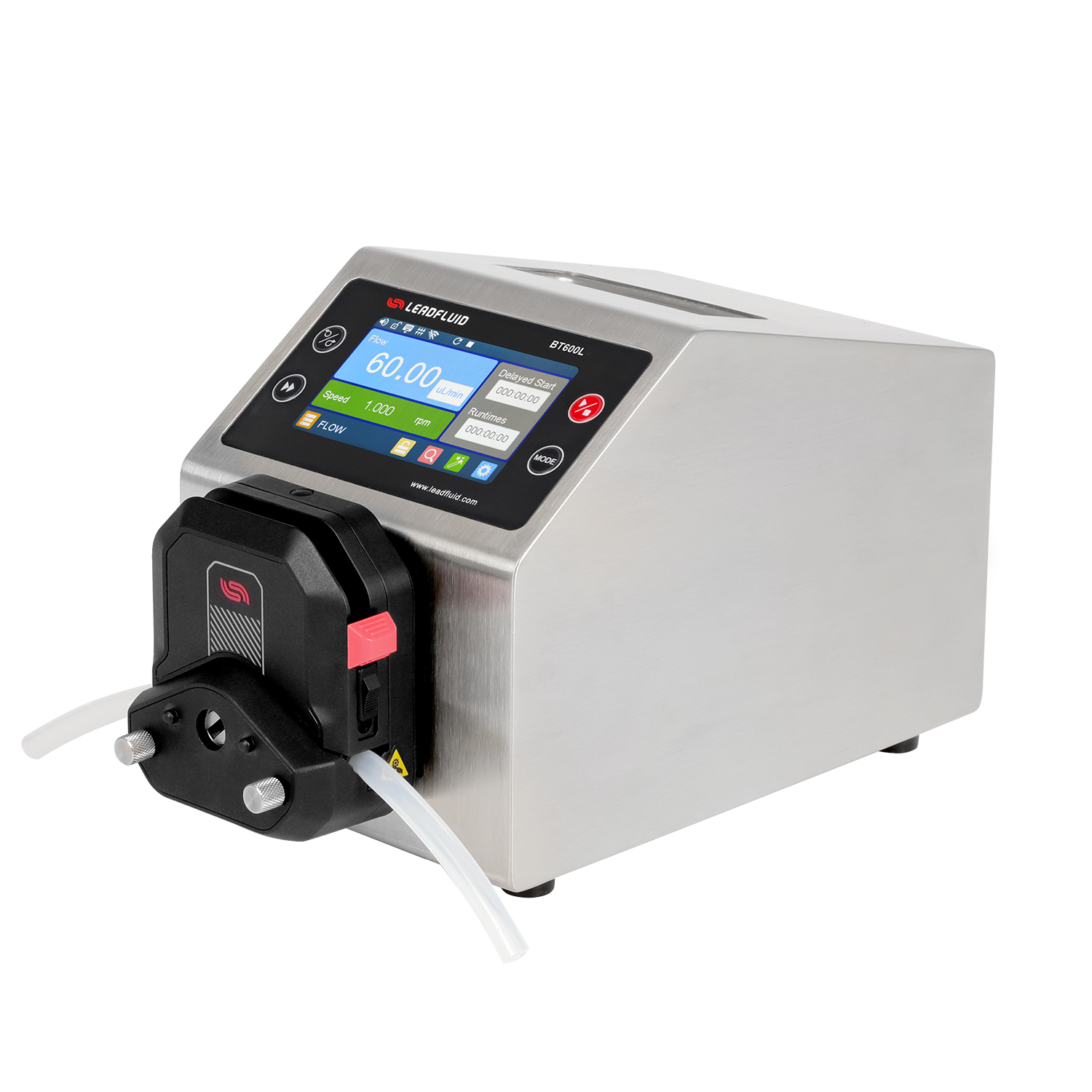

BT600L Intelligent Flow Peristaltic Pump

BT600L intelligent flow peristaltic pump, can realize high precision continuous transmission andsimple quantitative function. 4.3 inch HD LCD touch screen display, simple operation. Support Lead Fluid APP software, which can remotely control the pump and monitor the running status in real time. Powerful functions to meet complex transmission requirements. RS485 communication, MODBUS protocol is available, adapt to different communication equipment.

Flow: 0.005~3000mL/min
Max: 2 Channels

Functions and Features

• 4.3 inch color LCD display, visual.
• Touch screen cooperates with keypads operation, bring good user experience.
• LF-Touch-OS software system, efficient and stable , has a good human- computer interaction mode. convenient product customization and upgrading.
• With the standard function such as start/stop, reversible direction,full speed, back suction, state memory, Can directly input flow or speed parameters .
• With the flow and time working mode.
• Precise flow control and display, micro-step algorithm to ensure the dispensing ac curacy of different settings.
• Wizard-type flow calibration function, simple and easy to use.
• Delay start and delay stop function.
• Unique back suction function to effectively prevent liquid dripping.
• Reserved five-group dispensing parameters for time dispensing.
• Intelligent temperature control function, automatically adjust heat dissipation according to the environment, so that the equipment is always in the best state.
• WIFI control function, remote operation can be realized through the Lead Fluid APP software, and has monitoring functions such as shutdown alarm and reminding to replace the pump tube.
• External analog speed regulation, external control signal control start-stop, reversible direction, dispensing, external control signal , physical isolation.
•RS485 communication, the MODBUS protocol, supporting up t o 80 programming instructions, convenient connect with various control devices.
•Open multiple control parameters for OEM customized applications.
•The circuit board is sprayed with three anti paint processes to achieve dust and moisture-proof effect.
•Super Anti-interference characteristics, wide voltage design, suitable for complex power supply environment.

Specifications

  • Flow range: 0.005~3000mL/min
  • Speed range: 0.1~600 rpm
  • Speed resolution: 0.1rpm
  • Speed accuracy: <±0.2%
  • Delayed startup time: 0.1~999.9 S/Min/H
  • Delay stop time: 0.1~999.9 S/Min/H
  • Dispensing time: 0.1~99.99 S/Min/H, time unit adjustable
  • Dispensing number: 1~999, 0 Infinite cycle
  • Dispensing interval: 0.1~999 S/Min/H
  • External control signal input: (1) Start/Stop: passive contact, external control input level (5~24V) (2) Forward/Reverse: passive contact, external control input level (5~24V)                                                                (3) Speed Regulation: analog 0~5V, 0~10V, 4~20mA can be set
  • External control signal output: (1) Start/Stop: Level Signal (following input voltage) (2) Forward/Reverse: Level Signal (following input voltage) (3) Speed Status: Analogue 0~5V
  • Communication interface: RS485 communication interface, Modbus protocol is available
  • Power supply: AC100~240V,50Hz/60Hz
  • Power consumption: <60W
  • Working environment: Temperature 0 ~ 40℃, relative humidity<80%
  • IP grade: IP31
  • Dimension(L×W×H): 292X160X183mm
  • Weight: 4.5 kg

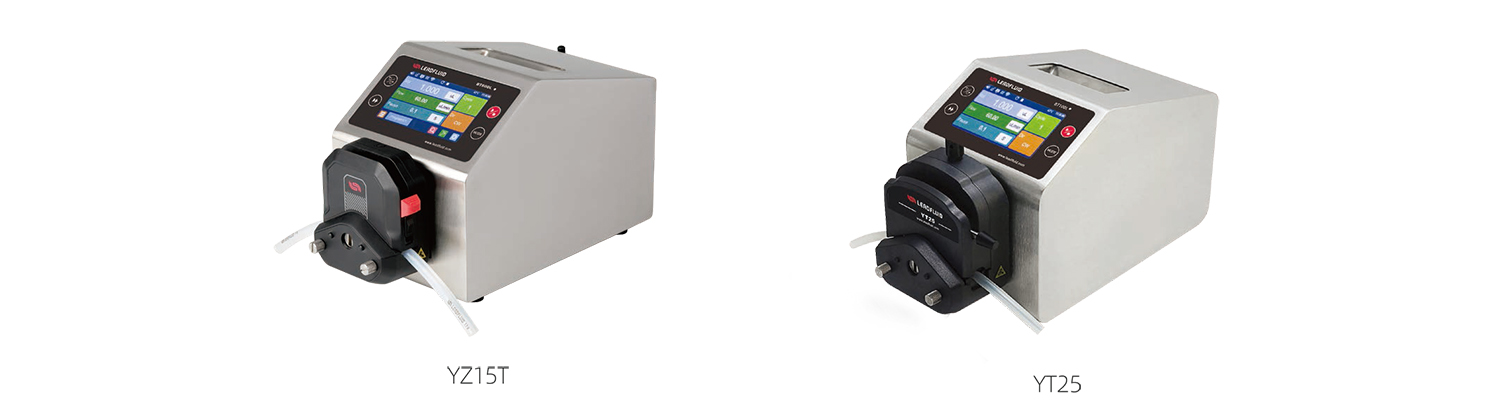

BT600L Suitable Pump Heads and Tubing, Flow Parameters

Drive type Pump heads Ch Tubing size Flow rate per channel (mL/min)

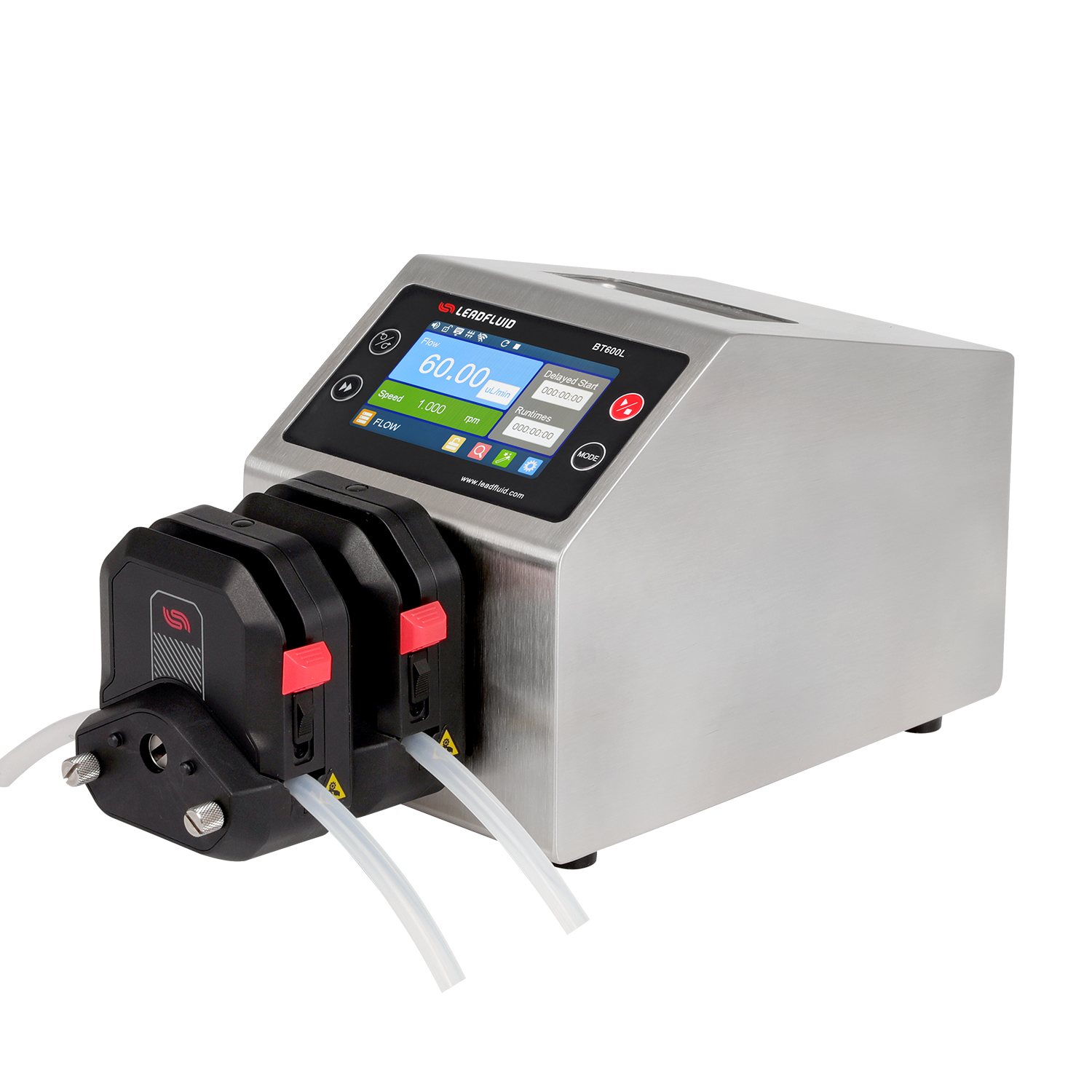

BT600L YZ15/YZ15T 1,2 13#14#19#16#25#17#18# 0.005~2562

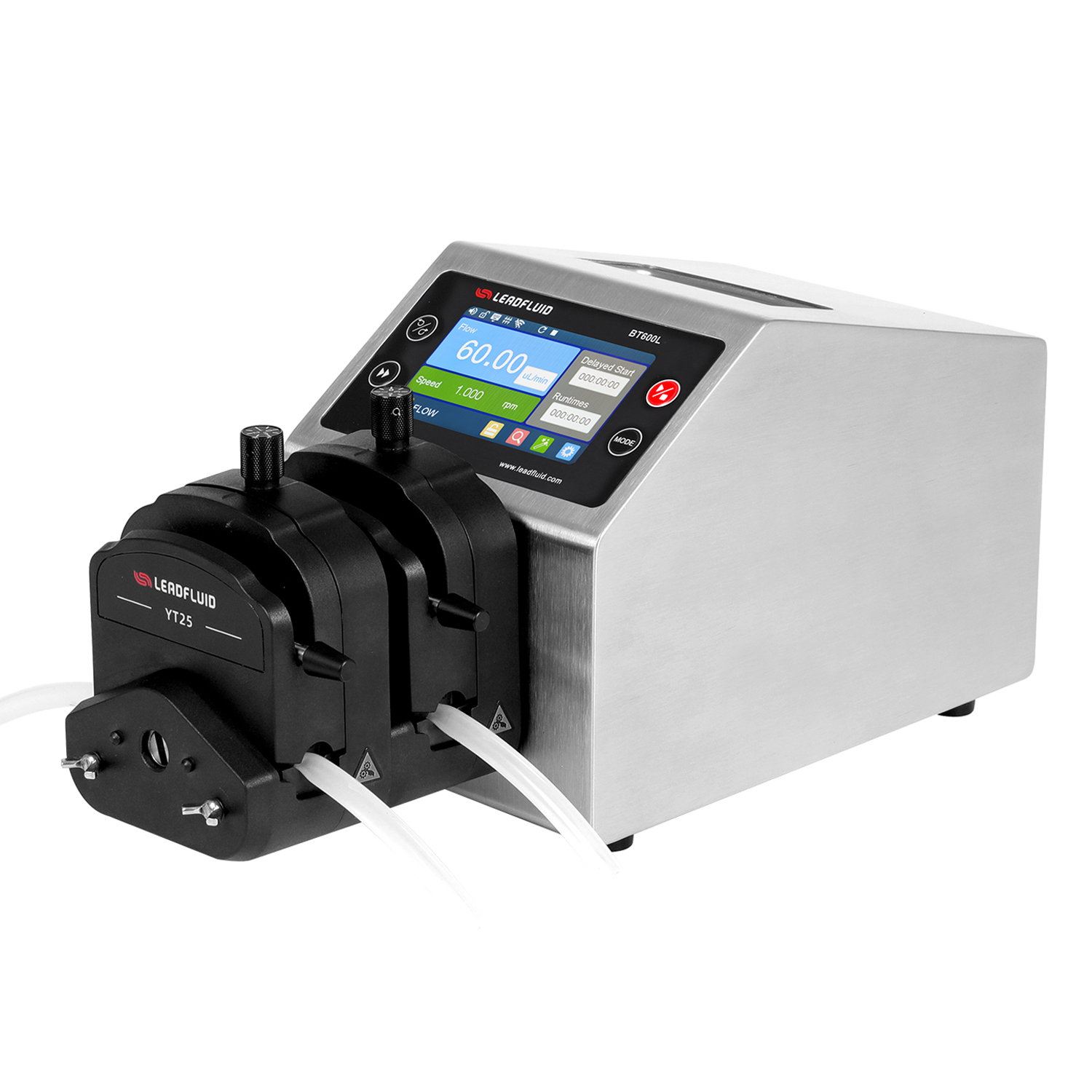

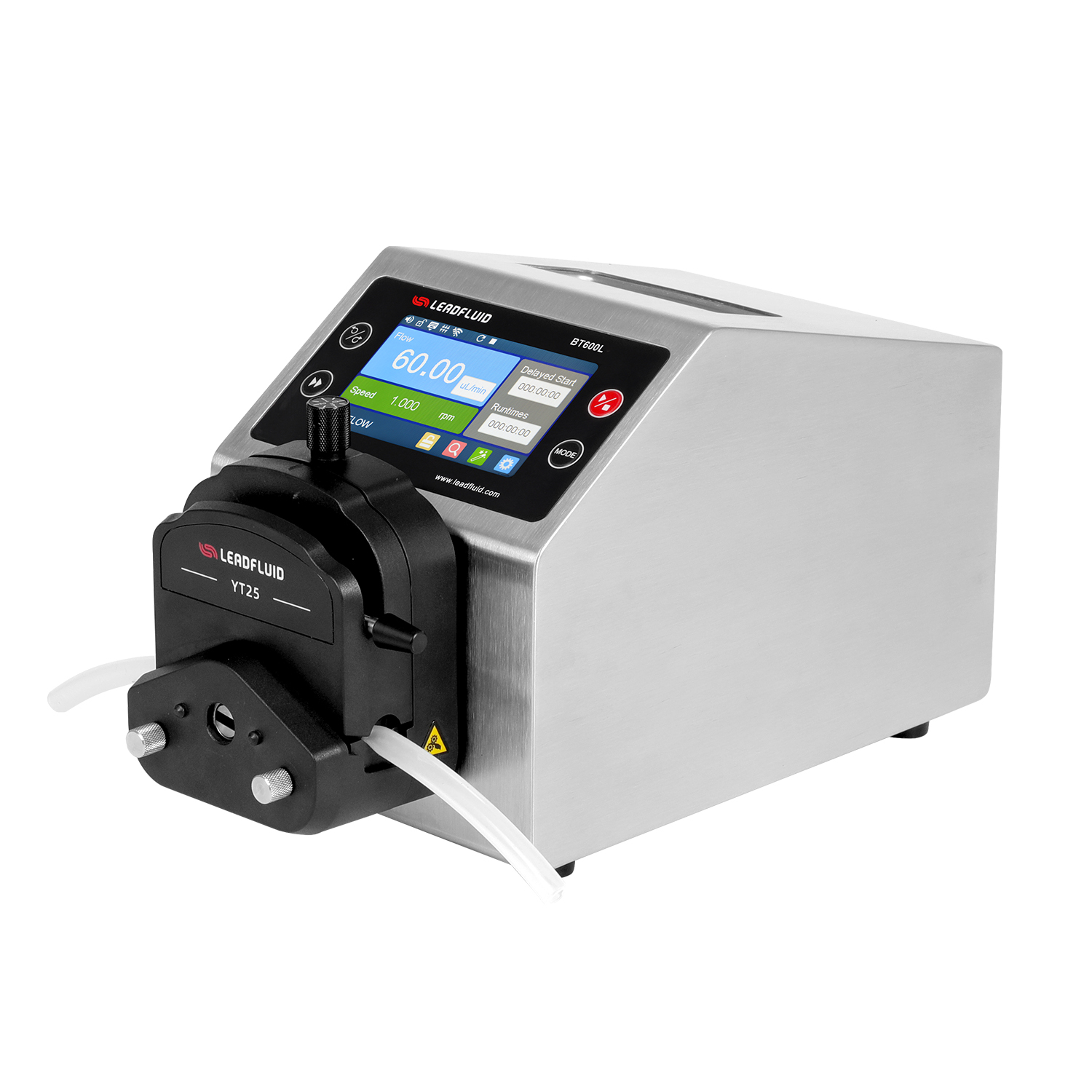

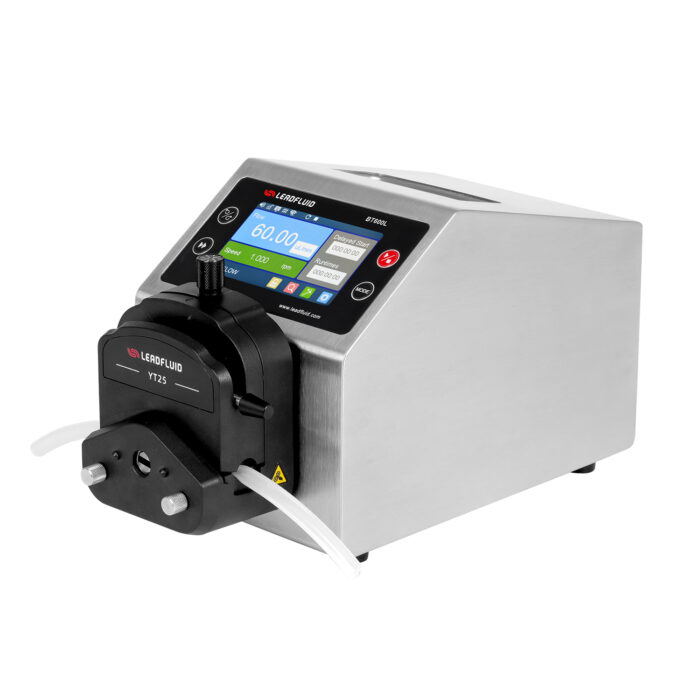

YT25 1,2 114#116#15#24#35#36# 0.024~3000

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

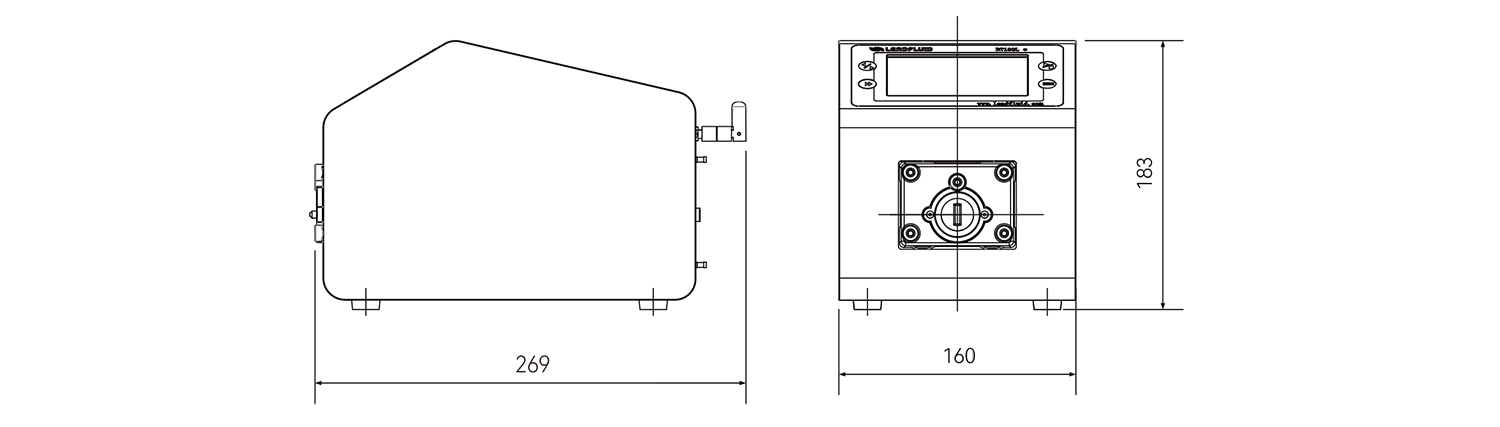

Dimension (mm)

Statement:The final explanation right of above information belongs to Lead Fluid.
