BQ80S Microflow Variable-Speed Peristaltic Pump

Functions and Features Simple operation, portable size, easy to install. Suitable for equipment as an ancillary device and for laboratory use. 0.5% high precision rotating speed control with 0.1 rpm speed resolution. Speed range 0.1-80 rpm. The lifetime of the built-in Pharmed BPT tubing is up to 12000 hours for continuous running. Four-digit LED displays working speed and control mode. Membrane keypad. Reversible direction, start/stop, adjustable speed. Time dispense function. Repeat dispensing by setting the dispense duration time. Plastic housing, embedded design to work independently. The circuit board with conformal coating makes it dust-proof and moisture-proof. External logic level signal can control start/stop, direction and dispense function. External analog signal can adjust the rotating speed. Signal is optically isolated. MODBUS RS485 interface, easy to communicate with external control devices. Optional footswitch or timer for dispensing fluid. Specifications Flow range: 0.0004-77 mL/min Speed range: 0.1-80 rpm Speed accuracy: 0.5% Speed resolution: 0.1 rpm Power supply: AC 100-240V, 50Hz/60Hz Power consumption: < 10W External logic level control signal: 5V, 12V (standard), 24V (optional) External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional) External communication interface: MODBUS RS485 Ambient temperature: 0-40 °C Relative humidity: < 80% IP grade: IP31 Dimensions (L x W x H): 112mm x 96mm x 96mm (4.4 x 3.8 x 3.8 inch) Weight: 0.8 kg (1.8 lbs) BQ80S Suitable pump heads and tubing, flow parameters Drive type Pump head ch Tubing size(mm) Flow rate(mL/min) per channel BQ80S (Pump heads notinter changeable) FZ10 1 WALL:0.8-1 ID:≤3.17 0.05-40 DW10-1 1 WALL:0.8-1 ID: ≤3.17 0.005-32 DW10-2 2 WALL:0.8-1 ID: ≤2.54 0.005-19 DW10-3 3 WALL:0.85-1 ID: ≤3.17 0.005-32 DW15-1 1 13#14#16#19#25# 0.004-64 KD10-1 1 WALL:0.85-1 ID: ≤3.17 0.004-32 KD10-2 2 WALL:0.85-1 ID: ≤3.17 0.004-32 KD15-1 1 13#14#16#19#25# 0.004-77

BT50S Microflow Variable-Speed Peristaltic Pump

Functions and Features Four-digit LED displays speed and working mode. LED indicator shows working state. Membrane keypad. Reversible direction, start/stop control and adjustable speed. Easy Dispense Mode. 0.5% high precision rotating speed control with 0.1 rpm speed. External logic level signal can control start/stop, direction and dispense function; external analog signal can adjust the rotating speed. Signal is optically isolated. With RS485 MODBUS interface, easy to communicate with external device. Internal double-deck isolation structure; circuit board with conformal coating makes it dust-proof and moisture-proof. Anti-electromagnetic interference feature, wide input voltage range for complex power environment. Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents. Specifications Flow range: 0.00011-190 mL/min Speed accuracy: 0.5% Speed range: 0.1-50 rpm Speed resolution: 0.1 rpm Power supply: AC 220V ± 10%, 50Hz/60Hz (standard); AC 110V ± 10%, 50Hz/60Hz (optional) Power consumption: < 25W External logic level control signal: 5V, 12V (standard), 24V (optional). External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional) External communication interface: RS485 MODBUS Ambient temperature: 0-40 °C Relative humidity: < 80% IP grade: IP31 Dimensions (L x W x H): 225 x 132 x 128 mm (8.86 x 5.20 x 5.04 inch) Weight: 2.7 kg (6.0 lbs) BT50S Suiable Pump Heads and Tubings, Flow Parameters Drive type Pump head Ch Tubing size (mm) Flow rate per channel (mL/min) BT50S (304SS case) DG10-1 (10 rollers) 1 Wall:0.8~1, ID:≤3.17 0.0001-24.5 DG10-2 (10 rollers) 2 Wall:0.8~1, ID:≤3.17 0.0001-24.5 DT10-18 2 Wall:0.8~1, ID:≤3.17 0.0002-41 DT10-28 2 Wall:0.8~1, ID:≤3.17 0.0002-41 YZ15 1 13# 14# 16# 19# 25# 17# 0.006-140 YT15 1 13# 14# 16# 19# 25# 17#1 8# 0.006-190

BT102S Microflow Variable-Speed Peristaltic Pump

Functions and Features Four-digit LED displays speed and working mode. LED indicator shows working state. Membrane keypad. Reversible direction, start/stop control and adjustable speed. Easy Dispense Mode. 0.5% high precision rotating speed control with 0.1 rpm speed. External logic level signal can control start/stop, direction and dispense function; external analog signal can adjust the rotating speed. Signal is optically isolated. With RS485 MODBUS interface, easy to communicate with external device. Internal double-deck isolation structure; circuit board with conformal coating makes it dust-proof and moisture-proof. Anti-electromagnetic interference feature, wide input voltage range for complex power environment. Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents. Specifications Flow range: 0.00011-480 mL/min Speed accuracy: 0.5% Speed range: 0.1-100 rpm Speed resolution: 0.1 rpm Power supply: AC 220V ± 10%, 50Hz/60Hz (standard); AC 110V ± 10%, 50Hz/60Hz (optional) Power consumption: < 25W External logic level control signal: 5V, 12V (standard), 24V (optional). External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional) External communication interface: RS485 MODBUS Ambient temperature: 0-40 °C Relative humidity: < 80% IP grade: IP31 Dimensions (L x W x H): 225 x 132 x 128 mm (8.86 x 5.20 x 5.04 inch) Weight: 2.7 kg (6.0 lbs) BT102S Suitable Pump Heads and Tubings, Flow Parameters Drive type Pump head Ch Tubing size (mm) Flow rate per channel (mL/min) BT102S (304SS case) DG 1.2 Wall:0.8~1, ID:≤3.17 0.0001-49 DT10-18 1 13# 14# , Wall:0.8~1, ID:≤3.17 0.0002-82 DT10-28 2 13# 14# , Wall:0.8~1, ID:≤3.17 0.0002-82 YZ15 1 13# 14# 16# 19# 25# 17# 0.006-280 YZ25 1 15# 24# 0.16-280 YT15 1 13# 14# 16# 19# 25# 17# 0.006-380 YT25 1 15# 24# 35# 36# 0.16-480

BT100S Basic Variable-Speed Peristaltic Pump

Functions and Features LCD displays rotating speed and working mode. Membrane keypad. Reversible direction, start/stop control and adjustable speed. Time dispense mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles. 0.5% high precision rotating speed control with 0.1 rpm speed resolution when speed is between 0-100 rpm, 1 rpm speed resolution when speed is between 100-600 rpm. External logic level signal can control start/stop, direction and dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated. With RS485 MODBUS interface, easy to communicate with external device. Internal double-layer isolation structure; circuit board with conformal coating makes the pump dust-proof and moisture proof. Anti-electromagnetic interference feature, wide input voltage range for complex power environment. Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents. Specifications Flow range: 0.00011-720 mL/min Speed range: 0.1-150 rpm Speed resolution: 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution Speed accuracy: 0.5% Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz Power consumption: < 40W External logic level control signal: 5V, 12V (standard), 24V (optional). External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional) Communication interface: RS485 MODBUS Operating condition: Temperature 0~40°C; Relative humidity <80% IP grade: IP31 Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch) Weight: 4.7 kg (10.4 lbs) BT100S Suitable Pump Heads and Tubing, Flow Parameters Drive type Pump head Ch Tubing size ( mm ) Flow rate per channel (mL/min) BT100S (304SS case) DG6-1 (6rollers) 1 Wall:0.8-1, ID:≤3.17 0.0001-49 DG10-1 (10rollers) 1 Wall:0.8-1, ID:≤3.17 0.0001-41 DG6-2 (6rollers) 2 Wall:0.8-1, ID:≤3.17 0.0001-49 DG10-2 (10rollers) 2 Wall:0.8-1, ID:≤3.17 0.0001-41 DG6-4 (6rollers) 4 Wall:0.8-1, ID:≤3.17 0.0001-49 DG10-4 (10rollers) 4 Wall:0.8-1, ID:≤3.17 0.0001-41 DT10-18 1 13# 14# , Wall: 0.8-1, ID:≤3.17 0.0002-82 DT10-28 2 13# 14# , Wall: 0.8-1, ID:≤3.17 0.0002-82 DT10-48 4 13# 14# , Wall: 0.8-1, ID:≤3.17 0.0002-82 YZ15 1 13# 14# 16# 19# 25# 17# 0.006-420 YZ25 1 15# 24# 0.16-420 2 x YZ15 2 13# 14# 16# 19# 25# 17# 0.006-420 2 x YZ25 2 15# 24# 0.16-420 YT15 1 13# 14# 16# 19# 25# 17# 18# 0.006-570 YT25 1 15# 24# 35# 36# 0.16-720 2 x YT15 2 13# 14# 16# 19# 25# 17# 18# 0.006-570 2 x YT25 2 15# 24# 35# 36# 0.16-720

BT101S Basic Variable Speed Peristaltic Pump

Functions and Features Four digits LED indicator displays working speed. LED indicator displays the internal control, external control, footswitch and other working mode. Membrane keypad operation. Reversible direction, start/stop, full speed. Running parameters stored automatically. Easy dispensing function, repeats liquid dispensing by time or volume. Can drive multi-channels and various types of pump heads. The circuit board with conformal coating makes it dust-proof and moisture-proof. Anti-interference feature, wide input voltage range for complex power environment. External on/off voltage signal controls start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotating speed. RS485 MODBUS interface, easy to be controlled by external device. Optional footswitch or timer for dispensing fluid. Specifications Flow range: 0.00011-720 mL/min Speed range: 0.1-150 rpm Speed resolution: 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution Flow accuracy: 0.5% Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz Power consumption: < 30W External control on/off signal: 5V, 12V (standard), 24V (optional). External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional) Communication interface: RS485 MODBUS interface Operating condition: Temperature 0-40°C; Relative humidity <80% IP grade: IP31 Dimensions (L x W x H): 260 x 181 x 198 mm (10.2 x 7.1 x 7.8 inch) Weight: 4.5 kg (10 lbs) BT101S Applicable Pump Heads and Tubings, Flow Parameters Drive type Pump head CH Tubing size ( mm ) Flow rate (mL/min) per channel BT101S (ABS Plastic case) DG6-1 (6rollers) 1 Wall:0.8~1, ID:≤3.17 0.0001-49 DG10-1 (10rollers) 1 Wall:0.8~1, ID:≤3.17 0.0001-41 DG6-2 (6rollers) 2 Wall:0.8~1, ID:≤3.17 0.0001-49 DG10-2 (10rollers) 2 Wall:0.8~1, ID:≤3.17 0.0001-41 DG6-4 (6rollers) 4 Wall:0.8~1, ID:≤3.17 0.0001-49 DG10-4 (10rollers) 4 Wall:0.8~1, ID:≤3.17 0.0001-41 DT10-18 1 13# 14# , Wall:0.8~1, ID:≤3.17 0.0002-82 DT10-28 2 13# 14# , Wall:0.8~1, ID:≤3.17 0.0002-82 YZ15 1 13# 14# 16# 19# 25# 17# 0.006-420 YZ25 1 15# 24# 0.16-420 YT15 1 13# 14# 16# 19# 25# 17# 18# 0.006-570 YT25 1 15# 24# 35# 36# 0.006-720

BT100S-1 Basic Variable Speed Peristaltic Pump

Functions and Features Four digits LED indicator displays working speed. LED indicator displays the internal control, external control, footswitch and other working mode. Membrane keypad operation. Reversible direction, start/stop, full speed. Running parameters stored automatically. Easy dispensing function, repeats timing quantitative liquid dispensing. When 0.1-100 rpm, speed resolution 0.1 rpm; when 100-150 rpm, speed resolution 1 rpm. Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents. Can drive multi-channels and various types of pump heads. The circuit board with conformal coating makes it dust-proof and moisture-proof. Anti-interference feature, wide input voltage range for complex power environment. External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed. RS485 MODBUS interface available. Specifications Flow range: 0.00011-1700 mL/min Speed range: 0.1-150 rpm Speed resolution (rpm): 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution Speed accuracy: 0.5% Power supply: AC 220V ± 10% 50Hz/60Hz (standard); AC 110V ± 10% 50Hz/60Hz (optional) Power consumption: < 40W External control: Input level 5V, 12V (standard), 24V (optional). External control analog 0-5V (standard); 0-10V, 4-20mA (optional) Communication interface: RS485 communication interface, MODBUS protocol is available Operating condition: Temperature 0-40°C; Relative humidity <80% IP grade: IP31 Dimensions (L x W x H): 285 x 150 x 195 mm (11.2 x 5.9 x 7.7 inch) Weight: 6.5 kg (14.3 lbs) BT100S-1 Applicable Pump Heads and Tubings, Flow Parameters Drive type Pump head Ch Tubing size ( mm ) Flow rate per channel (mL/min) BT100S-1 DG6-8 (6rollers) 8 Wall:0.8~1, ID:≤3.17 0.0001-49 DG10-8 (10rollers) 8 Wall:0.8~1, ID:≤3.17 0.0001-41 DG6-12 (6rollers) 12 Wall:0.8~1, ID:≤3.17 0.0001-49 DG10-12 (10rollers) 12 Wall:0.8~1, ID:≤3.17 0.0001-41 DG6-16 (6rollers) 16 Wall:0.8~1, ID:≤3.17 0.0001-49 DG10-16 (10rollers) 16 Wall:0.8~1, ID:≤3.17 0.0001-41 DG6-24 (6rollers) 24 Wall:0.8~1, ID:≤3.17 0.0001-49 DG10-24 (10rollers) 24 Wall:0.8~1, ID:≤3.17 0.0001-41 DT10-88 8 13# 14#, Wall:0.8~1, ID:≤3.17 0.0002-82 YZ15 1 13# 14# 16# 19# 25# 17# 0.006-420 YZ25 1 15# 24# 0.16-420 2 x YZ15 2 13# 14# 16# 19# 25# 17# 0.006-420 2 x YZ25 2 15# 24# 0.16-420 4 x YZ15 4 13# 14# 16# 19# 25# 17# 0.006-420 4 x YZ25 4 15# 24# 0.16-420 KZ25 1 15# 24# 35# 36# 1-1700 2 x KZ25 2 15# 24# 35# 36# 1-1700 DT15-44 4 19# 16# 25# 17# 0.05-400 YT15 1 13# 14# 16# 19# 25# 17# 18# 0.006-570 YT25 1 15# 24# 35# 36# 0.006-720 2 x YT15 2 13# 14# 16# 19# 25# 17# 18# 0.006-570 2 x YT25 2 15# 24# 35# 36# 0.006-720 4 x YT15 4 13# 14# 16# 19# 25# 17# 18# 0.006-570 4 x YT25 4 15# 24# 35# 36# 0.006-720

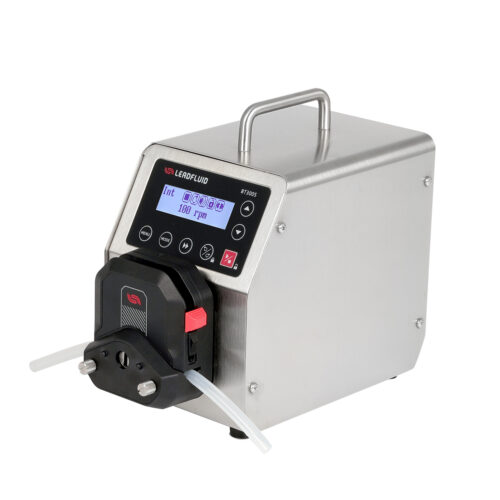

BT300S Basic Variable Speed Peristaltic Pump

Functions and Features LCD displays rotating speed and working mode. Membrane keypad. Reversible direction, start/stop control and adjustable speed. Time dispense mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles. 0.5% high precision rotating speed control with 0.1 rpm speed resolution when speed is between 0-100 rpm, 1 rpm speed resolution when speed is between 100-600 rpm. External logic level signal can control start/stop, direction and dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated. With RS485 MODBUS interface, easy to communicate with external device. Internal double-layer isolation structure; circuit board with conformal coating makes the pump dust-proof and moisture proof. Anti-electromagnetic interference feature, wide input voltage range for complex power environment. Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents. Specifications Flow range: 0.006-1600 mL/min Speed range: 0.1-350 rpm Speed resolution: between 0.1-100 rpm, 0.1 rpm resolution; between 100-350 rpm, 1 rpm resolution Speed accuracy: 0.5% Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz Power consumption: < 50W External logic level control signal: 5V, 12V (standard), 24V (optional) External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional) Communication interface: RS485 MODBUS Operating condition: Temperature 0~40°C; Relative humidity < 80% IP grade: IP31 Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch) Weight: 4.9 kg (10.8 lbs) BT300S Suitable Pump Heads and Tubing, Flow Parameters Drive type Pump head ch Tubing size (mm) Flow rate per channel (mL/min) BT300S (304SS case) YZ15 1 13# 14# 16# 19# 25# 17# 0.006-990 YZ25 1 15# 24# 0.16-990 2 x YZ15 2 13# 14# 16# 19# 25# 17# 0.006-990 2 x YZ25 2 15# 24# 0.16-990 DT15-24 2 19# 16# 25# 17# 0.05-930 YT15 1 13# 14# 16# 19# 25# 17# 18# 0.006-1300 YT25 1 15# 24# 35# 36# 0.16-1600 2 x YT15 2 13# 14# 16# 19# 25# 17# 18# 0.006-1300

BT301S Basic Variable Speed Peristaltic Pump

Functions and Features Four digit digital LED indicator displays working speed. LED indicator displays the internal control, external control, footswitch or other working mode. Membrane keypad operation. Reversible direction, start/stop, full speed. Running parameters stored automatically. Easy dispensing function, repeats liquid dispensing by time or volume. ABS plastic housing, patent protection, creative streamlined appearance. Can drive multi-channels and various types of pump heads. The circuit board with conformal coating makes it dust-proof and moisture-proof. Anti-interference feature, wide input voltage range for complex power environment. External on/off voltage control signal controls start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog control signal adjusts the rotating speed. With RS485 MODBUS interface, easy to be controlled by external devices. Optional footswitch or timer for dispensing fluid. Specifications Flow range: 0.006-1600 mL/min Flow accuracy: 0.5%. Speed range: 0.1-350rpm Speed resolution: between 0.1-100 rpm, the speed resolution is 0.1 rpm; between100-350 rpm, the speed resolution is 1 rpm Power supply: AC 220V±10%, 50Hz/60Hz (standard); AC 110V±10%, 50Hz/60Hz (optional) Power consumption: < 40W External control on/off signal: 5V, 12V (standard), 24V(optional). External analog control signal: 0-5V(standard), 0-10V, 4-20mA(optional) Communication interface: RS485 MODBUS. Ambient temperature: 0-40°C Relative humidity: < 80% IP grade: IP31 Dimensions (L x W x H): 260 x 181 x198mm (10.2 x 7.1 x 7.8 inch) Weight: 4.7 kg (10.4 lbs) BT301S Applicable Pump Heads and Tubings, Flow Parameters Drive type Suitable pump heads channel Tubing size (mm) Flow rate (mL/min) per channel BT301S (ABS) YZ15 1 13# 14# 16# 19# 25# 17# 0.006-990 YZ25 1 15# 24# 0.16-990 YT15 1 13# 14# 16# 19# 25# 17# 18# 0.006-1300 YT25 1 15# 24# 35# 36# 0.16-1600

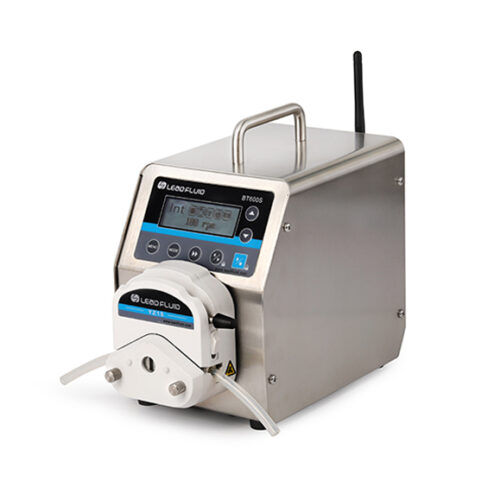

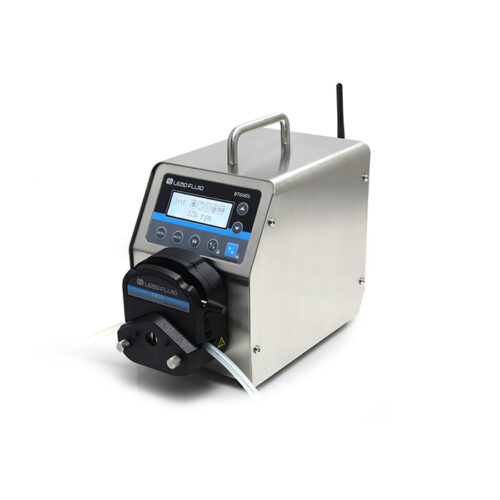

BT600S Basic Variable-Speed Peristaltic Pump

Functions and Features LCD displays rotating speed and working mode. Membrane keypad. Reversible direction, start/stop control and adjustable speed. Time dispense mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles. 0.5% high precision rotating speed control with 0.1 rpm speed resolution when speed is between 0-100 rpm, 1 rpm speed resolution when speed is between 100-600 rpm. External logic level signal can control start/stop, direction and dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated. With RS485 MODBUS interface, easy to communicate with external device. Internal double-layer isolation structure; circuit board with conformal coating makes the pump dust-proof and moisture proof. Anti-electromagnetic interference feature, wide input voltage range for complex power environment. Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents. Specifications Flow range: 0.006-2900 mL/min Speed range: 0.1-600 rpm Speed resolution: between 0.1-100 rpm, 0.1 rpm resolution; between 100-600 rpm, 1 rpm resolution Speed accuracy: 0.5% Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz Power consumption: < 60W External logic level control signal: 5V, 12V (standard), 24V (optional) External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional) Communication interface: RS485 MODBUS interface Operating condition: Temperature 0-40°C; Relative humidity < 80% IP grade: IP31 Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch) Weight: 5.2 kg (11.5 lbs) BT600S Suitable Pump Heads and Tubings, Flow Parameters Drive type Pump head Ch Tubing size Flow rate per channel (mL/min) BT600S (304SS case) YZ15 1 13# 14# 16# 19# 25# 17# 0.006-1700 YZ25 1 15# 24# 0.16-1700 2 x YZ15 2 13# 14# 16# 19# 25# 17# 0.006-1700 2 x YZ25 2 15# 24# 0.16-1700 DT15-24 2 19# 16# 25# 17# 0.05-1600 YT15 1 13# 14# 16# 19# 25# 17# 18# 0.006-2300 YT25 1 15# 24# 35# 36# 0.16-2900 2 x YT15 2 13# 14# 16# 19# 25# 17# 18# 0.006-2300

BT601S Basic Variable Speed Peristaltic Pump

Functions and Features Four digits LED indicator displays working speed. LED indicator displays the internal control, external control, footswitch or other working mode. Membrane keypad operation. Reversible direction, start/stop, full speed. Running parameters stored automatically (power-off memory). Easy dispensing function, repeats liquid dispensing by time Drive multi-channels and various types of pump heads. The circuit board with conformal coating makes it dust-proof and moisture-proof. Anti-interference feature, wide input voltage range for complex power environment. External on/off voltage signal controls start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog control signal adjusts the rotating speed. RS485 MODBUS interface, easy to be controlled by external device. Optional footswitch or timer for dispensing fluid. Specifications Flow range: 0.006-2900 mL/min Speed range: 0.1-600 rpm Speed resolution: between 0.1-100 rpm, 0.1 rpm resolution; betweem 100-600 rpm, 1 rpm resolution Flow accuracy: 0.5% Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz Power consumption: < 50W External control on/off signal: 5V, 12V (standard), 24V (optional). external analog control signal control signal: 0-5V (standard); 0-10V, 4-20mA (optional) Communication interface: RS485 MODBUS interface Operating condition: Temperature 0~40°C; Relative humidity <80% IP grade: IP31 Dimensions (L x W x H): 260 x 181 x 198 mm (10.2 x 7.1 x 7.8 inch) Weight: 4.9 kg (10.9 lbs) BT601S Applicable Pump Heads and Tubings, Flow Parameters Drive type Pump head Channel Tubing size ( mm ) Flow rate (mL/min) per channel BT601S (ABS Plastic case) YZ15 1 13# 14# 16# 19# 25# 17# 0.006-1700 YZ25 1 15# 24# 0.16-1700 YT15 1 13# 14# 16# 19# 25# 17# 18# 0.006-2300 YT25 1 15# 24# 35# 36# 0.16-2900

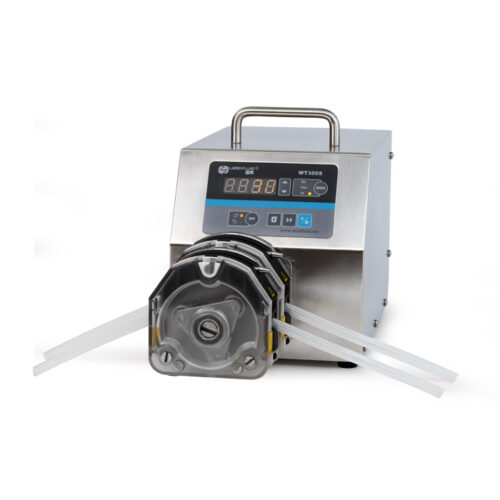

WT300S Basic Variable-Speed Peristaltic Pump

Functions and Features Four digits LED indicator display working speed. The LED indicator displays the internal, external control, footswitch etc working modes. Membrane keypad operation. Reversible direction, start/stop, adjustable speed and full speed, power-off memory function Easy dispensing functions, repeats liquid dispensing by time or volume. Can drive multi-channels and various types of pump heads. Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents. The circuit board with conformal coating makes it dust-proof and moisture-proof. Anti-interference feature, wide input voltage range for complex power environment. External on/off voltage signal controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog control signal adjusts the rotate speed. RS485 MODBUS interface, easy to be controlled by external device. Optional footswitch or timer for dispensing fluid. Specifications Flow range: 3-3500 mL/min Speed range: 30-350 rpm/min Speed resolution(rpm): 1 rpm Flow accuracy: 3% Power supply: AC 220V+/-10%, 50Hz/60Hz; AC 100V+/-10%, 50Hz/60Hz Power consumption: <200W External logic level control signal: 5V, 12V (standard), 24V (optional) External analog control signal: 0-5V (standard), 0-10V, 4-20mA (optional) Communication interface: RS485 MODBUS interface Operating condition: 0~40 °C Relative humidity: < 80% IP grade: IP31 Dimensions (L x W x H): 286mm x 180mm x 230mm (11.3 inch x 7.1 inch x 9.1 inch) Weight: 6.2kg (13.9 lbs) WT300S Suitable Pump Heads and Tubing, Flow Parameters Drive type Pump head Ch Tubing size Flow rate per channel (mL/min) WT300S YZ15 1 13# 14# 16# 19# 25# 17# 3-990 YZ25 1 15# 24# 50-990 2 x YZ15 2 13# 14# 16# 19# 25# 17# 3-990 2 x YZ25 2 15# 24# 50-990 4 x YZ15 4 13# 14# 16# 19# 25# 17# 3-990 4 x YZ25 4 15# 24# 50-990 YT15 1 13# 14# 16# 19# 25# 17# 18# 3-1300 YT25 1 15# 24# 35# 36# 50-1600 2 x YT15 2 13# 14# 16# 19# 25# 17# 18# 3-1300 2 x YT25 2 15# 24# 35# 36# 50-1600 4 x YT15 4 13# 14# 16# 19# 25# 17# 18# 3-1300 4 x YT25 4 15# 24# 35# 36# 50-1600 DT15-24 2 16# 19# 25# 17# 14-930 DT15-44 4 16# 19# 25# 17# 14-610 KZ25 1 15# 24# 35# 36# 80-3500 2 x KZ25 2 15# 24# 35# 36# 80-3500

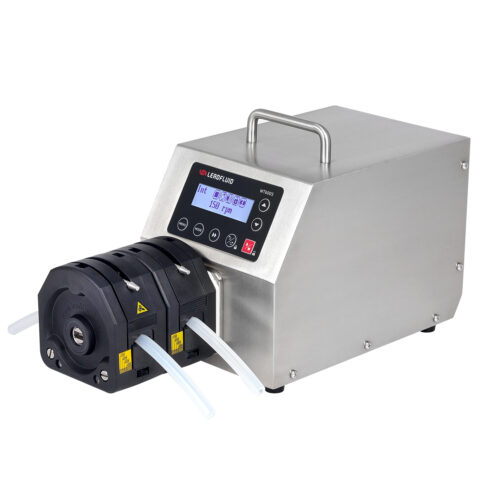

WT600S Basic Variable-Speed Peristaltic Pump

Functions and Features Four digits LED indicator displays working speed. The LED indicator shows the working mode: internal control, external control or footswitch. Membrane keypad operation. Reversible direction, start/stop, adjust speed and full speed, state memory (power-off memory). Easy dispensing functions, it can repeat timing quantitative fluid dispensing. Can drive multi-channels and various types of pump heads. Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid ,alkali ,sodium and the organic solvents. The circuit board with conformal coating makes it dust-proof and moisture-proof. Super anti-interference feature, wide input voltage range, acceptable for the complex power environment. External high –low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog adjusts the rotate speed. RS485 interface, MODBUS protocol is available ,easy to connect with external device. Optional footswitch or timer for dispensing fluid. Specifications Flow range: 3-6000 mL/min Speed range: 30-600 rpm Speed resolution: 1 rpm Flow accuracy: 3% Power supply: AC 180-264V 50Hz/60Hz (standard); AC 90-132V 50Hz/60Hz (optional) Power consumption: <200W External on/off control voltage: 5V, 12V (standard), 24V (optional); External control analog signal: 0-5V (standard), 0-10V, 4-20mA (optional) Communication interface: RS485 MODBUS Operating condition: 0~40 °C Relative humidity: < 80% IP grade: IP31 Dimensions (L x W x H): 286mm x 180mm x 230mm (11.3 inch x 7.1 inch x 9.1 inch) Weight: 6.2kg (13.9 lbs) WT600S Applicable Pump Heads and Tubings, Flow Parameters Drive type Suitable pump heads channel Tubing size (mm) Flow rate (mL/min) per channel WT600S YZ15 1 13# 14# 16# 19# 25# 17# 3-1700 YZ25 1 15# 24# 50-1700 2 x YZ15 2 13# 14# 16# 19# 25# 17# 3-1700 2 x YZ25 2 15# 24# 50-1700 4 x YZ15 4 13# 14# 16# 19# 25# 17# 3-1700 4 x YZ25 4 15# 24# 50-1700 KZ25 1 15# 24# 35# 36# 80-6000 2 x KZ25 2 15# 24# 35# 36# 80-6000 DT15-24 2 16# 19# 25# 17# 14-1600 DT15-44 4 16# 19# 25# 17# 14-1600 YT15 1 13# 14# 16# 19# 25# 17# 18# 3-2300 YT25 1 15# 24# 35# 36# 50-2900 2 x YT15 2 13# 14# 16# 19# 25# 17# 18# 3-2300 2 x YT25 2 15# 24# 35# 36# 50-2900 4 x YT15 4 13# 14# 16# 19# 25# 17# 18# 3-2300 4 x YT25 4 15# 24# 35# 36# 50-2900

WT600S-65 Basic Variable-Speed Peristaltic Pump

Functions and Features Four digits LED indicator displays working speed. The LED indicator shows the working mode: internal control, external control or footswitch. Membrane keypad operation. Reversible direction, start/stop, adjust speed and full speed, state memory (power-off memory). Easy dispensing functions, it can repeat timing quantitative fluid dispensing. Can drive multi-channels and various types of pump heads. Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid ,alkali ,sodium and the organic solvents. The circuit board with conformal coating makes it dust-proof and moisture-proof. Super anti-interference feature, wide input voltage range, acceptable for the complex power environment. External voltage controls start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog adjusts the rotate speed. RS485 interface, MODBUS protocol is available ,easy to connect with external device. Optional footswitch or timer for dispensing fluid. Specifications Flow range: 3-6000 mL/min Speed range: 30-600 rpm Speed resolution: 1 rpm Flow accuracy: 3% Power supply: AC 180-264V 50Hz/60Hz (standard); AC 90-132V 50Hz/60Hz (optional) Power consumption: <200W External on/off control voltage: 5V, 12V (standard), 24V (optional); External control analog signal: 0-5V (standard), 0-10V, 4-20mA (optional) Communication interface: RS485 MODBUS Operating condition: 0-40 °C Relative humidity: < 80% IP grade: IP65 Dimensions (L x W x H): 330 x 220 x 235 mm (13.0 x 8.7 x 9.3 inch) Weight: 7.1kg (15.7 lbs) WT600S Applicable Pump Heads and Tubings, Flow Parameters Drive type Suitable pump heads channel Tubing size (mm) Flow rate (mL/min) per channel WT600S-65 YZ15 1 13# 14# 16# 19# 25# 17# 3-2300 YZ25 1 15# 24# 50-1700 2 x YZ15 2 13# 14# 16# 19# 25# 17# 3-1700 2 x YZ25 2 15# 24# 50-1700 KZ25 1 15# 24# 35# 36# 80-6000 DT15-24 2 19# 16# 25# 17# 14-1600 YT15 1 13# 14# 16# 19# 25# 17# 18# 3-2300 YT25 1 15# 24# 35# 36# 50-2900 2 x YT15 2 13# 14# 16# 19# 25# 17# 18# 3-2300 2 x YT25 2 15# 24# 35# 36# 50-2900
