BT100F-1 intelligent dispensing peristaltic pump provides flow range from 0.0001 to 1500 mL/min with variable pump heads and tubings. The color LCD touch screen provides intuitive and clear displaying interface. There are four operation modes available: volume dispensing mode for high accuracy dispensing; time dispensing mode for high productive efficiency; copy dispensing mode for separating fluid to number of equal parts; flow mode is the same as intelligent flow peristaltic pump. Large torque output to work with more pump head combinations. Intelligent temperature control technology reduces working noise. With standard MODBUS RS485 interface, the pump is easy to communicate with external device, such as PC, HMI or PLC. Stainless steel housing is easy to clean and corrosion resistant.

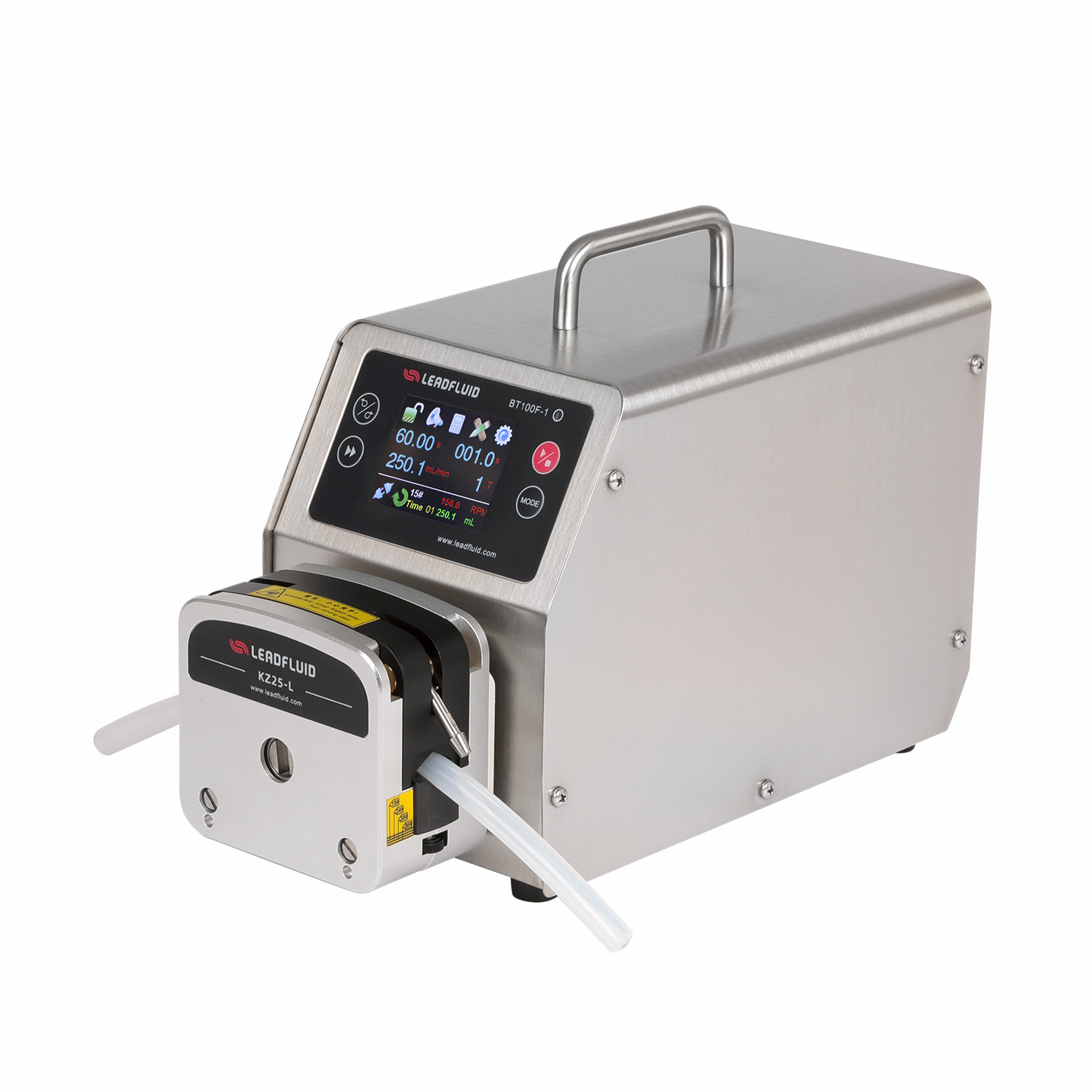

BT100F-1 Intelligent Dispensing Peristaltic Pump
Flow: 0.0001-1500ml/min
Max: 24 Channels
Warranty: 3 years for the peristaltic pump drive
Description
Functions and Features
- Color LCD displaying, touch screen and keypad for operating.
- LF-Touch-OS software system. color LCD display, touch screen and button operation, more friendly human-computer interaction.
- Multiple working modes, each dispensing mode can store five groups of working parameters.
- Precision micro step control technology reduces the traditional time control. Dispensing mode due to factors such as slow start of the motor and other dispensing errors.
- Start/stop, reversible direction, full speed, adjust speed, state memory (power-down-memory).
- Large torque output, cascading multiple pump heads.
- Display and control flow rate, accumulate dispensing volume automatically.
- Wizard flow calibrating function.
- The operating expert system guides users setting parameters correctly.
- Intelligent temperature-control technology reduces working noise
- External control controls the start/stop, reversible direction and dispensing function, optically coupled isolator,external analog adjusts the rotate speed.
- RS485 communication interface, MODBUS protocol is available, easy to connect other equipments.
- Internal double-deck isolation structure, circuit board with conformal coating makes it dust-proof and moisture-proof.
- Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
- 304 stainless steel shell, easy to clean, corrosion resistant.
- Can drive multi-channels and various types of pump heads.
- Connect foot switch control start-stop for dispensing fluid.
Specifications
- Flow range: 0.0001-1500 mL/min
- Speed range: 0.1-150 rpm
- Speed resolution: 0.1 rpm
- Speed accuracy: 0.2%
- Power supply: AC 100-240V,50Hz/60Hz
- Power consumption: < 60W
- External logic level control signal: 5V, 12V (standard), 24V (optional)
- External analog control signal: 0-5V (standard), 0-10V, 4-20mA (optional)
- Communication interface: MODBUS RS485
- Operating condition: 0~40 °C
- Relative humidity: < 80%
- IP grade: IP31
- Dimensions (L x W x H): 278mm × 150mm ×237mm (10.94 inch x 5.91 inch x 9.33 inch)
- Weight: 4.7kg (10.36 lbs)

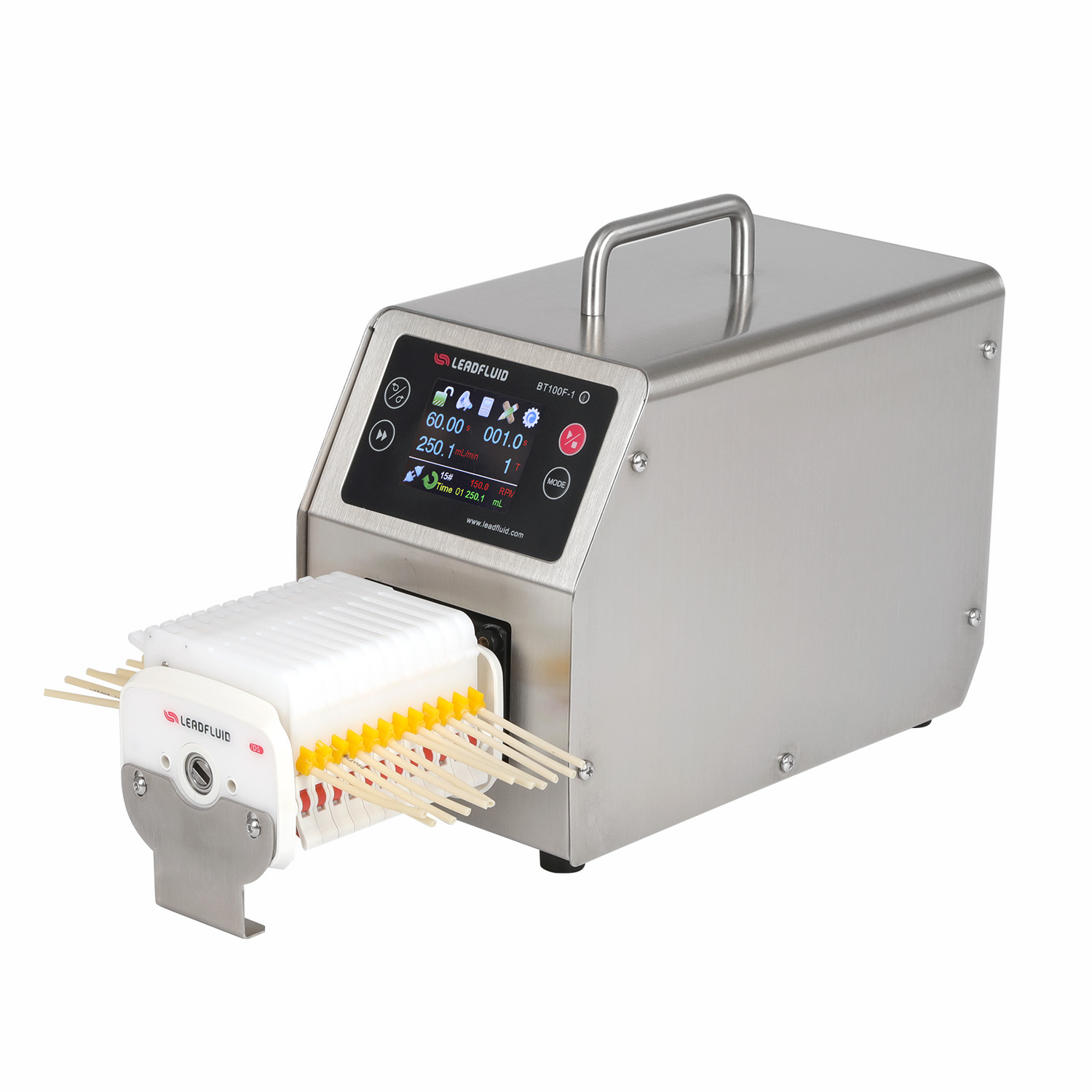

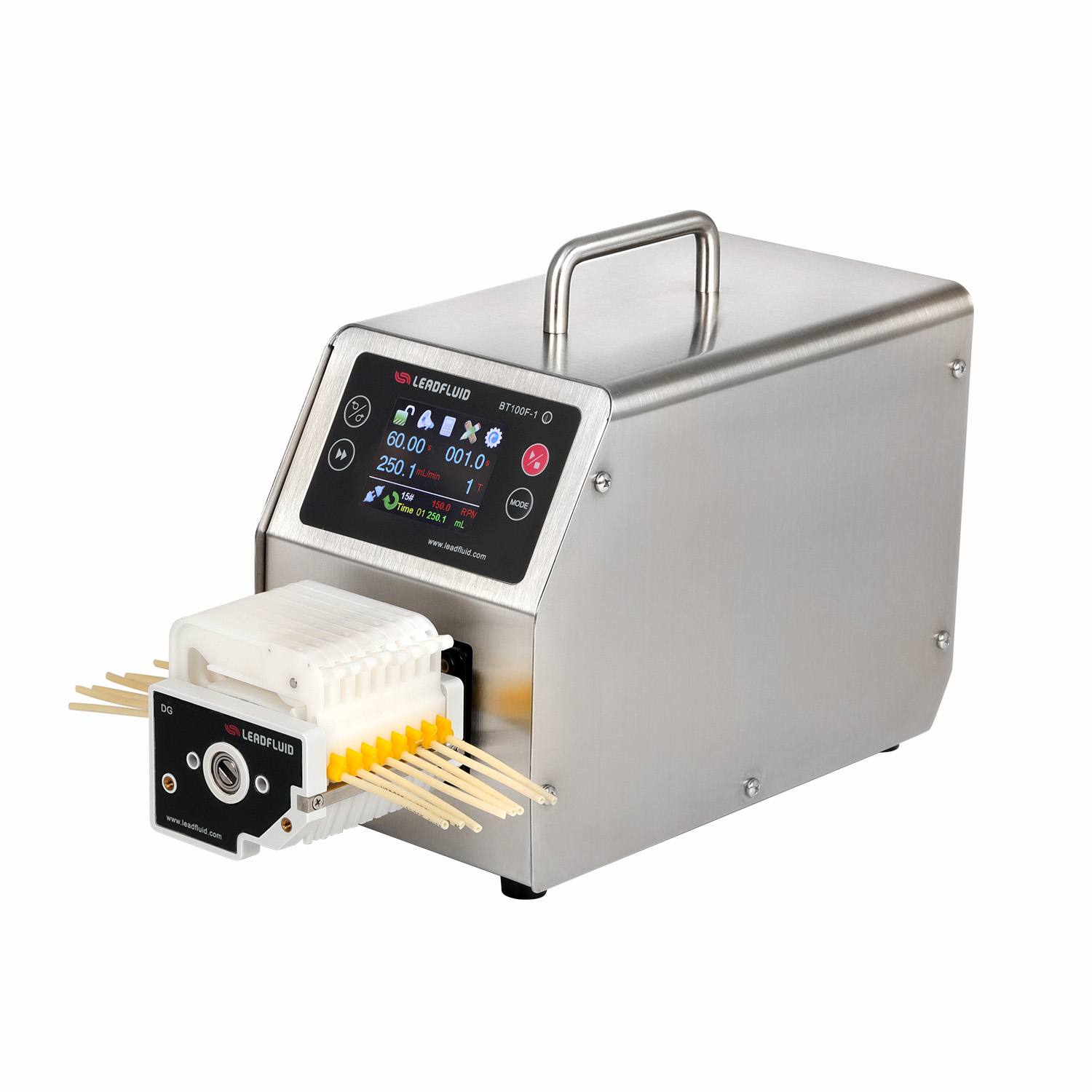

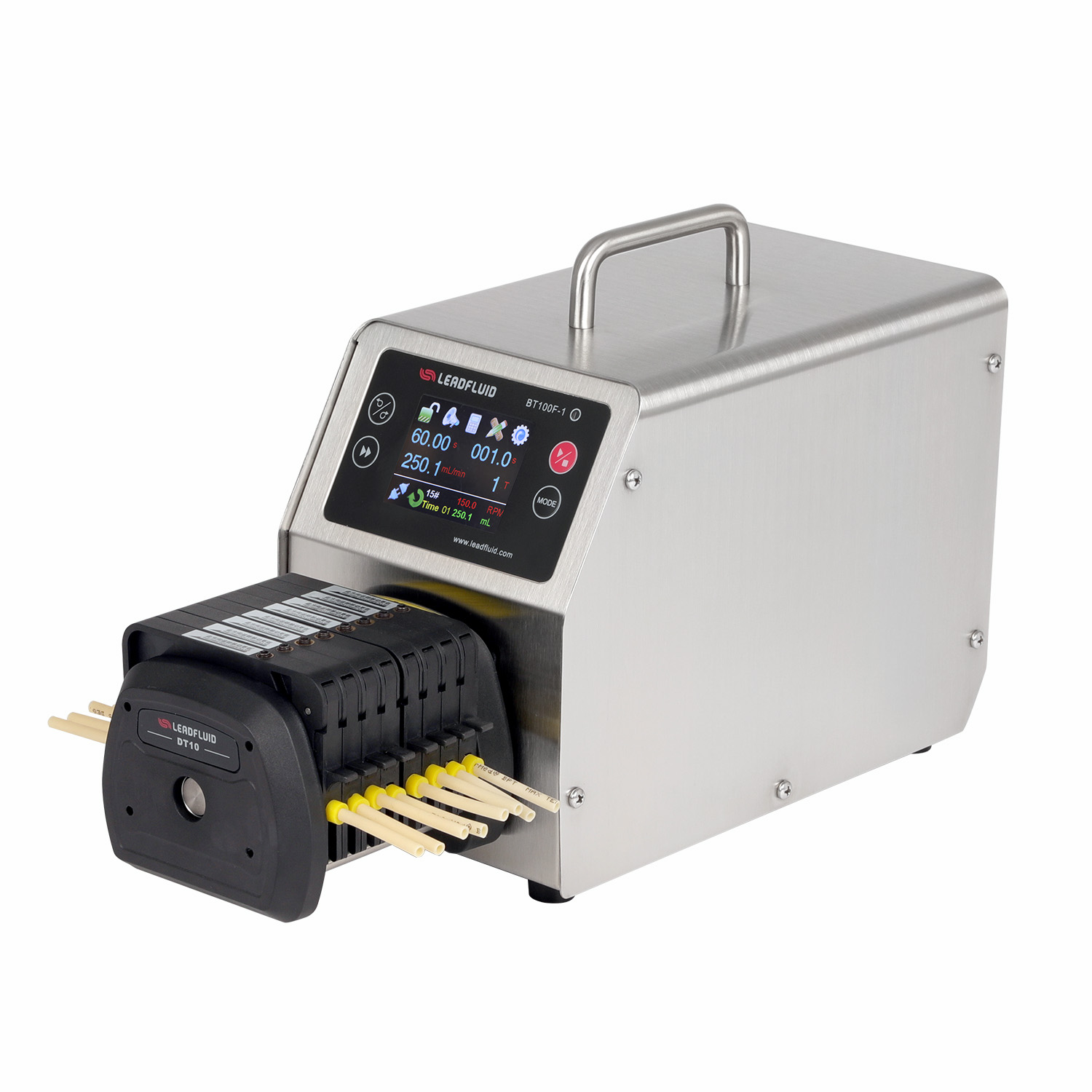

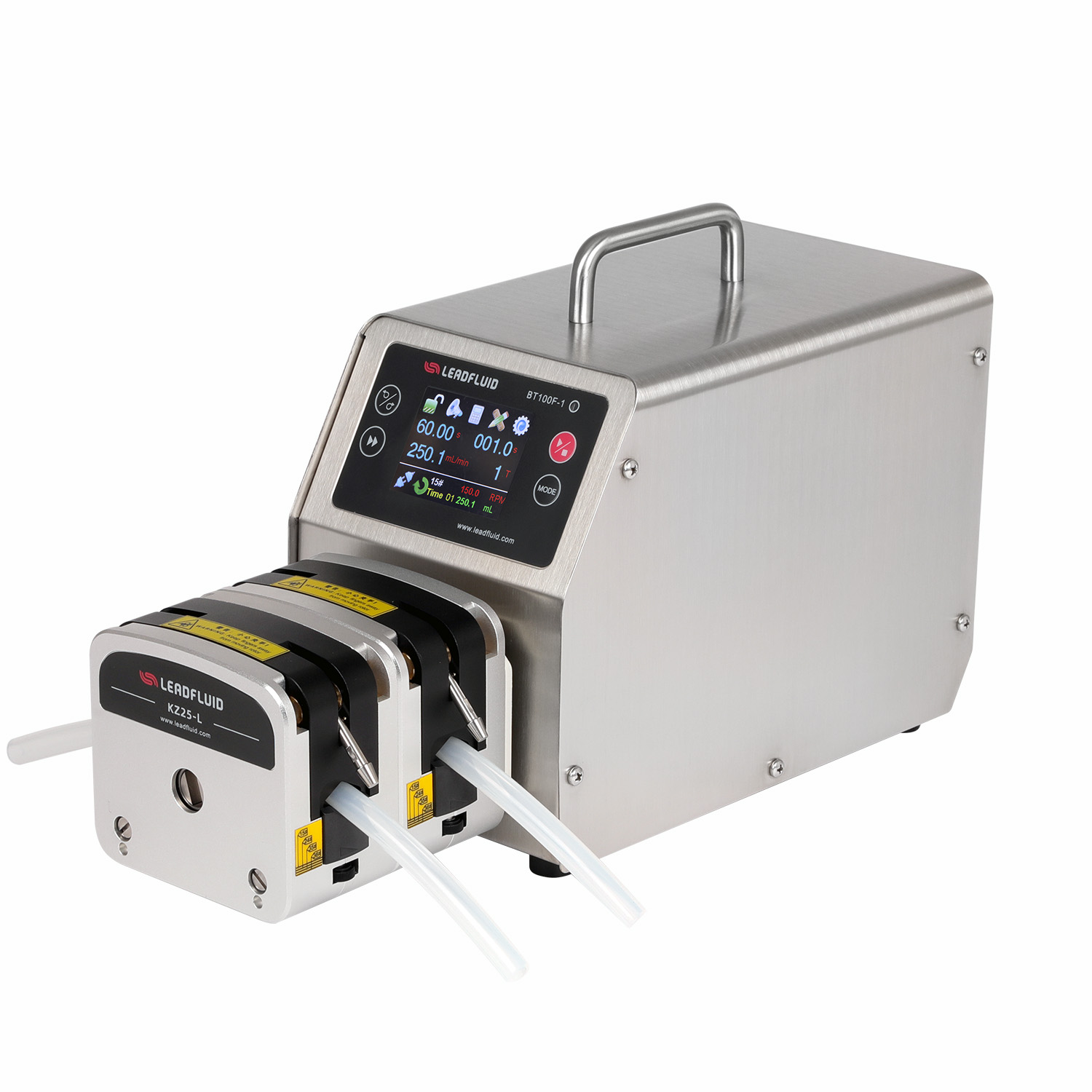

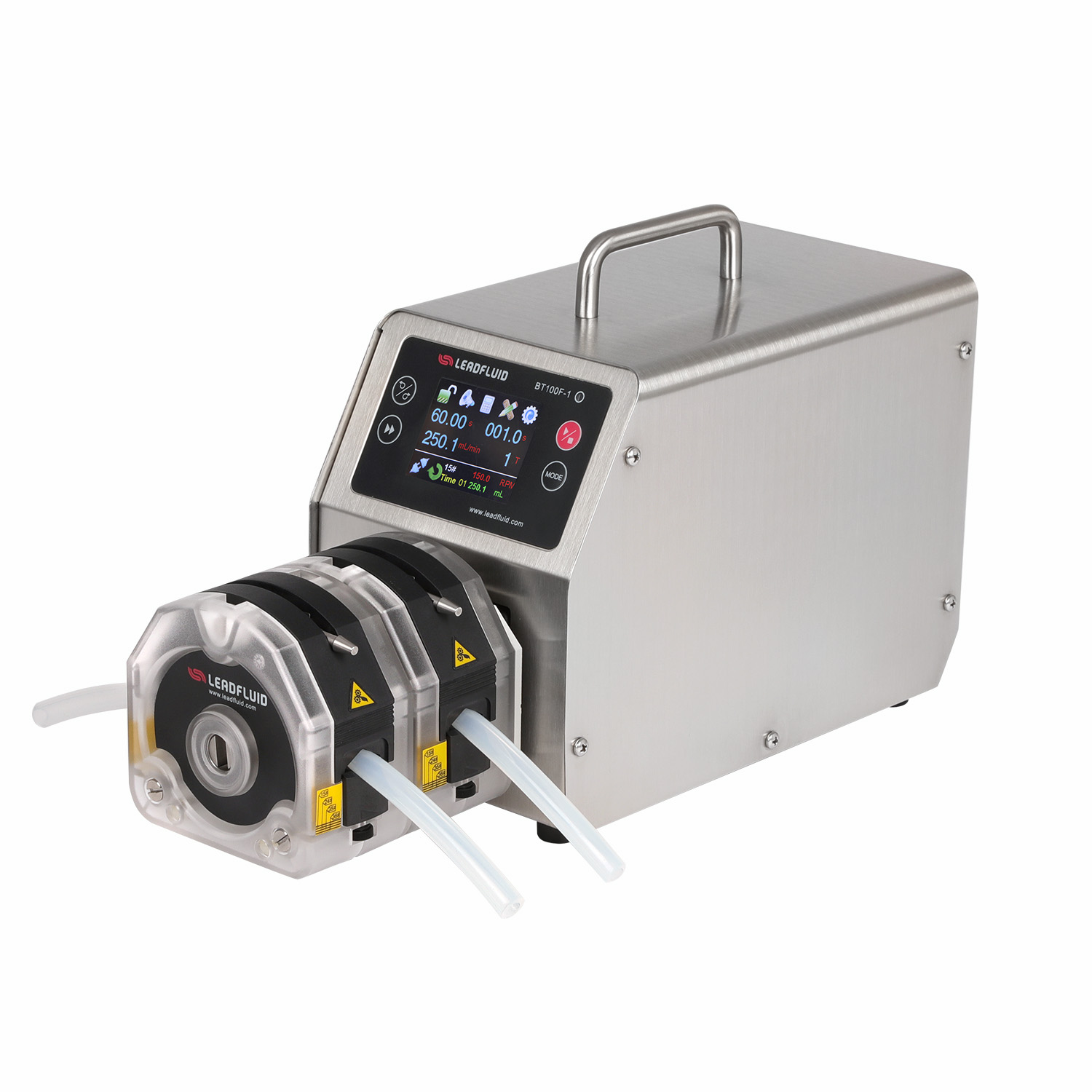

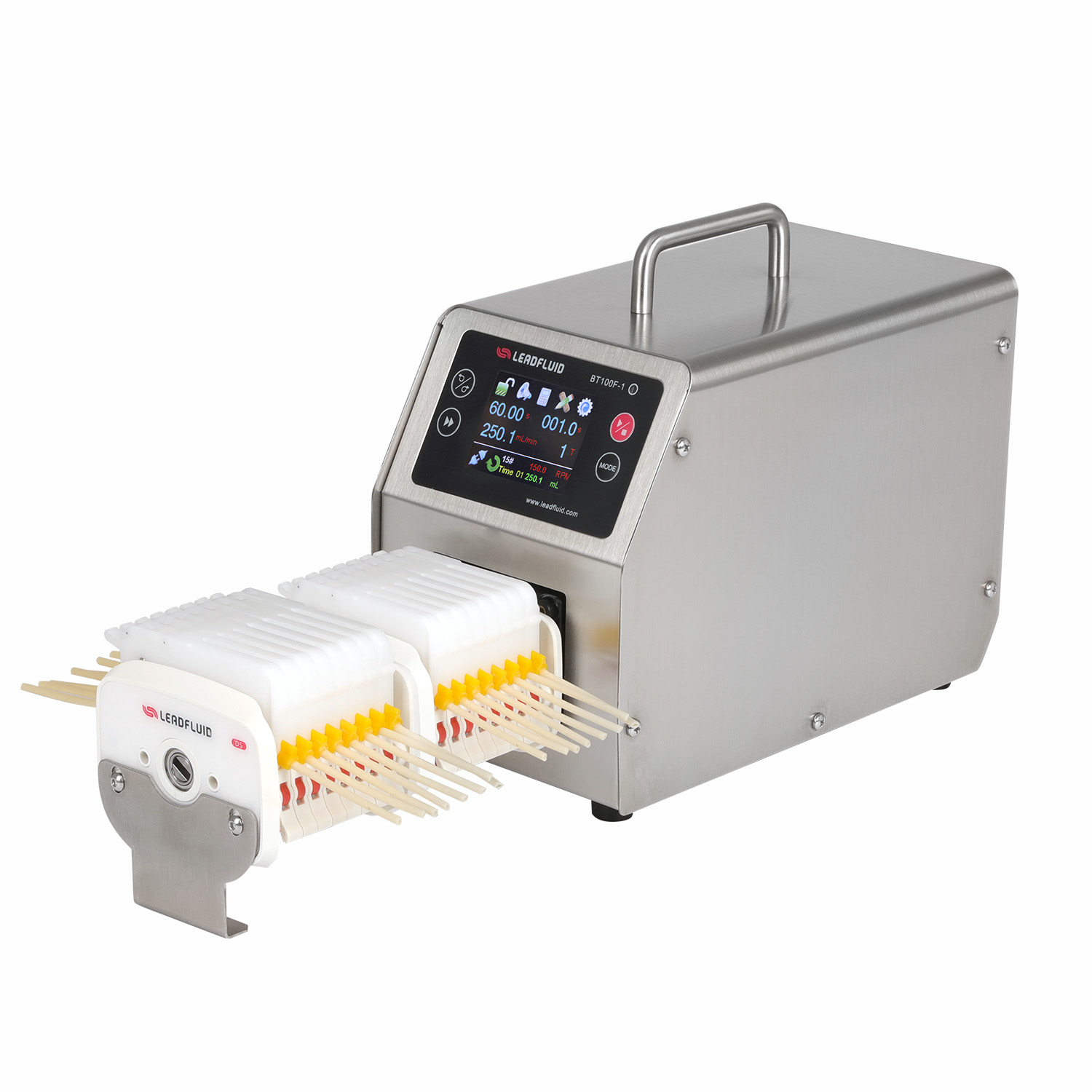

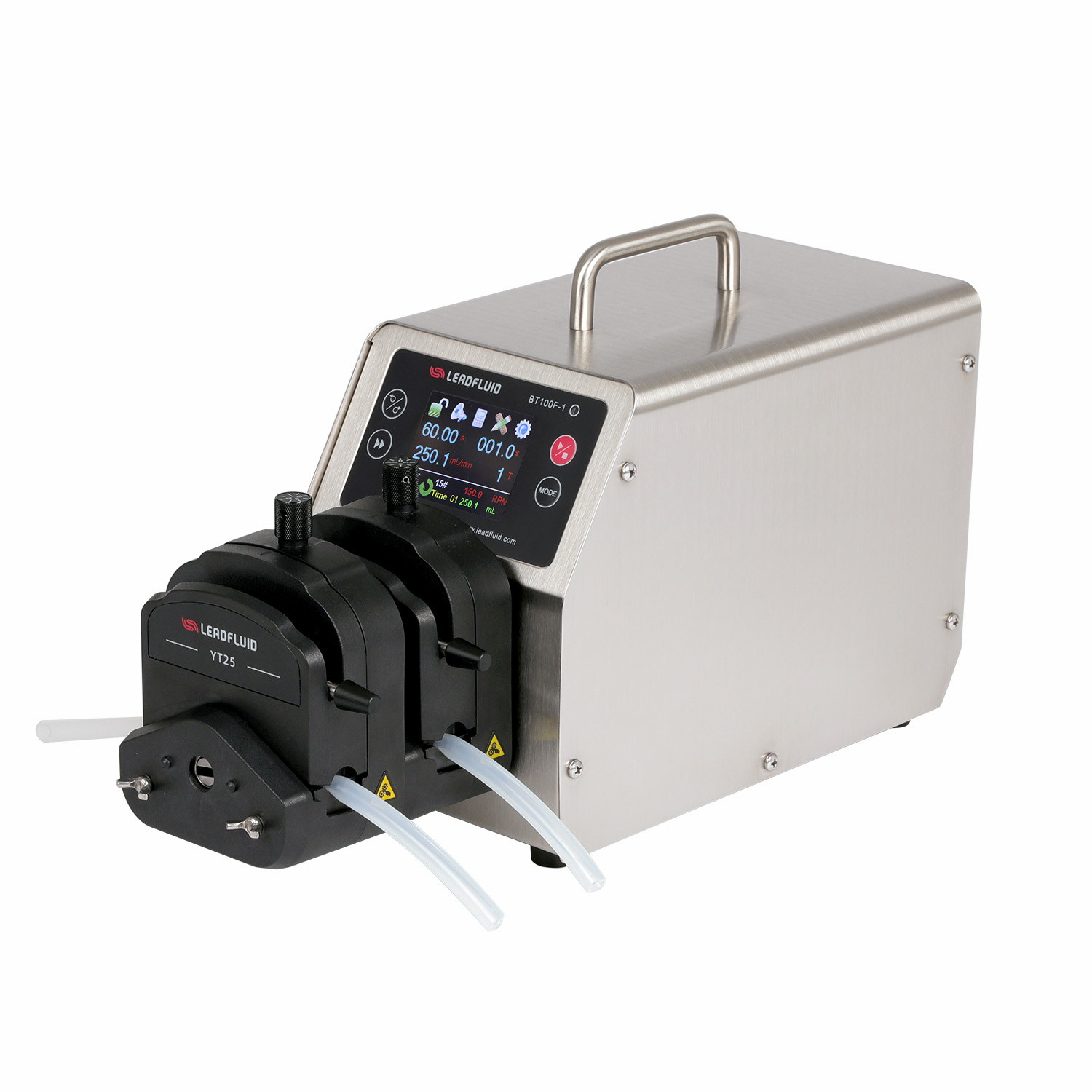

BT100F-1 Suitable Pump Heads and Tubing, Flow Parameters

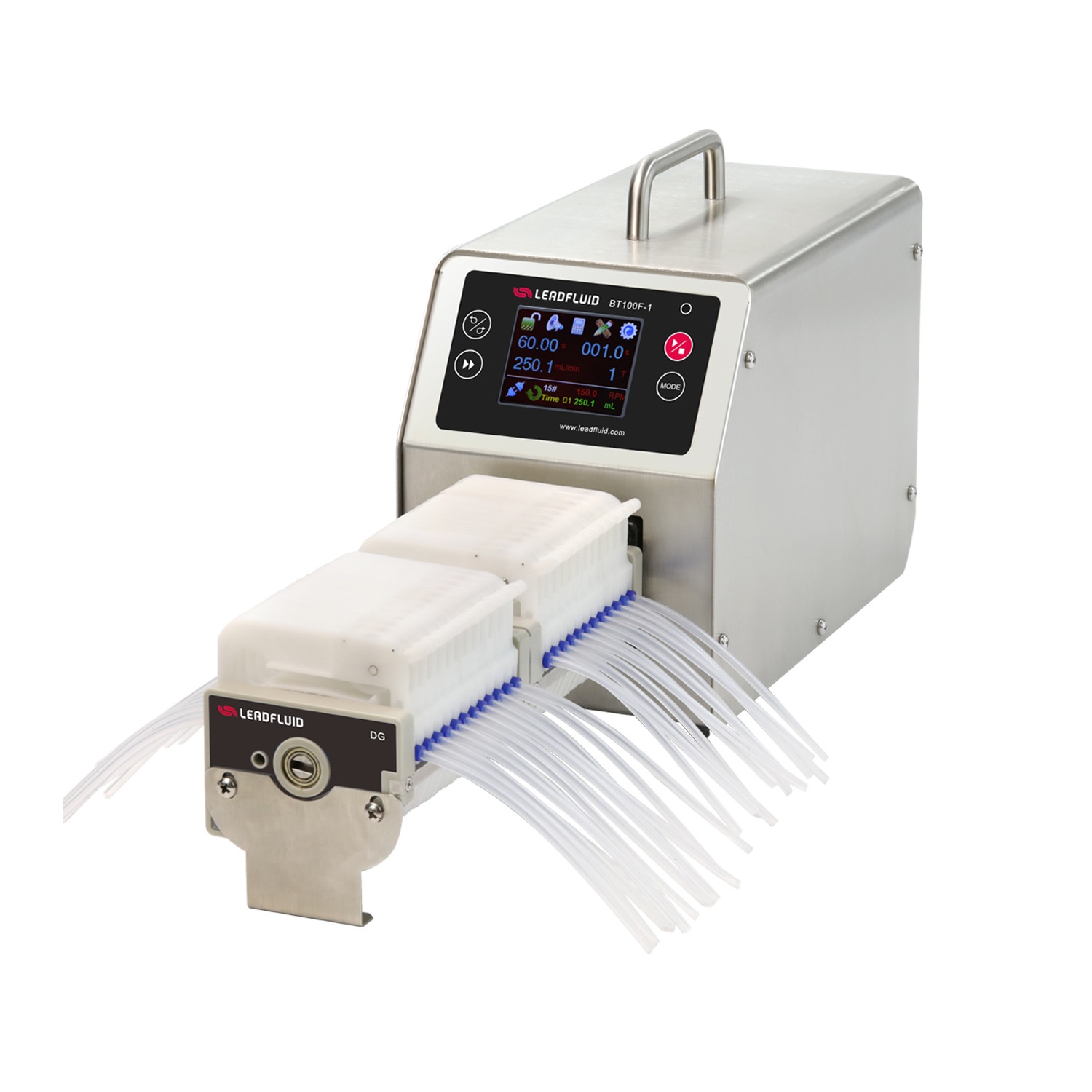

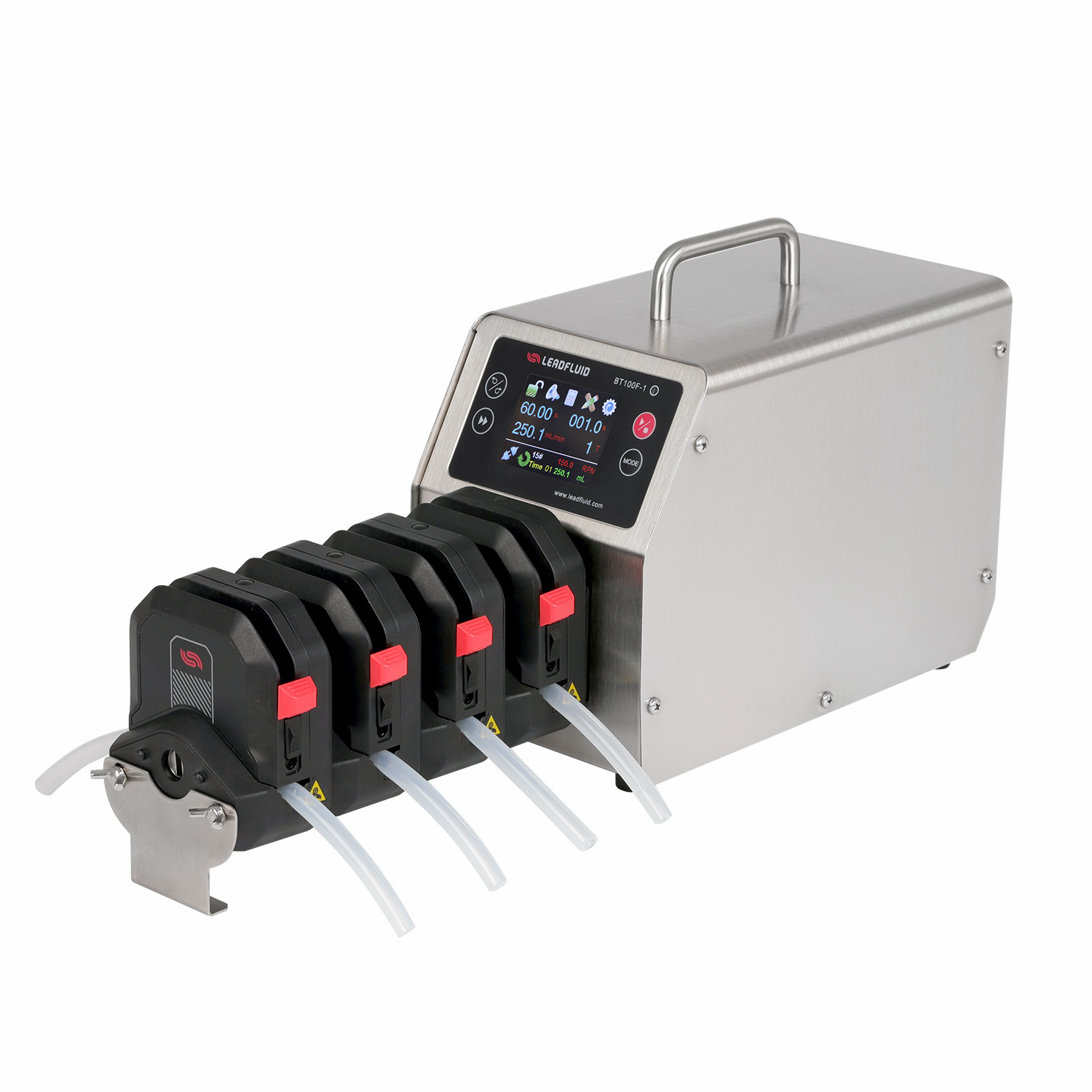

| Drive type | Pump head | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |
| BT100F-1 | DG6-8 (6rollers) | 8 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 |
| DG10-8 (10rollers) | 8 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-12 (6rollers) | 12 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-12 (10rollers) | 12 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-16 (6rollers) | 16 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-16 (10rollers) | 16 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-24 (6rollers) | 24 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-24 (10rollers) | 24 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DT10-88 | 8 | Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
| YZ15 | 1 | 13# 14# 19# 16# 25# 17#18# | 0.006-570 | |
| 2 x YZ15 | 2 | 13# 14# 19# 16# 25# 17#18# | 0.006-570 | |
| 4 x YZ15 | 4 | 13# 14# 19# 16# 25# 17#18# | 0.006-570 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.16-720 | |
| 2 x YT25 | 2 | 15# 24# 35# 36# | 0.16-720 | |
| 4 x YT25 | 4 | 15# 24# 35# 36# | 0.16-720 | |
| DT15-44 | 4 | 19# 16# 25#17# | 0.07-560 | |
| KZ25-PC | 1 | 15# 24# 35# 36# | 0.25-1500 | |
| DMD25-L | 1 | 15# 24# 35# 36# | 00.25-1500 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
