Microinjection, Lead Fluid Split Syringe Pump

Lead Fluid TFD04 series laboratory syringe pump is a multi-channel (up to 8 channels) micro-syringe pump, which is convenient, efficient and at the same time rich and powerful, bringing users the best user experience.

Micro injection丨More accurate and simpler:

The single-channel split syringe pump is divided into three models:

TFD01-01 execution unit can be equipped with a 5μL~1000μL syringe,

TFD02-01 execution unit can be equipped with a 10μL~60mL syringe,

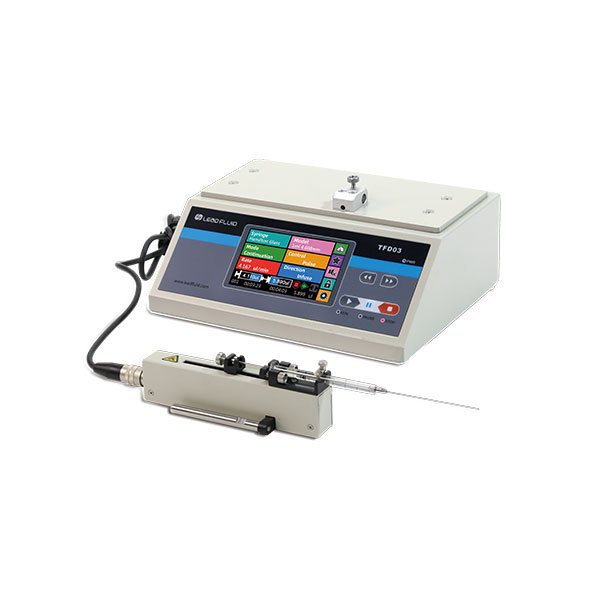

TFD03-01 execution unit can be equipped with a 0.5μL-100μL syringe.

Function and Features

•The controller and the execution unit are separated, connected by cables, and equipped with quick-plug connectors for easy disassembly and assembly.
• The executive unit is exquisitely designed, which is very light and maintains high precision and high stability, and reduces work tremor, while meeting the user’s requirements for appearance and function.
• The execution unit is equipped with a mounting frame, which can be used in conjunction with other instruments and equipment. It is suitable for various micro-syringe experiments and has a smaller volume. All functions can be showed.
• The LED indicator clearly indicates different working conditions during operation, which makes it clear
• Convenient and precise operation: 1~8 channels can be controlled individually;
• Brand-new industrial appearance design: 7-inch HD color touch screen, convenient and simple, perfect interaction, bringing a good user experience;
• LF-Touch-OS software system, more friendly interface, more reliable operation
• With fast filling and emptying function;
• Support start-up delay and cyclic operation;
• Five groups of parameters can be stored, which is convenient for users to call directly;
• Convenient control: external control signal controls start, stop, and pause, and is physically isolated;
• Super anti-interference characteristics, AC100~240V wide voltage design, suitable for complex power supply environment;
• Save time and trouble: high-strength metal chassis with protective coating, corrosion-resistant and easy to clean;
• Save effort and worry: the internal circuit is treated with special protection, dust-proof, moisture-proof and anti-static.

Technical Parameters
①Syringe size: 0.5μL~60mL (replace the actuator)
②Syringe selection: built-in brand syringe specifications, support customization
③Working mode: infuse, withdraw, infuse/withdraw, withdraw/infuse,
④Control accuracy: error <±0.5% (when stroke>30% of maximum stroke)
⑤Flow calibration: intelligent guide type
⑥Display mode: 7-inch 65565 color LCD touch screen
⑦Power-off memory: memorize the working parameters before power-off
⑧Status signal output: 5V, TTL, 1 way to indicate running status, 1 way to indicate direction status
⑨Communication function: RS485, support Modbus communication protocol, support communication parameter setting, facilitate connection with various control devices, and bring more control methods to users
⑩Power: ≤180W
⑪ Controller size: 200×142×88mm

Some typical applications:
☆Continuous injection of microfluidic chip
☆High-precision injection of medicinal liquid in animals
☆Micro flow continuous perfusion without pulse
☆Inject drugs into the rat brain
☆Drip reagents in micro-reactor
☆High precision liquid ratio
☆Capillary sample injection of chromatograph
☆Automatic sampling of mass spectrometer
☆Micro-droplet volume control
☆Accurate transmission of trace strong corrosive fluid
☆Toxicological research
☆Aerosol injection/atomization
☆Immune analysis

Baoding Lead Fluid Technology Co., Ltd. focuses on the design, development, manufacturing and marketing of peristaltic pumps and precision syringe pumps, and has been committed to providing users with high-quality products and perfect technical services. In addition to having the most complete series of peristaltic pumps and syringe pump product lines, Lead Fluid can also provide OEM customized services according to user needs. Lead Fluid’s mature product development experience can provide you with fast application guidance and suggestions for peristaltic pumps and syringe pumps, and provide users with high-quality, high-precision, and cost-effective fluid delivery solutions.
