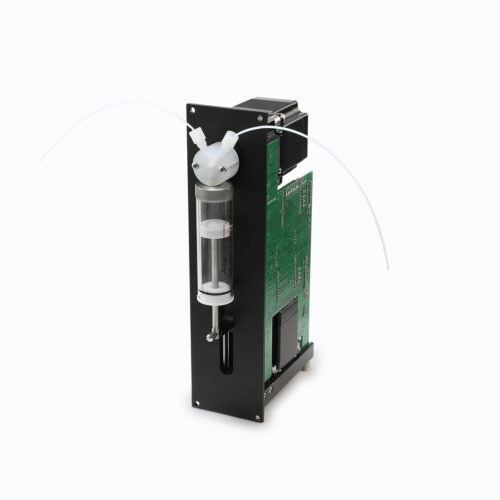

Q: G3030-1S Industrial Syringe Pump

Technical parameters: Flow accuracy：error≤1% (rated stroke) Flow repeatability : repeatability≤0.5% Rated stroke( step)：30mm(3000 steps) Linear speed:0.005mm/s-25mm/s Time for rated stroke:1.2s-6000s Control resolution:0.01mm(1 step) Drive mechanism: lead screw and slide rail Plunger drive force( max) =76N Syringe model：50 UL，100 UL，250 UL，500 UL，1 mL，2.5 mL,，5 mL Valve type： 4 -port 90°valve(Standard) 3- port 120° valve(Optional) Communication interface :RS485/RS232 can setup Communicate baud rate :9600/38400 Signal input:2 input signals TTL（Internal photoelectric isolation , (drive current＞16mA) to restart the pump after pause. Signal output：OC gate output signal of internal photoelectric isolation， (TTL signal optional ) to indicate Work i state. Pump parameter setting：7 dial DIP switch Dimension (L×W×H)：110x44.4x127(mm) Power supply：DC 24V/1.5A Working temperature：15℃-40℃(determined by the PTFE of the syringe ) Working Relative Humidity: ＜80% Weight：0.98kg reversing valve ： threaded coupling matiral 3 -port 120° valve 1/4“-28UNF PTFE/PCTFE
