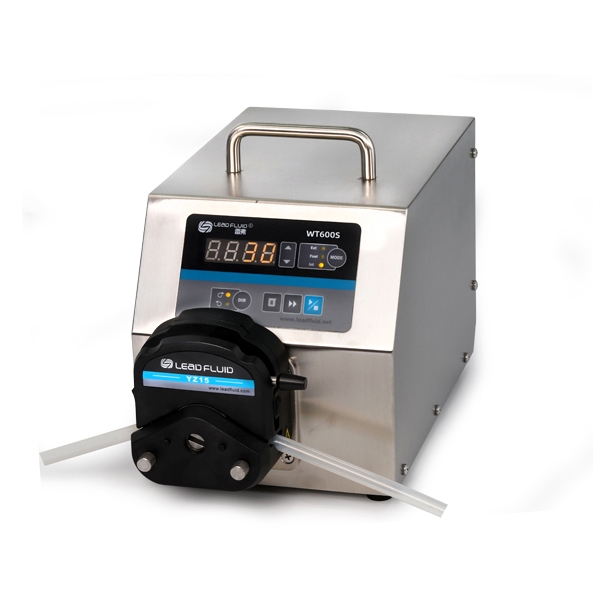

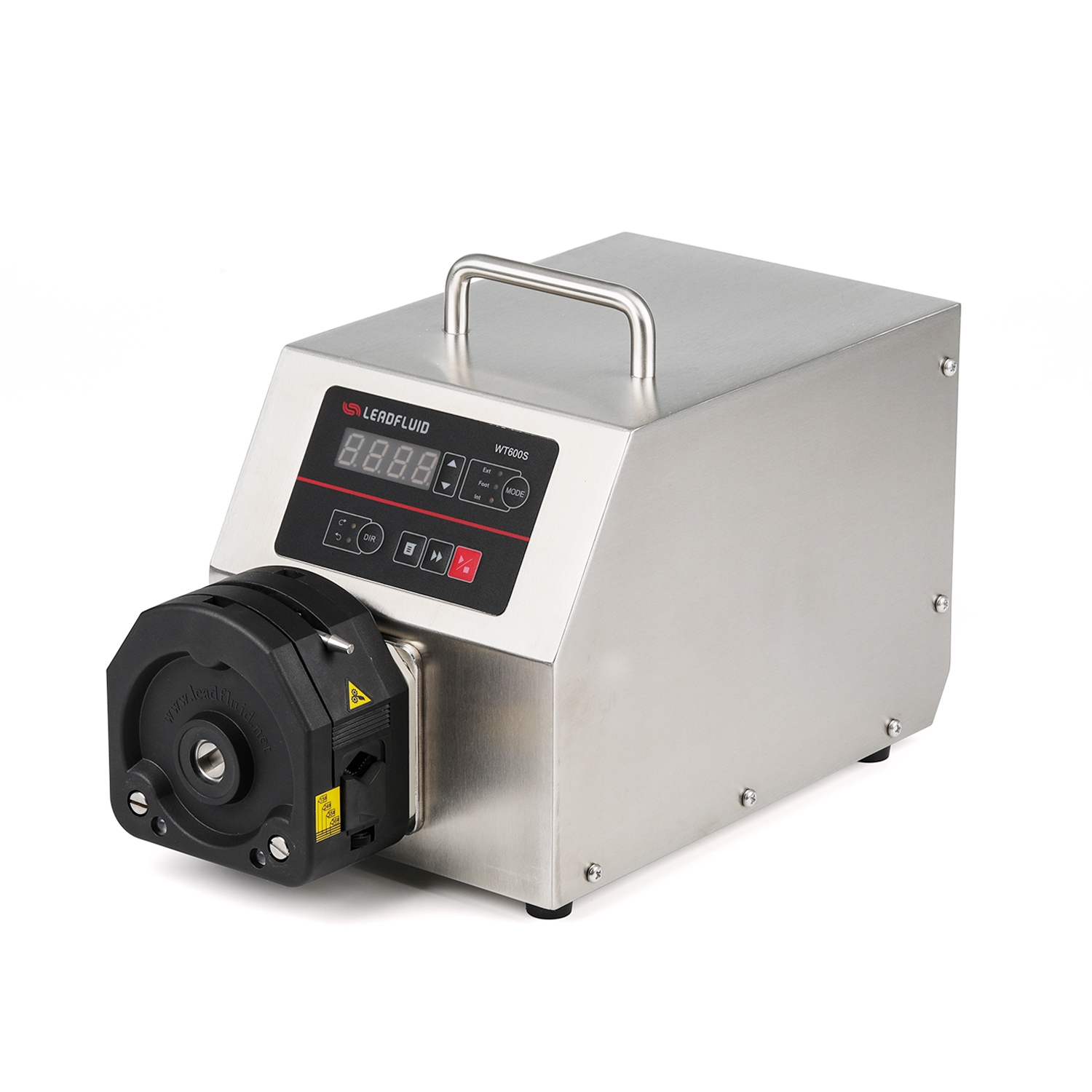

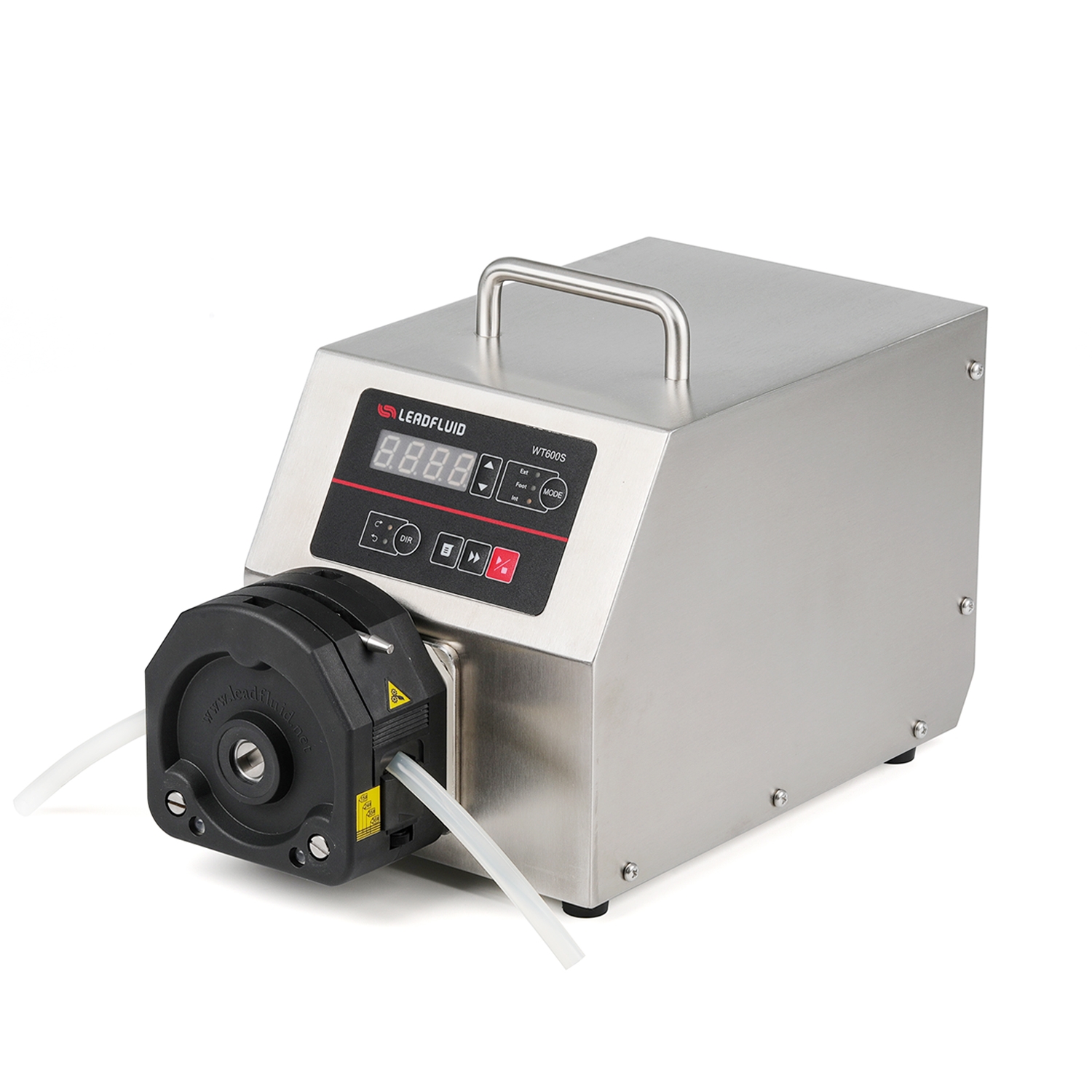

WT600S Basic Variable-Speed Peristaltic Pump

WT600S peristaltic pump adopts DC brushless motor drive which is large torque, free maintenance, more powerful, can cascade multiple pump heads. Has basic function such as start/stop, reversible direction,full speed, adjust speed and state memory. Control the start/stop, reversible direction, adjusts the speed via external analog quality, the time dispensing function. RS485 communication, MODBUS protocol is available, easy to connect other equipment such as computer,man-machine interface, PLC, etc.

Flow: 80-6000ml/min
Max: 2 Channels
Warranty: 3 years for the peristaltic pump drive

Description

Functions and Features

Four digits LED indicator displays working speed.
The LED indicator shows the working mode: internal control, external control or footswitch.
Membrane keypad operation.
Reversible direction, start/stop, adjust speed and full speed, state memory (power-off memory).
Easy dispensing functions, it can repeat timing quantitative fluid dispensing.
Can drive multi-channels and various types of pump heads.
Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid ,alkali ,sodium and the organic solvents.
The circuit board with conformal coating makes it dust-proof and moisture-proof.
Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
External high –low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog adjusts the rotate speed.
RS485 interface, MODBUS protocol is available ,easy to connect with external device.
Optional footswitch or timer for dispensing fluid.

Specifications

Flow range: 3-6000 mL/min
Speed range: 30-600 rpm
Speed resolution: 1 rpm
Flow accuracy: 3%
Power supply: AC 180-264V 50Hz/60Hz (standard); AC 90-132V 50Hz/60Hz (optional)
Power consumption: <200W
External on/off control voltage: 5V, 12V (standard), 24V (optional); External control analog signal: 0-5V (standard), 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS
Operating condition: 0~40 °C
Relative humidity: < 80%
IP grade: IP31
Dimensions (L x W x H): 286mm x 180mm x 230mm (11.3 inch x 7.1 inch x 9.1 inch)
Weight: 6.2kg (13.9 lbs)

WT600S Applicable Pump Heads and Tubings, Flow Parameters

Drive type	Suitable pump heads	channel	Tubing size (mm)	Flow rate (mL/min) per channel

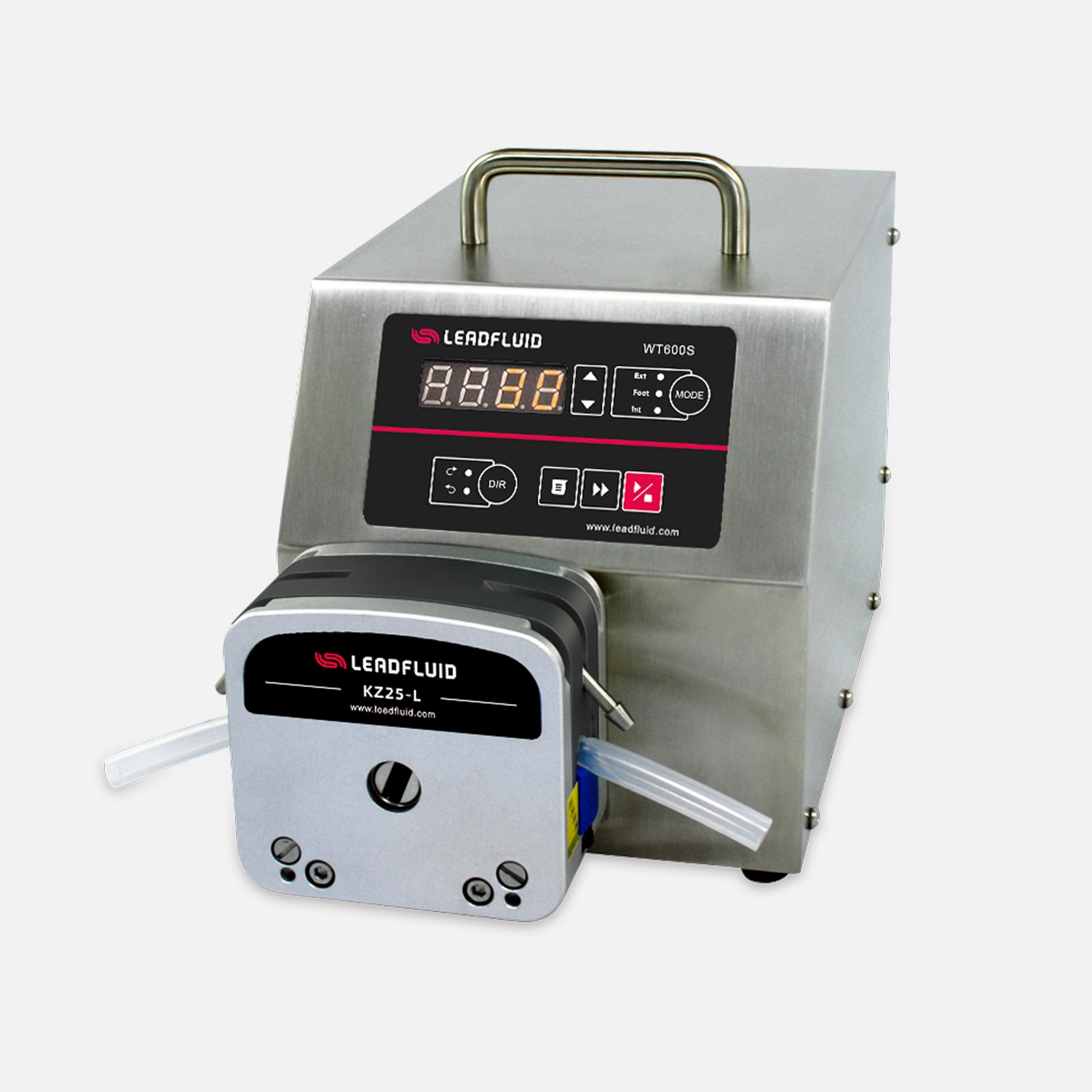

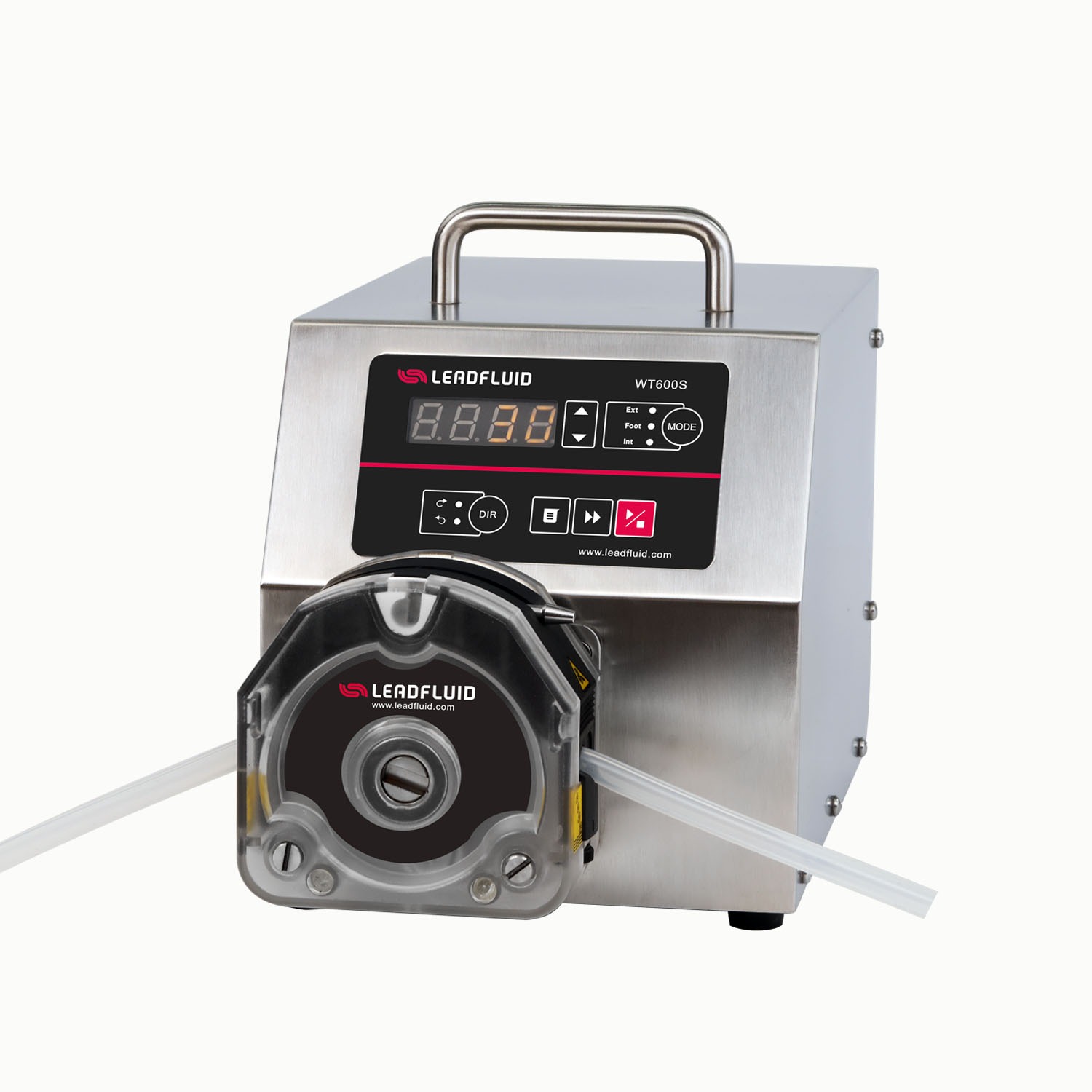

WT600S	KZ25	1	15# 24# 35# 36#	80-6000

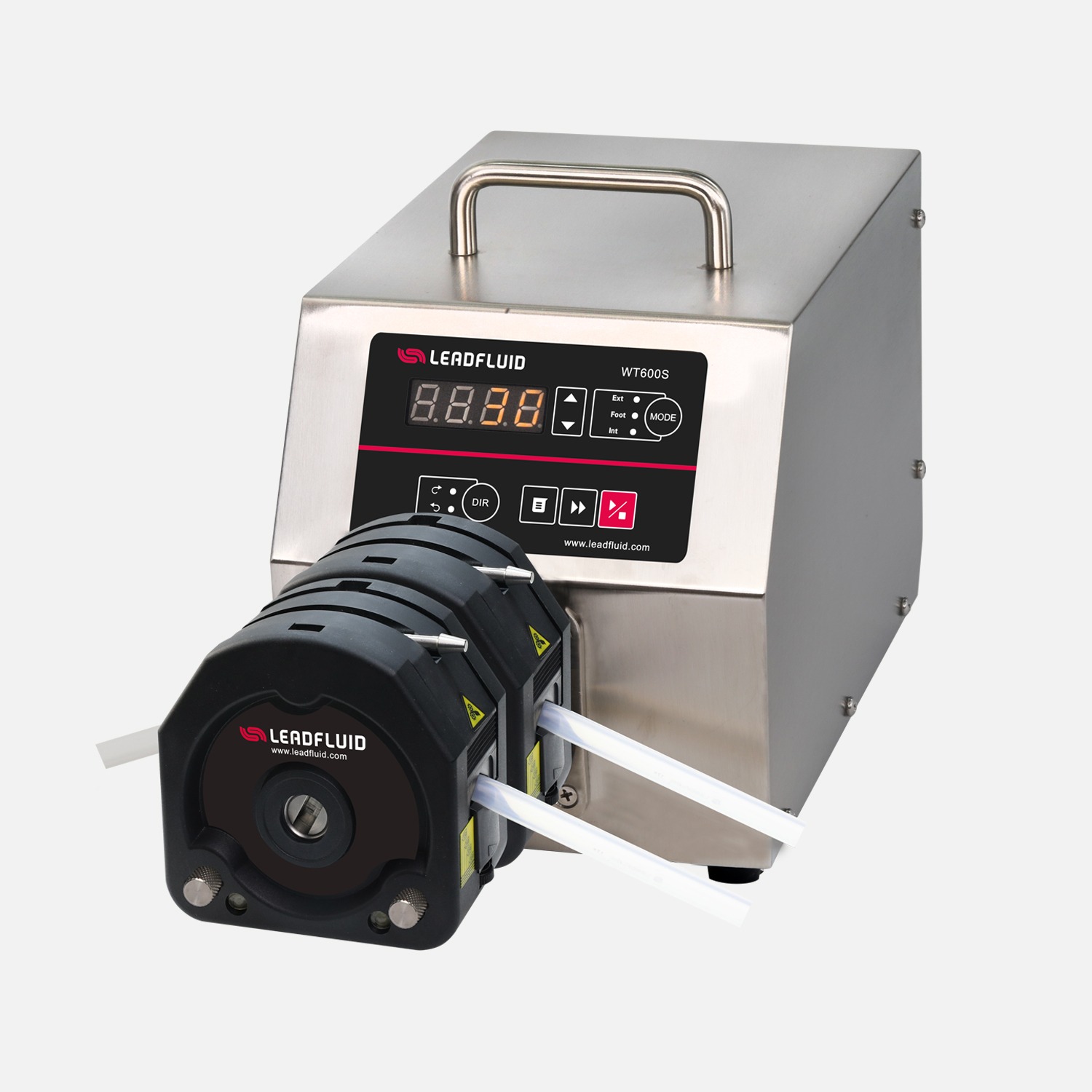

WT600S	2 x KZ25	2	15# 24# 35# 36#	80-6000

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
