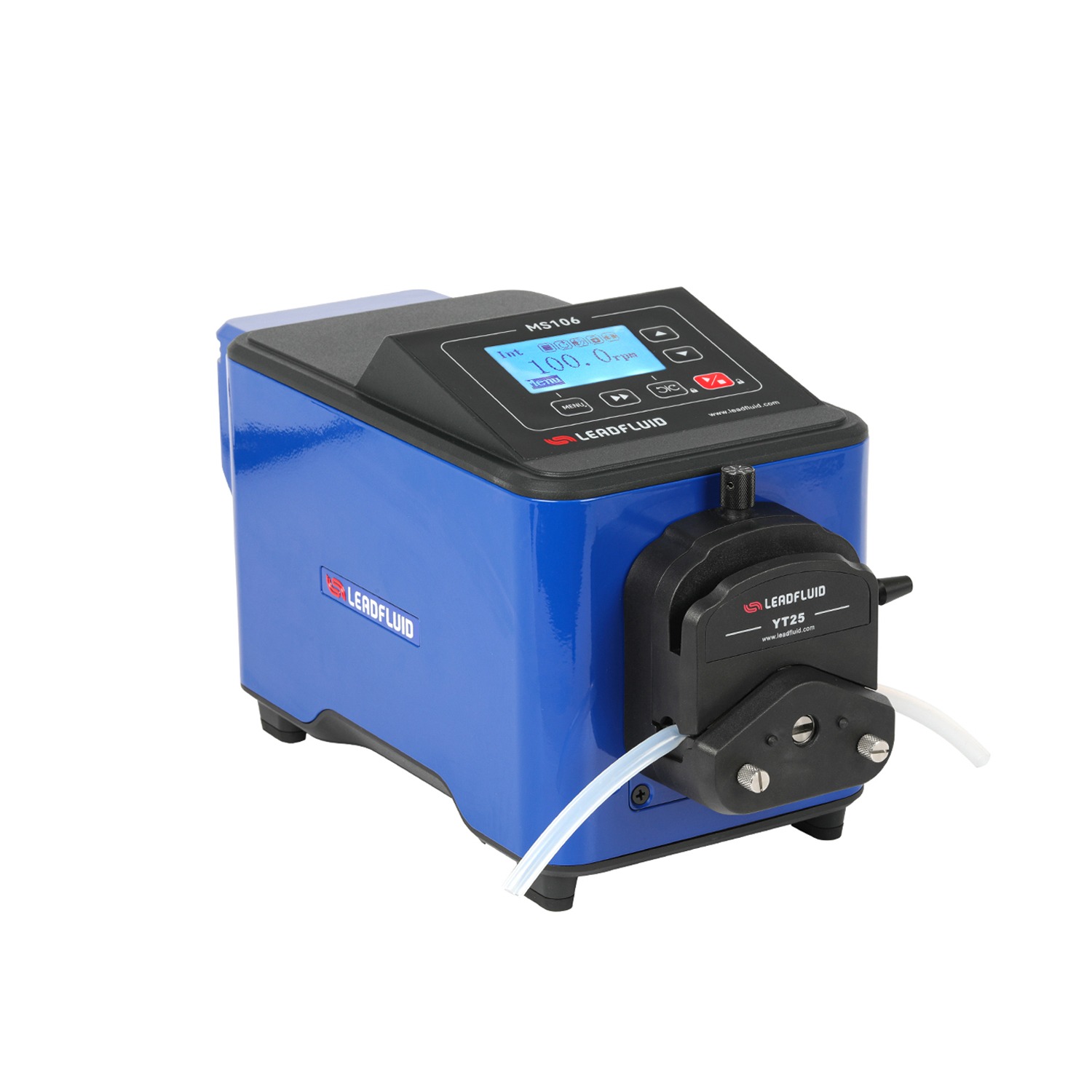

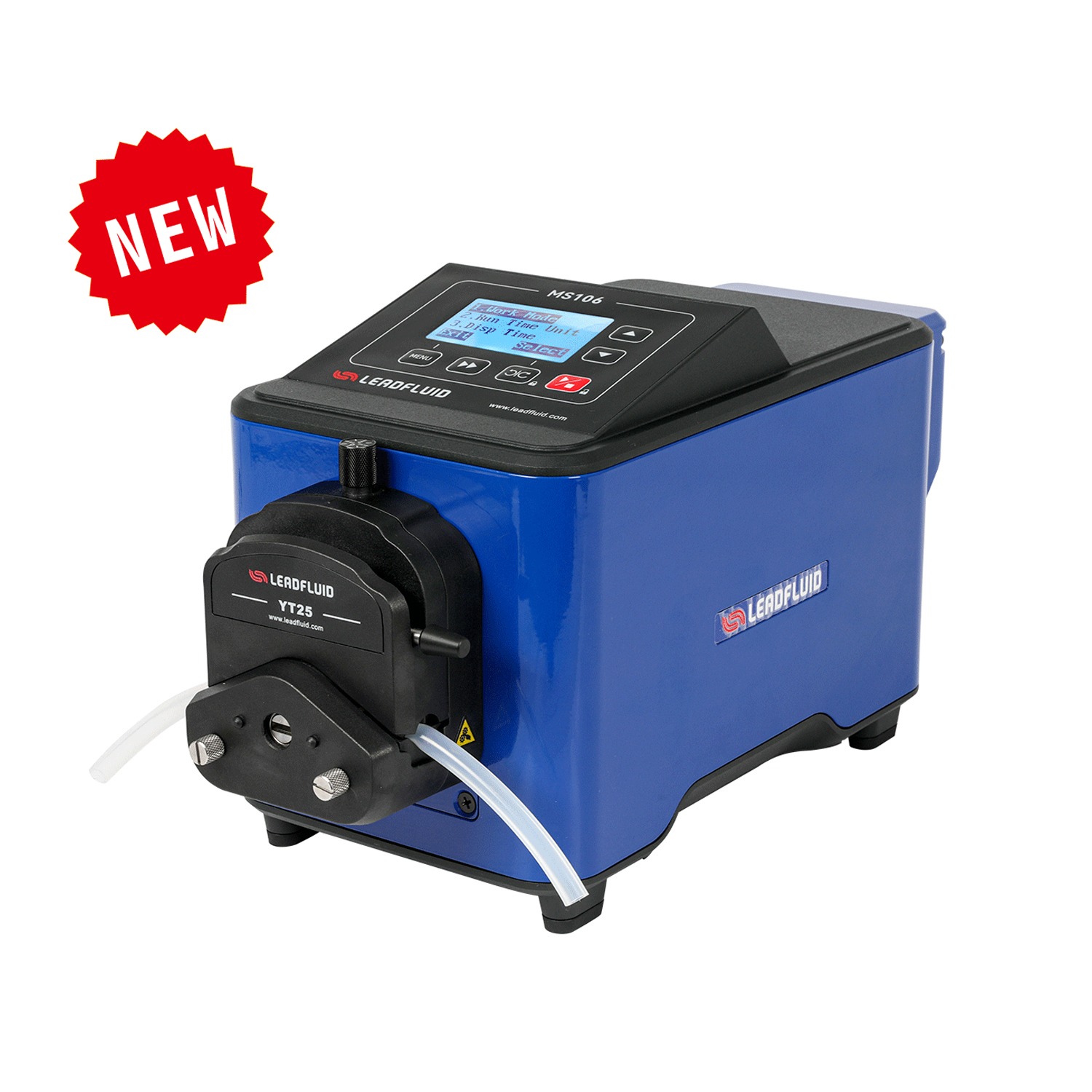

Feature
• Precision-crafted cast aluminum shell
Streamlined appearance, lightweight cast aluminum powder-coated shell, excellent heat dissipation, strong corrosion resistance.
• 3-inch display screen, clear at a glance
3-inch display screen, clear display, easy operation.
• Servo motor drive
High-precision operation, high torque, low noise.
• Can accomplish multiple transmissions and simple dispensing
By setting running time, interval time, and running times, timed transmission and dispensing distribution functions can be achieved.
• Intelligent interconnection, collaborative operation
Supports RS485 communication, compatible with Modbus protocol.
• Three-level user permission management, security protection, no need to worry about parameter tampering.
• Selects top-brand raw materials, meticulously selected, quality guaranteed.
Technical Parameter
Flow range: 6~7700mL/min
Speed range: 0.1~350rpm
Speed resolution: 0.1 rpm
Speed accuracy: ＜±0.2%
Timer range: 0.1～999.9 S/Min/H/D
External control signal input: External analog signal adjusts speed, analog signal 0-5V/0-10V/4-20mA, software setting switching, no need to change external wiring.
External control signal output: External control signal controls start/stop, forward/reverse rotation, external control signal 5-24V input, optoelectronic isolation.
Communication interface: RS485 communication interface, Modbus protocol is available
Power supply: AC 100-240V 50Hz/60Hz
Power consumption: <180W
Working environment: Environment temperature 0-40℃ humidity<80%
Shell material: Aluminum
IP grade: IP66/IP67
Dimension(L×W×H): 363×180×230mm
Drive weight: 10.5kg

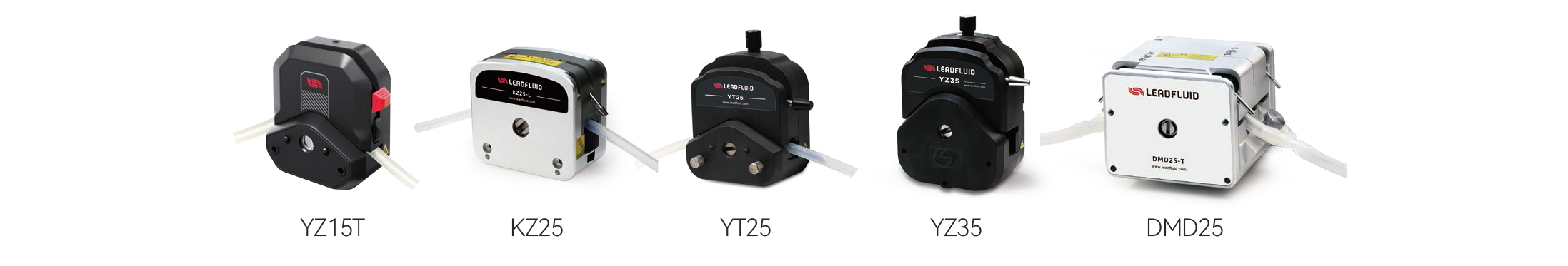

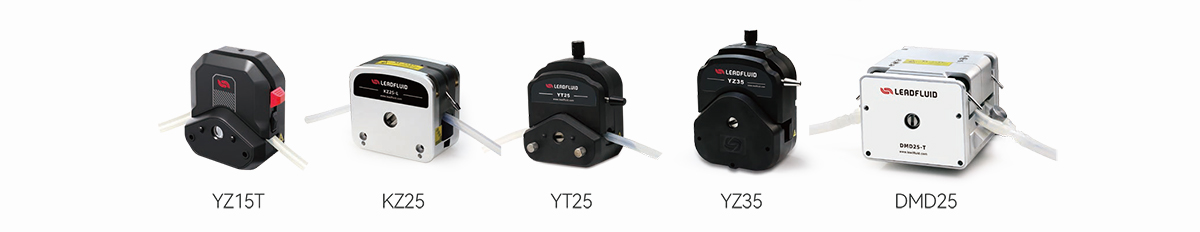

MS106 Applicable Pump Head and Tube,Speed, Flow
| Drive Type | Pump Head | Channel | Tube | Single Channel Flow Rate（mL/min) |
| MS106 | YZ15/YZ15T | 1,2,4 | 13#14#19#16#25#17#18# | 0.005~1575 |
| YT25 | 1,2 | 15#24#35#36# | 0.18～1750 | |
| KZ25 | 1 | 15#24#35#36# | 0.31～3850 | |
| DMD25 | 1 | 15#24#35#36# | 0.4～4200 | |
| YZ35 | 1 | 73#82# | 1.33～7700 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure,
in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.
Dimension(mm)
Statement：The final explanation right of above information belongs to Lead Fluid.
