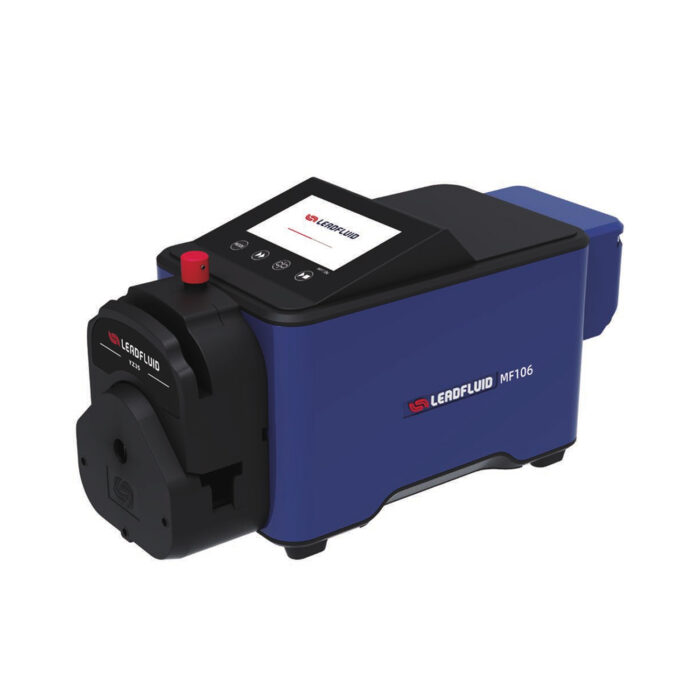

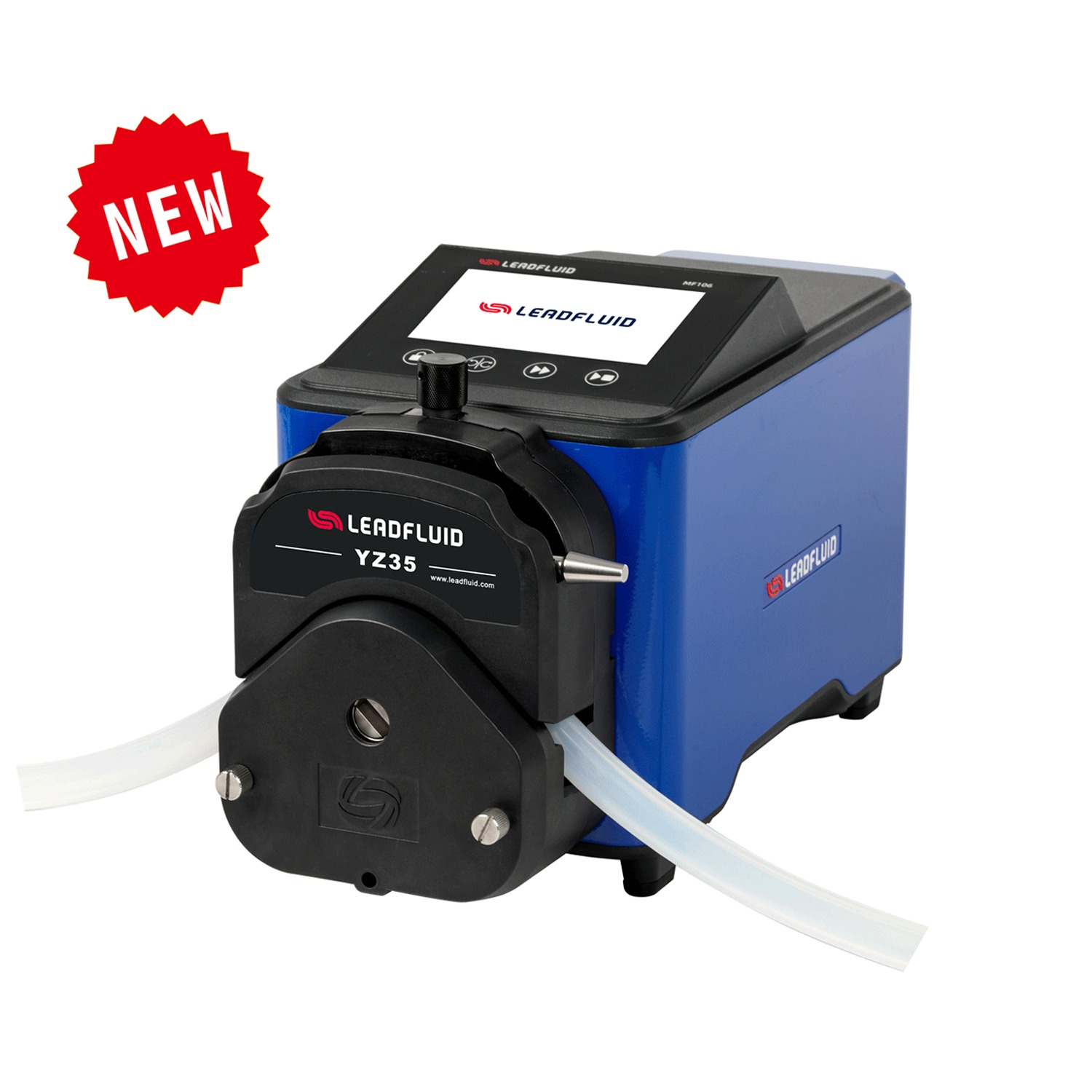

MF106 High Protection Peristaltic Pump

MF106 high-protection peristaltic pump is operated by a color LCD touch screen and buttons with a simple and intuitive user interface, which is easy to use and control. It is compatible with various pump heads and pump tubes of different specifications and materials, with a maximum flow rate of 7920ml/min, which can meet most flow transmission requirements. It is mainly used for quantitative distribution and flow transmission control of various complex liquids.

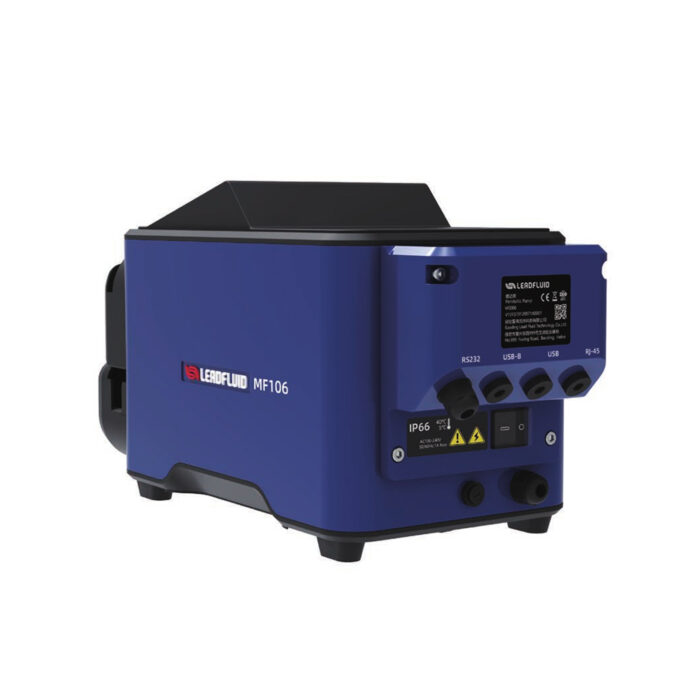

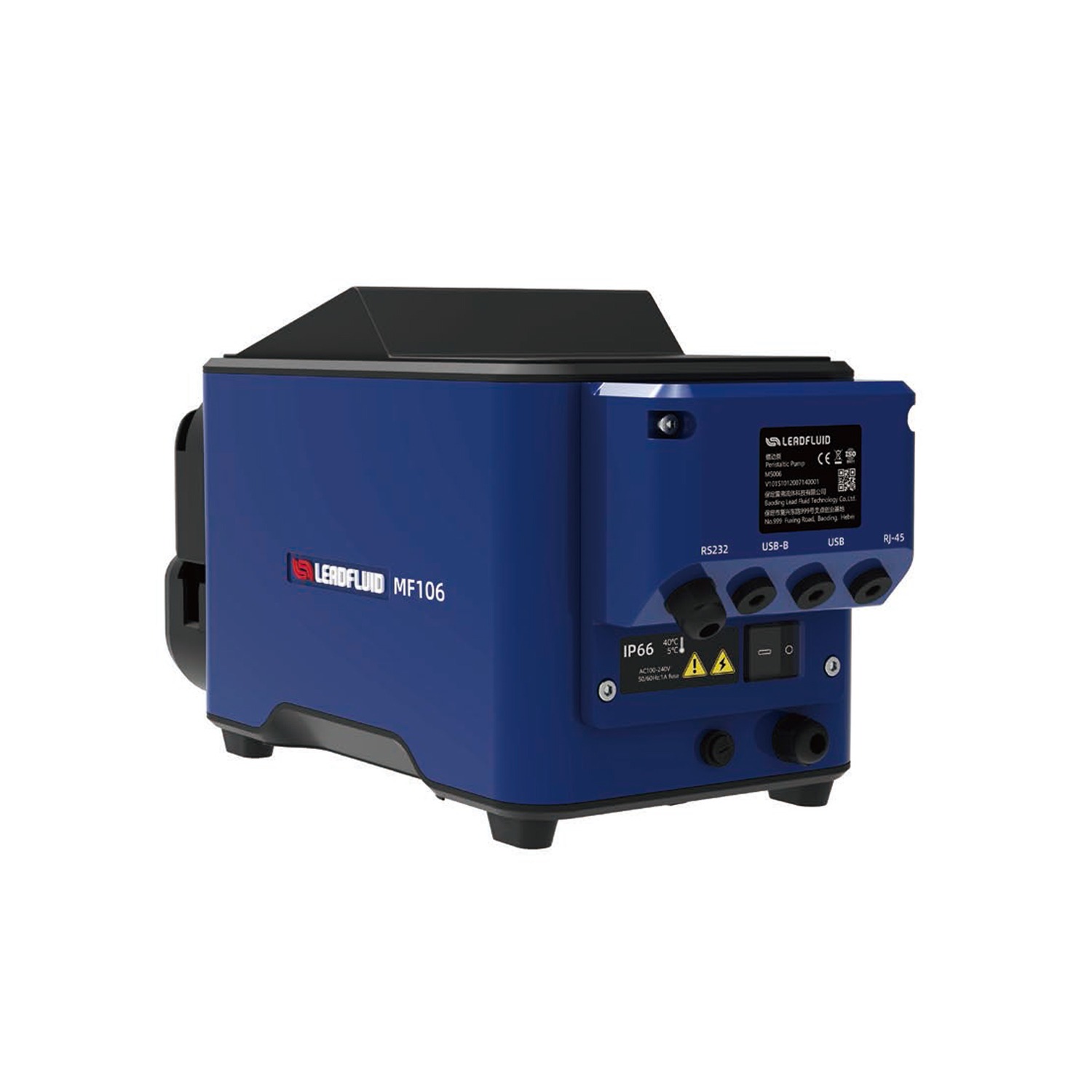

The controller is equipped with multiple communication interfaces such as builtin RS232, RS485, Ethernet, etc., with standard MODBUS communication protocol, which is easy to connect with other control devices, and can quickly realize the integration configuration of automation control system.
In addition, the pump has a high protection level of IP66 and strong stability and adaptability,which is suitable for relatively harsh industrial production environments such as dust, humidity,weak acid and alkali salt fog.

Description

Feature

• Strong stability and high pressure bearing capacity:
The product adopts double-layer isolation design and circuit board plus spray three-proof paint process to achieve dustproof and moisture-proof effect, ensuring the stability and reliability of the equipment. In addition, the product has an IP66 protection level and can operate stably in harsh environments for a long time.
• High torque output, multiple pump heads can be used in combination:
It supports high torque output and multiple pump heads can be installed to realize the combination of different pump heads and drivers, providing a wider flow range and outlet pressure, suitable for different application scenarios.
• Supports a variety of working modes:
Five working modes are supported, including flow rate, time dispensing, volume dispensing, programming dispensing and external control mode, so that users can choose according to different needs. In the time dispensing, volume dispensing mode, five sets of formula parameters can be pre-stored.
• The operation interface is easy to use：
Equipped with a 5-inch color touch screen, with guided prompts for operation, easy and fast to use. At the same time, it supports the wizard-style flow correction function, which can achieve higher liquid flow accuracy.
• Multiple control modes:
The speed can be adjusted by external analog signal, and the start-stop and working directions can be controlled by digital signal level or pulse. At the same time, it is integrated with digital interfaces such as RS485 bus interface, network interface, RS232 serial interface, and the communication parameters can be customized. Optional foot switch is available to realize dispensing and filling functions.
• Excellent anti-interference capability:
With wide voltage design, suitable for all kinds of complex power supply environment.
• Durable and easy to clean pump house:
The house is made of metal aluminum, which is easy to clean and effectively prevents the corrosion of organic solvents, extending the service life of the equipment.

Technical Parameter

Flow range 0.005-7920ml/min
Speed range 0.1-360 rpm,speed resolution 0.1 rpm
Speed accuracy 0.5%(when the speed exceeds 30% of the maximum speed)
Display mode 5-inch HD color touch screen
Operate mode Touch Screen and keys
Applicable pump head YZ15,YZ25,KZ25,DMD25,YZ35
Communication interface RS485 communication interface, Modbus protocol is available
External control 0-5V,0-10V,4-20mA analog input
Power supply AC 100-240V 50-60 Hz
Power consumption <180W
Working environment Working temperature0-40℃,working humidity 80%-31°to 50%-40°
Storage condition Store temperature -25-65℃,Store humidity 50%
Highest elevation 2000m
House material Aluminum

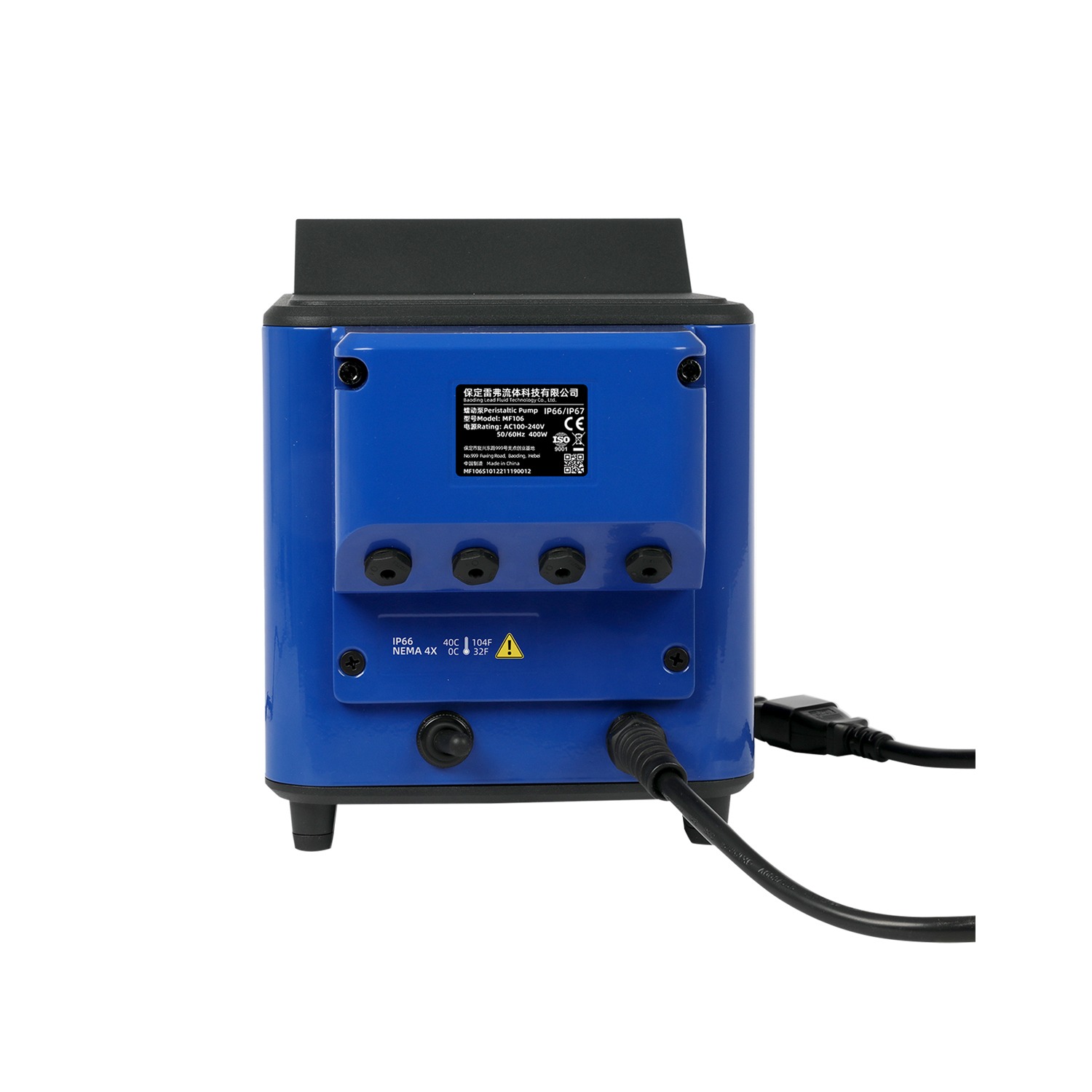

IP grade IP66
Dimension（L×W×H） 363x180x230mm

MF106 Applicable Pump Head and Tube,Speed, Flow

Drive type	Suitable pump heads	channel	Tubing size (mm)	Speed(rpm)	Single Channel Flow Rate（ml/min)
MF106	YZ15	1,2,4	17#	360	1080

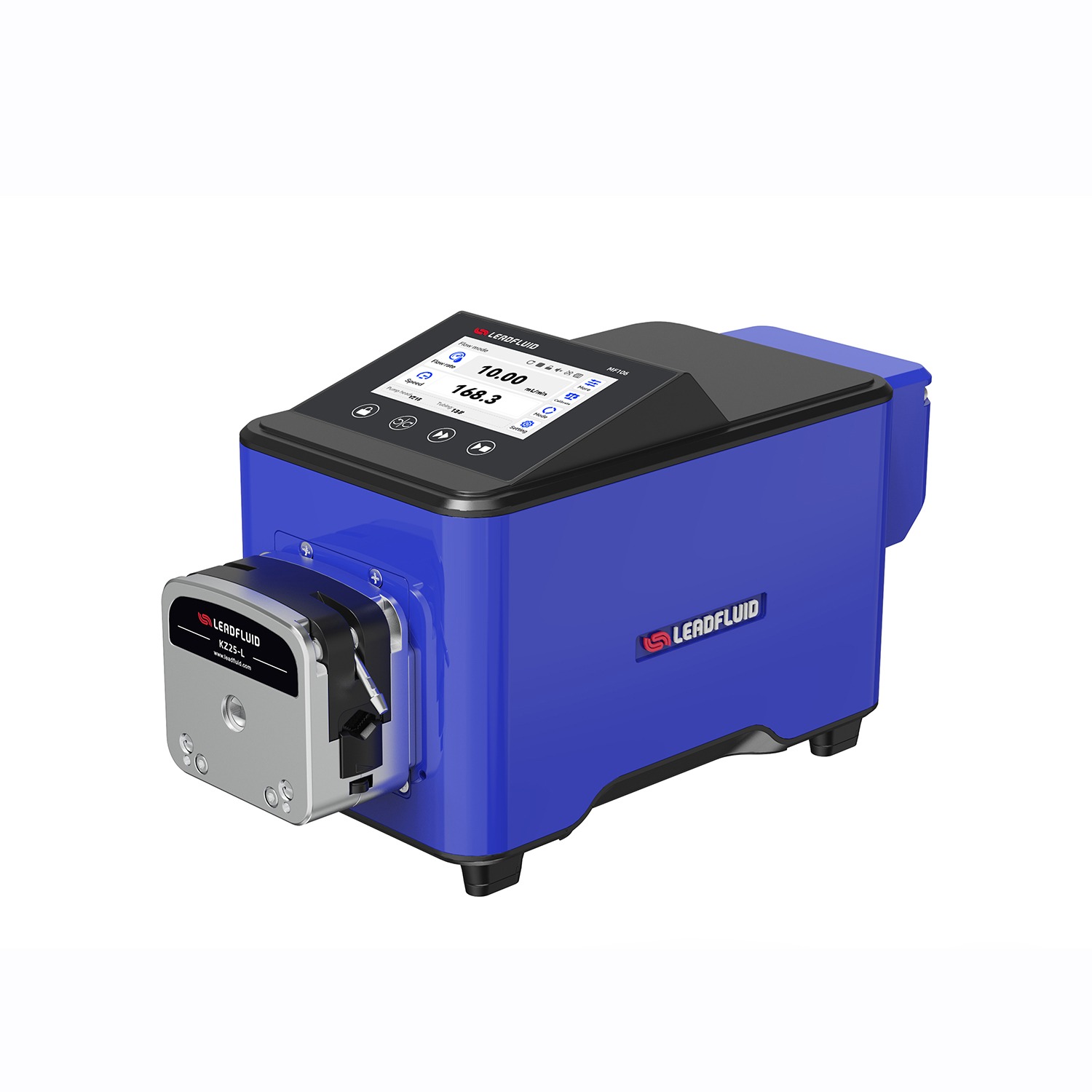

	KZ25	1	36#	360	3960

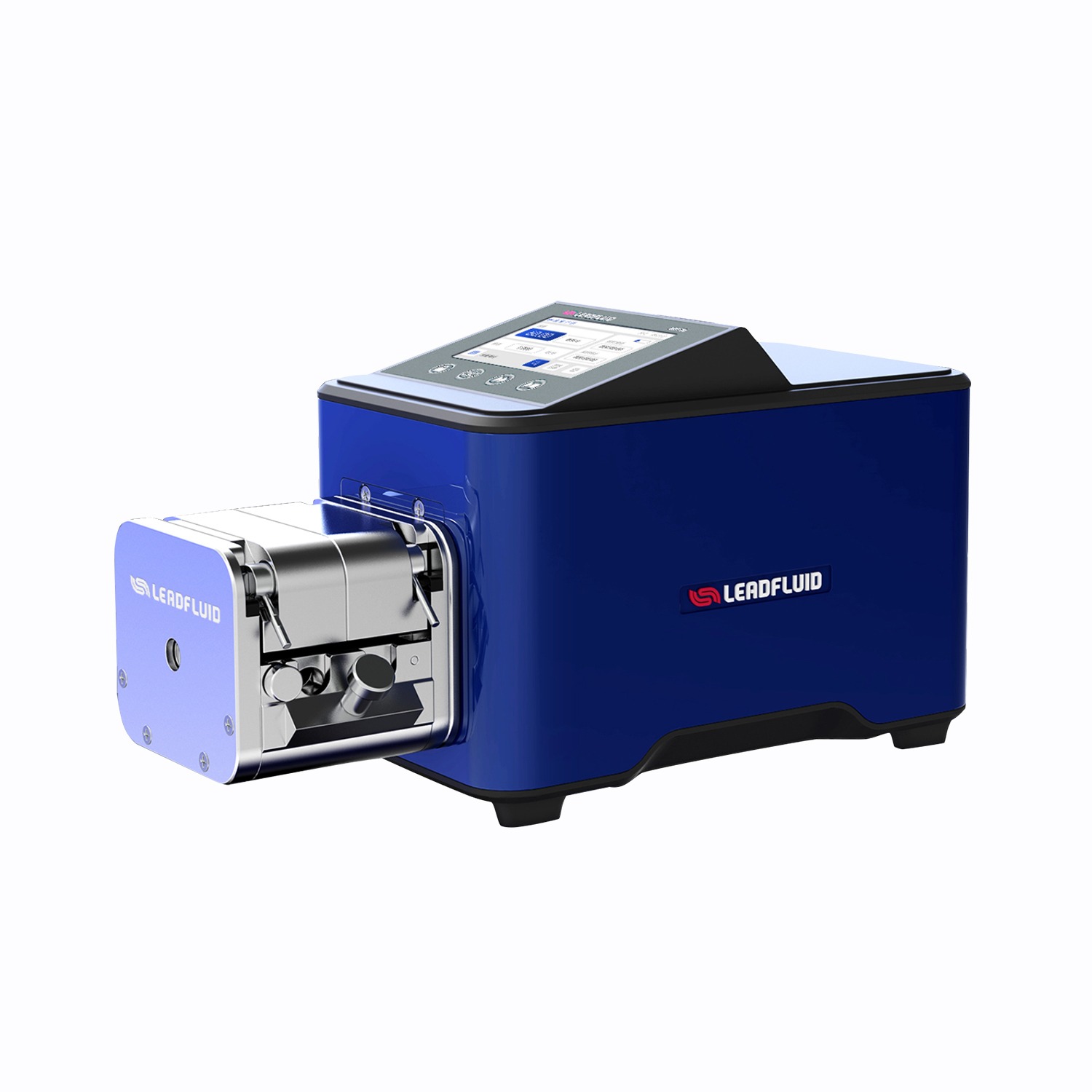

	DMD25	1	36#	360	4320

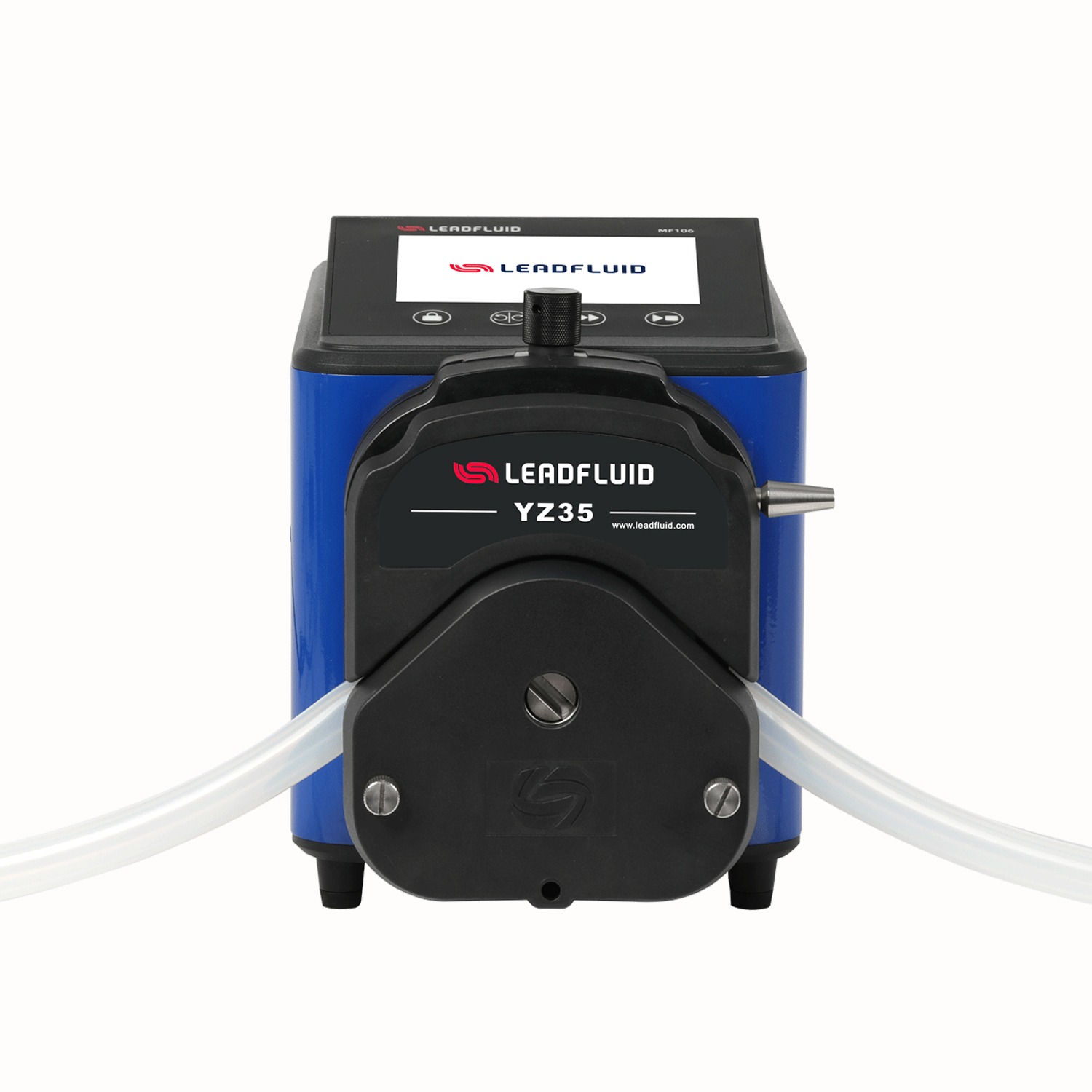

	YZ35	1	82#	360	7920

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
