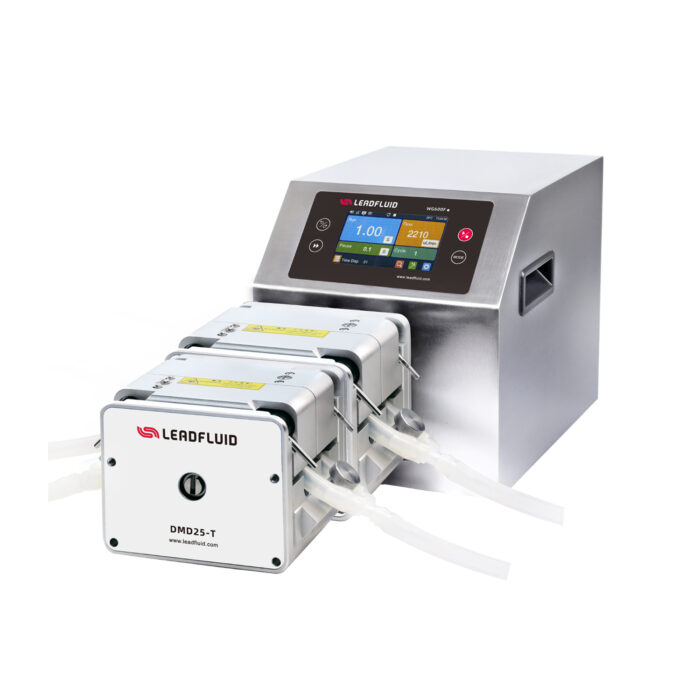

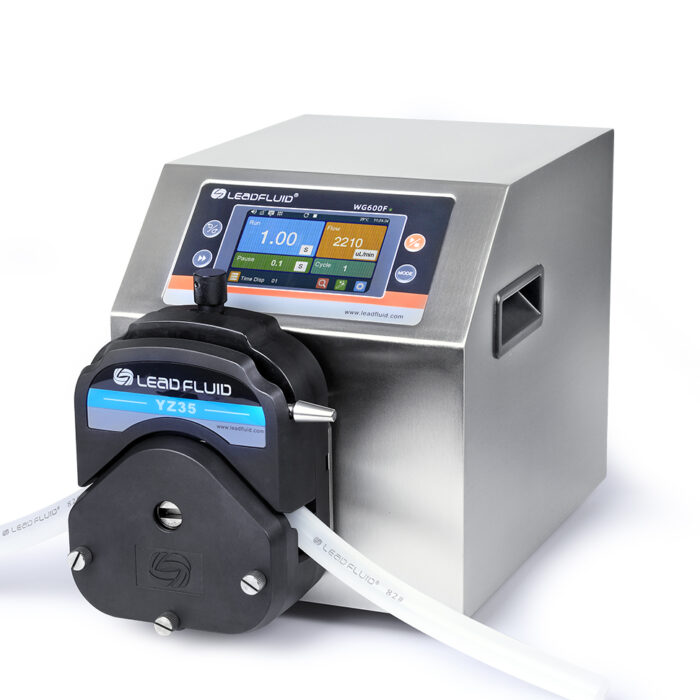

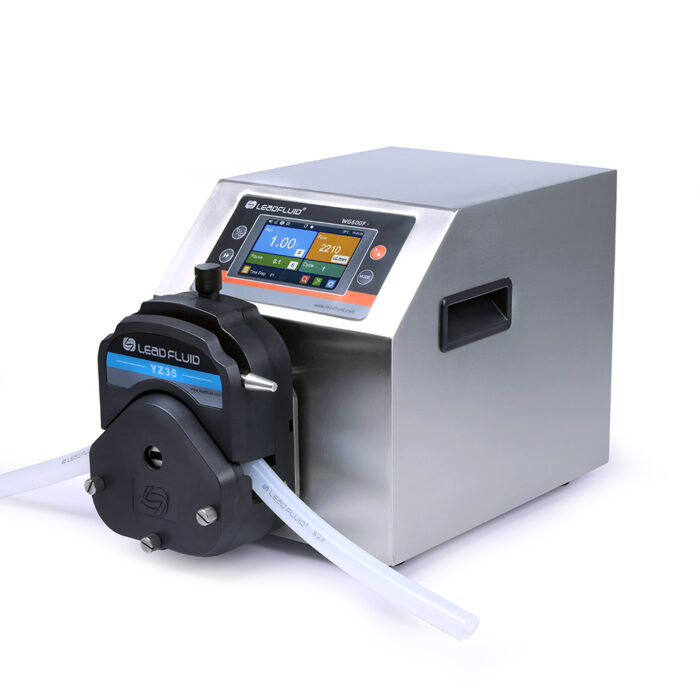

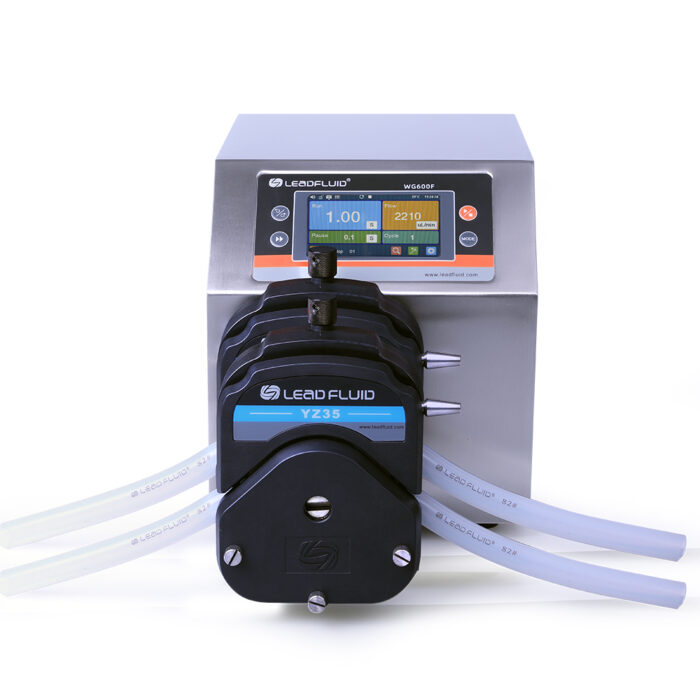

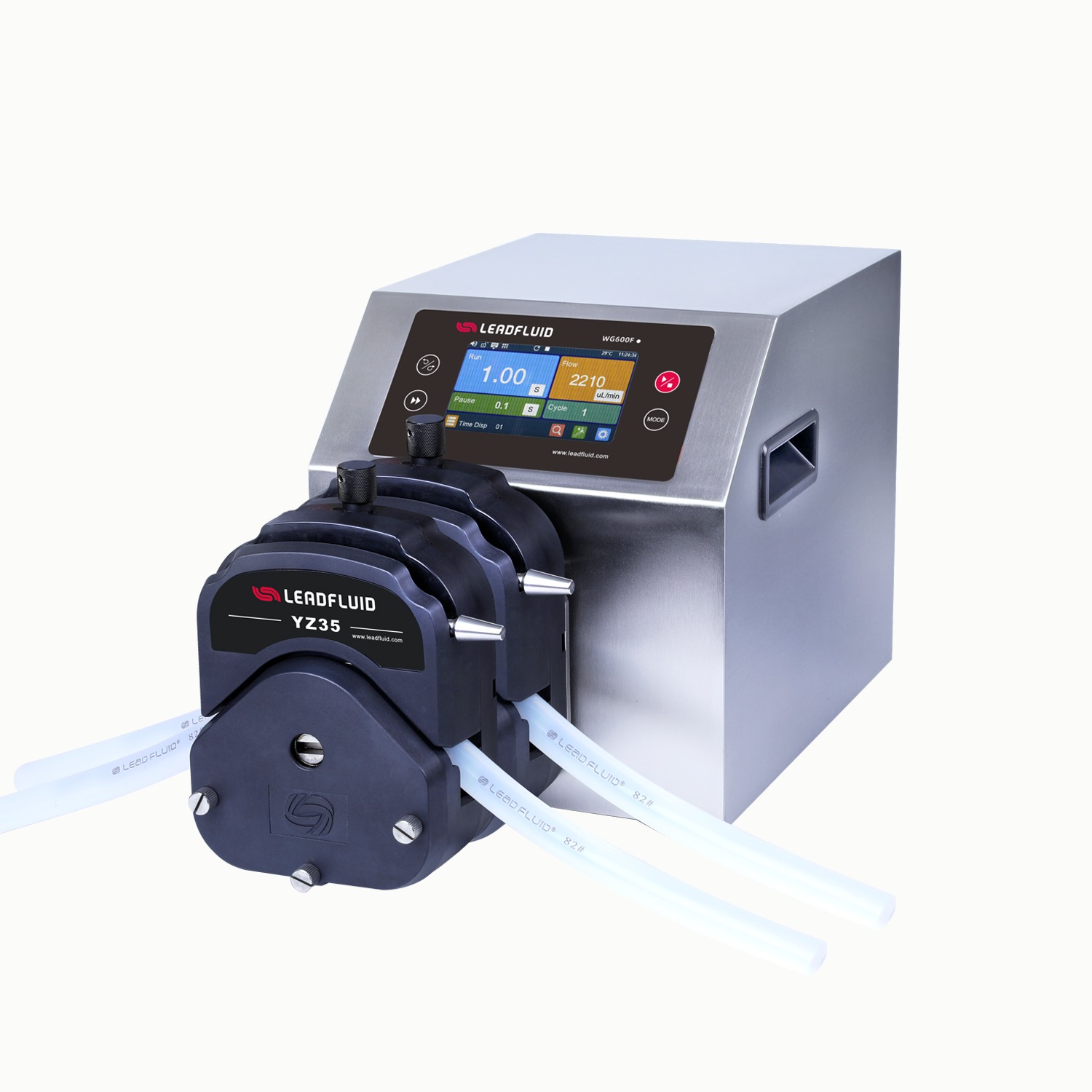

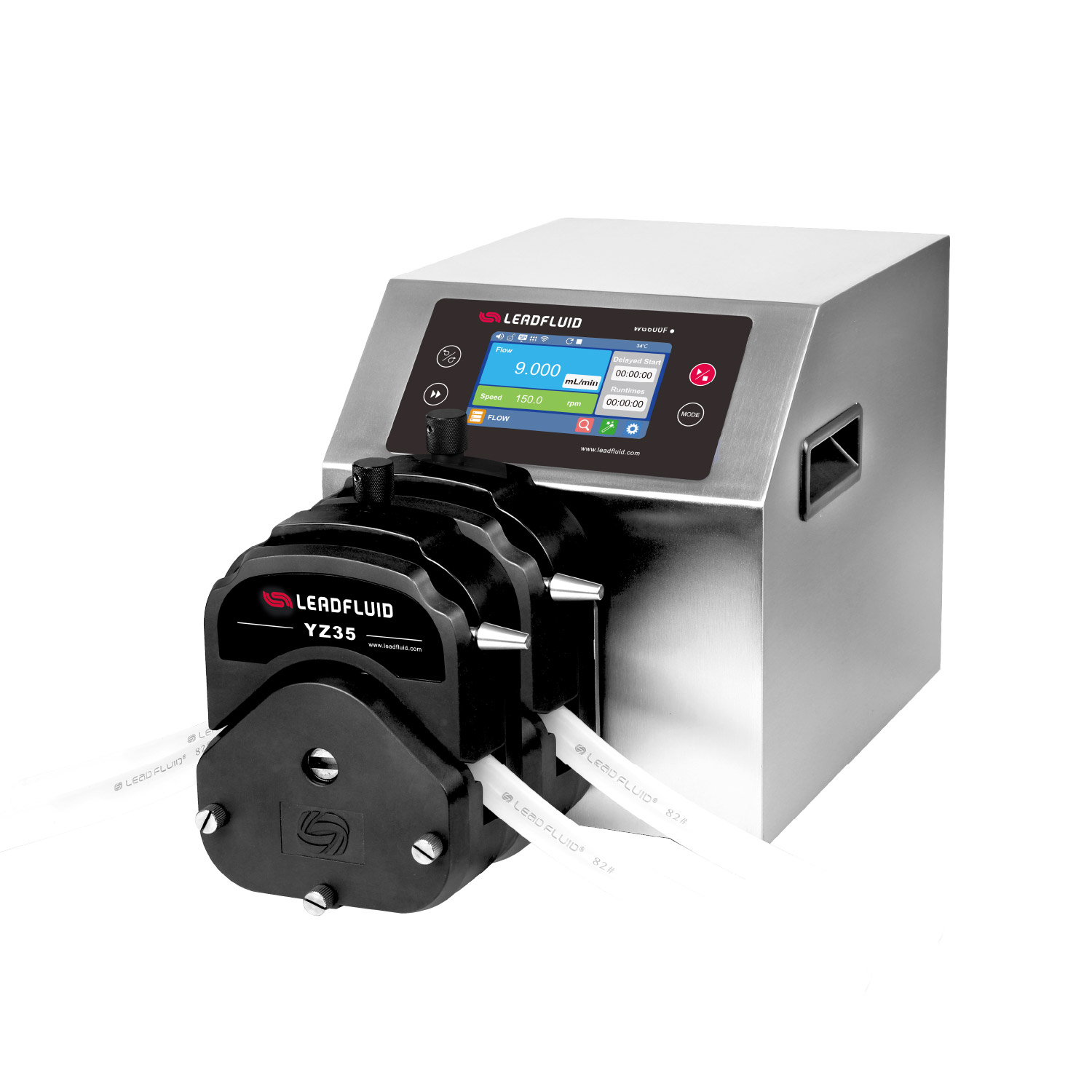

Industrial Intelligent Dispensing Hose Peristaltic Pump-WG600F

WG600F industrial intelligent dispensing peristaltic pump, focuse on precise quantitative fluid transfer. Adopting a larger size and wide viewing angle IPS capacitive screen, a faster microprocessor, making operation simple, convenient, and powerful. The pump has volume dispensing mode, time dispensing mode, copy dispensing mode, and programming mode, which can achieve complex experimental processes and meet various timing and quantitative requirements. RS485 communication adds more settings on the basis of MODBUS to adapt to different communication equipment requirements.

Flow: 0.0013~13.2L/min
Max: 2 Channels

Functions and Features

• 4.3 inch color high definition wide angle IPS capacitive LCD screen, visual.
• Touch screen cooperates with keypads operation, bring good user experience.
• External control signal supports 5-24v wide voltage input.
• Start/stop, reversible direction, full speed, suction function, timed start-stop.
• LF-Touch-OS software system, efficient and stable , with good human- computer interaction mode, convenient product customization and upgrade.
• Working modes: flow rate, time dispensing, volume dispensing, programming dispensing (cycle).
• Accurate flow control and display, microstep algorithm to ensure the dispensing ac curacy of different settings.
• Wizard flow calibration function, easy to use.
• Graphical pump head and tube selection, intuitive and clear.
• Flow mode supports delayed start and timed stop.
• Unique back suction function to prevent liquid drips.
• Five sets of dispensing parameters for volume and time dispensing pr e-storage.
• Programming mode supports 30 different quantitative parameter settings for complex control processes.
• Intelligent temperature control function, automatically adjusting the heat ac cording to the environment, so that the device is always in the best state.
• External analog adjust speed , external control start-stop ,reversible direction,dispensing, external signal physical isolation.
• RS485 communication interface, MODBUS protocol is available, can set up communication parameters, convenient to connect various of control equipments.
• Open multiple control parameters , suitable for OEM custom applications.
• The circuit board is sprayed with three anti paint technology to achieve the effect of dustproof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• Innovative stainless steel housing, easy to clean, effectively prevent the erosion of various organic solvents.

Specifications

  • Flow range: 0.0013~13.2L/min
  • Speed range: 0.1~600.0rpm
  • Speed resolution: 0.1rpm
  • Dispensing volume: 0.001μL~999.0L((It is recommended to have a minimum fill of 100mL)
  • Dispensing time: 1~999,“0”Infinite cycle
  • Dispensing interval time: 0.1~999.9 S/Min/H, time unit adjustable
  • Speed accuracy: <±0.2%
  • External control signal input: (1) Start/Stop: passive contact, external control input level (5~24V) (2) Forward/Reverse: passive contact, external control input level (5~24V)                                                                 (3) Speed Regulation: analog 0~5V, 0~10V, 4~20mA can be set
  • External control signal output: (1) Start/Stop: Level Signal (following input voltage) (2) Forward/Reverse: Level Signal (following input voltage) (3) Speed Status: Analogue 0~5V
  • Communication interface: RS485, MODBUS protocol is available, DB15 external control interface, WiFi function(optional)
  • Power supply: AC100-240V 50/60Hz
  • Power consumption: <400W
  • Working environment: Temperature 0 ~ 40℃, relative humidity<80%
  • IP grade: IP31
  • Dimension(L×W×H): 333×233×269mm
  • Weight: 10.2kg

WG600F Suitable Pump Heads and Tubing, Flow parameters

Drive type Pump head Channel Tube Single channel flow rate(L/min)

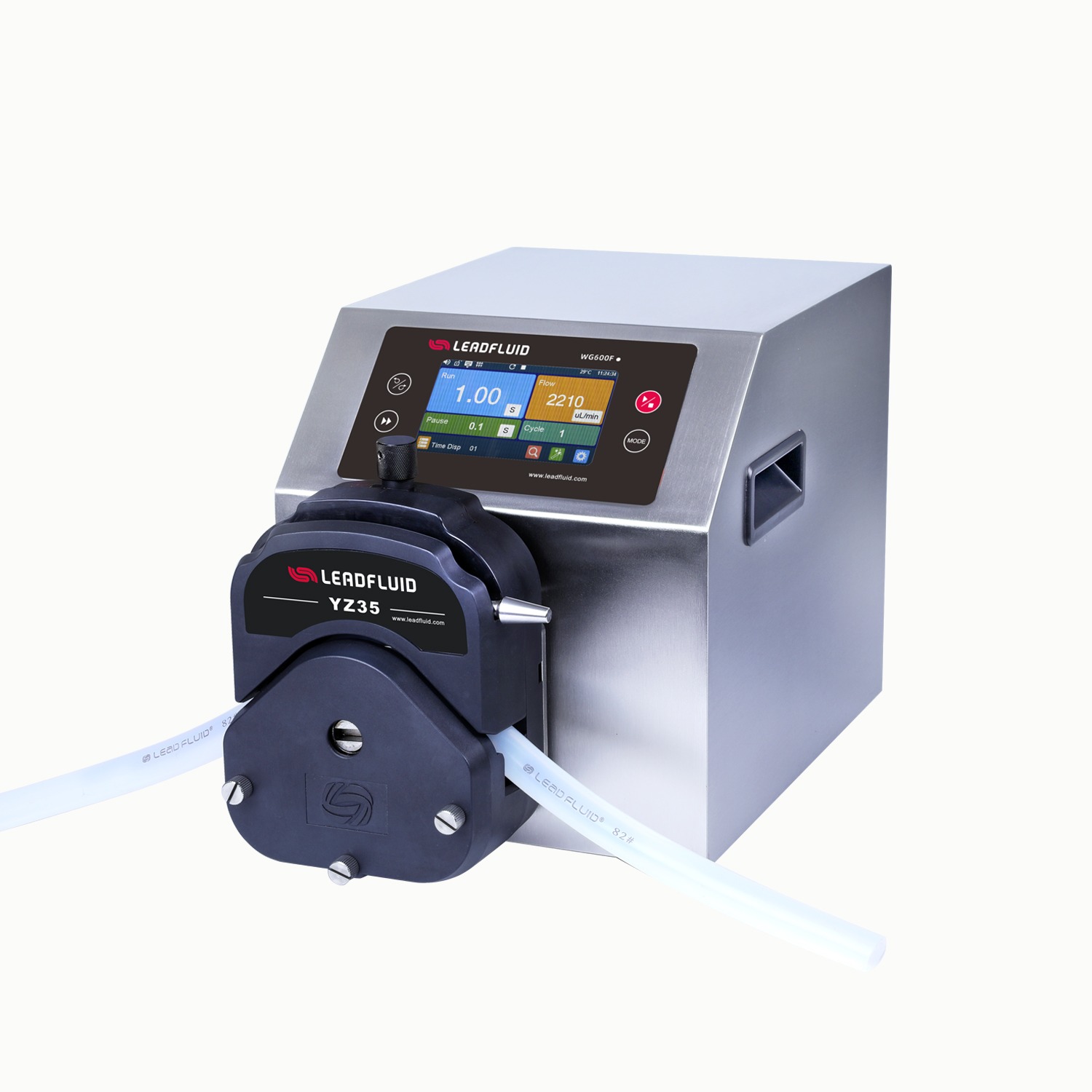

WG600F YZ35 1,2 73#82# 0.0013~13.2

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

Dimension(mm)

Statement:The final explanation right of above information belongs to Lead Fluid.
