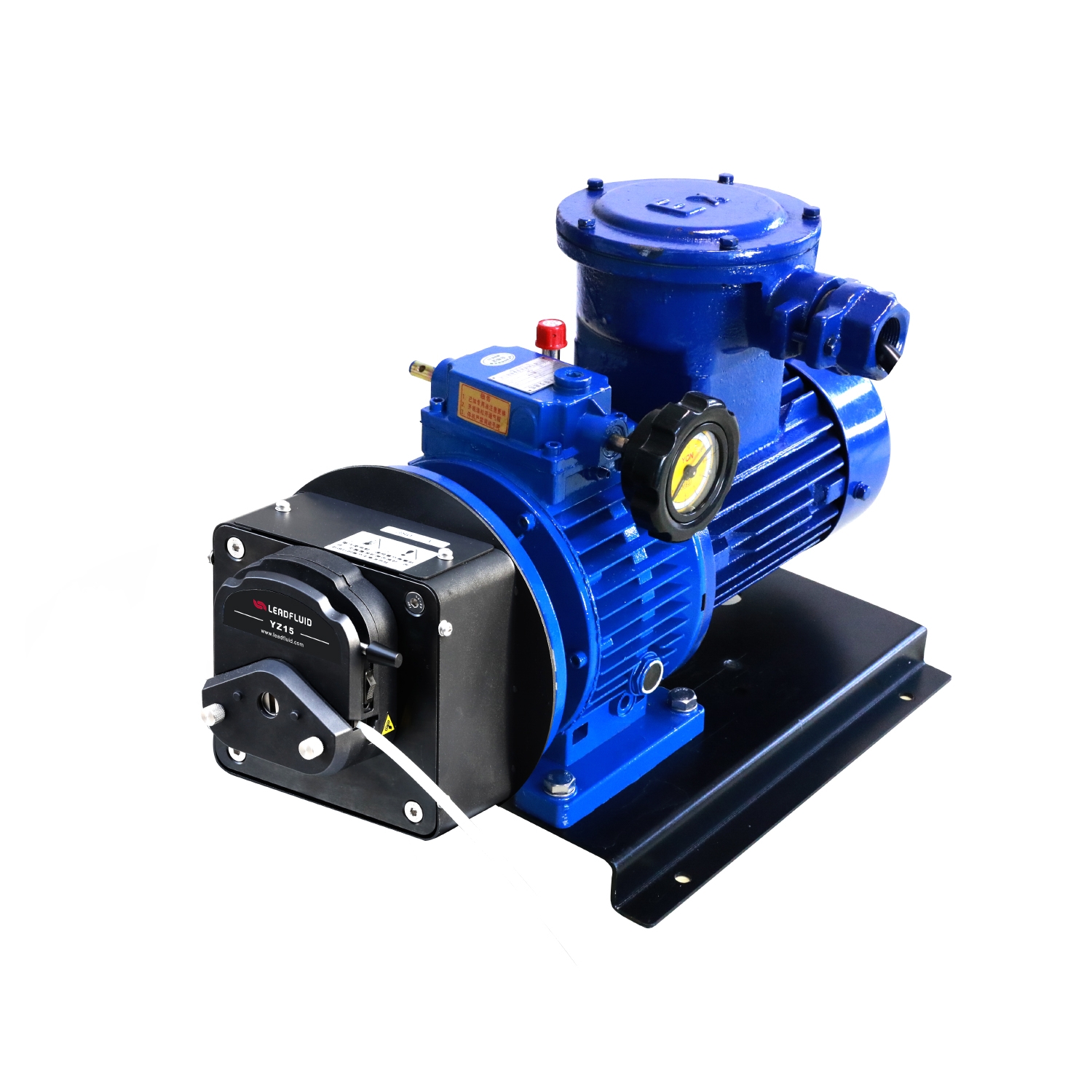

Function and Feature
• Industrial grade explosion-proof motor (ExdIIBT4), with special pump head, safe and reliable.
• Integral design, no frequency converter required, with functions such as manual adjust speed.
• During operation, the speed can be adjusted at any time through the handwheel.
• Can install a variety of pump heads, suitable for a variety of tube.
• IP55, can adapt to more complex working environment.
Remark: Protective shell can be installed
Technical Parameters
- Pump head: YZ15,YZ25,YT15,YT25,KZ25,KZ25-L
- Flow range: 8～6000mL/min
- Speed range: 135～600rpm
- Handwheel resolution: 0.2 rpm（Turn the handwheel to adjust 25rpm）
- Adjust speed: Manual stepless adjust speed
- Control function: Manual speed regulation function
- Power supply: 3 phase 380V 50HZ
- Power consumption: 400W
- Environment: Temperature 0 ～ 40℃, relative humidity＜80%
- Anti-explosion grade: ExdIIBT4
- IP Grade: IP55(motor)
- Dimension（L×W×H）: 576×345×393mm
- Weight: 36.5Kg
FG600S-W3 Peristaltic Pump Applicable Pump Head, Tubing and Flow Rate
| Drive type | Pump head | Ch | Tubing size | Single Channel Flow Rate（mL/min) |
| FG600S-W3 | YZ15 | 1~4 | 13#14#19#16#25#17# | 8～1700 |
| YT15 | 1~4 | 13#14#19#16#25#17#18# | 8～2300 | |
| YZ25 |
1~4 | 15#24# | 225～1700 | |
| YT25 | 1~4 | 15#24#35#36# | 225～2900 | |
| KZ25/KZ25-L | 1~2 | 15#24#35#36# | 332～6000 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
Dimension
Statement：The final explanation right of above information belongs to Lead Fluid.
