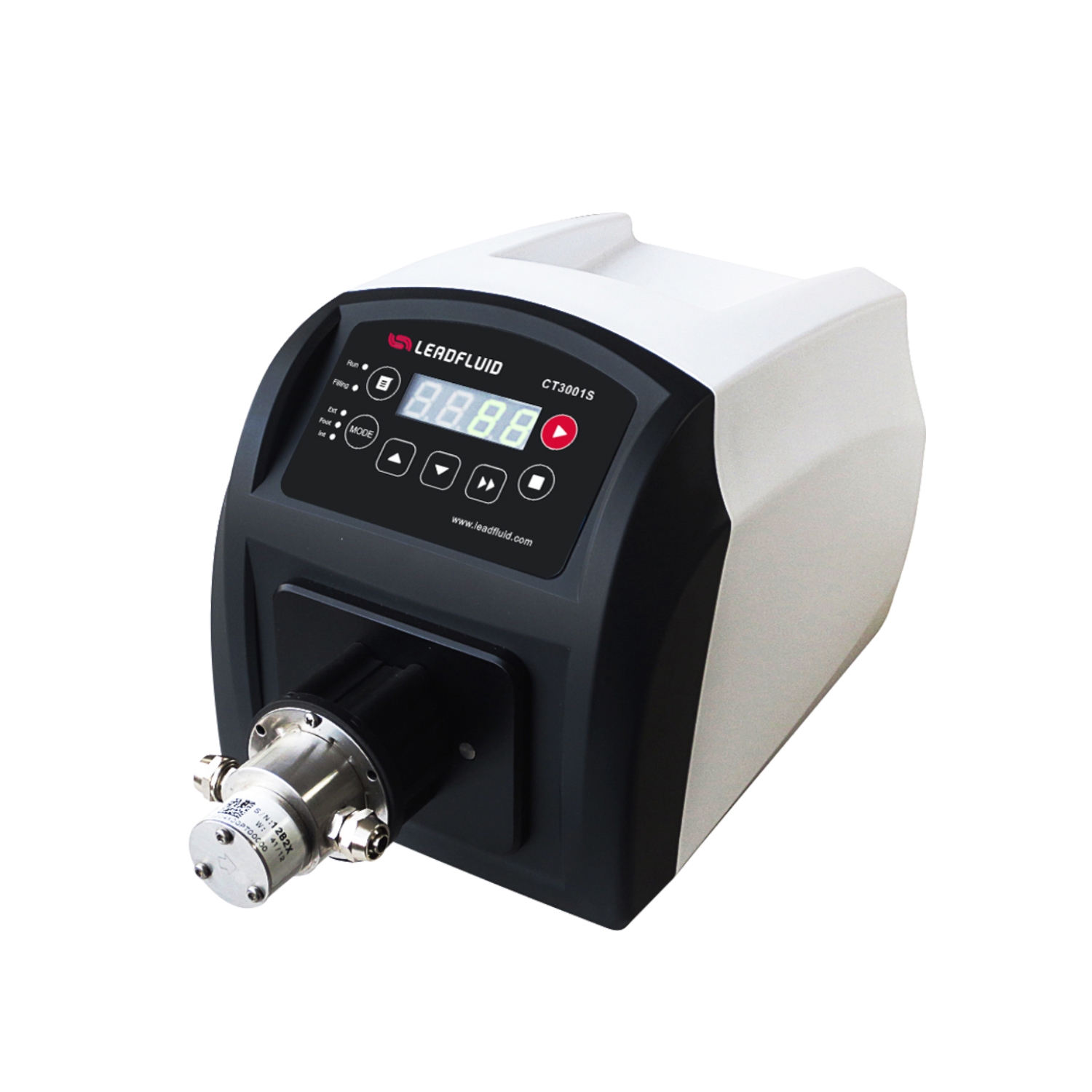

CT3001S Micro Gear Pump

Product introduction

CT3001S is a high performance, low noise of micro gear pump, adopts brushless motor, stainless steel, magnetic drive pump can be realized without pulsation, constant velocity of the fluid flow control.Drive to use plastic house, digital display, keypad operation, can be easily set parameters.Speed display, light display status, suitable for all kinds of experimental areas.A variety of external control way, convenient use together with other devices, more the MODBUS protocol communication, simplify the difficulty of system development.

    CT3001S work speed of 300-300 r/min, turn speed resolution 1rpm

Flow: 90- 2700mL/min
Max: 1 Channel
SKU: CT3001S Category:

Description

Function and Feature
• It can be installed a variety of pump head
• This pump is suitable for transmission more viscous, high pressure liquid
• No pulse transmission, low noise
• Magnetic coupling is designed, easy to maintain
• Brushless drive, high efficiency, no maintenance
• The digital display, keypad operation.
• Speed display
• Regularly dispensing liquid.
• External control signal control, physical isolation, analog control
• RS485 communication, support the MODBUS protocol
• Plastic ABS house
• wide range power input, adapted to different environment

CT3001S technical parameters

Main function

Pump headMG204,MG209,MG213
Functionskeypad control Start-stop, speed and state memory (power lost memory);Foot switch control, external start-stop and external control direction, input physical isolation, level 5 v / 12 v / 24 v input is optional;0 to 5 v / 0 to 10 v / 4-20 ma speed optional;Time dispensing function
CommunicationRS485,Support Modbus communication protocol
Displaydisplay speed and mode
Directionunidirectional

Main performance

Flow range90-2700mL/min
Speed range300-3000rpm/min
Speed resolution1rpm/min,accuracy 3%
Adjusting wayMask keypad operation
Display mdoe4 LED digital display
Power supplyAC 100-240V 50Hz/60Hz(standard)
consumption<50W
Working envronmentEnvironment 0~ 40℃   humidity <80%
Dimension size182*343* 198mm
Drive weight3.3kg
IP standardIP31

» CT3001S suitable pump head

Pump headGear materalPressure (MPa)Flow rate(ml/min)Speed(rpm)
MG204XD0PT00000PEEK≤0.890-900300-3000
MG209XD0PT00000 PEEK≤0.8180-1800300-3000
MG213XD0PT00000 PEEK≤0.3270-2700300-3000

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
