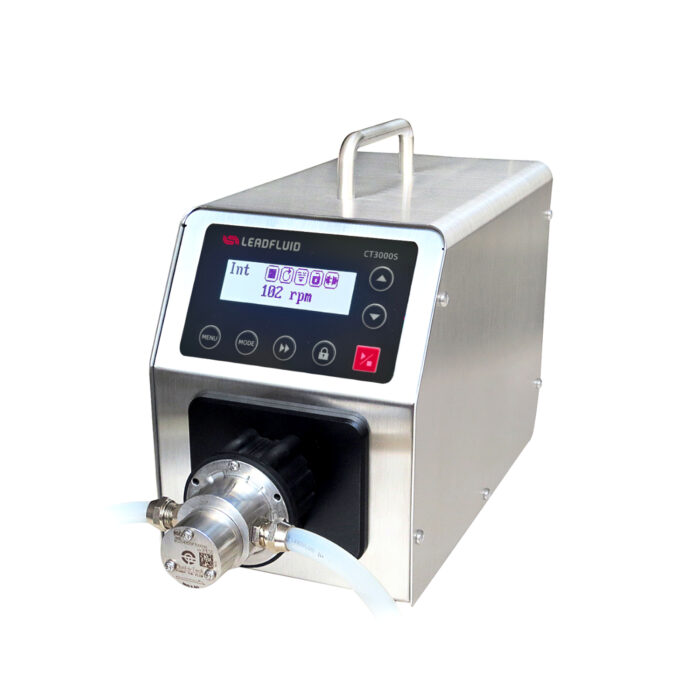

Description
Function and Feature
• It can be installed a variety of pump head
• This pump is suitable for transmission more viscous, high pressure liquid
• No pulse transmission, low noise
• Magnetic coupling is designed, easy to maintain
• Brushless drive, high efficiency, no maintenance
• The digital tube display, keystrokes
• Speed display
• Regularly repackaging or dispensing
• External control signal control, physical isolation, analog control
• RS485 communication, support the MODBUS protocol
• Stainless steel shell
• wide range power input, adapted to different environment
The parameters
Main function
| Pump head | MS204,MS209,MS213 |
| Functions | keypad control Start-stop, speed and state memory (power lost memory);Foot switch control, external start-stop and external control direction, input physical isolation, level 5 v / 12 v / 24 v input is optional;0 to 5 v / 0 to 10 v / 4-20 ma speed optional;Time dispensing function |
| Communication | RS485，Support Modbus communication protocol |
| Display | display speed and mode |
| Direction | unidirectional |
Main performance
| Flow range | 90-2700ml/min |
| Speed range | 300-3000rpm/min |
| Speed resolution | 1rpm/min，accuracy 3% |
| Adjusting way | Keypad |
| Display mdoe | 4 LED digital display |
| Power supply | AC 100-240V 50Hz/60Hz（standard） |
| consumption | <150W |
| Working envronment | Environment 0~ 40℃ humidity <80% |

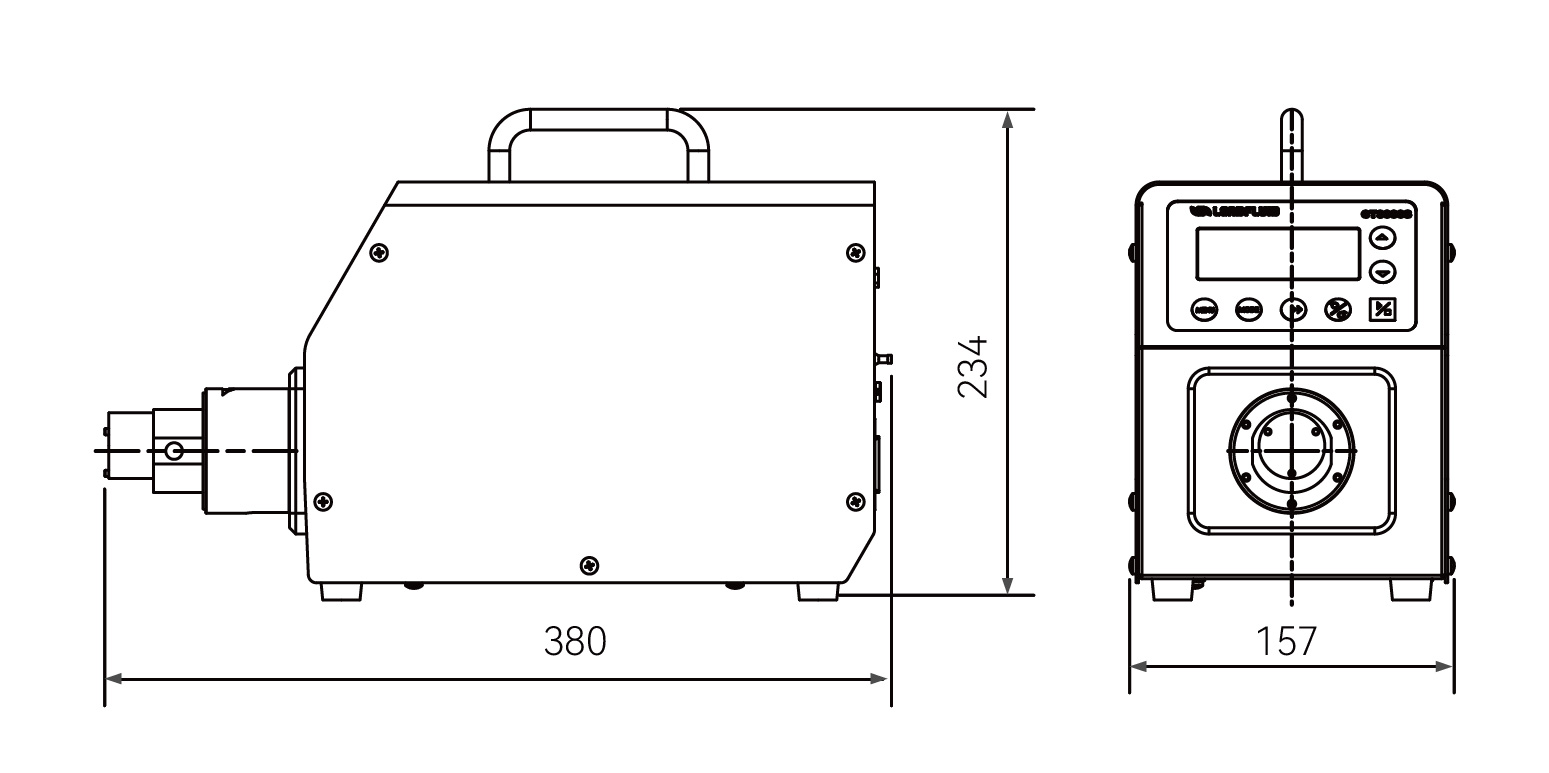

| Dimension size | 320X150X 237 mm |
| Drive weight | 5.5kg |
| IP standard | IP31 |
CT3000S suitable Pump head
| Pump head | Gear materal | Pressure (MPa) | Flow range (MPa) | Liquid temperature℃ |
| MS204XD0PT00000 | PEEK | ≤1.4 | 90-900 | -45-120 |
| MS209XD0PT00000 | PEEK | ≤0.9 | 180-1800 | -45-120 |
| MS213XD0PT00000 | PEEK | ≤0.8 | 270-2700 | -45-120 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
