BT600S series of peristaltic pumps adopts imported core processor,high quality stepper servo motor drive, speed control accuracy is±0.2%. Through the Lead Fluid APP software, the pump can be remotely controlled and the running status can be monitored in real time. RS485 communication, Modbus protocol, can be connected to the upper computer such as computer, single chip microcomputer,PLC, frequency converter, man-machine interface through a variety of signal modes, to achieve systematic centralized control.

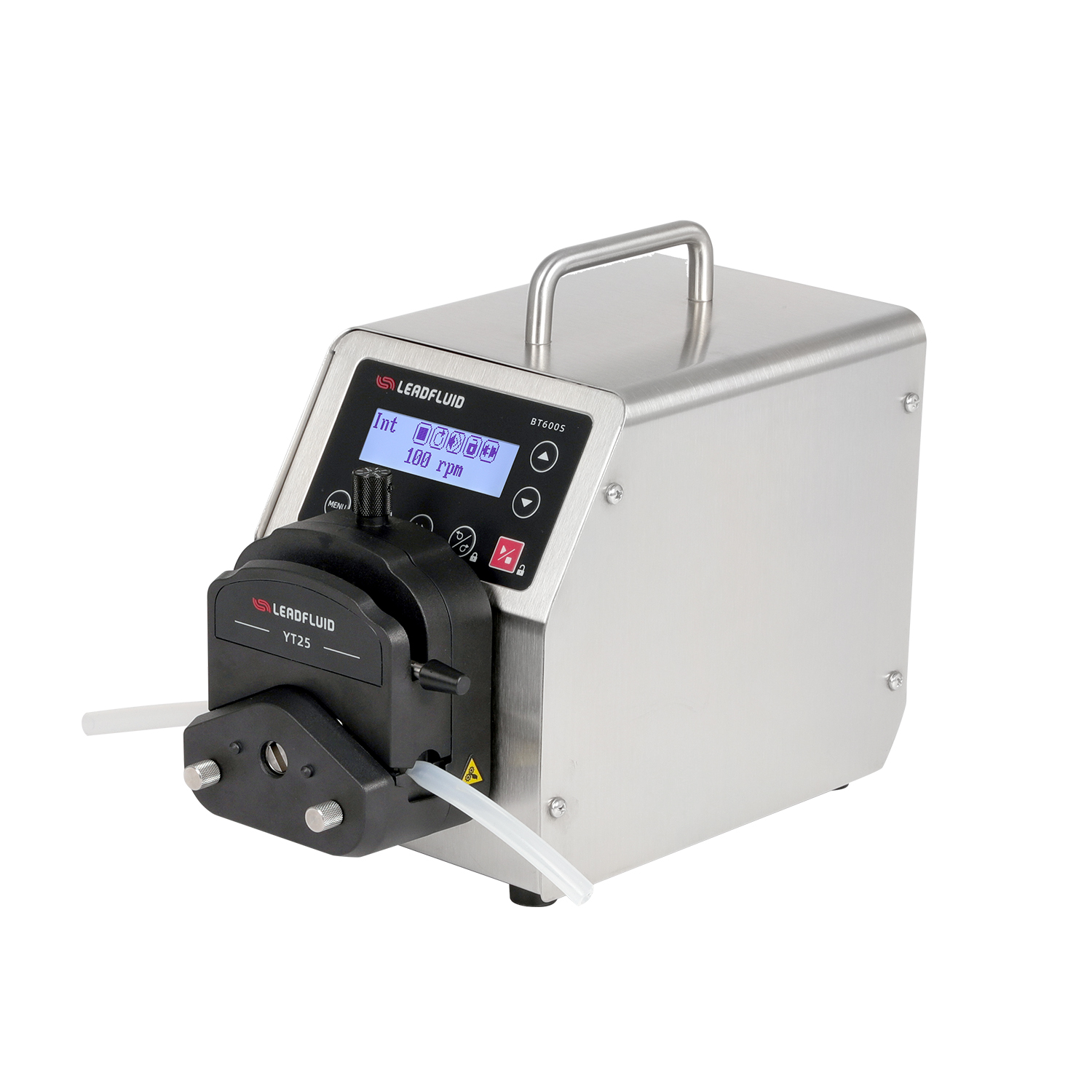

BT600S Basic Variable-Speed Peristaltic Pump
Max: 2 Channels
Warranty: 3 years for the peristaltic pump drive
Functions and Features
- LF-LCD-OS software system, high definition lattice LCD display, switching between Chinese-English interface, simple parameter setting, intuitive state display.
- High-quality and high-torque stepper servo motor drive, speed accuracy, wide range, operation stability, high-precision flow transmission.
- Industrial mask key operation, simple and convenient, high durability.
- LF-Easy Change universal design, large torque output, strong expansibility, can match various high-performance pump head.
- Start/Stop, adjust speed, reversible direction, full speed and,state memory (power-down memory).
- The parameters of running time, interval time and cycle times can be set to meet the requirements of timing, quantitative, liquid dispensing and flow testing.
- Slow speed stop and suction function, which can effectively prevent the dropping of liquid when the machine stops.
- Keyboard lock function to prevent misoperation.
- The remote start-stop, adjust speed and timing operation can be realized by using Lead Fluid APP software. It also has monitoring functions such as stop alarm, change of pump tube and so on (optional).
- Stainless steel 304 material housing, effective prevention of erosion of various organic solvents, easy to clean.
- The internal structure adopts double-layer isolation design, and the circuit system provides special protection, which effectively improves the anti-dust, moisture-proof, anti-corrosion and oxidation resistance.
- Super anti-interference characteristic, wide voltage design, suitable for complex power supply environment.
- RS485 communication interface, Modbus protocol, easy to connect with various control devices.
- Acceptable multiple external industrial control signals to control start-stop, reversible direction and speed adjustment, optically coupled isolator.
- Support start-stop, reversible direction, current speed etc. working state signal output.
- External thermal printer (optional), real-time printing operation parameters.
- It can be equipped with foot switch, pulse damper, leak detector and other accessories.
- Flow range: 0.006-2900 mL/min
- Speed range: 0.1-600 rpm
- Speed resolution: between 0.1-100 rpm, 0.1 rpm resolution; between 100-600 rpm, 1 rpm resolution
- Speed accuracy: 0.2%
- Power supply: AC 100-240V, 50Hz/60Hz
- Power consumption: < 60W
- External logic level control signal: 5V, 12V (standard), 24V (optional)
- External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
- Communication interface: RS485 MODBUS interface
- Operating condition: Temperature 0-40°C; Relative humidity < 80%
- IP grade: IP31

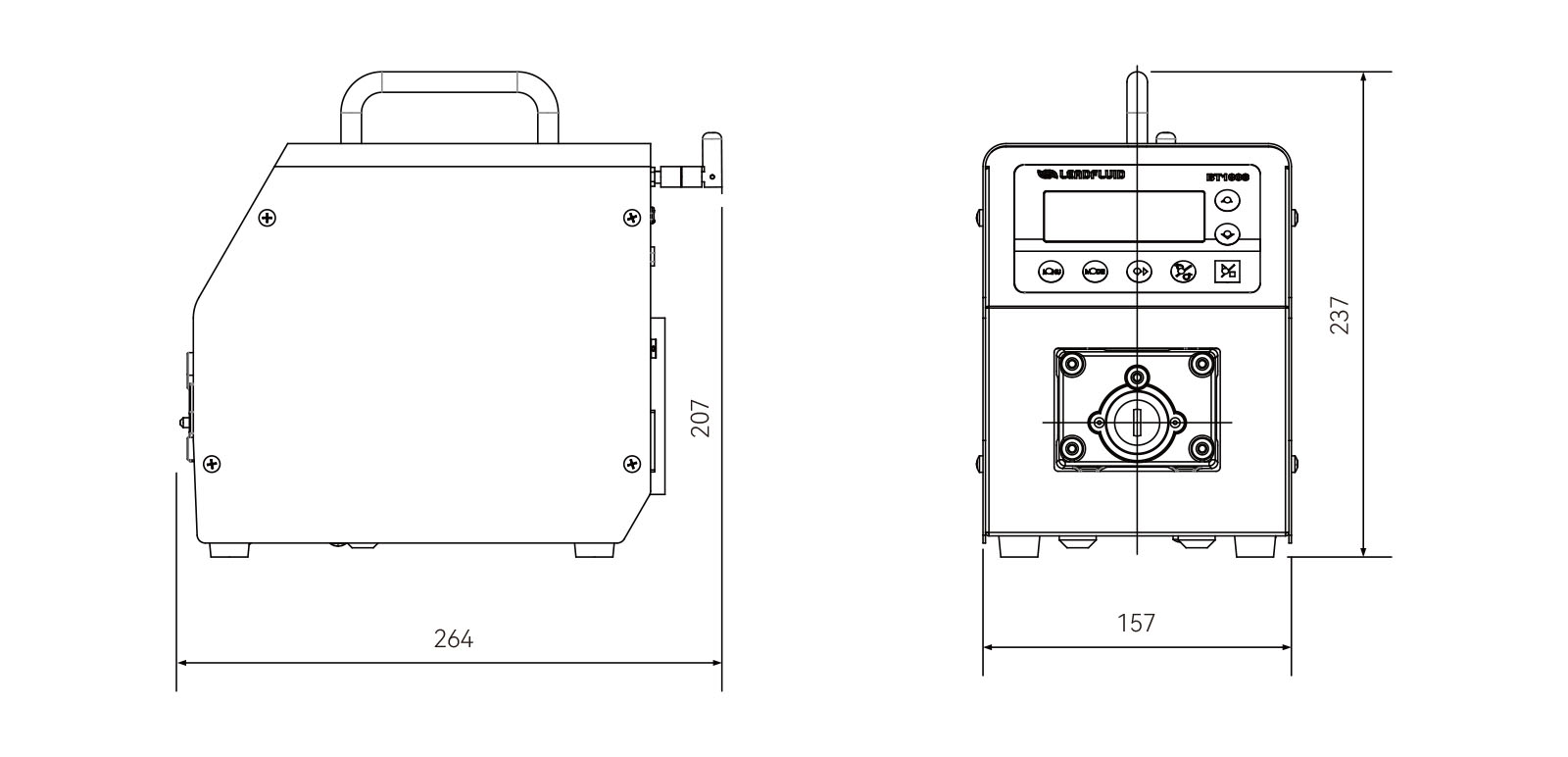

- Dimensions (L x W x H): 264 x 150 x 270mm (10.37 x 5.91 x 10.63inch)
- Weight: 5.5 kg (12.1 lbs)
BT600S Suitable Pump Heads and Tubings, Flow Parameters
|Drive type||Pump head||Ch||Tubing size||Flow rate per channel (mL/min)|

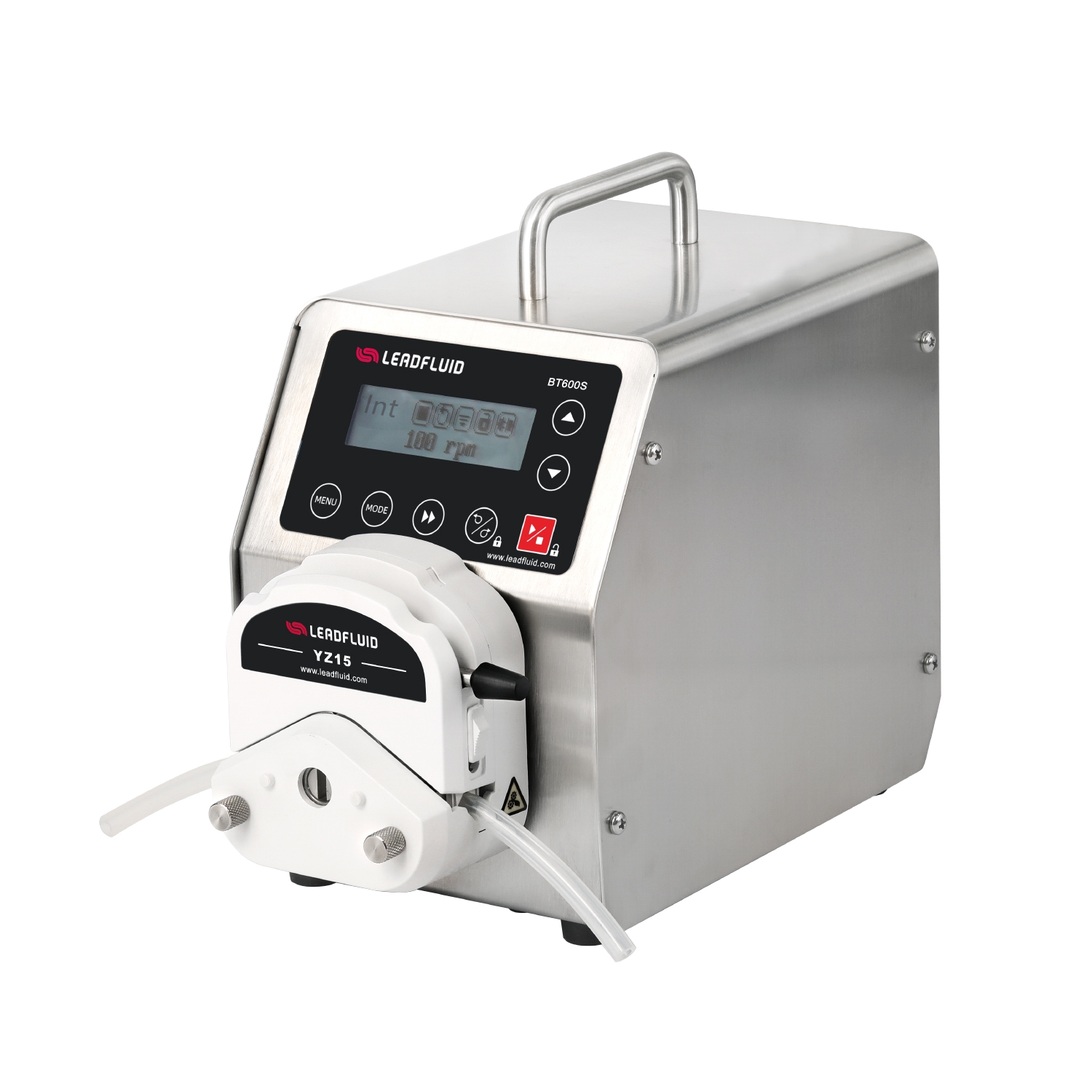

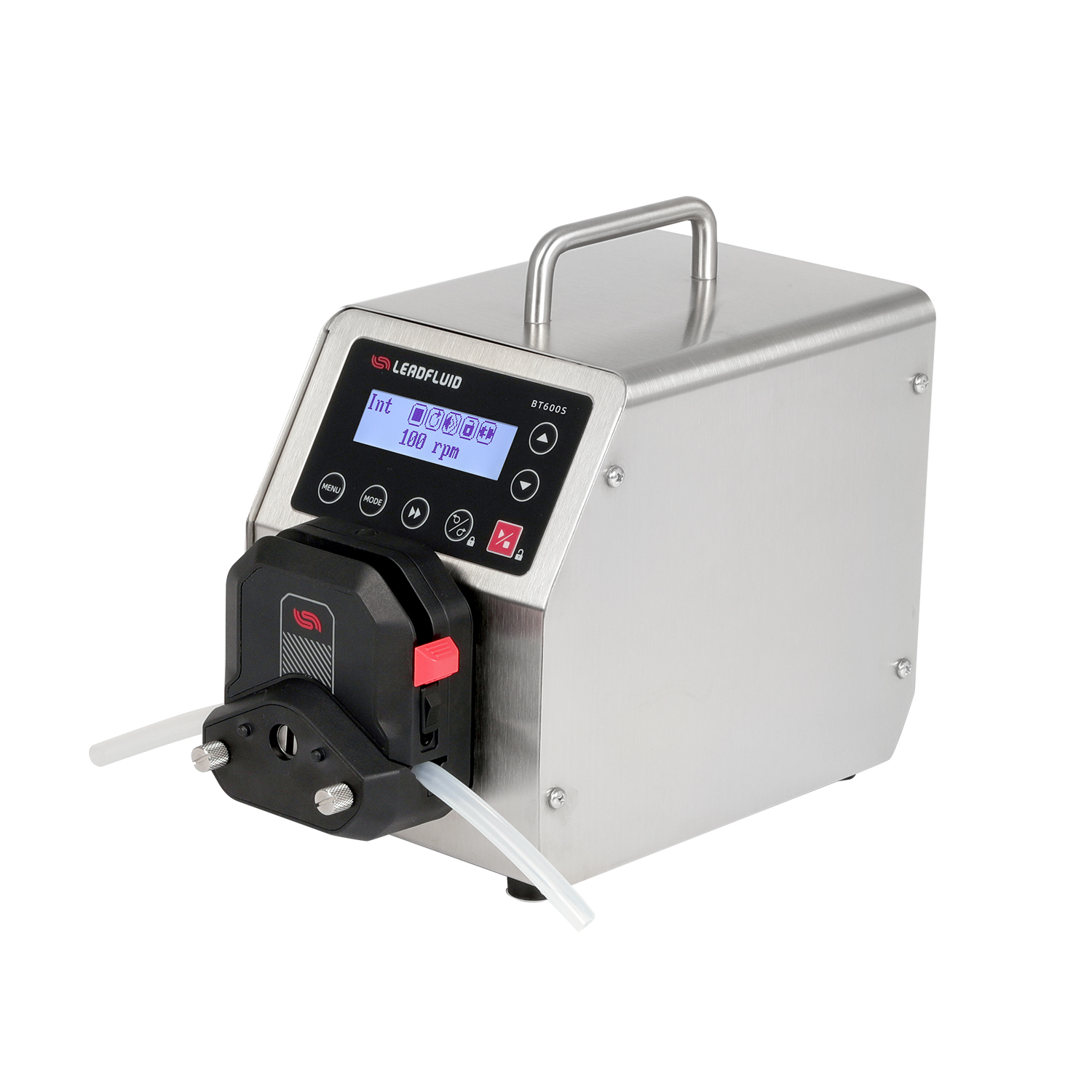

|BT600S||YZ15||1||13# 14# 19# 16# 25# 17#18#||0.006-2300|

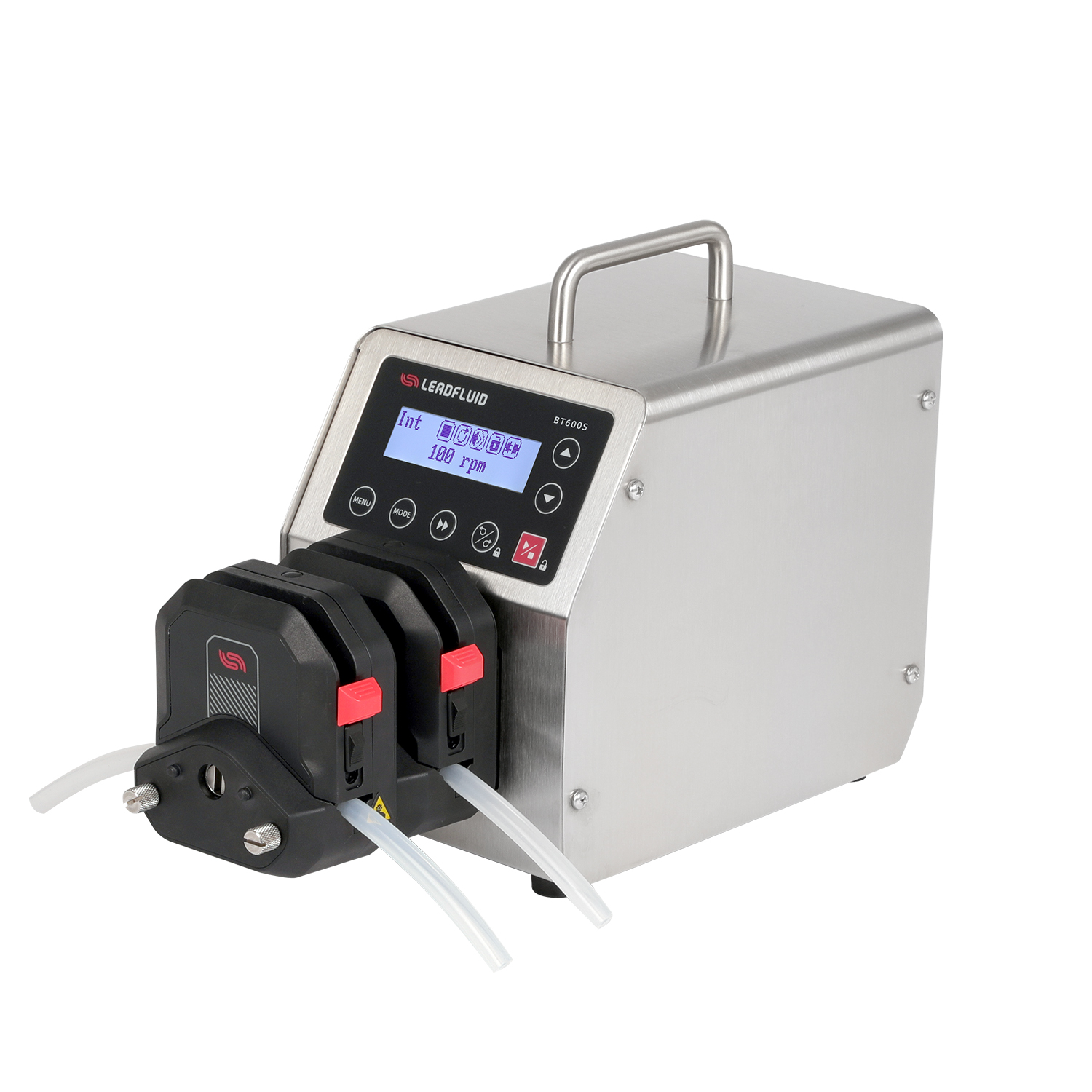

|2 x YZ15||2||13# 14# 19# 16# 25# 17#18#||0.006-2300|

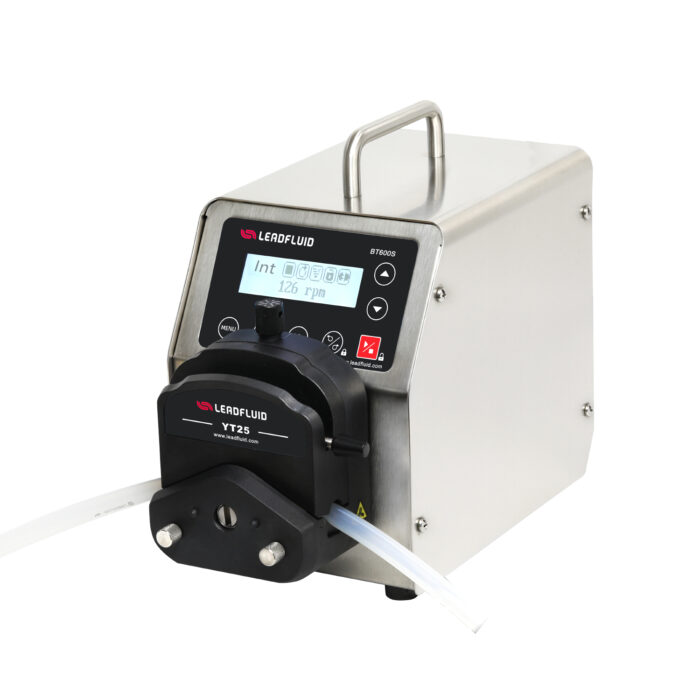

|YT25||1||15# 24# 35# 36#||0.16-2900|
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
