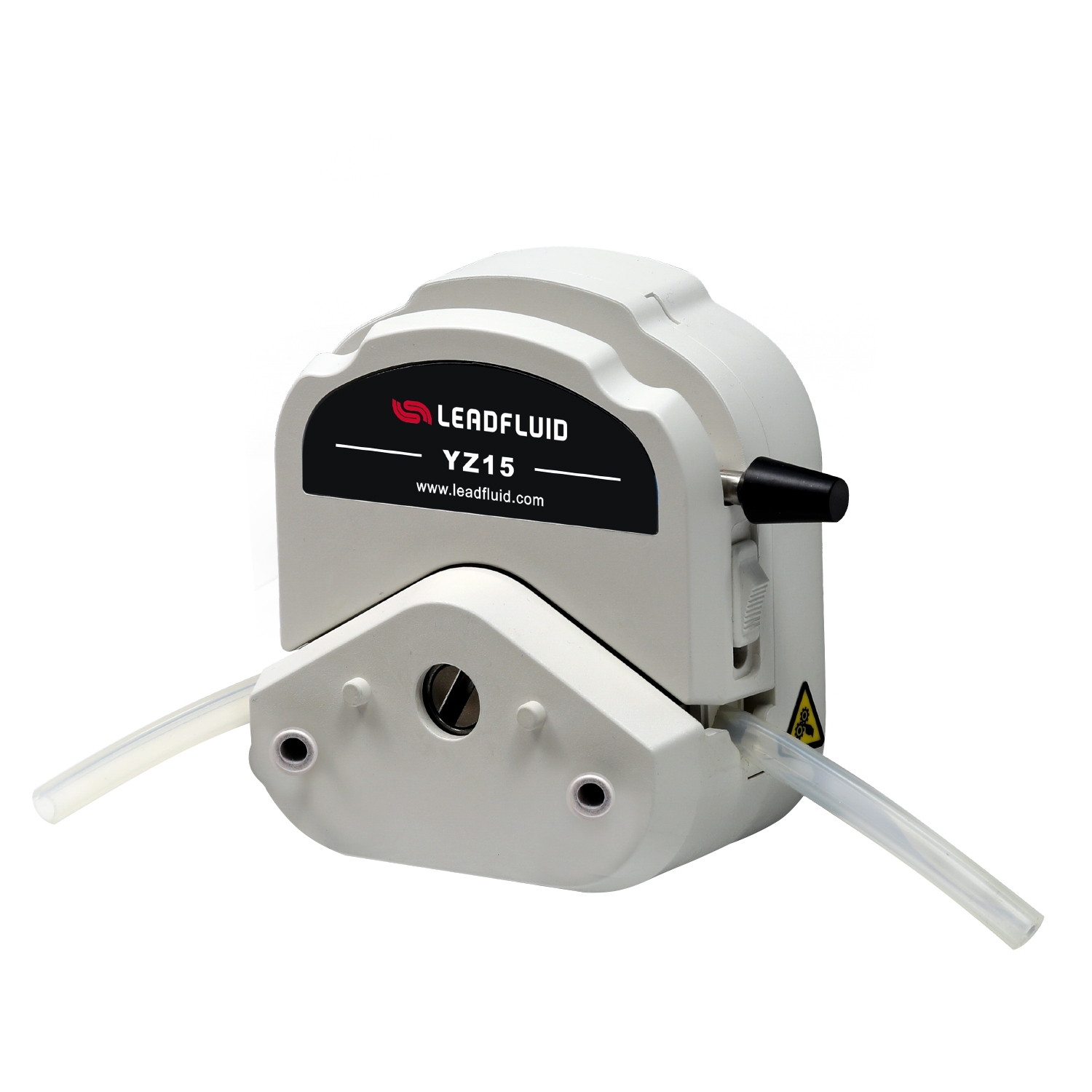

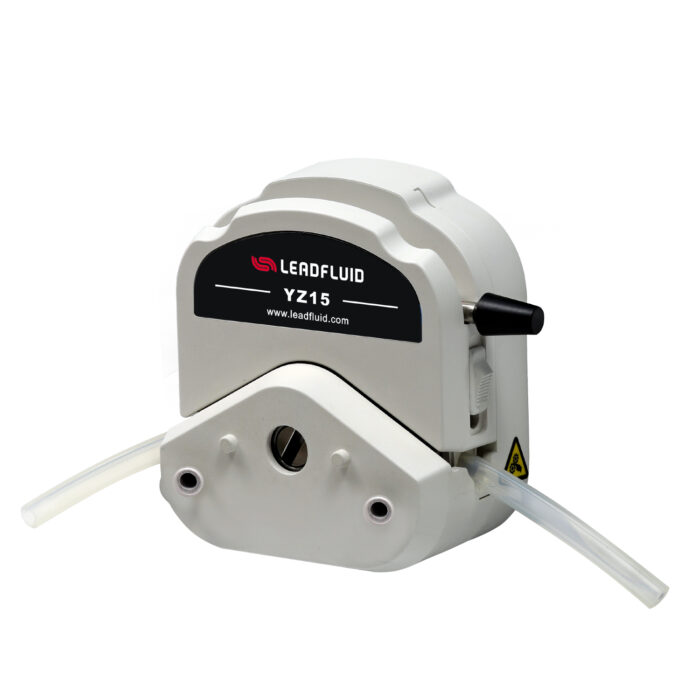

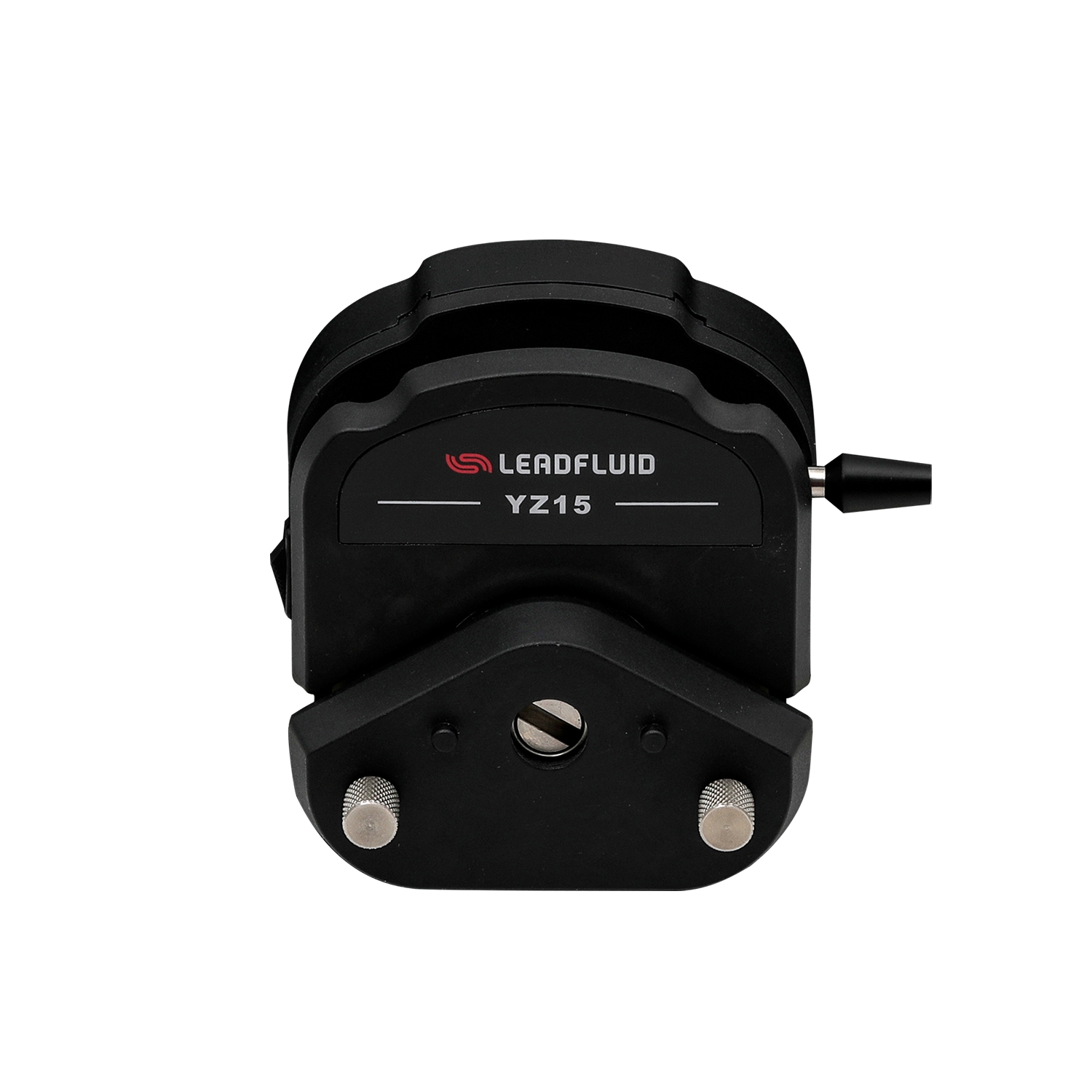

YZ15 Peristaltic Pump Head

■ YZ15 pump head flow range is 0.005~2562mL/min, suitable for tube size of 13#,14#, 19#, 16#, 25#, 17#, 18# ,wide flow range.
■ With self-adapting clamping device, it is easy to clamp tubes of different thicknesses without manual adjustment.
■ Classic pump tube locking mechanism, replacing tube only takes several seconds, easy to deal with frequent tube change conditions.
■ Special pressure tube structure, reduce wear and tear of pump tube and accidental rupture caused by misoperation.
■ PPS\PES special functional plastic shell and SS roller ensure that the pump head can meet the high-strength use requirements such as high speed, long time, etc.
■ Multiple pump heads can be superposition, maximum expansion to 10 channels.
■ When two pump heads are series connection, the rollers are staggered at 60 degrees, which can obviously reduce the fluid pulsation and increase the transmission speed.
■ YZ15,YZ25 pump head can match motor such as stepper motor, servo motor , AC motor, DC motor and other types of motor.
■ We have low pulsation and waterproof pump heads for selection. Please confirm with Lead Fluid sales engineer or agent in advance.

Flow: 0.005~2562mL/min
SKU: YZ15 Category:

YZ15 Flow Parameters

Tube materials: Silicone,Pharmed,Viton,Tygon E-3603, Tygon Chemical,
Tygon A-60-F,Tygon A-60-G Wall thickness 1.6mm

ID(mm) 0.8 1.6 2.4 3.1 4.8 6.4 7.9
Tube 13# 14# 19# 16# 425 17# 18#
mL/rpm： 0.05 0 .20 0.5 0.8 992 3.0 4.3
Max flow(600rpm,mL/min) 30 120 300 480 1700 1800 2562

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure,in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.

Pump Head Specification

  • Channel: 1 channel (Max expand to 10 channels)
  • Rollers: 3\6个
  • Tubing Method: Whole tube
  • Shell Material: PPS\PES
  • Roller Material: SS304
  • Pressure tube clearance: Fixed（Non-adjustable ）
  • Weight: 42g（3rollers）\ 480g（6rollers）
  • Bear Liquid Temperature: Less than 200℃
  • Corrosion Resistance: PPS is resistant to most acid, alkali, salt liquids and organic solvents. PES is resistant to most liquids except chlorinated hydrocarbons, ketones and strong acids.

Dimension(mm)

Tube Life Comparison Table

Notes:
The above data are all test results obtained by Lead Fluid laboratory under normal temperature and pressure for the transmission of pure water, which are for reference only; the actual service life may be affected by specific factors such as pressure, temperature, medium characteristics, tube batch and wall thickness; for specific problems, please contact Lead Fluid engineers to get better technical support.

Statement：The final explanation right of above information belongs to Lead Fluid.
