WMD15-X micro pulsation pump head unique micro pulsation patent technology, liquid transmission lower pulse, excellent transmission continuity, especially suitable for glue coating, film coating, chemical synthesis and other industries with high requirements for transmission stability.

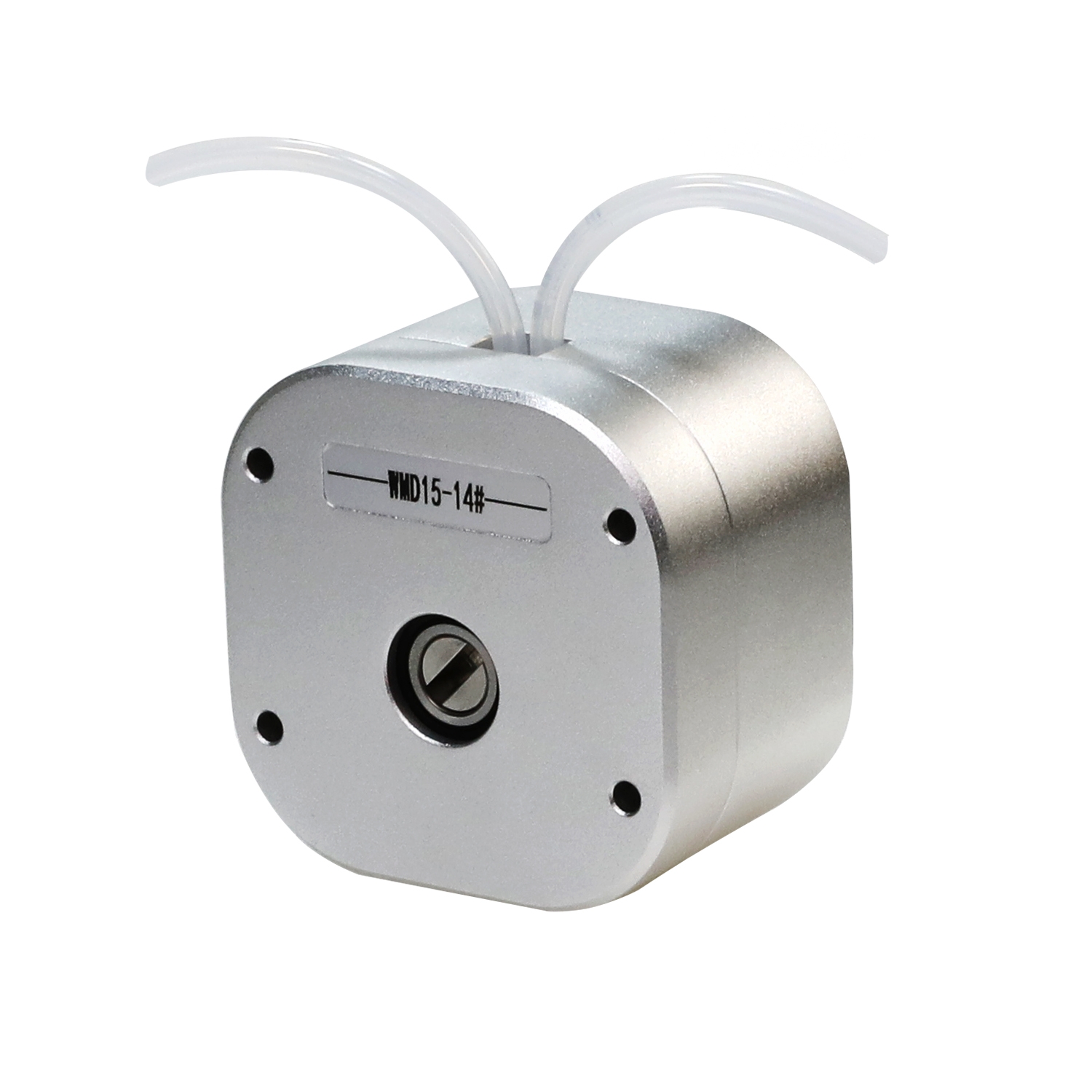

WMD15-X Micro Pulsation Pump Head
Description
■ Lead Fluid WMD15-X micro pulsation pump head flow range 0.006~1700 mL/min，suitable for tube of 13# 14# 19# 16# 25# 17# .
■ Unique micro pulsation patent technology, liquid transmission lower pulse, excellent transmission continuity, especially suitable for glue coating, film coating, chemical synthesis and other industries with high requirements for transmission stability.
■ Entirety adopts the aluminum alloy and 304ss, sturdy and durable. suitable for continue working at high speed.
Pump Head Material
| Shell | aluminum alloy |
| Roller | SS304 |
| Roller shaft | SS304 |
Flow Rate Parameters
Tube material：Silicone, Pharmed, Viton, Chemical, A-60-G/F Wall thickness 1.6mm | ||||||
ID（mm) | 0.8 | 1.6 | 2.4 | 3.1 | 4.8 | 6.4 |
13# | 14# | 19# | 16# | 25# | 17# | |
mL/rpm | 0.06 | 0.22 | 0.48 | 0.8 | 1.67 | 2.83 |
mL /min ( continuous working max 600rpm) | 36 | 130 | 286 | 480 | 1000 | 1700 |
★ Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually using it is effected by specific factors such as
pressure, medium etc. Above for reference only.
Specification
| Flow range | 0.006~1700 mL/min |
| Speed | 0.1~600rpm |
| Tube | 13#, 14#, 19#, 16#, 25#, 17# |
| Roller | 3 |
| Temperature | 0℃～40℃ |
| Clearance adjustment | Fixed |
Dimension
Important tips：
A. For longer tube lifetime, choose thicker wall tube and low speed.
B. For larger flow,choose larger ID tube and in high speed.
C. For higher precision, choose smaller ID tube and medium to high speed.
D. For higher suction and back pressure,choose thinner ID and thicker wall tube and low speed.
Statement ： The final explanation right of above information belongs to Lead Fluid.
