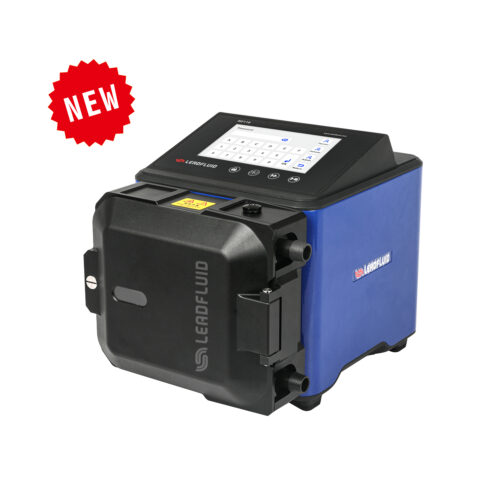

MF106-QS High-Protection Peristaltic Pump

The MF106-QS is the latest effort in Lead Fluid’s high-protection series of peristaltic pumps, designed to meet the stringent standards of the biopharmaceutical field. Not only does it continue the excellent performance of its predecessor (MF106), but it also achieves upgrades in multiple aspects. This product complies with FDA 21CFR Part11 regulations and the 3Q verification system, supports audit tracking, and multilevel permission management, assisting enterprises in achieving compliance, efficient production, and process optimization.

Application fields: Biopharmaceuticals, Mining, Petrochemical, Food Industry, and More
Typical applications: Raw Liquid Transfer, Polycarboxylic Acid Synthesis Equipment, Mining Flotation Reagent Addition, etc.

Flow: 0.006-7800mL/min
Max: 4 Channels

MF106-QS Reliable Choice Under Strict Process Standards

Feature

• Electronic signature compliant with FDA 21CFR Part11 regulations
Built-in electronic signature function, complying with regulatory audit tracking requirements, ensuring data security and compliance

• Enhanced user permission management
Supports graded management through user ID, password policy, and permission configuration, ensuring the safety and controllability of equipment operations

• Complete log records
Real-time recording of operations and status, supports export, ensures data integrity and traceability, convenient for audit and compliance checks

• Compliance with the 3Q verification system
Passes 3Q verification, meeting the high standards of pharmaceutical processes and GMP, ensuring rigorous and compliant production processes

• Convenient USB upgrades
Supports USB software updates, simplifying maintenance costs

• User-friendly experience
Built-in help center, providing video guidance, helping users get started quickly

• Hardware performance improvement
Operation speed increased by 3 times, more responsive

Technical Parameter

Flow range:0.006-7800mL/min
Speed range:0.1-360 rpm
Speed resolution: 0.1rpm
Speed accuracy:<±0.2%
Work mode: Key control start and stop, direction, full speed, state memory (power-off memory). Foot switch control,external control start/stop and direction, with physical isolation, 5V/12V 24V level input optional,0-5V/ 0-10V/4-20mA adjustable speed optional, flow mode, volume dispensing mode, time dispensing mode
Adjust methood: Touch screen operation
Dispaly methood: 5-inch color touch screen
Rotating direction: CW/CCW
External control signal input: (1) Start/Stop: passive contact, external control input level (5~24V)
(2) Forward/Reverse: passive contact, external control input level (5~24V)
(3) Speed Regulation: analog 0~5V, 0~10V, 4~20mA can be set.
External control signal output: (1) Start/Stop: Level Signal (following input voltage)
(2) Forward/Reverse: Level Signal (following input voltage)
Communication interface: RS485 communication interface, Modbus protocol is available
Power supply:AC 100-240V 50-60 Hz
Power consumption:<180W
Working environment:Working temperature0-40℃,working humidity 80%
Shell material:Aluminum
IP grade: IP66/IP67
Dimension(L×W×H): 363x180x230mm
Drive weight: 11kg

MF106-QS Applicable Pump Head and Tube,Speed, Flow

Drive Type Pump Head Channel Tube Single Channel Flow Rate(mL/min)
MF106-QS DMD15 1 13#14#19#16#25# 0.01~1266

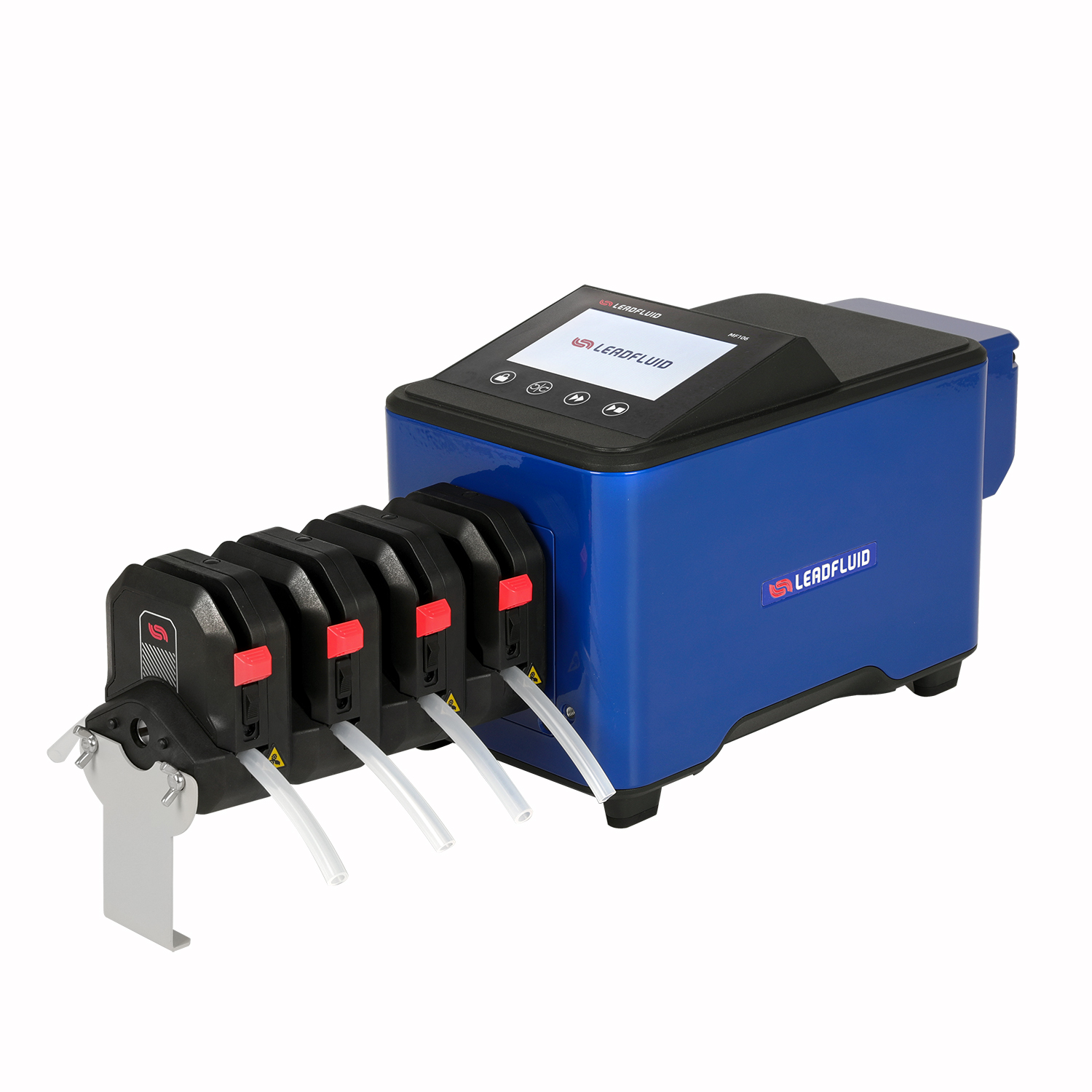

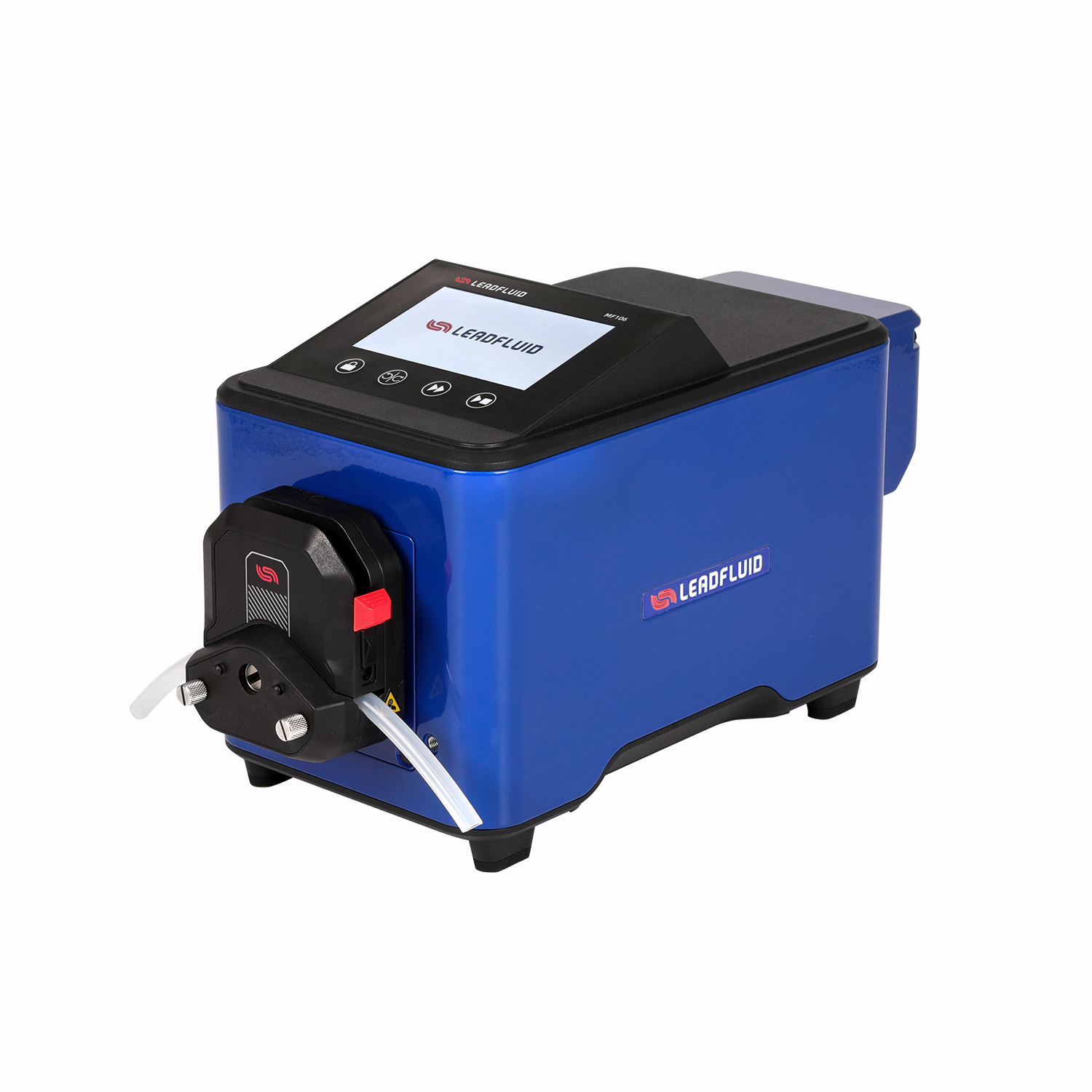

YZ15/YT15/YZ15T 1,2,4 13#14#19#16#25#17#18# 0.006~1620

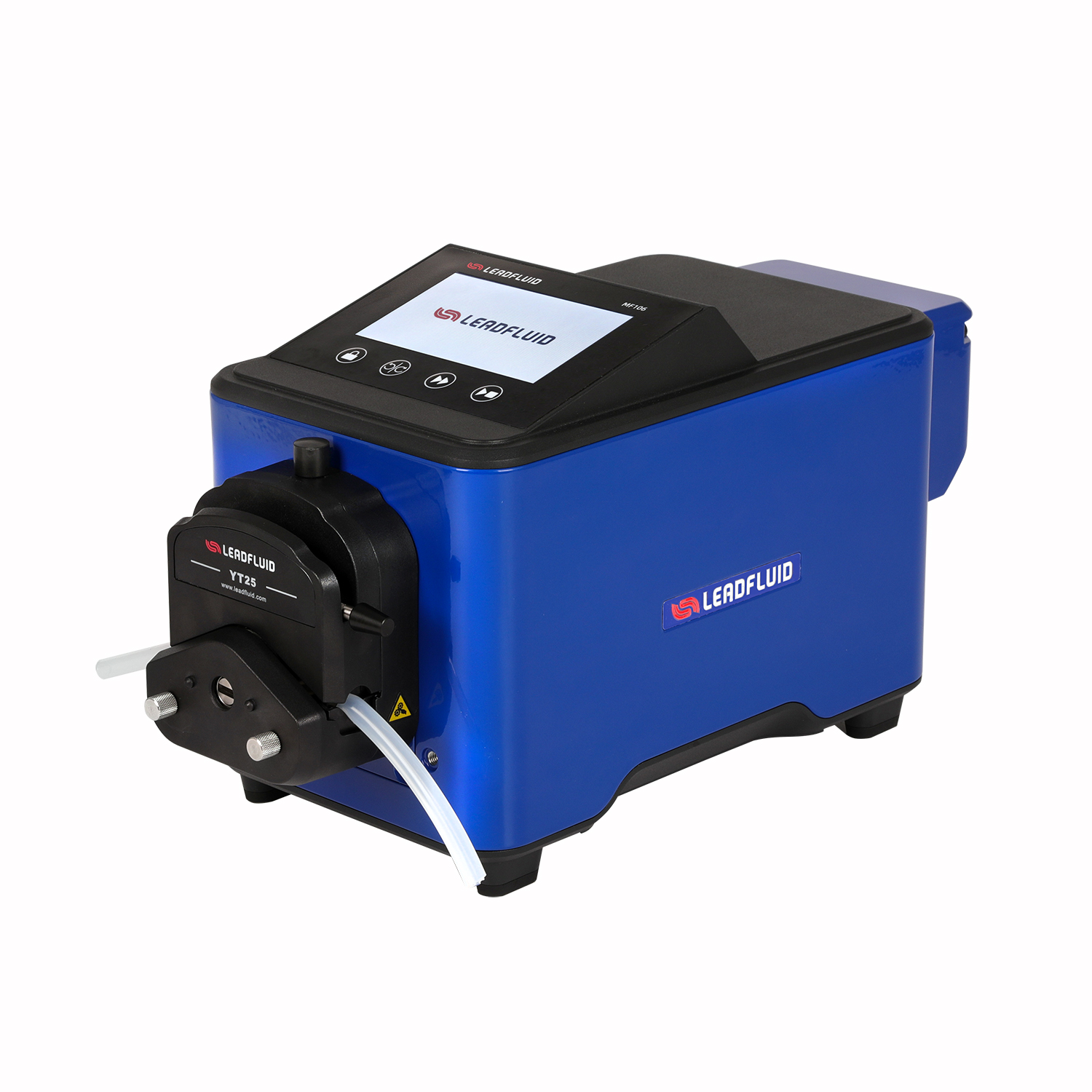

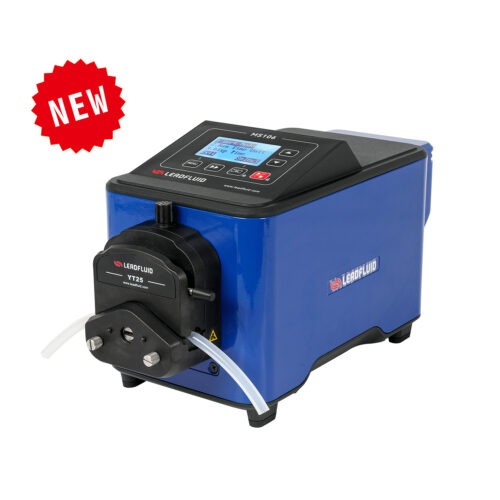

YZ25/YT25 1,2 114#116#15#24#35#36# 0.16~1800

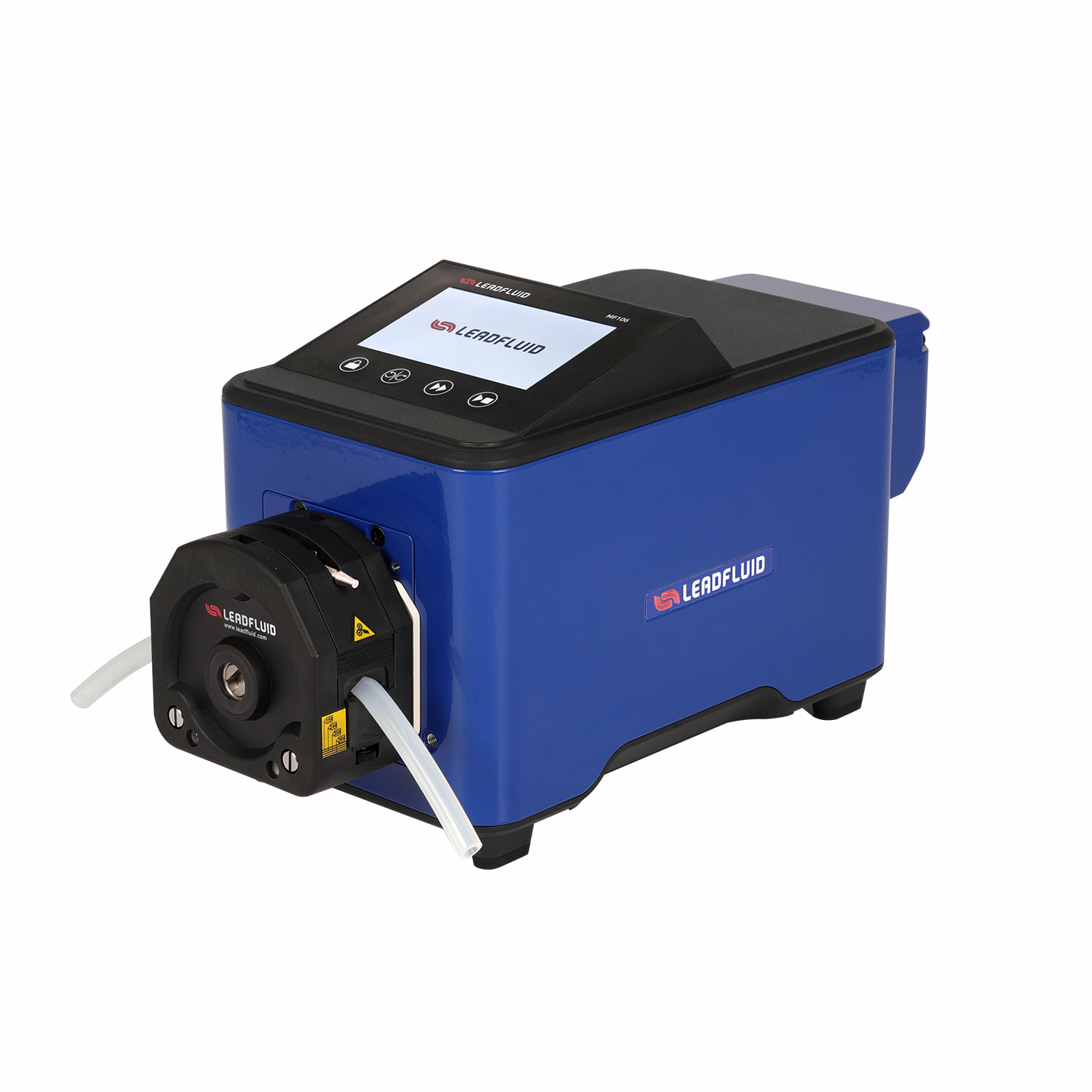

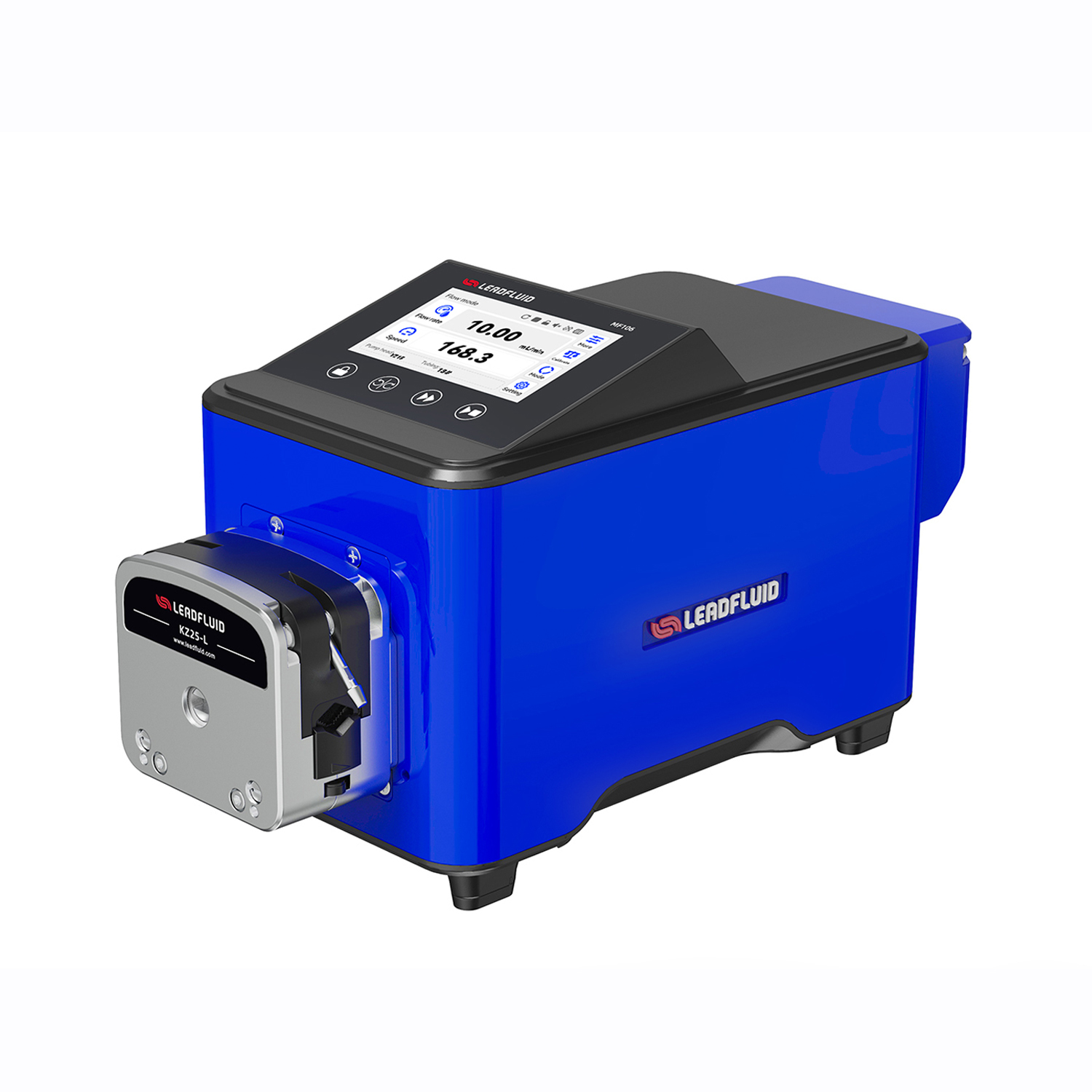

KZ25 1 15#24#35#36# 0.3~3600

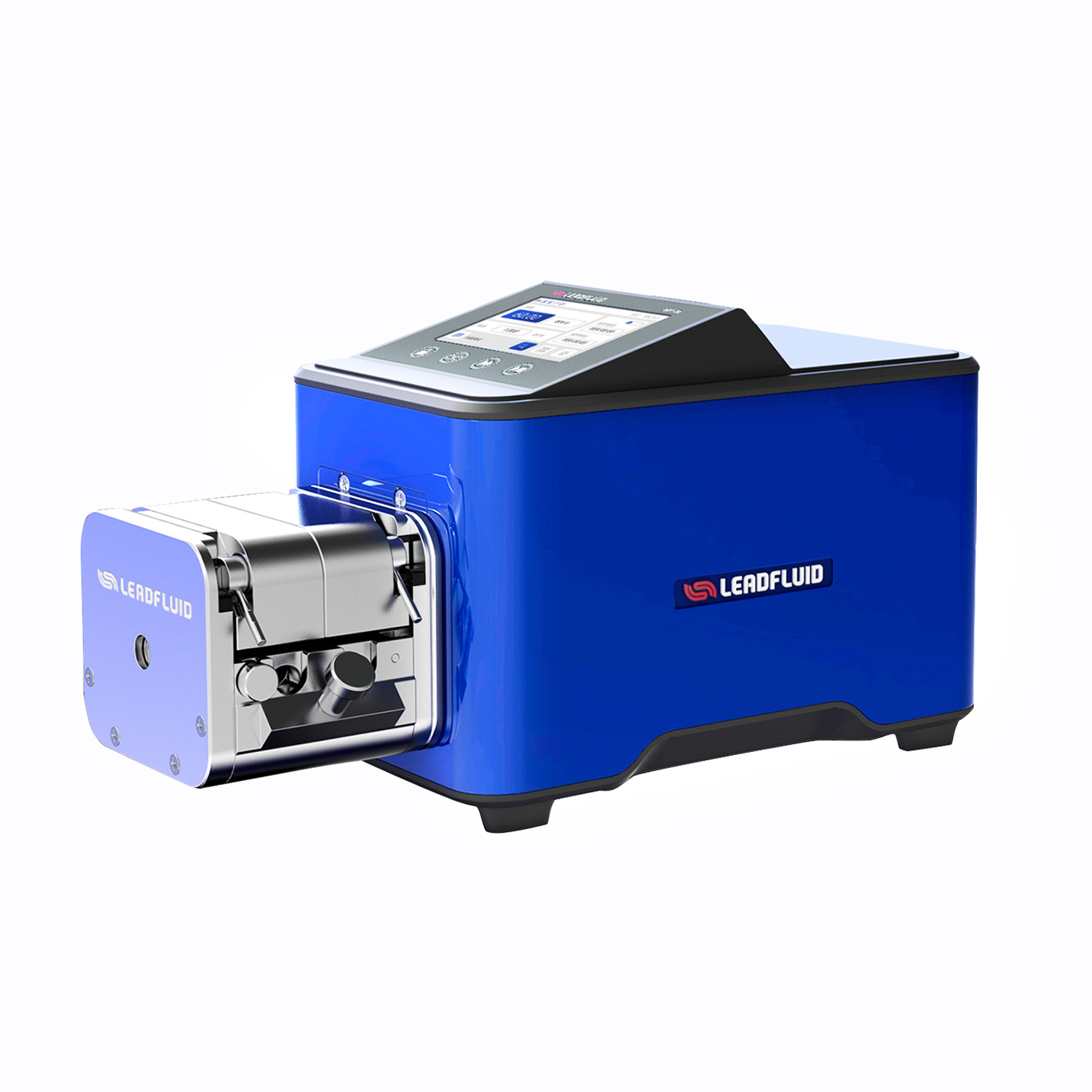

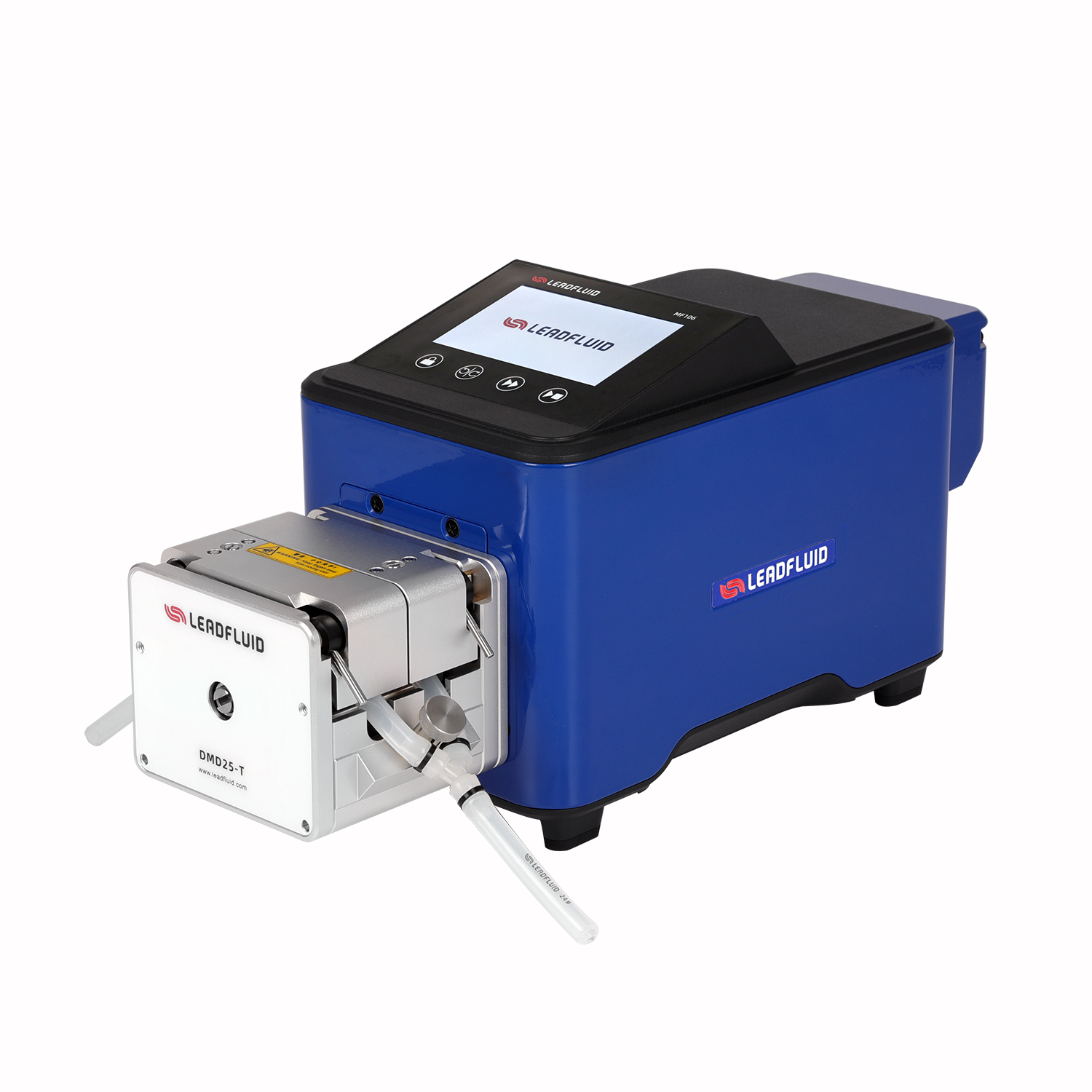

DMD25 1 114#119#116#15#24#35#36# 0.05~4000

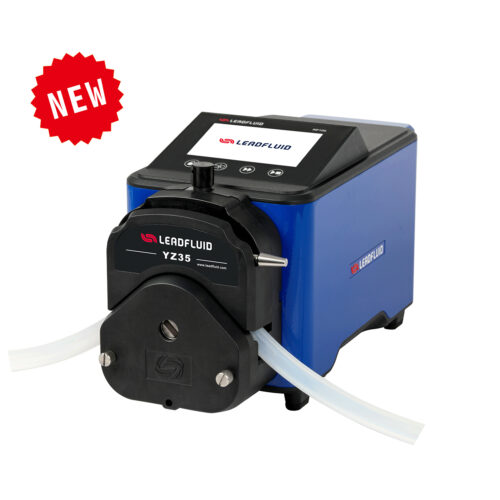

YZ35 1 73#82# 1.334~7800

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only

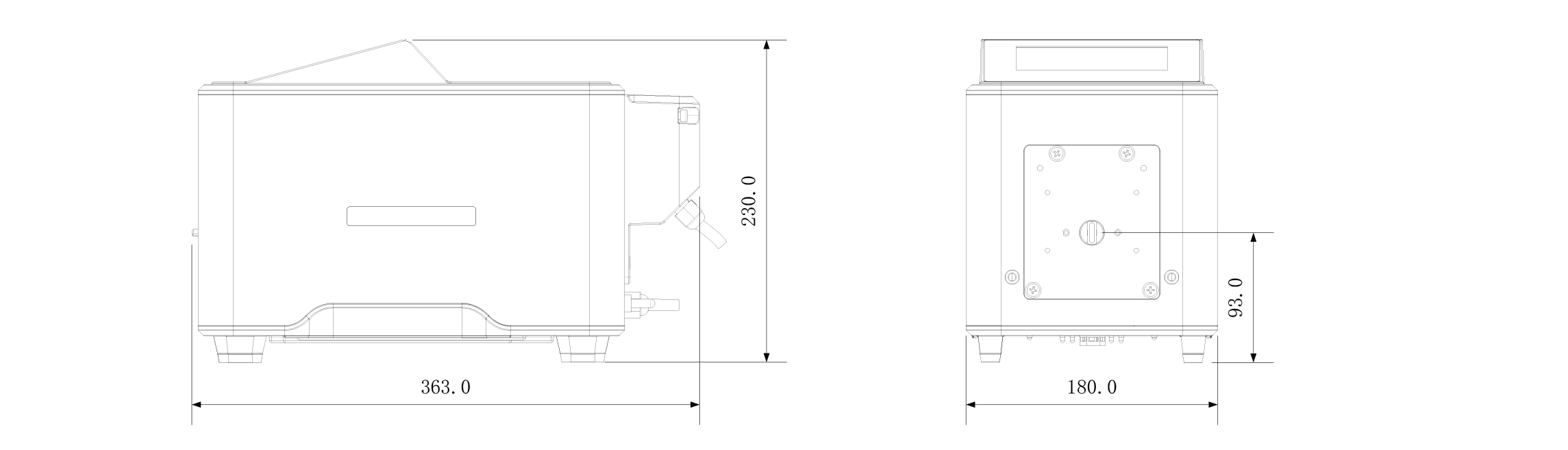

Dimension(mm)

Statement:The final explanation right of above information belongs to Lead Fluid.
