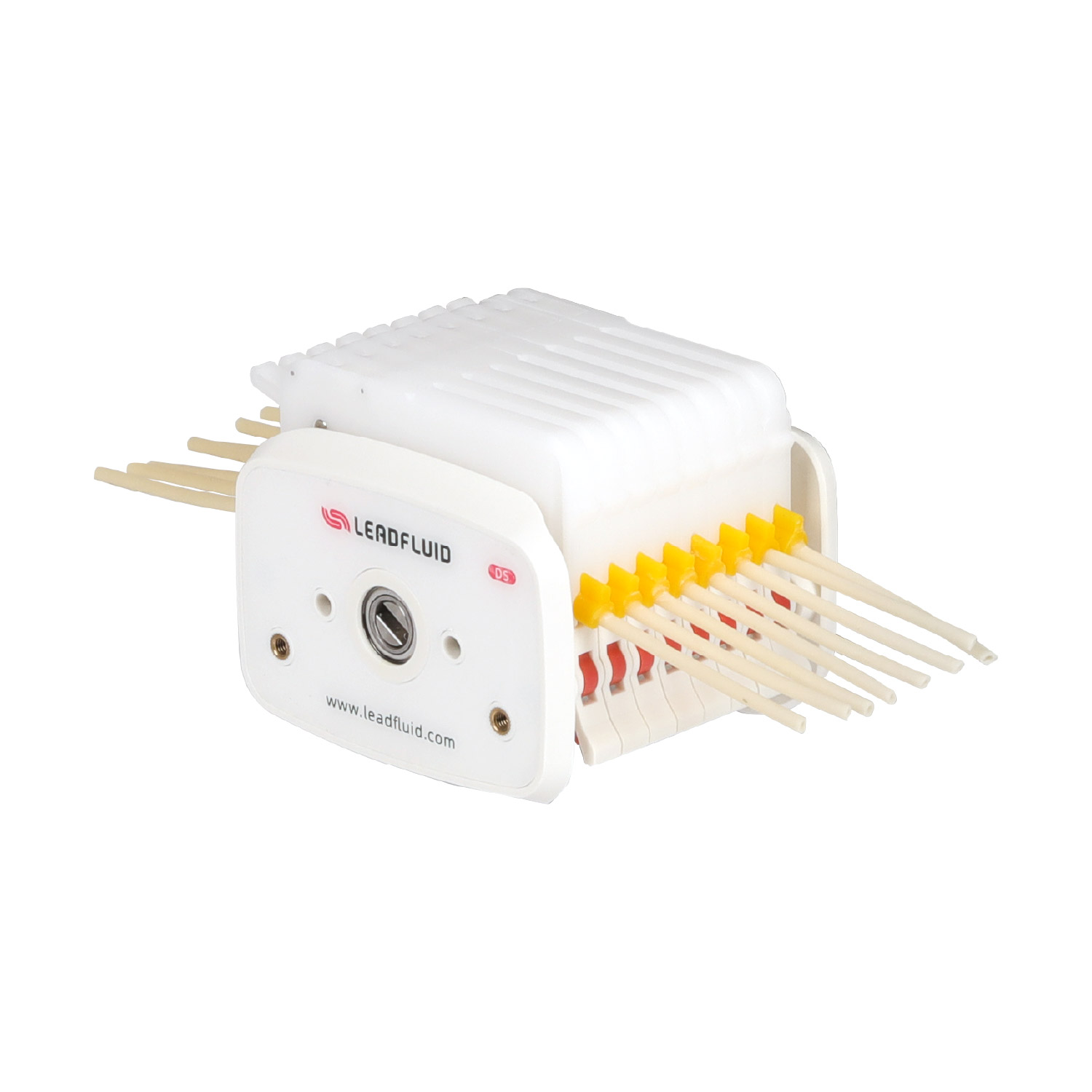

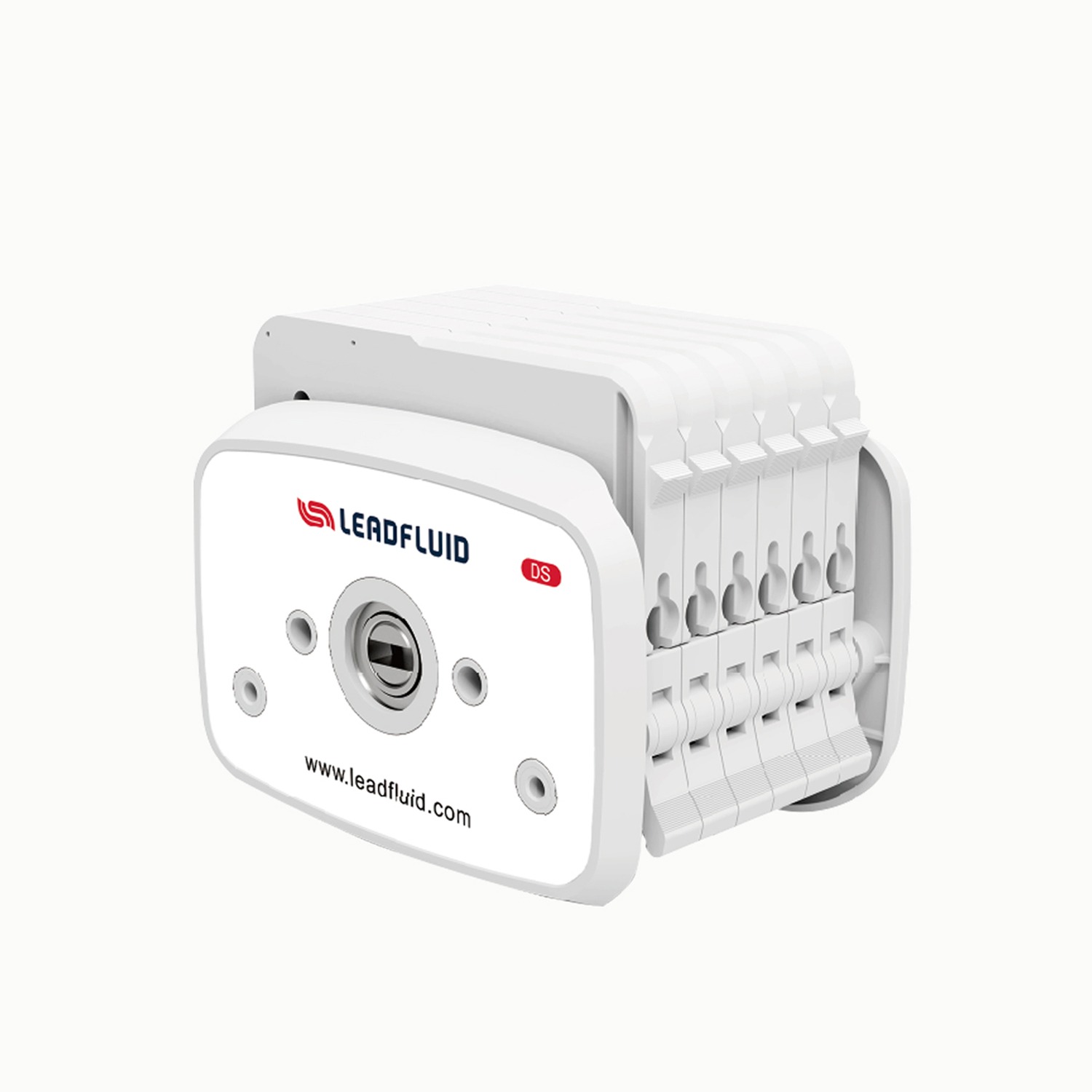

DS Series Multichannel Pump Head

Flow: ≤50 mL/min
Max: 12 Channels
  • Lead Fluid DG series card-type pump head designed for small flow and multi-channel fluid transmission,it can realize simultaneous transmission of more than 1-48 pipelines with compact structure and convenient use.
  • Exquisite structure design, even compared with traditional multi-roller pump head, can still provide very low transmission pulsation.
  • Reasonable mechanical structure and high precision processing technology ensure the consistency of flow between channels.

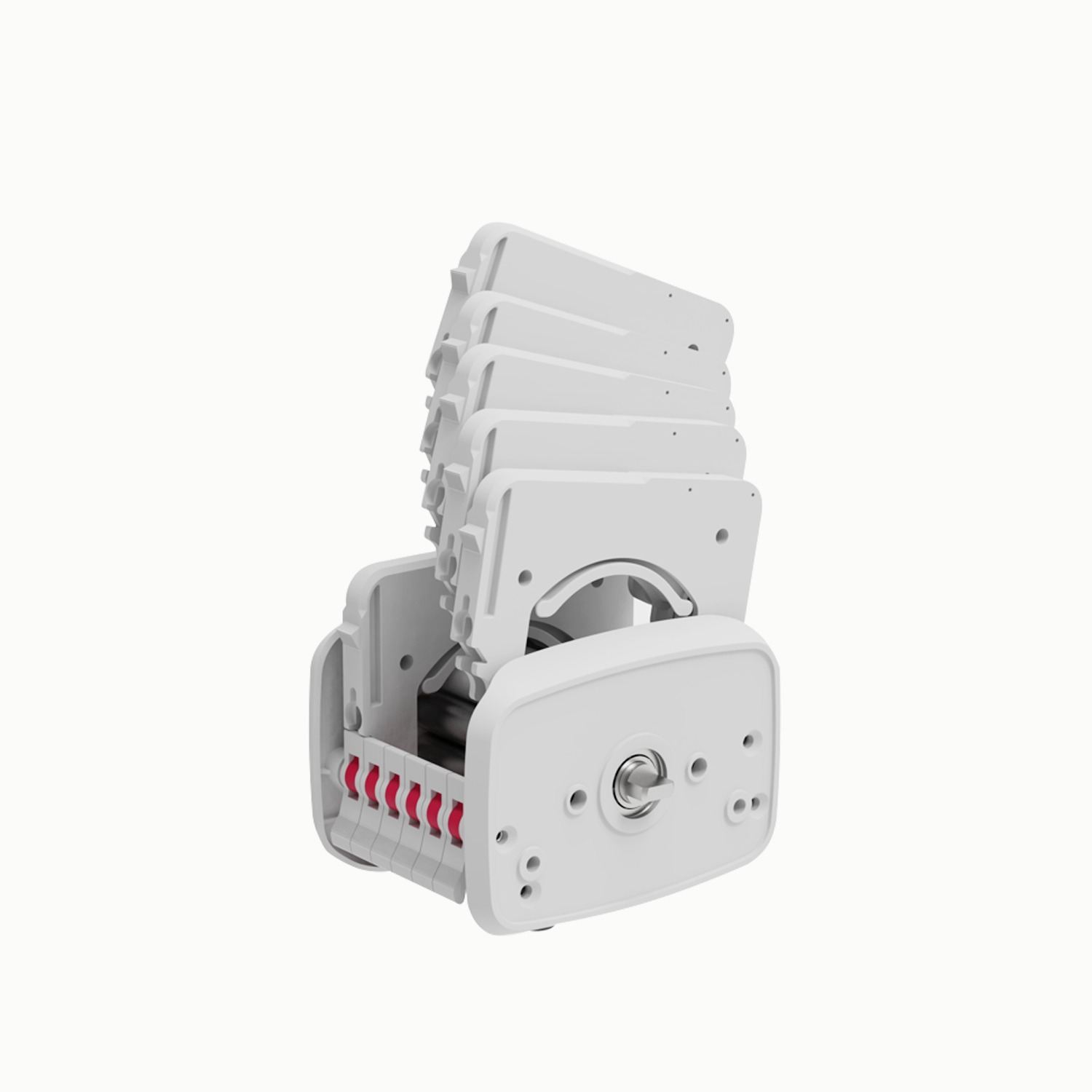

  • The card-type structure can be loaded and unloaded independently, which is easy to replace and fix the pump tube.
  • There are two kinds of card pressure tube device ratchet adjusting device and adaptive spring device, adjustment card with shift display, pressure tube clearance can be based on manual adjustment according to the size of tube, to adapt to different wall thickness of tube and transmission pressure. Self-adaptive design of spring card , pressure tube clearance will be adjusted automatically according to the thickness of tube.
  • High strength stainless steel is used as the material of pump head roller, and POM and PVDF high function plastics are selected as the card material to meet the requirements of different working conditions.
  • Can suitable for tube of wall thickness 0.8~1mm, ID 0.13~3.17mm Silicone, Pharmed, PVC, Viton and other materials and specifications, single channel flow range is 0.0001~49ml/min.
  • Number of pump head roller 6 or 10 optional, 6 rollers pump head with wide flow range, long tube lifetime, 10 rollers pump head with less transmission pulsation and tube wear higher.
  • Can match speed below 100rpm stepper motor, servo motor, AC gear motor, DC gear motor and other motors.

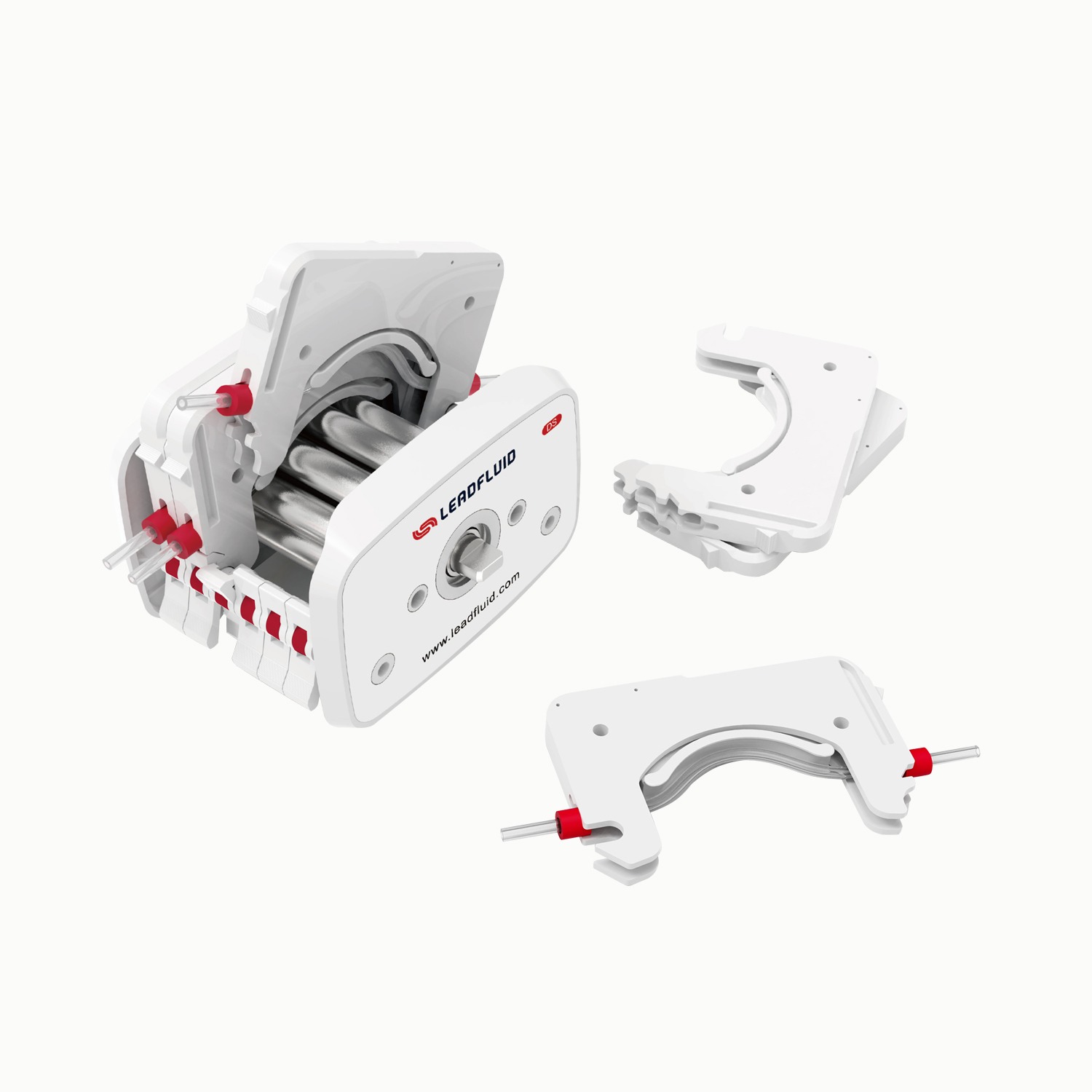

The unique card buckle structure of the DS pump head improves the convenience of card installation and disassembly, and improves the overall stability of the pump head through the stable cooperation of the card buckle and the card, which improves the pressure stability of the tube, improves the flow stability, and improves the consistency of pressure and flow between different channels.

DG Pump Head Material

Roller: stainless steel 304/316


DS10 Card Types

Ratchet Adjusting Card: pressure tube clearance can be adjusted by ratchet structure , there are 7 adjusting gears with color marks corresponding to tube of different specifications and materials, can work under the optimum pressure tube clearance without user debugging, obviously prolonged the tube lifetime, if need larger outlet pressure,the pressure tube clearance can be reduced by adjusting the gear, and the operation is simple.

Spring Card: automatic adjustment of pressure tube clearance through high performance alloy spring , in order to adapt to the wall thickness change of tube due to long-term use,the uniform stability of flow can be effectively guaranteed.

Pump Head Specification

Channel: 6 rollers:1/2/4/6/8/12 10 rollers:1/2/4/8/12
(After cascading the pump head, it can be expanded to 48 or more channels)
Rollers: 6/10
Speed range: ≤100 rpm/min
Flow range: ≤50 mL/min
Tube: Wall:0.8mm-1mm,ID:0.13mm-3.17mm
Tubing fixing: Ratchet adjusting card, spring card
Clearance adjustment: Adjustable
Working environment: Temperature 0 ~ 40℃, relative humidity<80%
Applicable Motor: Stepper motor, servo motor, AC gear motor, DC gear motor,etc.

Installation Size Diagram(unit:mm)

Tube Life Comparison Table

The above data are all test results obtained by Lead Fluid laboratory under normal temperature and pressure for the transmission of pure water, which are for reference only; the actual service life may be affected by specific factors such as pressure,temperature, medium characteristics, tube batch and wall thickness; for specific problems, please contact Lead Fluid engineers to get better technical support.
