Introduction
•Suitable for various kinds of pump head.
•Small size, compact structure and beautiful appearance.
•Low noise.
•Suitable for high-speed continuous operation.
Parameters
Motor Type: 57 stepper motor
Drive and Control Method: Customer provided
Speed Range: ≤600rpm
Adaptable Pump Head: YZ15,YZ25,DT10,DT15,YT25,YT15,BZ15,BZ25,DG6,DG10,DS6,DS10
Rotation Direction: Clockwise/Counterclockwise rotation
Pump Head Bracket Material: ABS-D1200 plastic
Motor Bracket Material: Q235A carbon steel
Life: ≥6000h
Noise: ≤60dB (test environment noise ≤40dB, test product and noise meter horizontal distance of 1 meter)
Weight: 1.365kg (excluding pump head)
Dimensions: (L×W×H) 118*116*78（mm）
Static Torque: 1.29N·M
Working Environment: Temperature 0- 40°C, relative humidity<80% RH
Storage Environment：Ambient temperature of -40 ~ +50 °C, relative humidity of not more than 95% of the clean and well-ventilated environment, the air shall not contain corrosive, flammable gases, oil mist, dust.
Suitable Tube Model and Flow Rate Reference
Flow Rate Table (example YZ15, other pump heads refer to the pump head tube flow rate table, unit: mL/min)
| Material of Tube | Suitable Tube | 10rpm Flow Rate | 30rpm Flow Rate | 100rpm Flow Rate | 350rpm Flow Rate | 600rpm Flow Rate |
| Silicone tube | 13# | 0.05 | 1.50 | 5.00 | 18.00 | 30.00 |
| 14# | 0.20 | 6.00 | 20.00 | 70.00 | 120.00 | |
| 19# | 0.50 | 15.00 | 50.00 | 175.00 | 300.00 | |
| 16# | 0.80 | 24.00 | 80.00 | 280.00 | 480.00 | |
| 25# | 1.90 | 57.00 | 190.00 | 665.00 | 1140.00 | |
| 17# | 3.00 | 90.00 | 300.00 | 1050.00 | 1800.00 | |
| 18# | 4.30 | 128.00 | 427.00 | 1495.00 | 2562.00 |
The above data is obtained from the test of purified water with a Lead Fluid tube under normal and pressure conditions in the laboratory. This data is for reference only.
Due to pressure in actual use, temperature, medium characteristics, tube material and other specific factors, the specific situation needs to consult our engineers.
Product Structure & Usage Method

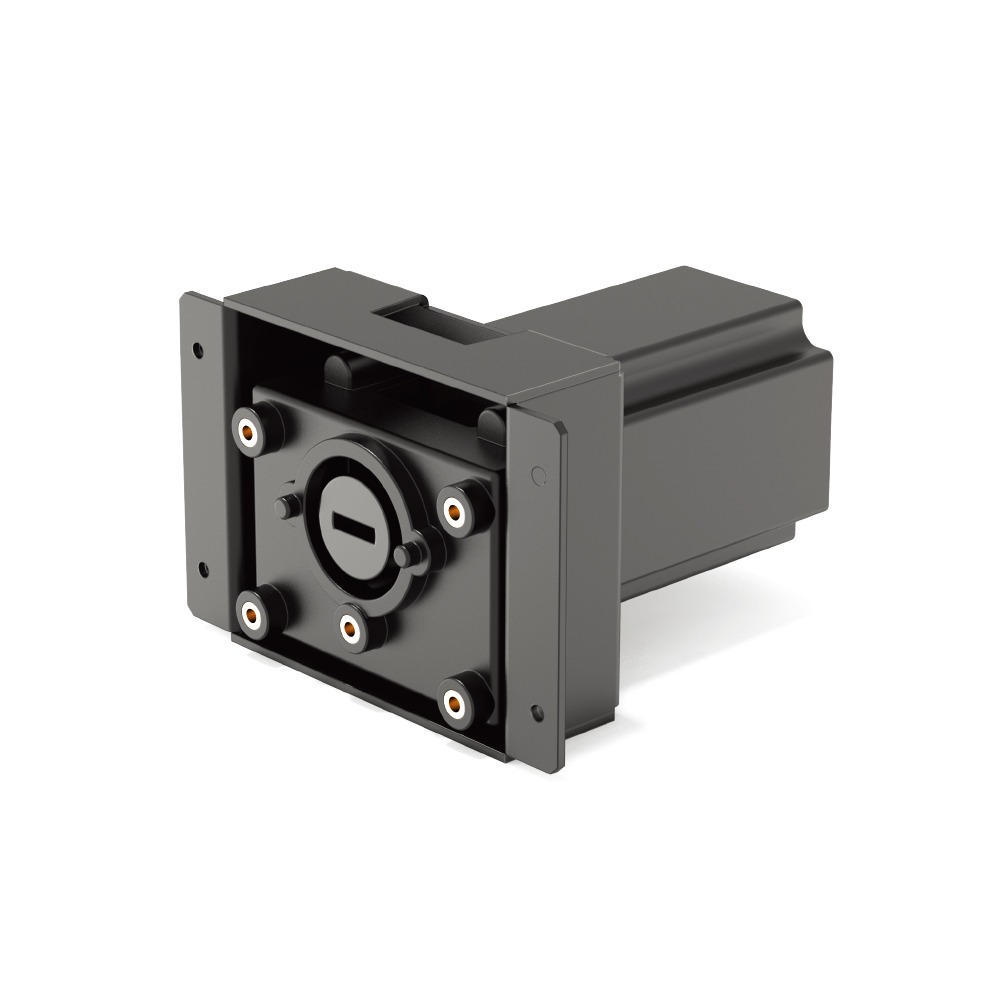

Product Structure
Component Name and Function
1. Motor Bracket: Connects the motor to the pump head bracket,
and also allows the product to be mounted on other equipment.
2. Pump Head Bracket: Connects the product and pump head.
3.Motor: Provides power.
Usage Method
Pump Head Installation
• Take 2 screws of the corresponding pump head and connect them through the mounting holes 1 and 2 of the pump head with the threaded
holes 1 and 2 of the product pump head bracket (YZ15 pump head example).
Motor Parameters
Phase Number: 2
Step Angle: 1.8°
Phase Voltage: 1.5V
Phase Current: 3.0A
Phase Resistance: 0.5Ω±0.1
Phase Inductance: 2.0mH±20%
Electrical Stress: AC500V/1min/5mA Max
Insulation Grade: B(130℃),temperature rise 80K Max
Ambient Temperature: -10℃-50℃
Lead Wire Specifications: UL1007/AWG26/300±10mm
Dimension
unit:mm
