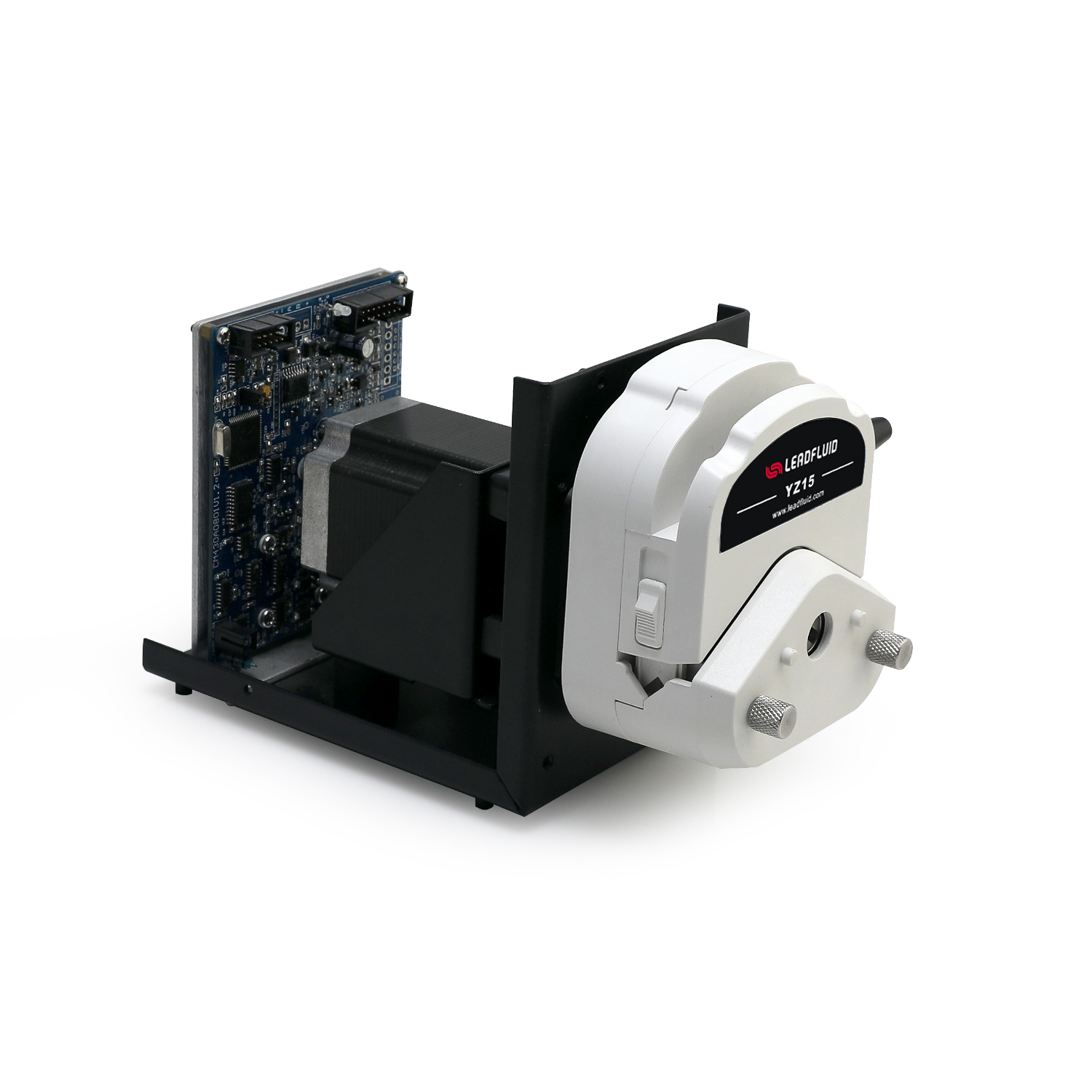

B150MD-B (The circuit board is an optional accessory) |

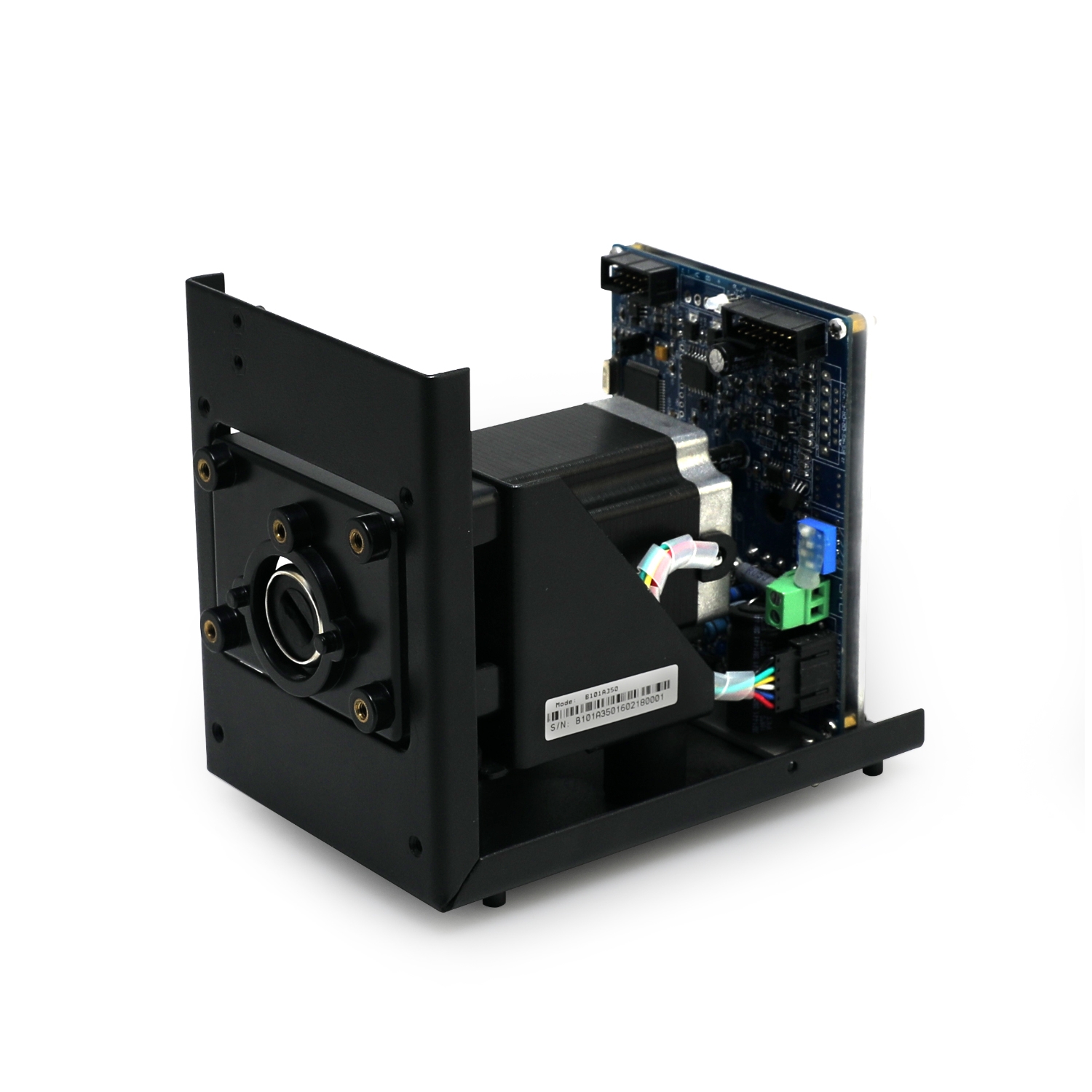

B150MD-A |
♦ Using high precision 57type stepper motor, speed range 0.1-150rpm, equipped with easy fixed support, high precision flow controlling, widely flow range,long motor lifetime, smaller installation space, lower noise, major matching with instrument and equipment.
♦ Matchable Lead Fluid YZ15,YZ25,YT15,YT25, DT, DG, BZ series variety high performance pump head.
♦ Panel or soleplate installation, easy installation and strong reliability.
♦ Choosing Lead Fluid circuit board,can precision control peristaltic pump speed, start/stop, revers Support RS485 interface，reversible direction etc., output speed and start/stop signal. MODBUS communication protocol.
♦ Circuit board extraposition, suggest to choose the B150MD-A peristaltic pump with installation small space.
♦ Circuit board postposition, suggest to choose the B150MD-B peristaltic pump with longer bracket support.
Moter Speicification
| Speed range | 0.1-150rpm |
| Step angle | 1.8° |
| Phases | 2 |
| Phase voltage | 4.0V |
| Phase current | 2A |
| Phase resistance | 2Ω±10% |
| Phase inductor | 4.2mH±20% |
| Insulation resistance | ≥100MΩ |
| Wiring defifinition | red line -A ,green line -C ,yellow line -B ,blue line -D |
B150MD-A, B150MD-B Suitable Pump Head And Flow Rate Range
|
Pump Head
|
Channels
|
Tubing
|
Flow Rate Per Channel（mL/min）
|
|
DG6-1(6rollers)
|
1,2,3,4
|
wall thickness0.8～1，ID≤3.17mm
|
0.0002～49
|
|
DG10-1(10rollers)
|
1,2,3,4
|
wall thickness0.8～1，ID≤3.17mm
|
0.0001～41
|
|
DT10-18
|
1,2
|
13#14#，wall thickness0.8～1，ID≤3.17mm
|
0.0002～82
|
|
YZ15
|
1
|
13#14#19#16#25#17#18#
|
0.006～570
|
|
YZ25
|
1
|
15#24#
|
0.17～425
|
|
YT15
|
1
|
13#14#19#16#25#17#18#
|
0.006～570
|
|
YT25
|
1
|
15#24#35#36#
|
0.17～725
|
|
DT15-14
|
1
|
19#16#25#17#
|
0.066～560
|
|
DT15-24
|
2
|
19#16#25#
|
0.066～330
|
|
BZ25-24
|
1
|
24#
|
0.28～420
|
|
BZ25-15
|
1
|
15#
|
0.17～250
|
|
BZ15-16
|
1
|
16#
|
0.08～120
|
|
BZ15-14
|
1
|
14#
|
0.02-32
|
※ Above parameters get from transmitting pure water in silicone tube under normal temperature and atmospheric pressure , in actually using it is effected by specifific factors such as tube material, pressure, medium characteristics, environment etc., please consult Lead Fluid engineers or agents in advance.
Suitable Pump Head
B150MD-A Dimension
B150MD-B Dimension
