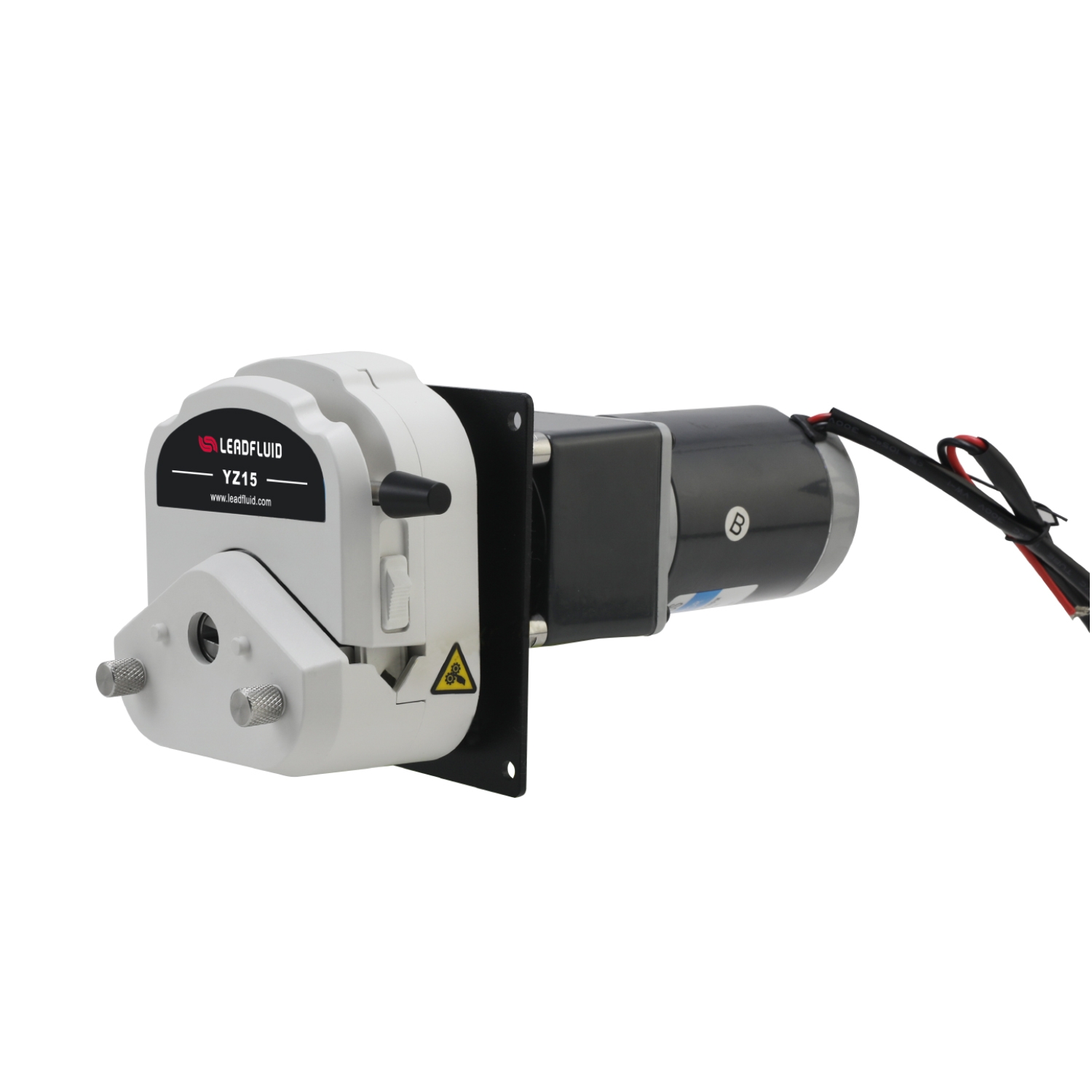

Z90/J90 Series OEM Peristaltic Pump

Lead Fluid Z90 OEM peristalitc pump and J90 OEM peristaltic pump use high-quality 90 type DC or AC gear motor,can panel installation or soleplate installation, convenient installation and high reliability.

Description

Lead Fluid Z90 OEM peristalitc pump and J90 OEM peristaltic pump use high-quality 90 type DC or AC gear motor, fifixed speed(max 560rpm), speed accuracy ≤±10%,electricity is switched on , with simple fifixed support, easily controlling and compact installation space, low noise, durable , mainly used in instruments and equipments.

Can match Lead Fluid YZ15, YZ25, YT15, YT25, KZ25, DT15 series high-performance pump heads.

Can panel installation or soleplate installation, convenient installation and high reliability.

Matching Lead Fluid DC motor,Ac motor controller , peristaltic pump speed, start/ stop and other actions by manual control.

Motor Specifications

90 type DC gear motorSupply VoltageDC24V/90W    DC12V/90W
( brushSpeed(rpm)186, 240, 370, 460, 560
Lifetime2000h
Speed Accuracy≤±10%
Working Environmenttemperature 0– 40℃,humidity80%
Installation Methodsoleplate \ panel



90 type AC gear motorSupply VoltageAC220V/90W
Speed(rpm)208, 250, 347, 417
Lifetime 5000h
Speed Accuracy≤±10%
Working Environmenttemperature 0– 40℃,humidity80%
Installation Mothedsoleplate \ panel

Z90, J90 Series Suitable For Pump Head And Flow Range

Pump Head
Channel
Tube
YZ15
1,2,3,4,5,6
13#14#19#16#25#17#18#
YZ25
1,2,3,4
15#24#
YT15
1,2,3,4,5,6
13#14#19#16#25#17#18#
YT25
1,2,3,4
15#24#35#36#
KZ25
1,2
15#24#35#36#
DT15-14
1
19#16#25#17#
DT15-24
2
19#16#25#17#
DT15-44
4
19#16#25#
BZ25-24
1,2,3,4
24#
BZ25-15
1,2,3,4
15#
BZ15-16
1,2,3,4,5,6
16#
BZ15-14
1,2,3,4,5,6
14#

Detailed parameters refer to Lead Fluid pump head and corresponding flow rate range information.

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

Suitable For Pump Head

 Dimension (panel installation)

Dimension (soleplate installation)
