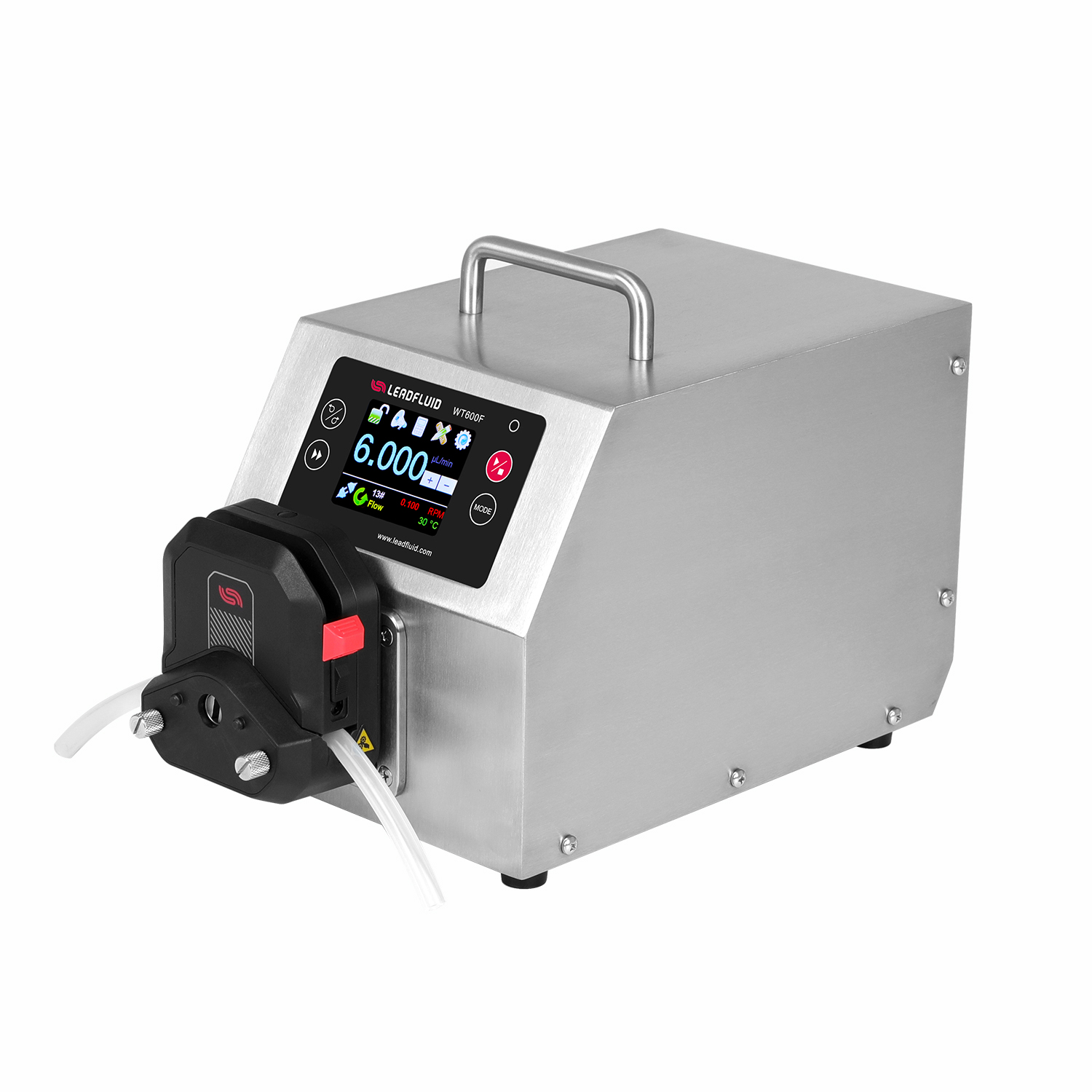

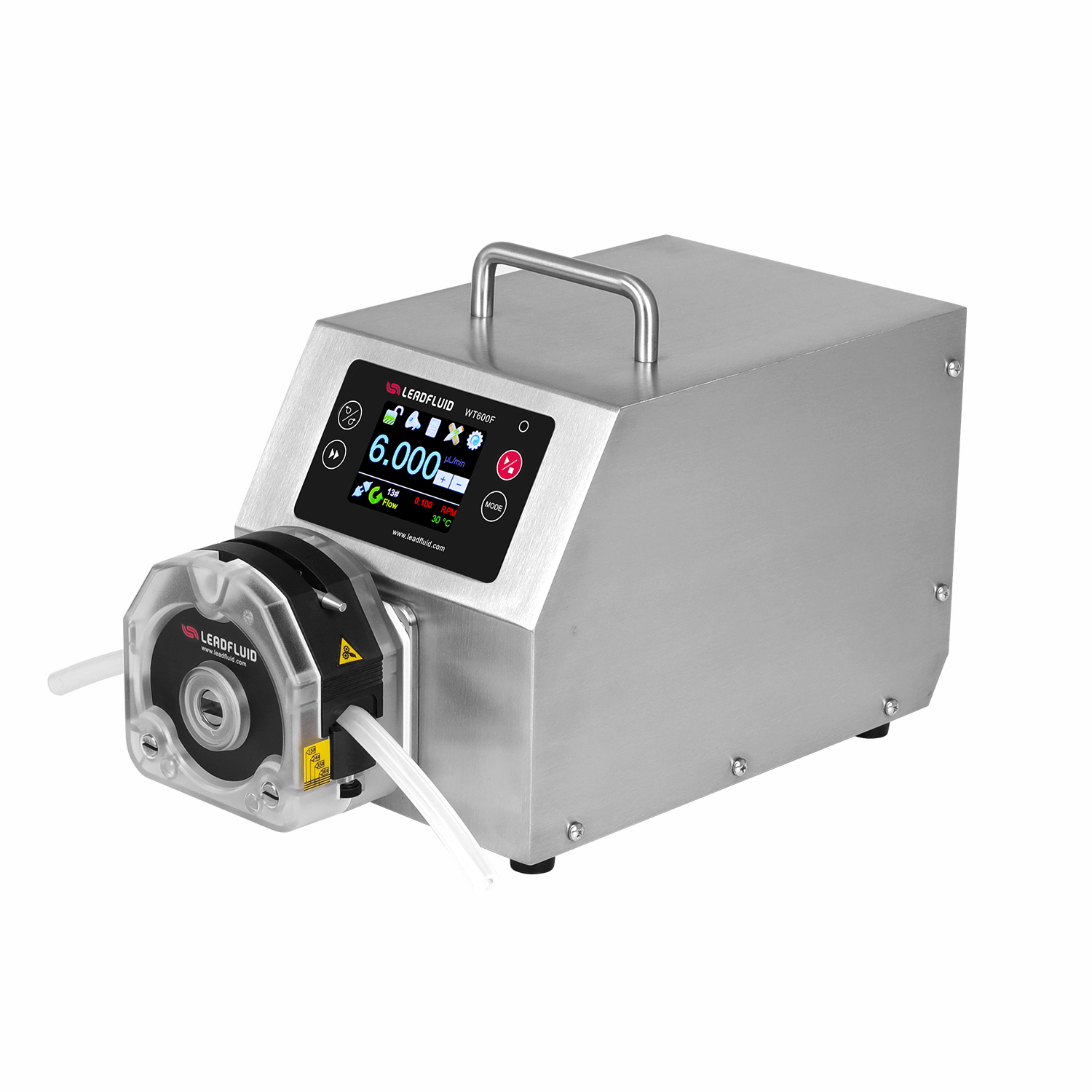

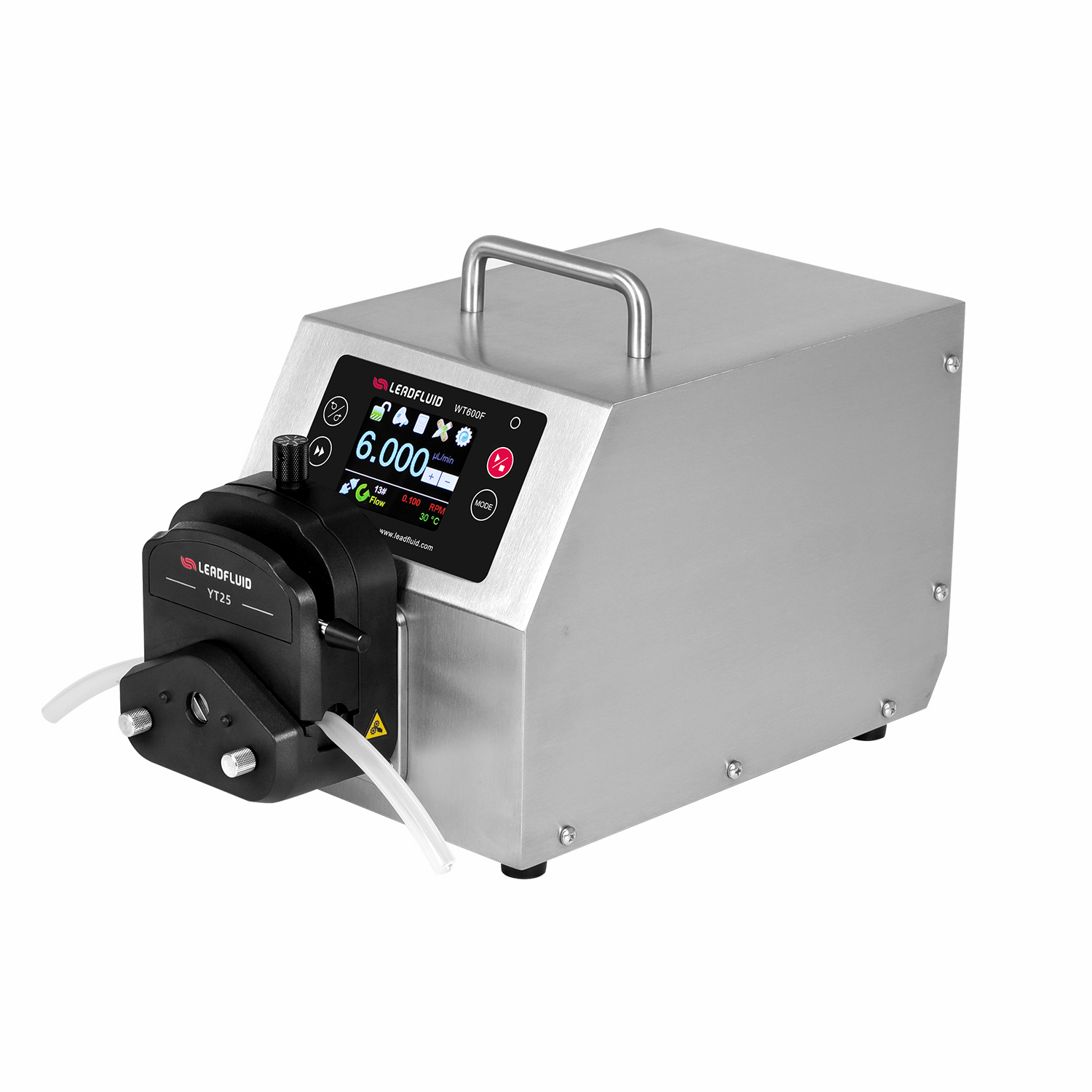

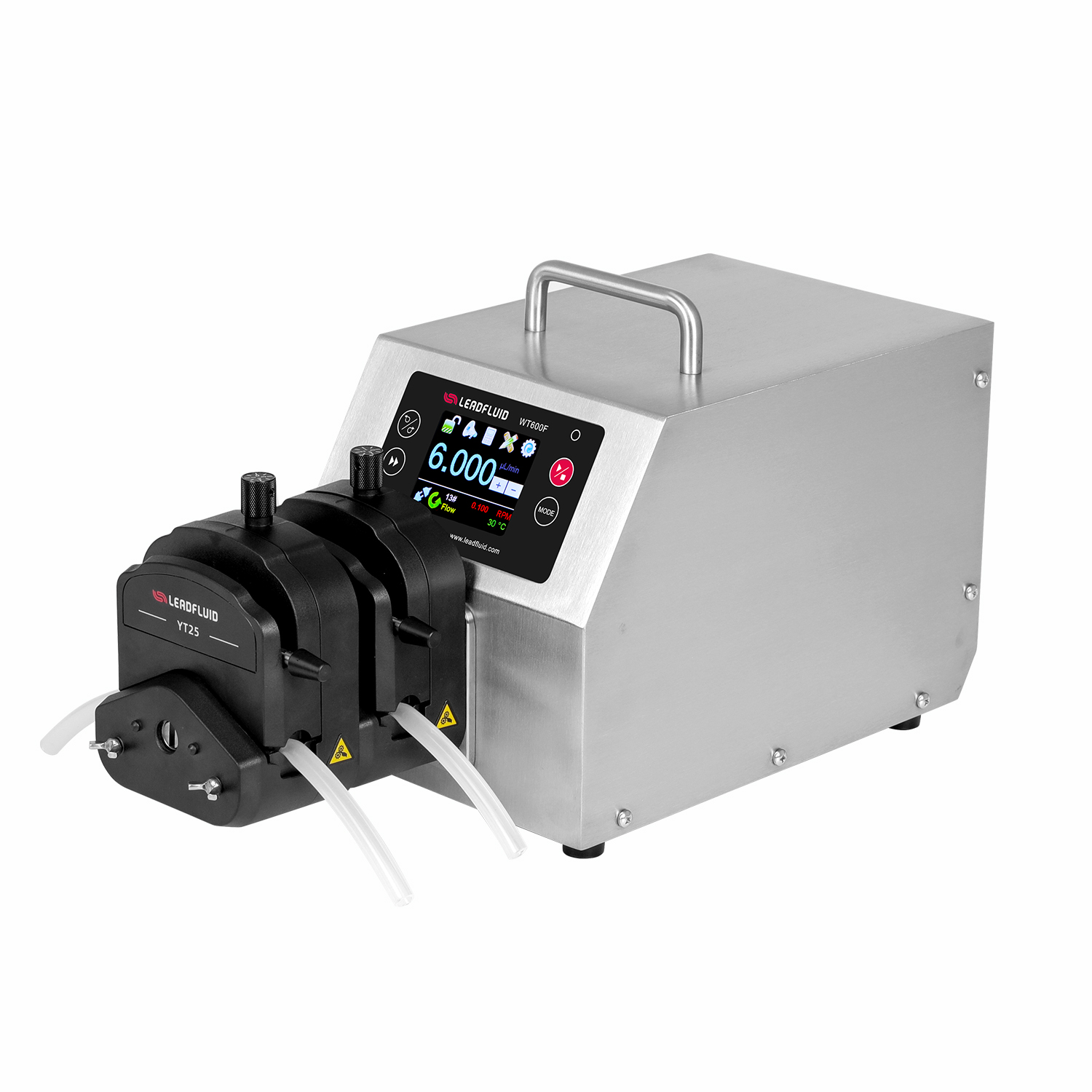

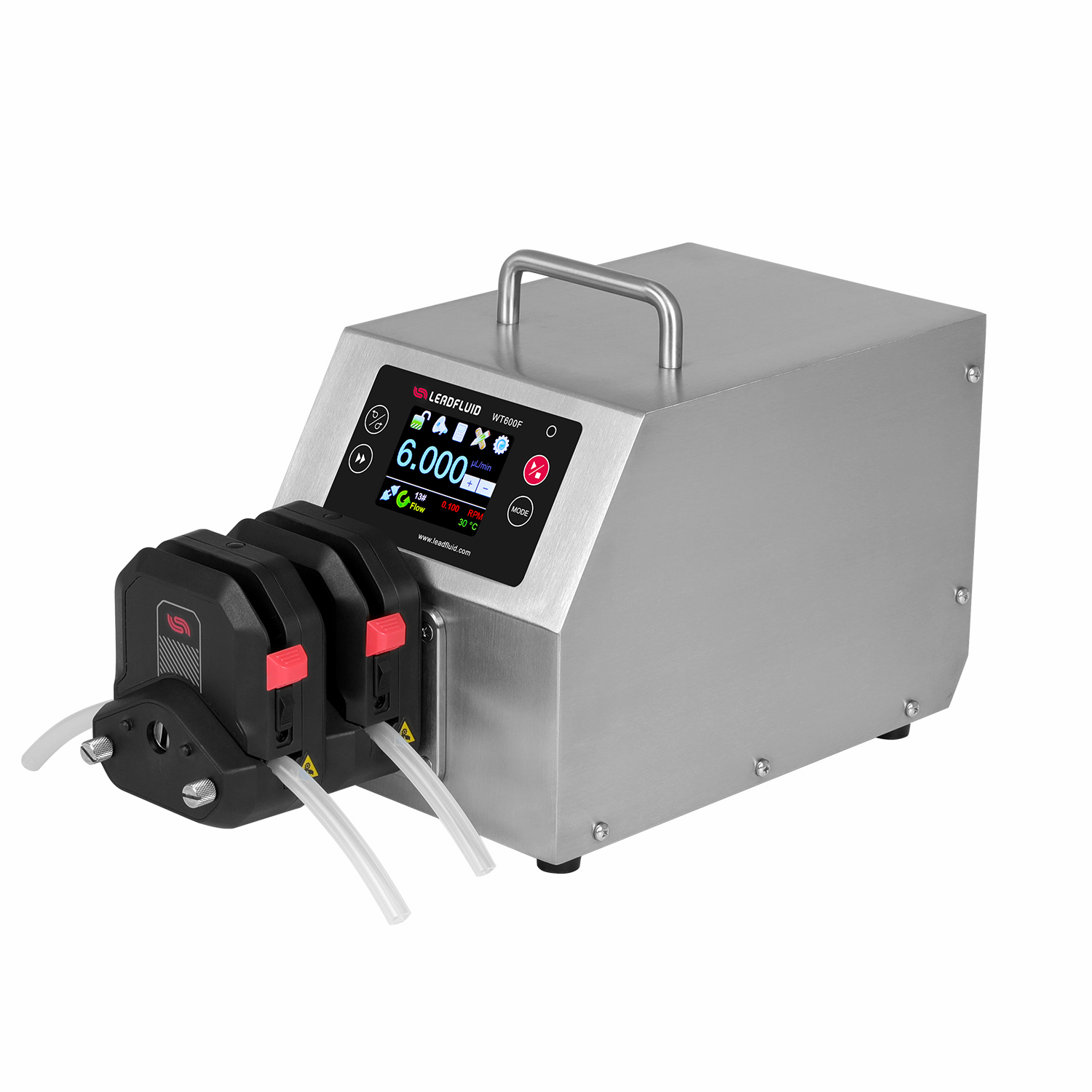

WT600F Intelligent Dispensing Peristaltic Pump

WT600F intelligent dispensing peristaltic pumps adopts LF-Touch-OS software system, color LCD touch screen with intuitive and clear displaying interface. Brushless servo motor drive with large torque, free maintenance. Four working mode: flow rate mode, volume dispensing, time dispensing, copy dispensing, suitable for different working requirements. The standard communication protocol, the pump is easier to be connected with other equipments. With intelligent temperature control fan, reduce noise, stainless steel housing, easy to clean, corrosion resistant.

Flow: 0.005~6600mL/min
Max: 2 Channels

Functions and Feature

• Color LCD display, touch screen and button operation,easy to operate.
• Four working mode: flow rate mode, volume dispensing, time dispensing, copy dispensing, suitable for different working requirements.
• Each dispensing mode can store five groups of working parameters. Simply select when using.
• Start/stop, reversible direction, full speed, adjust speed, state memory(power-down memory).
• Display and control flow rate, accumulate dispensing volume automatically.
• Speed resolution 0.1rpm.
• Brushless servo motor drive, large torque, high efficiency, and maintenance free.
• Wizard flow calibrating function.
• Infrared remote control function (optional)
• Peristaltic pump expert system, wizard prompt operation, more convenient
• Intelligent temperature-control cooling fun reduces working noise.
• External control controls the start/stop, reversible direction and dispensing function, optically coupled isolator,external analog adjusts the rotate speed.
• RS485 communication interface, MODBUS protocol is available, easy to connect other equipments.
• The circuit board is sprayed with three anti paint processes to achieve dustproof and moisture-proof effects.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• 304 stainless steel shell, easy to clean, corrosion resistant.
• Large torque output, cascading multiple pump heads, realize the combination of different pump heads and drivers.
• Connect foot switch control start-stop for dispensing fluid.

Specifications

  • Flow Range: 0.005~6600mL/min
  • Speed Range: 0.1~600rpm
  • Speed resolution: 0.1rpm
  • Dispensing volume: 0.001μL~9999L(It is recommended to have a minimum fill of 50μL).
  • Dispensing time: 1~999,“0”Infinite cycle
  • Dispensing interval time: 0.1~999.9 S/Min/H, time unit adjustable
  • Speed accuracy: <±0.2%
  • Power supply: AC100~240V,50Hz/60Hz
  • Power consumption: <150W
  • External control: External control input level 5V, 12V(Standard), 24V (Optional). External control analog 0-5V(Standard),0-10V, 4-20mA (Optional)
  • Communication interface: RS485 communication interface, Modbus protocol is available, DB15 external control interface
  • Working environment: Temperature 0 ~ 40℃, relative humidity<80%
  • IP grade: IP31
  • Dimension(L×W×H): 286mm×180mm×230mm
  • Weight: 5.5kg

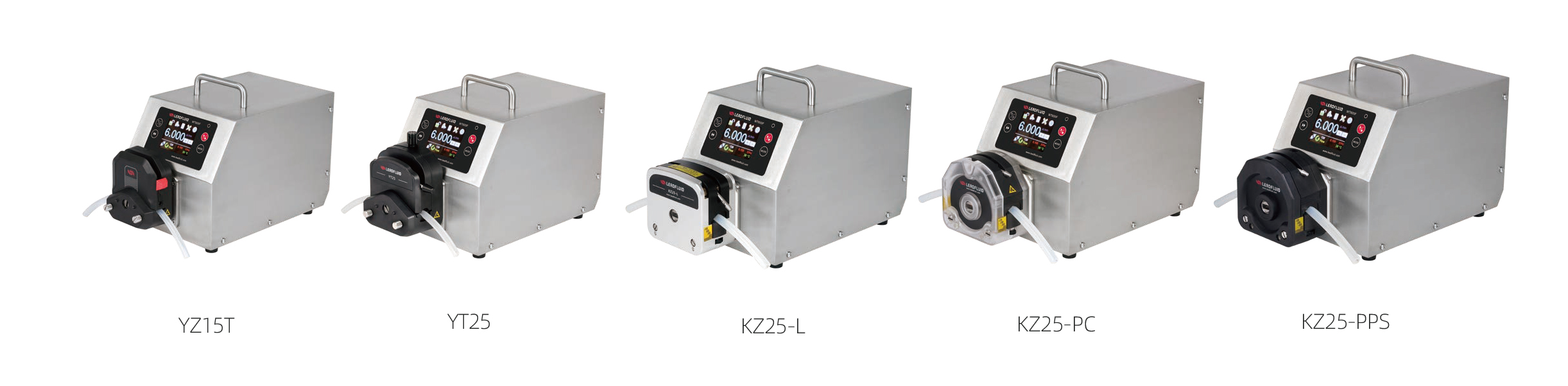

WT600F Applicable Pump Heads and Tubings, Flow Parameters

Drive type Suitable pump heads Channel Tubing size (mm) Flow rate (mL/min) per channel
WT600F YZ15/YZ15T 1,2 13#14#19#16#25#17#18# 0.005~2562
YT25 1,2 114#116#15#24#35#36# 0.024~3000

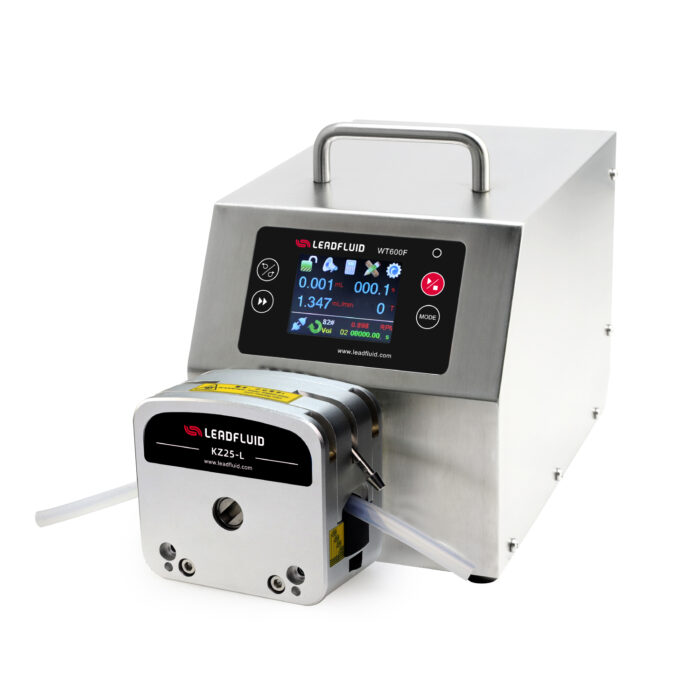

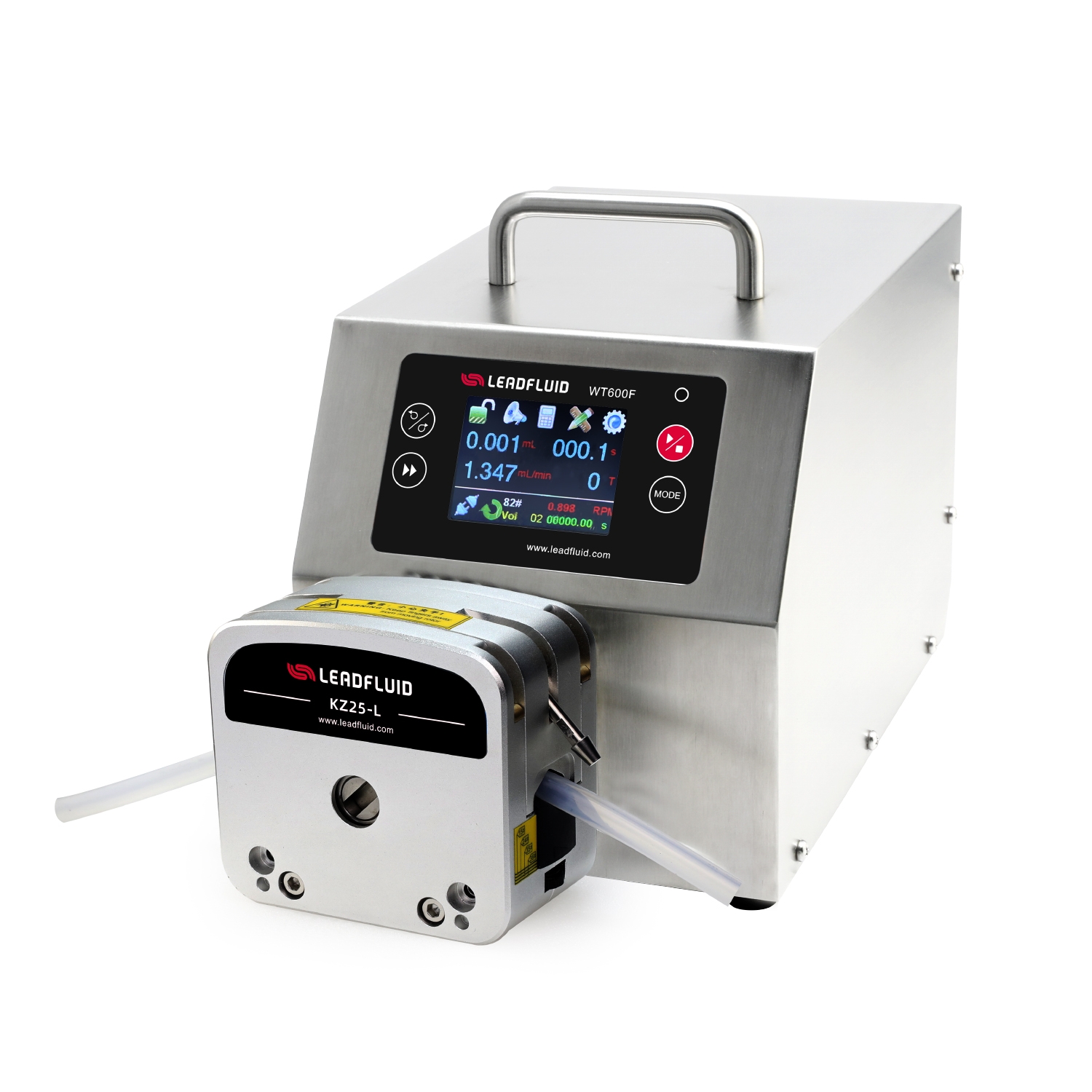

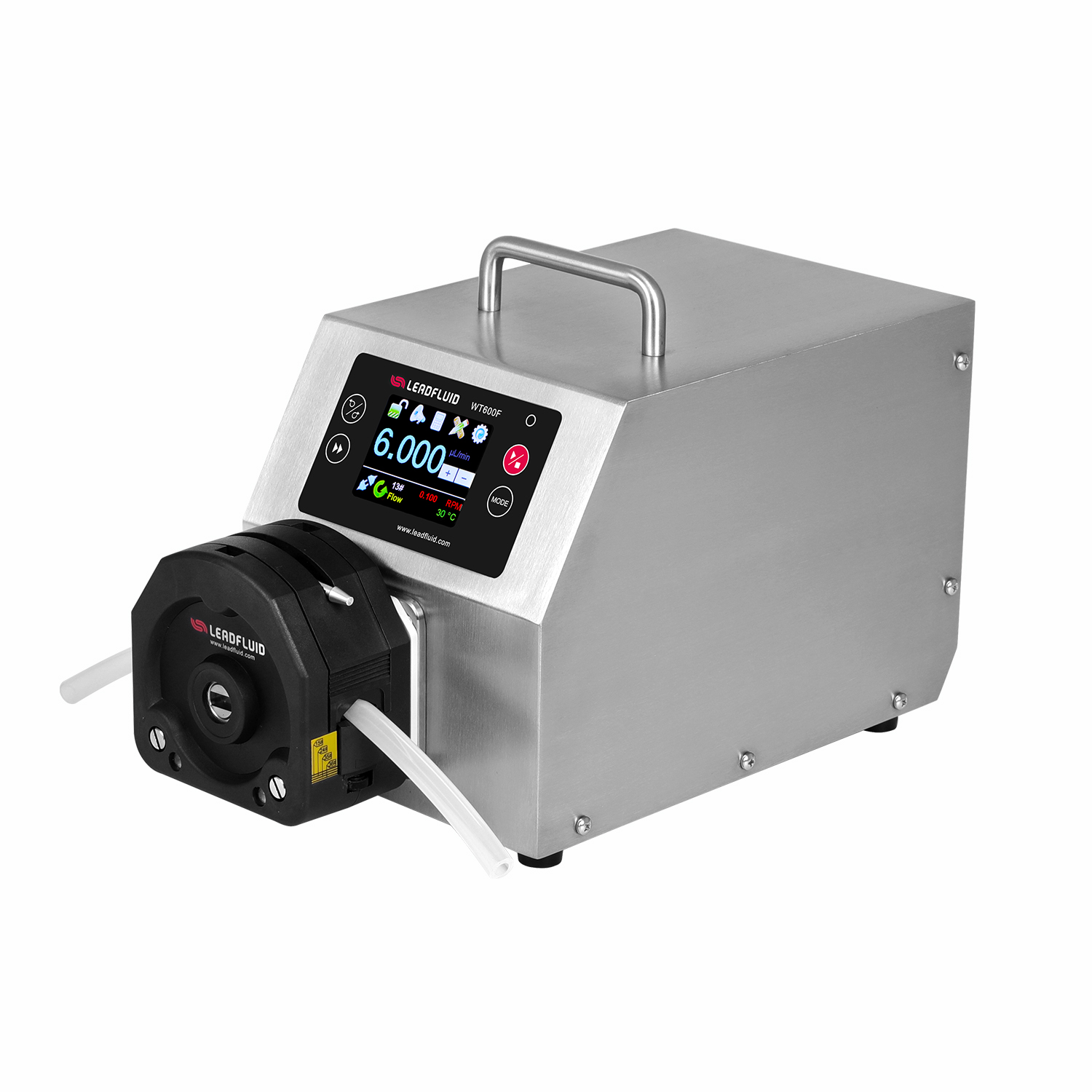

KZ25-L 1 15#24#35#36# 0.31~6600

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

Dimension(mm)

Statement:The final explanation right of above information belongs to Lead Fluid.
