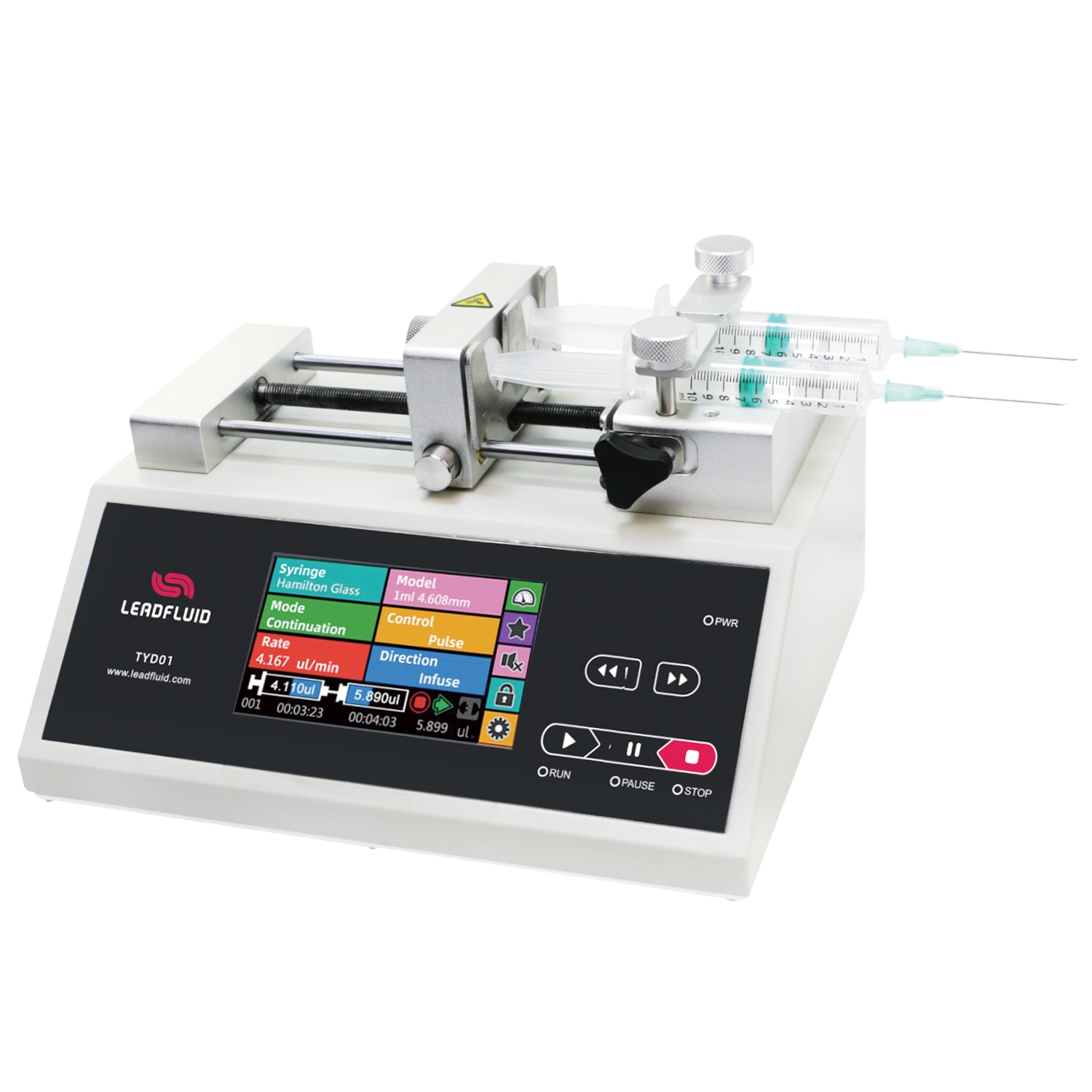

TYD01-02 Laboratory Syringe Pump

●Lead Fluid TYD01-02 series syringe pump adopts integrated table model design, 4.3-inch HD LCD touch screen display and operation, can assembly 1 plastic syringe or gas tight syringes, size range of syringe 10μL~60mL,flow range 0.184nL/min~83.318ml/min.
●Use excellent control system and precision mechanical structure, linear travel accuracy<±0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment.
●Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher.
●Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field.
●RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host computers.

Flow: 0.184nL/min-83.318mL/min
Max: 2 Channels
SKU: TYD01-02 Category:

Function and Feature

• Assembly 2 plastic syringes or gas tight syringes.
• Multiple working mode options.
• Color LCD touch screen, convenient operation.
• Support screen lock, key mute operation.
• Button with indicator light,clearly working state.
• Support for a variety of syringes, can be customized syringes.
• High accuracy control.
• Syringe protection and traffic jam alarm.
• RS485 communication,support the MODBUS protocol.
• External signal contol start-stop and direction.
• Wide range power input.
• All-metal anti-static, anti-corrosion spraying process housing.

Technical  Parameters

• Work mode: Infuse,withdraw,infuse /withdraw,withdraw/infuse,continuous mode
• Number of channel: 2
• Stroke of pump: 110mm
• Advance per microstep: 0.156μm/μstep
• Linear speed: 1μm/min~150mm/min
• Accuracy: Error<±0.35%(>30% of pump stroke)
• Rated linear force: >16kgf
• Thrust regulation: 1~100% arbitrary adjustable
• Syringe size: 10μL~60mL
• Syringe selection: Built-in main manufacturers, the main model syringe to choose.Can use custom syringe, direct input syringe size and diameter
• Flow rate: 0.184nL/min~83.318mL/min
• Flow calibration: Through the calibration procedure to obtain more accurate fluid volume
• Display: 4.3’color LCD screen display and transfusion volume, residual fluid volume,flow, operation direction ,syringe specification, etc. Animation display operation
• Operation mode: Touch screen + button
• Power-off memory: Storing the running parameters automatically
• Function: Pause and stop, the sound tip, the lock parameters,fast forward and retreat quickly,display brightness adjustment
• State signal output: One start-stop status,one direction status
• Control signal input: One trigger start,one trigger stop
• Communication interface: RS485,MODBUS Protocol
• Dimension mm: 245×195×140mm
• Weight: 3.2kg
• Power supply: AC100~240V,50/60Hz
• Temperature: Temperature 0 ~ 40℃, relative humidity<80%

Reference Table of Syringe Specifications and Flow Rate

Syringe size Syringe ID(mm) Min. flow rate (nL/min) Max .flow rate(μL/min)

10μL

0.485

0.184

0.027

25μL

0.729

0.417

0.0626

50μL

1.03

0.833

0.125

100μL

1.457

1.667

0.250

250μL

2.304

4.169

0.625

500μL

3.256

8.326

1.248

1mL

4.699

17.342

2.601

5mL

11.989

112.890

16.933

10mL

14.427

163.469

24.520

20mL

19.05

285.027

42.754

30mL

21.59

366.090

54.913

60mL

26.594

555.459

83.318

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
