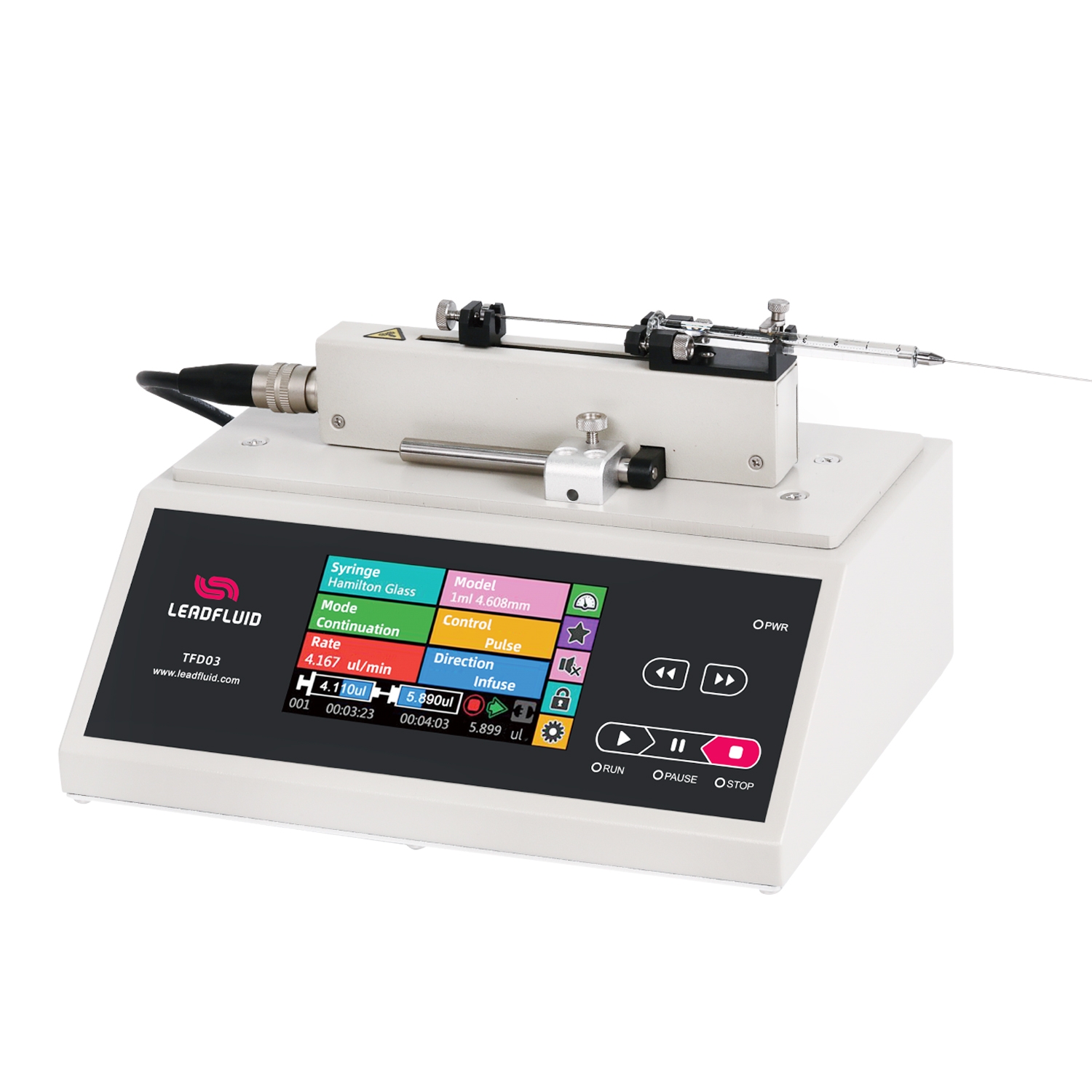

TFD03-01 Split Style Laboratory Syringe Pump

Description

TFD03-01 is a single channel multi-mode micro syringe pump. There are five working modes available: infusion, withdrawal, infusion then withdrawal, withdrawal then infusion and continuous cycle. It has split structure. The execution part is equipped with a mounting bracket to use cooperatively with microscopic operating equipment, stereotaxic instrument and other fixtures. It can be used with 0.5μL-100μL microliter syringe. The high precision control is suitable for all kinds of biological experiments. High resolution color touch LCD screen is convenient to set parameters. Multiple indicators show the working status. Built-in RS485 Modbus to work with external control device. TFD03-01 is suitable for syringe size 0.5μL-100μL, linear force from 0.6096μm/min to 91.44mm/min.

Flow: 0.005nL/min-152.456uL/min
Max: 1 Channel

Description

Function and Features

  • Color touch LCD screen, physical function keys
  • Working modes available: infusion, withdrawal, infusion then withdrawal, withdrawal then infusion and continuous cycle
  • LF-Touch-OS software system, stable, reliable and powerful.
  • Split style design, easy to install and operate. Supports screen lock, key mute operation. A variety of standard syringe, customize syringe support. High precision control.
  • RS485 MODBUS interface, to control start/stop and direction.
  • Entire metal shell.

Specifications

  • Software system: LF-Toutch-OS software system
  • Syringe specification: 0.5μl-100μL
  • Channel number: 1
  • Max stroke Range: 70 mm
  • Stroke resolution: 0.1905 μm/step
  • linear velocity range: 0.6096 um/min to 91.44 um/min
  • Linear velocity regulating resolution: 0.6096 um/min
  • Linear travel accuracy: error <±0.35%(>30% of pump stroke)
  • Linear thrust, maximum rated: > 10n
  • Thrust adjustment: 1-100% arbitrary adjustable.
  • Syringe selection: built-in syringe manufacturers, choose syringe model; Or custom syringe, direct input syringe diameter
  • Flow correction: through the calibration procedure to obtain more accurate fluid volume
  • Display: 4.3 inch color LCD, 480×272 resolution, color 65K
  • With screen display and transfusion volume, quantity of liquid, flow rate, direction, syringe specification, etc.
  • Animation display for operating status
  • Operation mode: touch screen and physical buttons
  • Power-off memory: keep saved parameters
  • Other features: pause and stop, warning tone, parameters lock
  • Fast forward and retreat quickly
  • Indicator, state signal output: one for stop state, another one for direction state
  • Control signal input: control start/stop and direction
  • Communication interface: RS485, MODBUS
  • Power supply: 100-240V AC / 20W
  • Working temperature: 5~40°C (41~104°F)
  • Working environment relative humidity: < 80% RH
  • Controller dimension: 245x205x105 mm (9.6×8.1×4.1 inch)
  • Drive dimension: 173x24x52mm (6.8×0.96×2.04 inch)
  • Weight: 2.25kg (4.96lbs)

Selection of reference (flow rate= linear speed x syringe cross-sectional area)

Syringe sizeSyringe ID(mm)Min. flow rate (nL/min)Max .flow rate(μL/min)

0.5μl

0.103

0.005

0.761

1μl

0.146

0.010

1.531

2ul

0.206

0.020

3.047

5ul

0.3257

0.051

7.618

10ul

0.485

0.112

16.893

25ul

0.729

0.254

38.166

50ul

1.03

0.507

76.190

100ul

1.457

1.016

152.456
