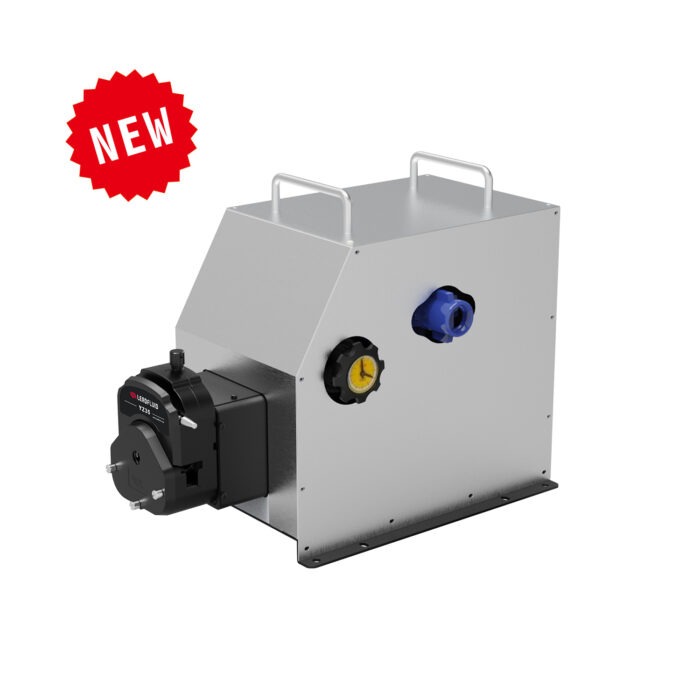

FG601S-W3 Explosion-Proof Motor Peristaltic Pump

Flow: 1800~13000mL/min
Max: 2 Channels

Functions and Features

• Industrial grade explosion-proof motor (ExdIIBT4), with special pump head, safe and reliable.
• Integral design, no frequency converter required, with functions such as start-stop,manual adjust speed.
• During operation, the speed can be adjusted at any time through the handwheel.
• Suitable for high flow pump head.
• IP55, can adapt to more complex working environment.

Remark: Protective shell can be installed.

Specifications

Pump head: YZ35
Flow range: 1800~13000mL/min
Speed range: 135~600rpm
Adjust speed: Manual stepless adjust speed
Control function: Manual speed regulation function
Power supply: 3 phase 380V 50HZ
Power consumption: 400W
Environment: Temperature 0 ~ 40℃, relative humidity<80%
Anti-explosion grade: ExdIIBT4
IP Grade: IP55(motor)
Dimension(L×W×H): 538×330×472 mm
Weight: 36.5Kg

FG601S-W3 Suitable Pump Heads and Tubing, Flow parameters

Drive Type Pump Head Channel Tube Single Channel Flow Rate(mL/min)
FG601S-W3 YZ35 1~2 73#82# 1800~13000

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.

Dimension(mm)
