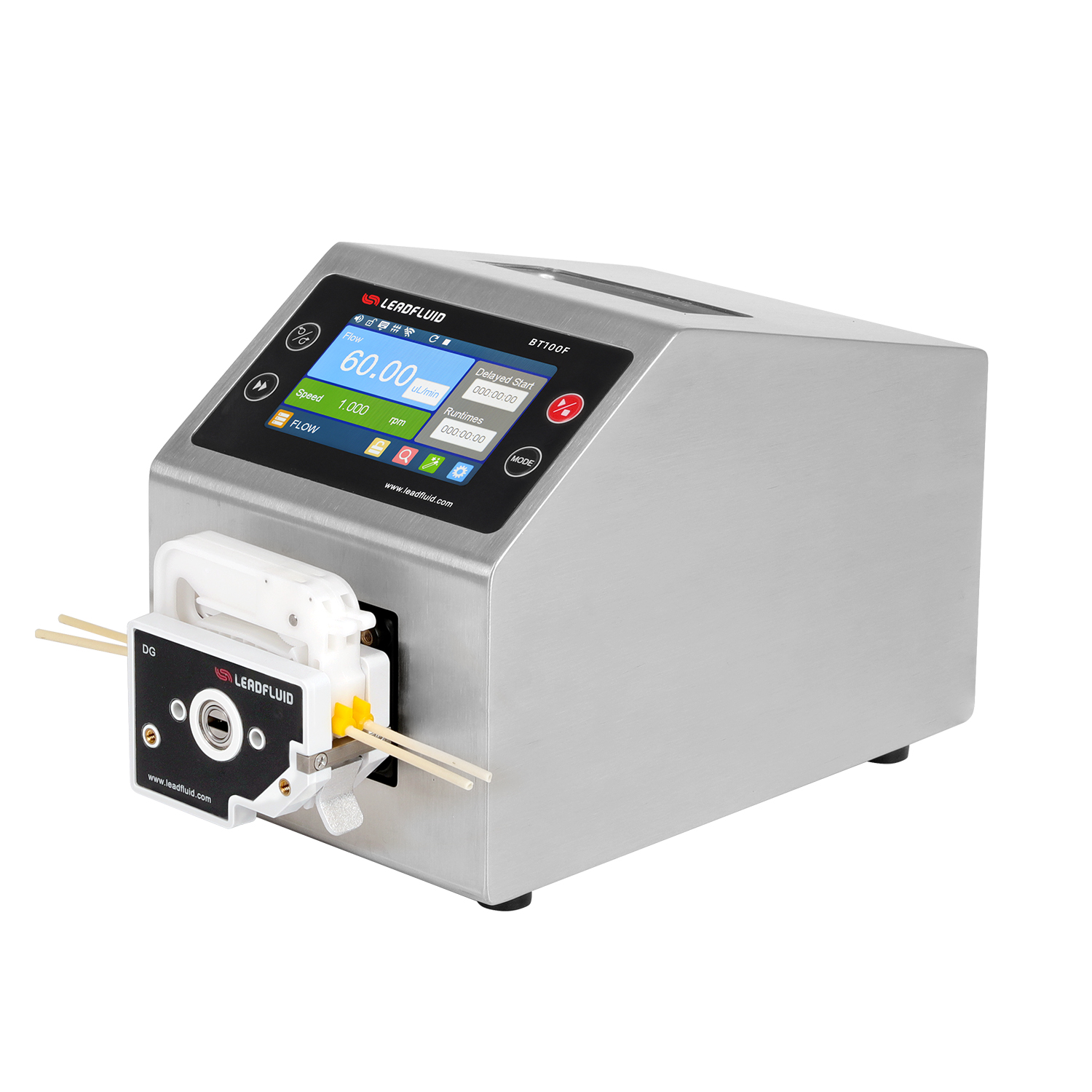

Functions and Features
• 4.3 inch color LCD display, intuitive image.
• Touch screen with key operation, convenient and fast.
• LF-Touch-OS software system, efficient and stable, with good human-computer interaction mode, convenient product customization and upgrade.
• Working modes: flow rate, time dispensing, volume dispensing, programming dispensing (cycle).
• Five sets of dispensing parameters for volume and time dispensing pre-storage.
• Programming mode supports 30 different quantitative parameter settings for complex control processes.
• Start/stop, reversible direction, full speed, suction function, timed start-stop.
• Accurate flow control and display, microstep algorithm to ensure the dispensing accuracy of different settings.
• Wizard flow calibration function, easy to use.
• Unique back suction function to prevent liquid drips.
• Support for serial print parameters and data.
• Intelligent temperature control function, automatically adjusting the heat according to the environment, so that the device is always in the best state.
• WIFI control function, remote operation can be realized through the Lead Fluid APP software, and has monitoring functions such as shutdown alarm and reminding to replace the pump tube.
• External analog adjust speed , external control start-stop ,reversible direction, dispensing, external signal physical isolation.
• RS485 communication interface, MODBUS protocol is available, can set up communication parameters, convenient to connect various of control equipments.
• Open multiple control parameters , suitable for OEM custom applications.
• The circuit board is sprayed with three anti paint technology to achieve the effect of dustproof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• Innovative stainless steel housing, easy to clean, effectively prevent the erosion of various organic solvents.
Specifications
- Flow range: 0.00023~750 mL/min
- Speed range: 0.1~150 rpm
- Speed resolution: 0.1rpm
- Speed accuracy: ＜±0.2%
- Dispensing volume: 0.001μL～9999L(It is recommended to have a minimum fill of 50μL.)
- Dispensing time: 1～999，“0”Infinite cycle
- Dispensing interval time: 0.1～999.9 S/Min/H, time unit adjustable
- External control signal input: (1) Start/Stop: passive contact, external control input level (5~24V) (2) Forward/Reverse: passive contact, external control input level (5~24V) (3) Speed Regulation: analog 0~5V, 0~10V, 4~20mA can be set.
- External control signal output: (1) Start/Stop: Level Signal (following input voltage) (2) Forward/Reverse: Level Signal (following input voltage) (3) Speed Status: Analogue 0~5V
- Communication interface: RS485 communication interface, Modbus protocol is available
- Power supply: AC100～240V，50Hz/60Hz
- Power consumption: <40W
- Working environment: Temperature 0 ～ 40℃, relative humidity＜80%
- IP grade: IP31
- Dimension（L×W×H）: 292×160×183mm
- Weight: 4.5 kg

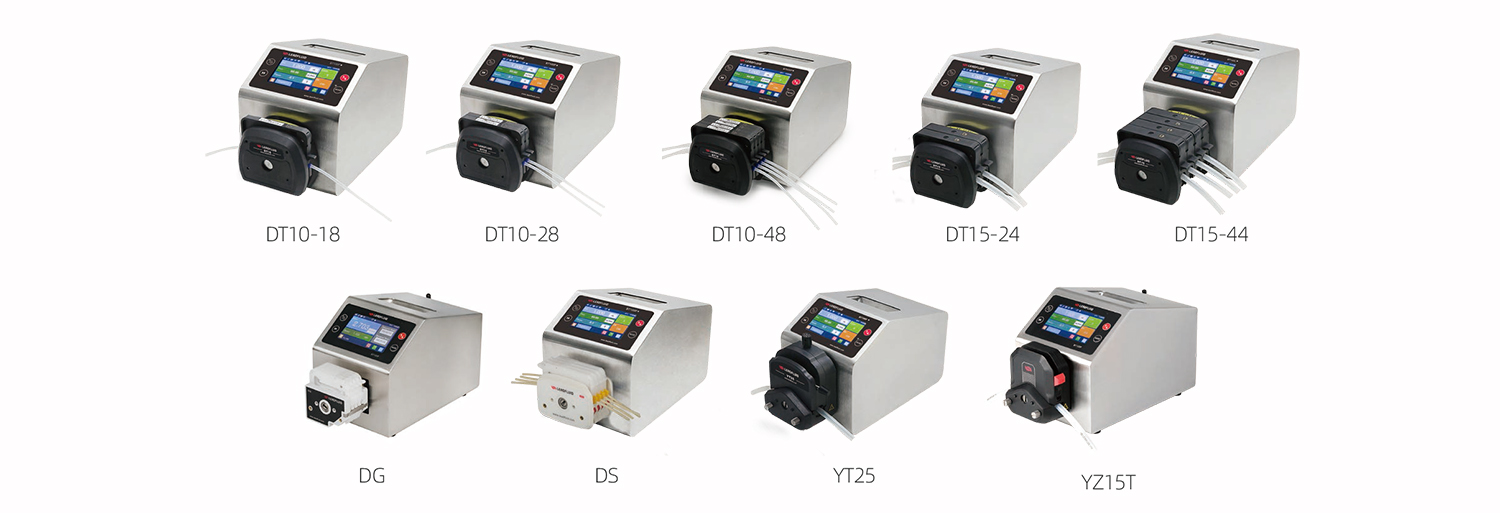

BT100F Suitable Pump Heads and Tubing, Flow parameters
| Drive type | Pump head | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |
| BT100F
|

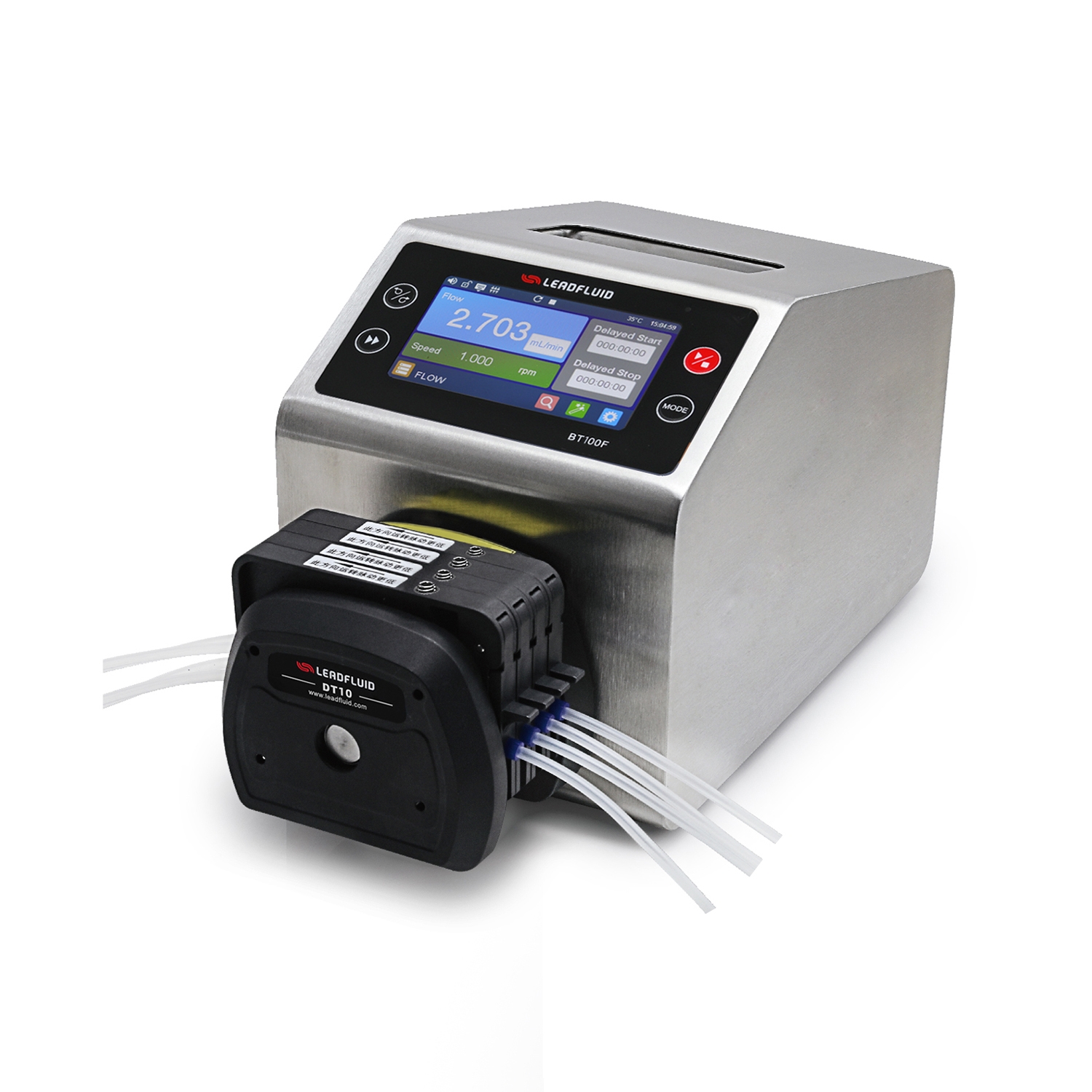

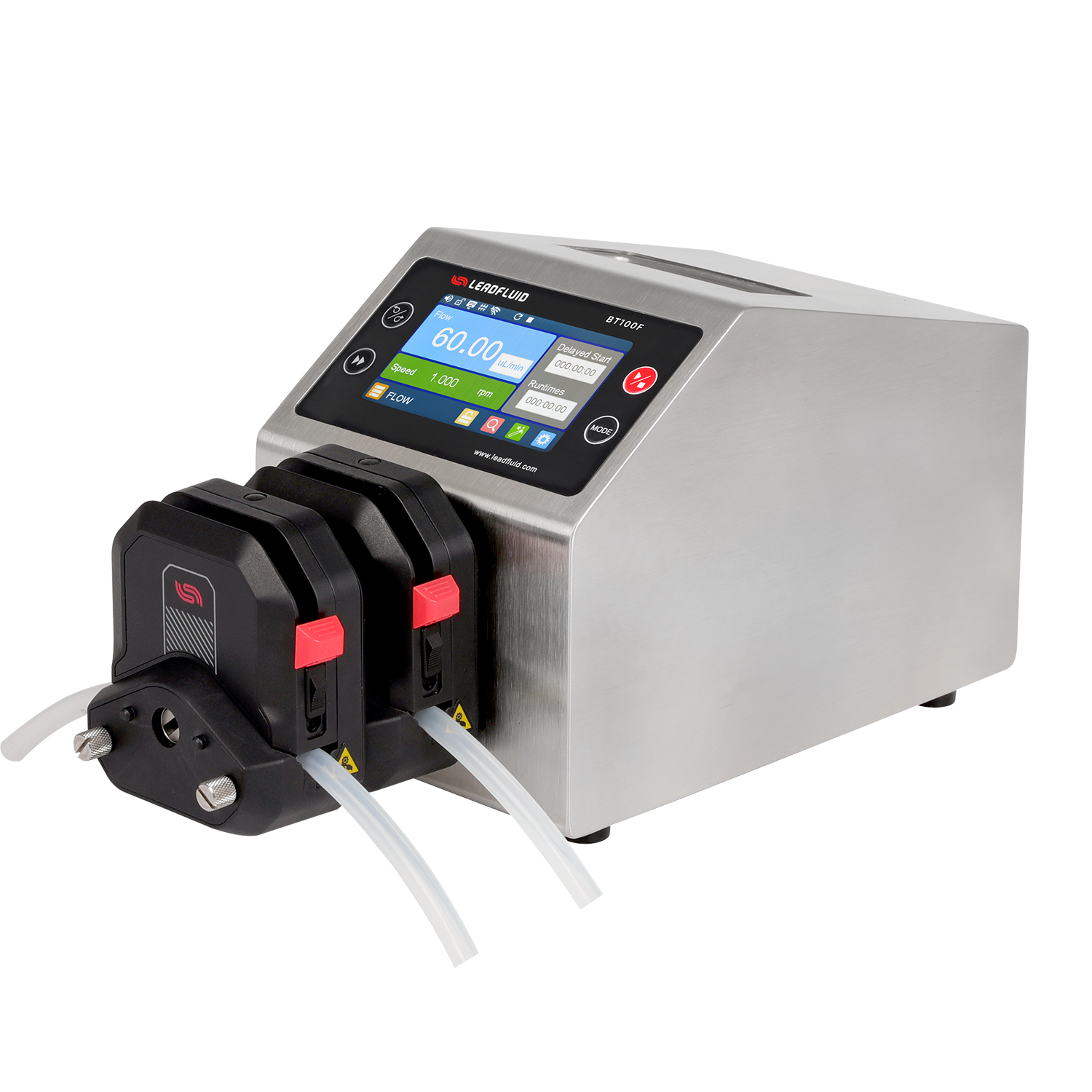

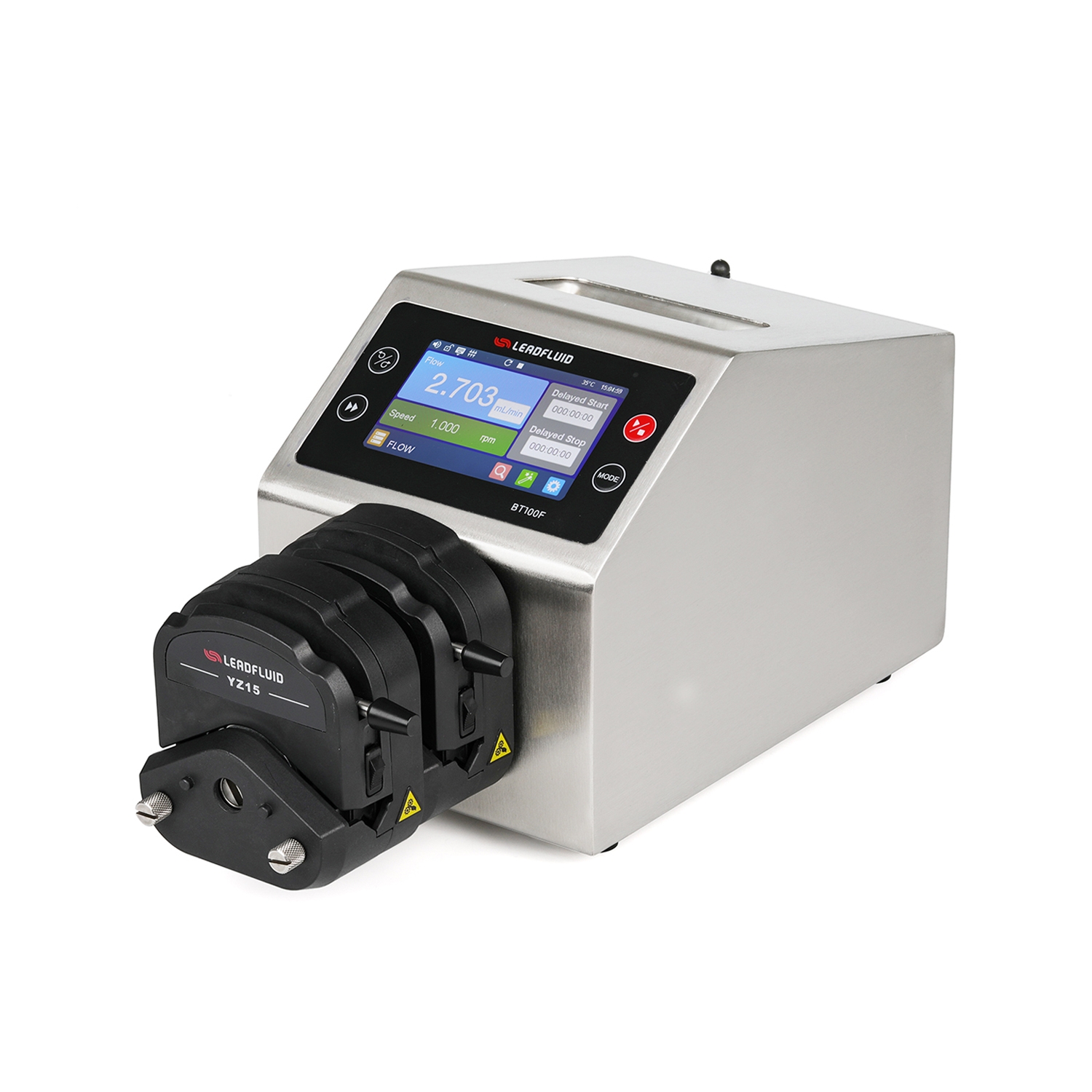

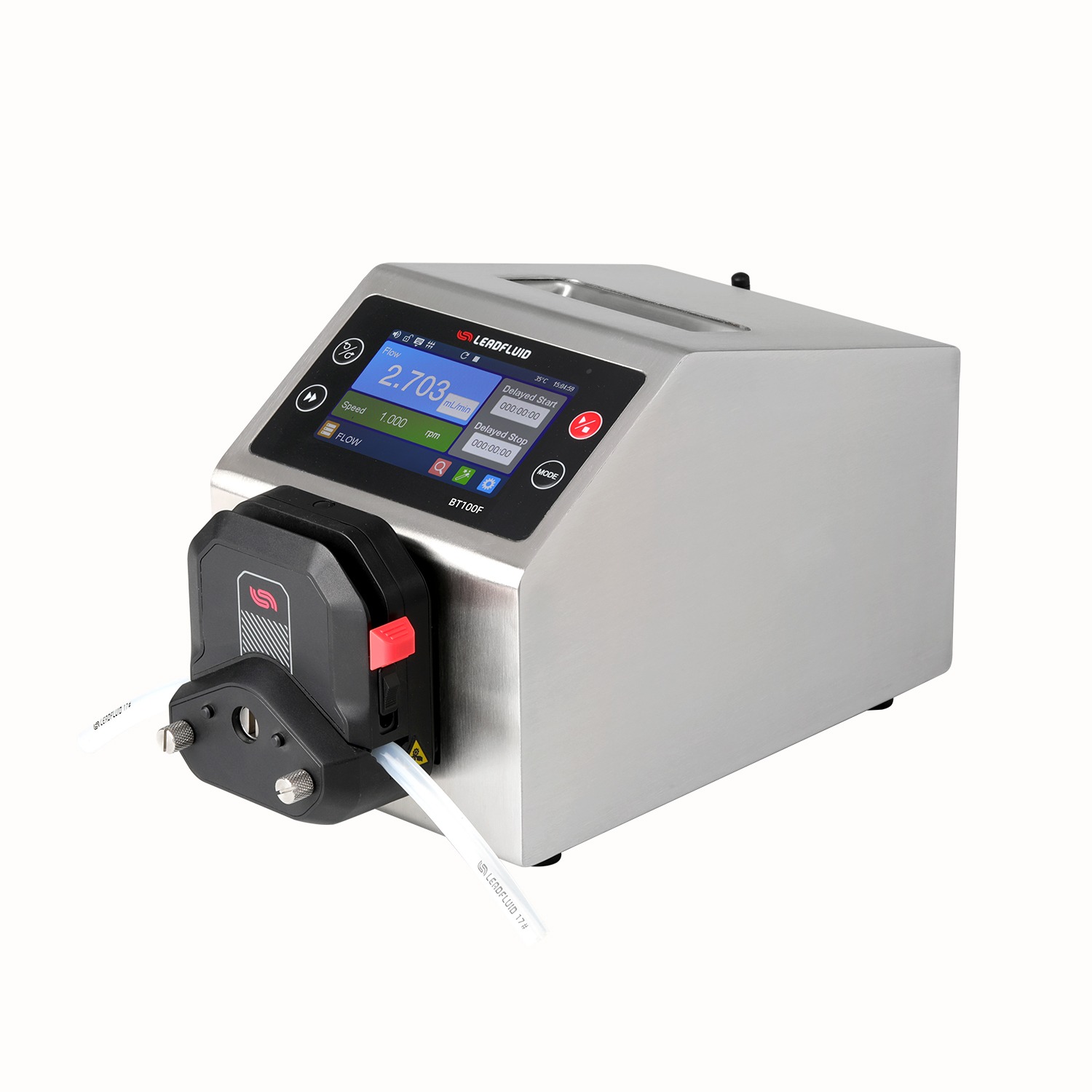

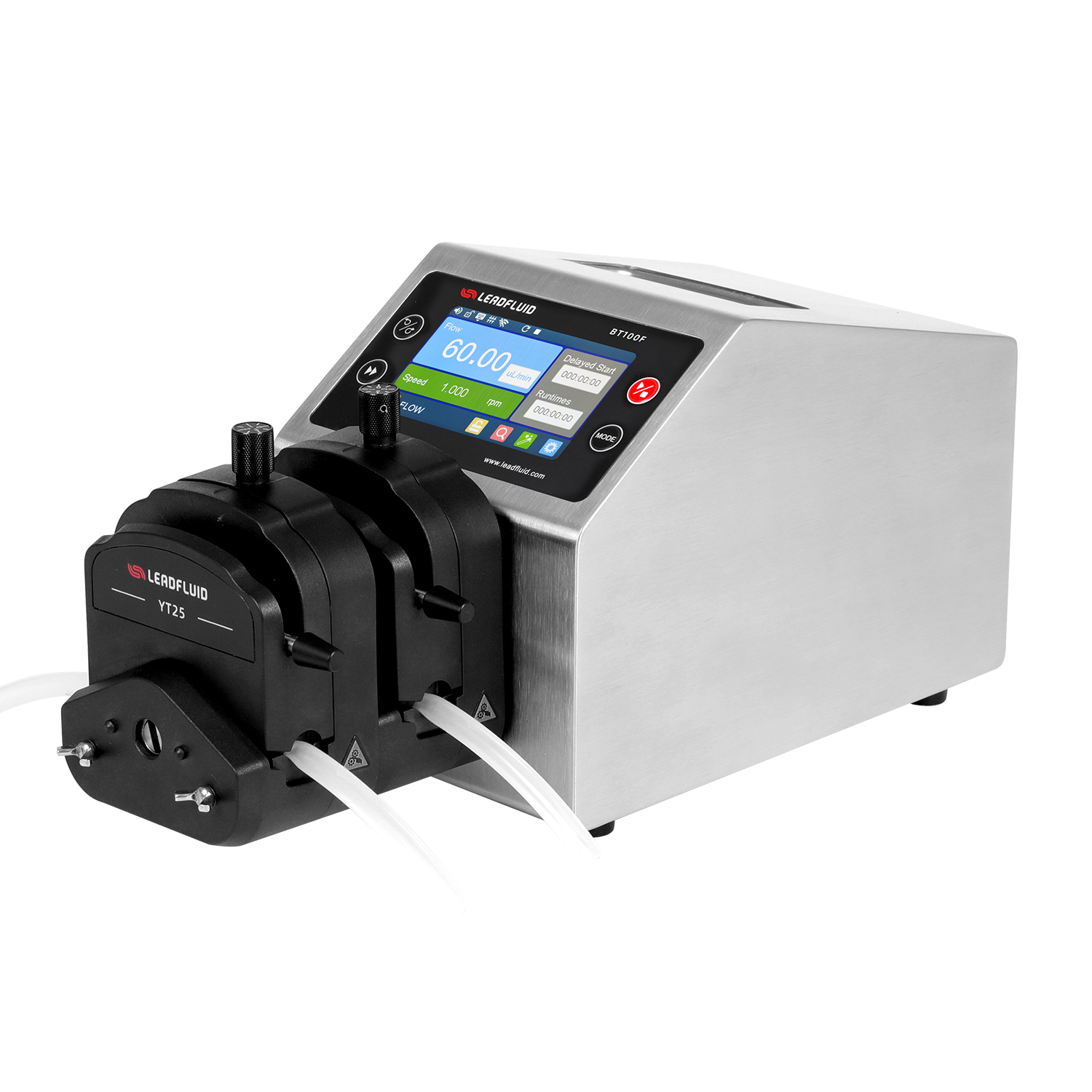

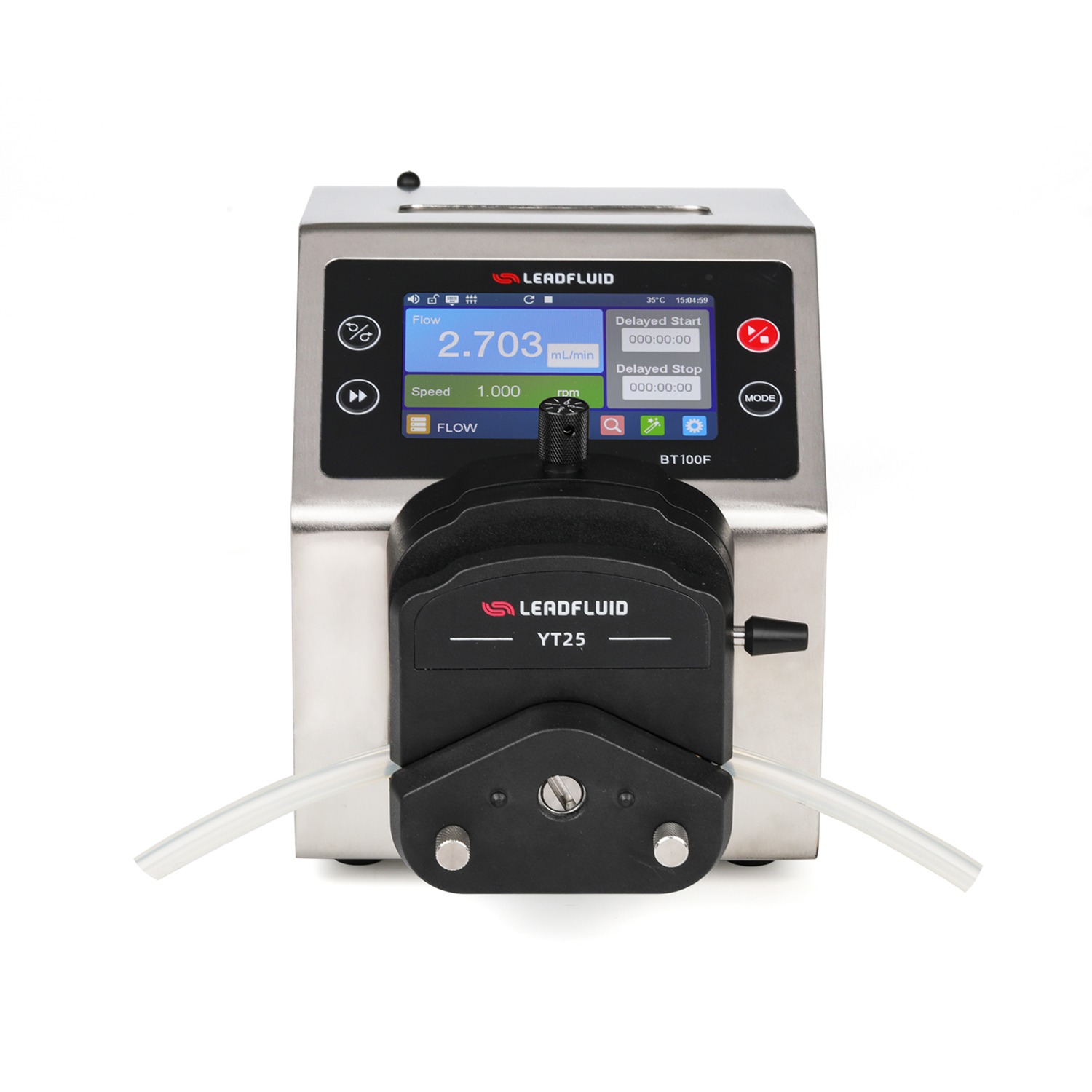

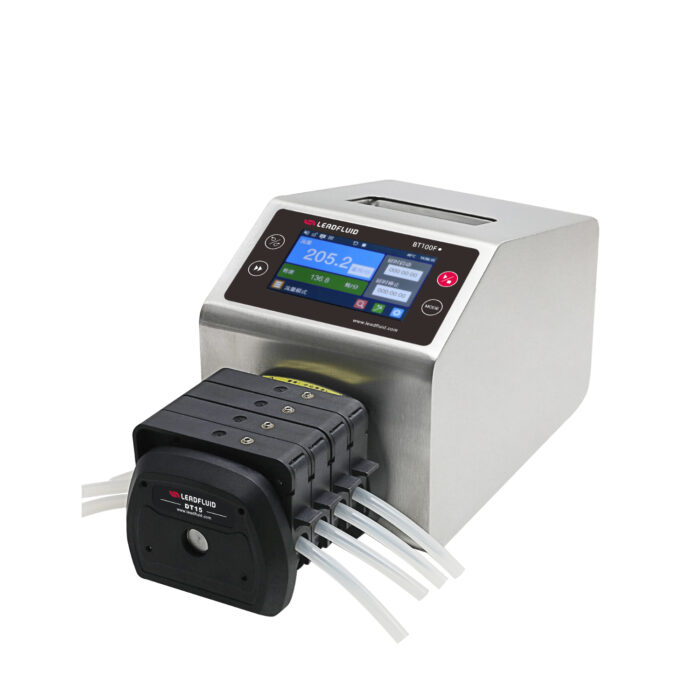

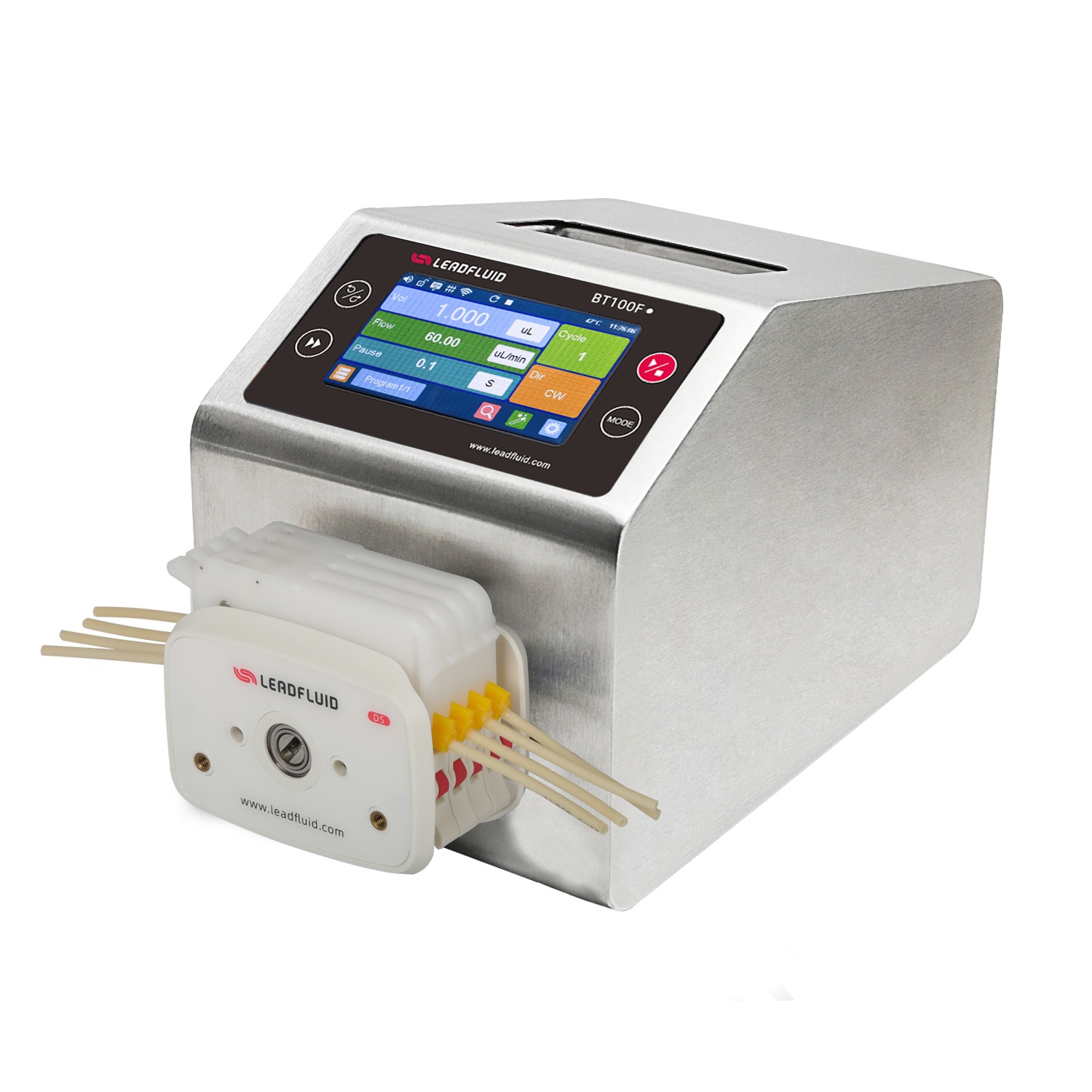

DT10-18/28/48 | 1,2,4 | 13#14#，Wall0.8～1mm,ID≤3.17mm | 0.00023～64 |
| YZ15 | 1,2 | 13#14#19#16#25#17#18# | 0.005～641 | |
| YT25 | 1,2 | 114#116#15#24#35#36# | 0.024～750 | |
| DT15-24 | 2 | 19#16#25#17# | 0.067～560 | |
| DT15-44 | 4 | 9#16#25# | 0.067～330 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
Dimension（mm）
Statement：The final explanation right of above information belongs to Lead Fluid.
