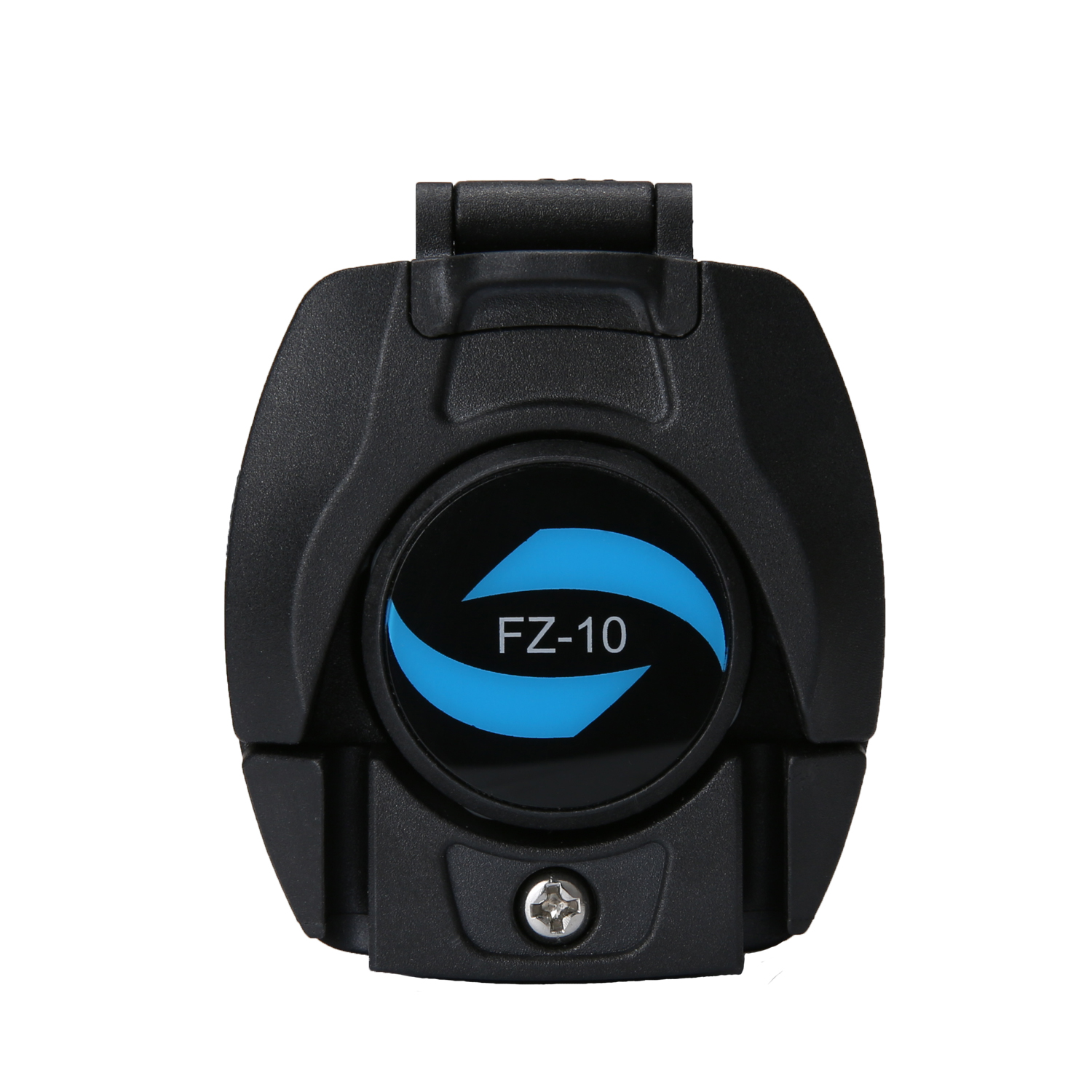

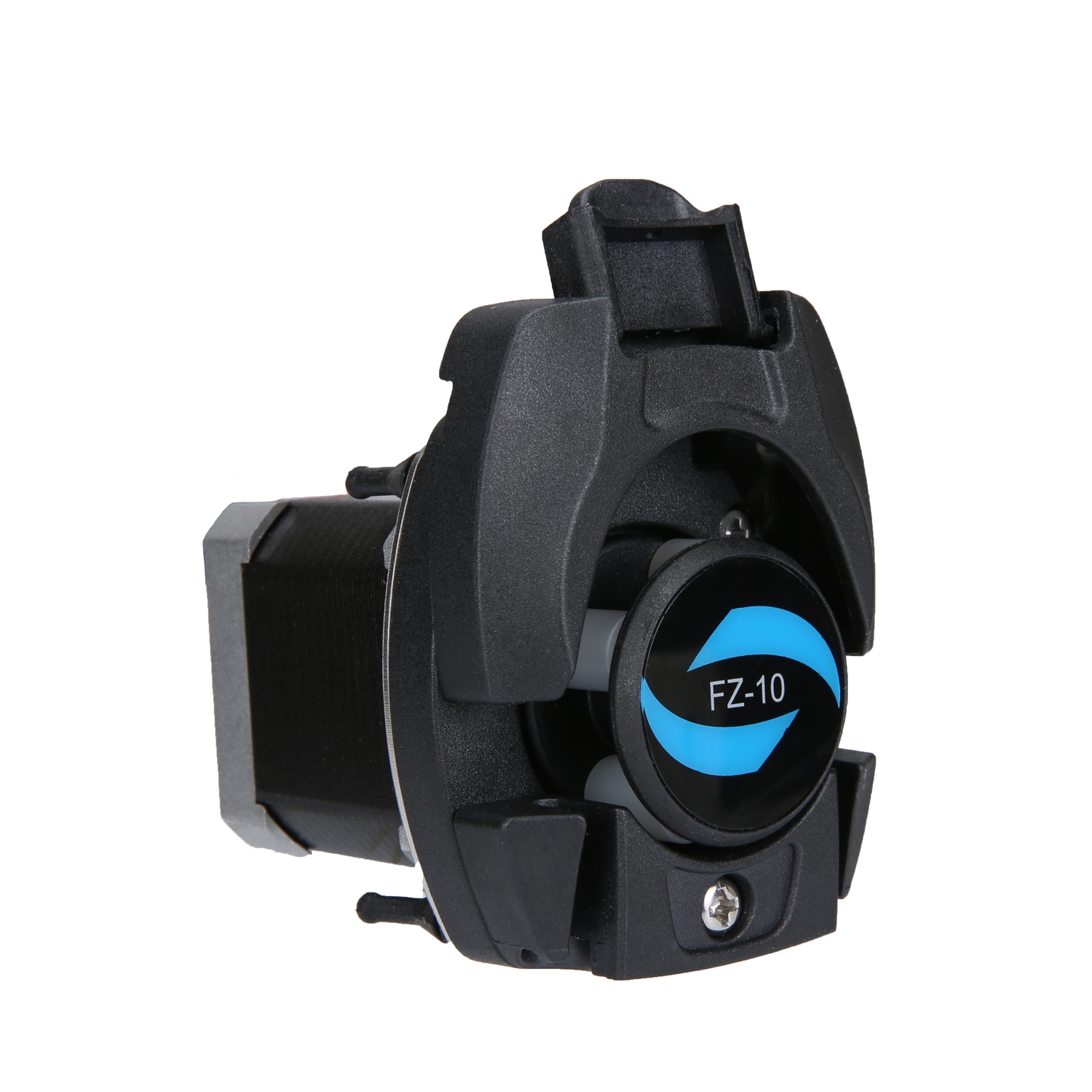

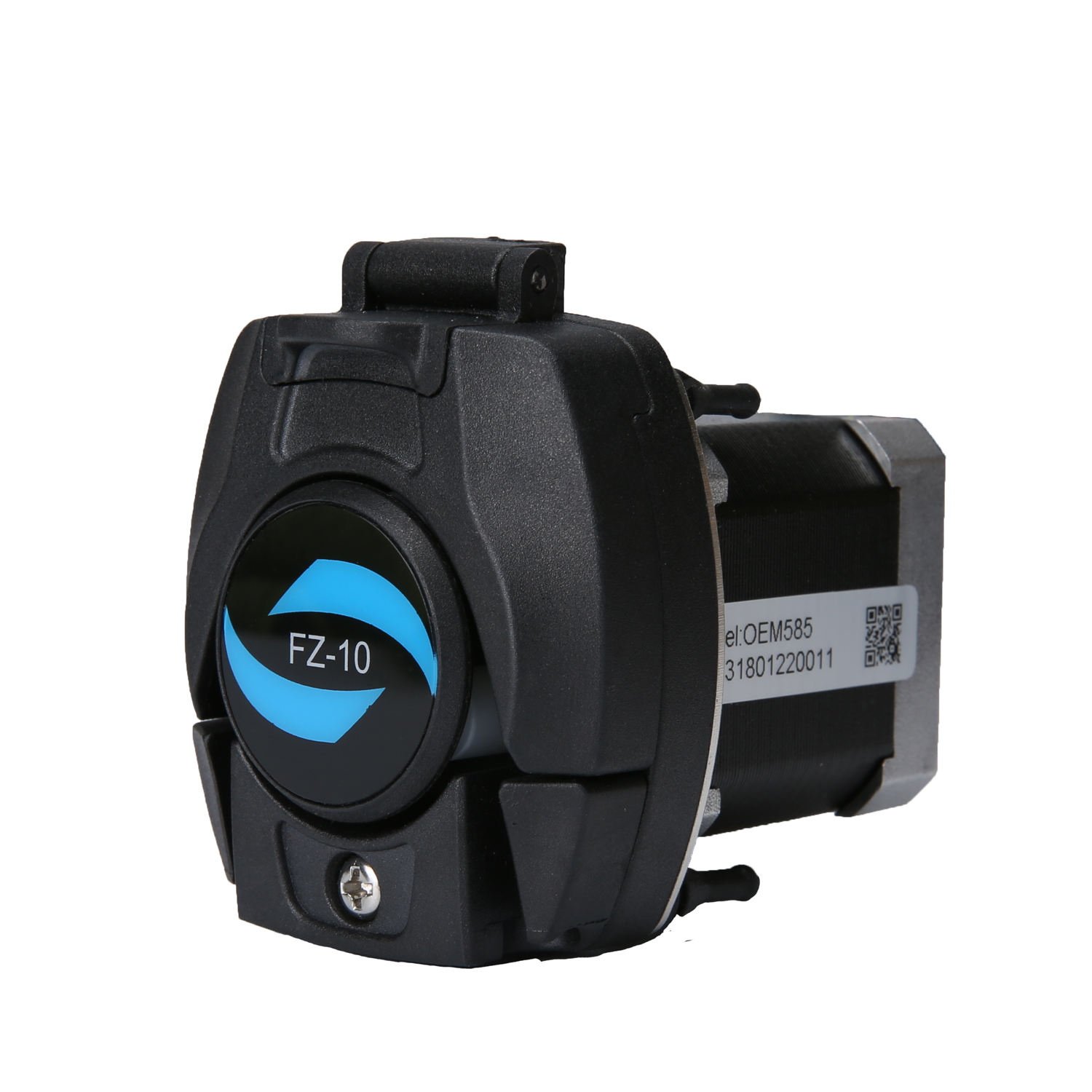

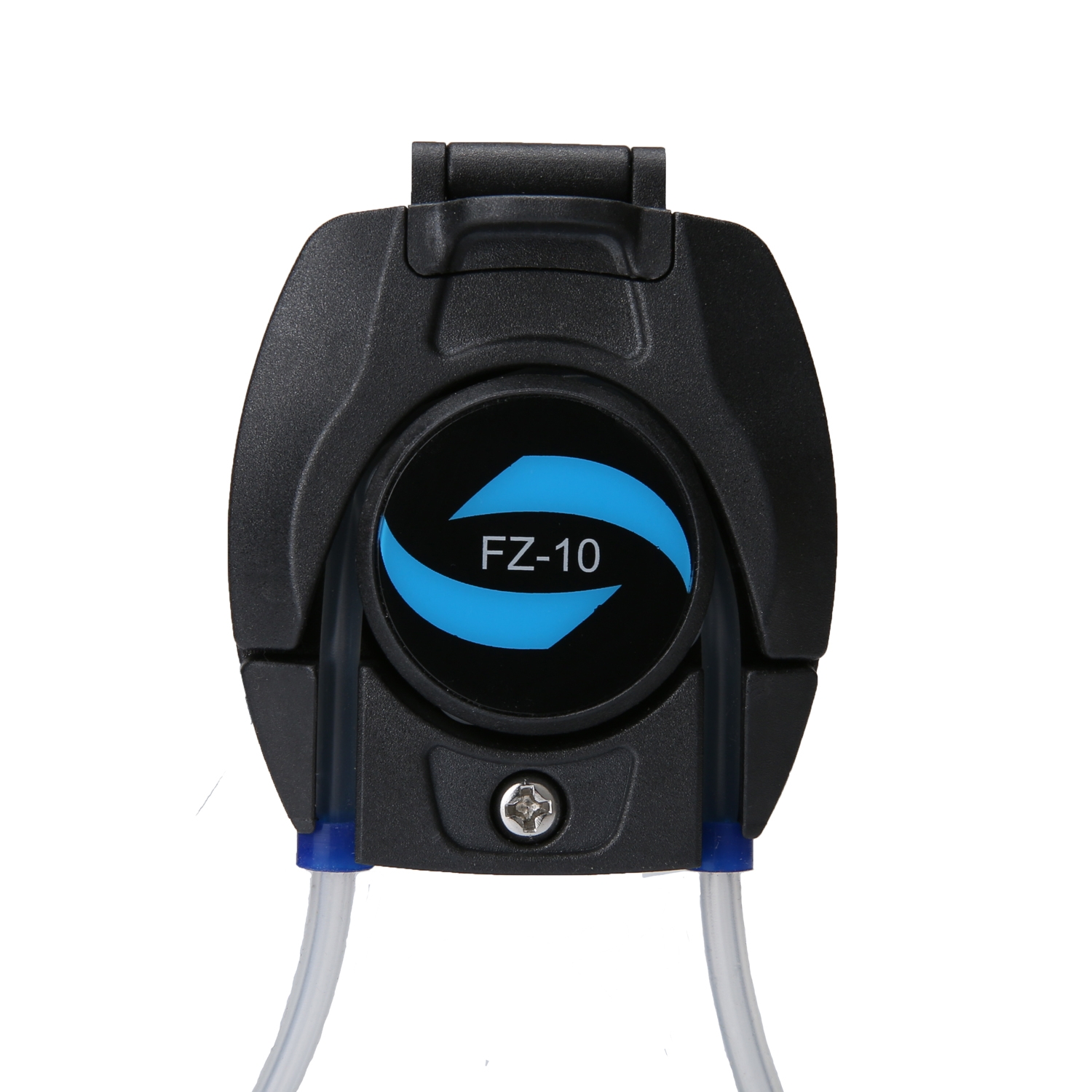

FZ-10 Pump Head

FZ10 Pump Head Introduction
FZ10 pump head is suitable for micro-flow transmission. Pump head and motor are fixed together, small size, convenient to install.

SKU: FZ-10 Category:

Specifications:
• Flow range: ≤32mL/min
• Speed range: ≤80rpm
• Shell material: Makrolon
• Roller material: POM
• Roller number: 4
• Gap adjustment: Automatic micro-adjustment
• Applicable tubes: Wall thickness: 0.8-1mm, ID: 1mm-3.17mm

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
