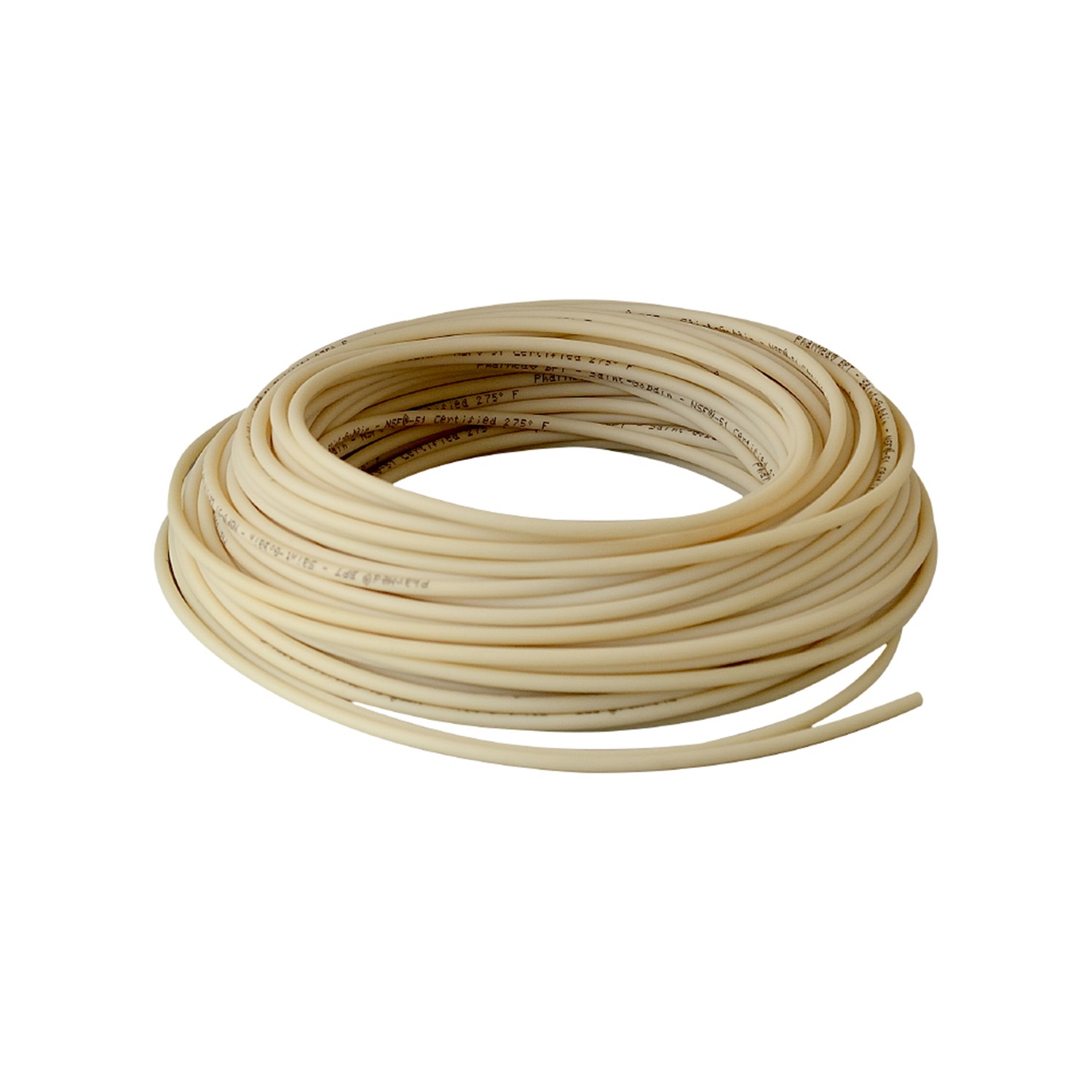

Pharmed BPT Peristaltic Pump Tubing

Maintains the integrity of the fluid during delivery, and delivers fluid through a peristaltic pump, reducing the risk of fluid contacting any part of the pump body. It has a long service life of the pump tube, shortens the production downtime caused by the failure of the pump tube, and simplifies the production process. The PharMed® BPT tubing is easy to clean and disinfect. It is compatible with almost all commercially available cleaning agents and disinfectants, and it can also be exposed to up to 5MRads of cobalt 60 gamma irradiation. In terms of gas and vapor permeability, PharMed® BPT tubing is lower than silicone tubing. PharMed® BPT tubing has good chemical resistance and excellent
resistance to acids, alkalis and oxides. Since it is impervious to visible and UV light, PharMed® BPT tube helps protect light-sensitive fluids.

Category:

Function and Feature

• The service life of the peristaltic pump tube is 30 times better than that of the silicone tube
• High temperature and high pressure sterilization can be repeated
• Low permeability. An ideal product for cell culture, fermentation, synthesis, separation, purification, and control.
• Exhibits excellent resistance to general chemicals, as well as outstanding resistance to acids, bases, and oxidants.
• The temperature range is -60F(-51℃) to 275F(135℃)
• Can withstand repeated CIP and SIP• Comply with REACH, RoHS, USP Class VI, FDA, NSF and ISO 10993 certification

Pharmed BPT Specifications

Tubing Material Tubing No. ID (mm) Wall Thickness(mm) ID×OD×Wall(mm) Standard Package(m)
PHARMED.BPT 13# 0.8 1.6 0.8×4×1.6 7.5
14# 1.6 1.6 1.6×4.8×1.6 7.5
19# 2.4 1.6 2.4×5.6×1.6 7.5
16# 3.2 1.6 3.2×6.4×1.6 7.5
25# 4.8 1.6 4.8×8×1.6 7.5
15# 4.8 2.4 4.8×9.6×2.4 7.5
17# 6.4 1.6 6.4×9.6×1.6 7.5
24# 6.4 2.4 6.4×11.1×2.4 7.5
18# 8 1.6 8×11.1×1.6 7.5
35# 8 2.4 8×12.7×2.4 7.5
36# 9.6 2.4 9.6×14.4×2.4 7.5
73# 9.6 3.2 9.6×16×3.2 7.5
82# 12.7 3.2 12.7×19.1×3.2 7.5
0.25×0.9 0.25 0.9 0.25×2.05×0.9 30
0.38×0.9 0.38 0.9 0.38×2.18×0.9 30
0.51×0.9 0.51 0.9 0.51×2.31×0.9 30
0.76×0.85 0.76 0.85 0.76×2.46×0.85 30
0.89×0.85 0.89 0.85 0.89×2.59×0.85 30
1.02×0.85 1.02 0.85 1.02×2.72×0.85 30
1.14×0.85 1.14 0.85 1.14×2.84×0.85 30
1.52×0.85 1.52 0.85 1.52×3.22×0.85 30
1.85×0.85 1.85 0.85 1.85×3.55×0.85 30
2.06×0.85 2.06 0.85 2.06×3.76×0.85 30
2.29×0.85 2.29 0.85 2.29×3.99×0.85 30
2.54×0.85 2.54 0.85 2.54×4.24×0.85 30
2.79×0.85 2.79 0.85 2.79×4.49×0.85 30
3.2×0.8 3.2 0.8 3.2×4.8×0.8 7.5

Applications:

Medium acid and alkali liquid transfer, tissue cell culture, fermentation, synthesis, separation, purification, and process control (suitable for sensitive cell culture), production filtration and fermentation, sterile filling, BPC pipeline systems, food and beverage, cosmetics, biopharmaceuticals, and other industries. The flexibility is excellent, making it especially suitable for use with solenoid valves.
