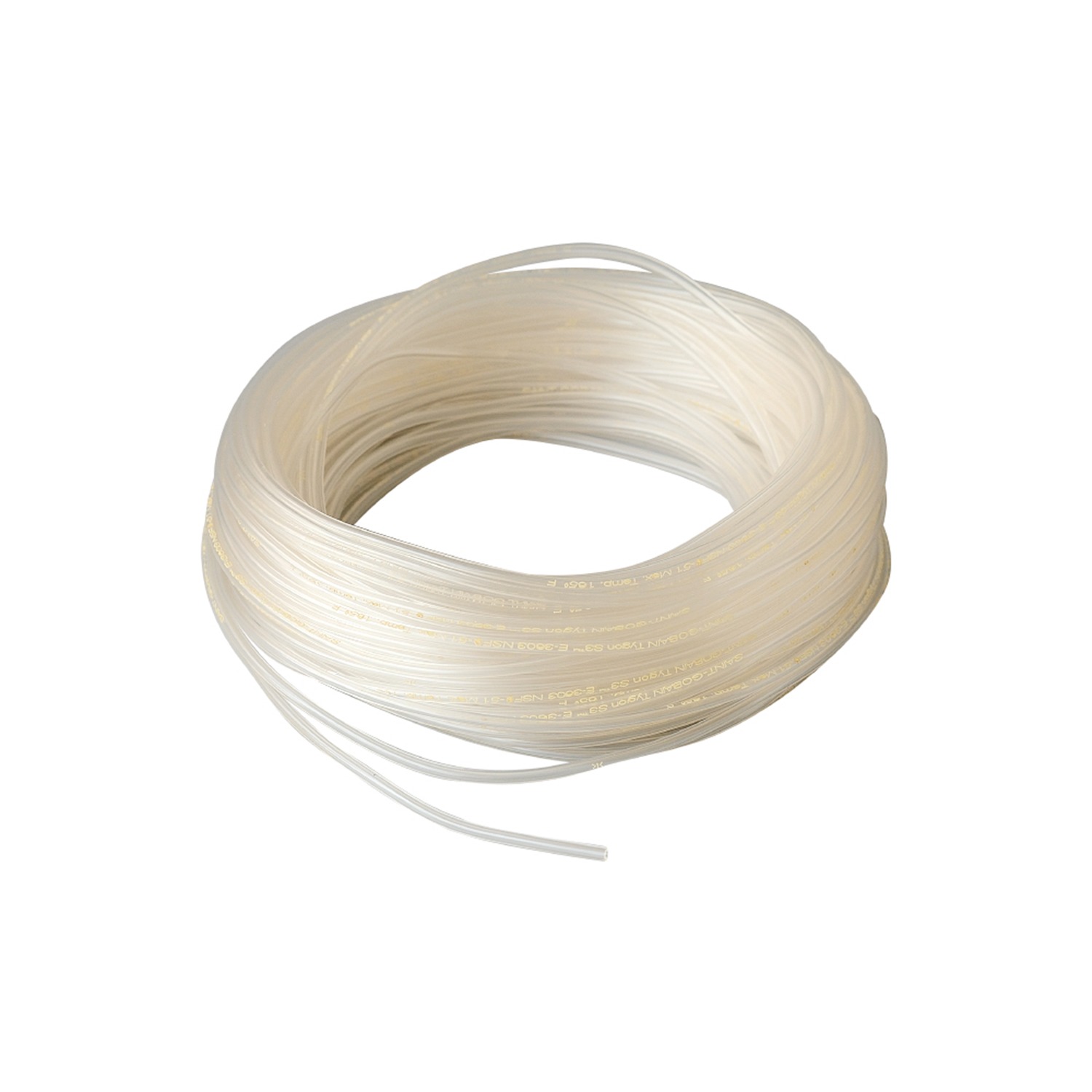

Peristaltic Pump Tubing Tygon S3 E-3603

Tygon S3™ tubing based on bio-materials combines high-performance standards required by customers with bio-environmentally friendly requirements. Crystal-like transparency, flexibility, durability, and anti-cracking characteristics make the delivery performance of the new Tygon S3™ E-3603 tube meet your needs.
Tygon S3™ E-3603 tubing does not contain phthalate plasticizers and is used to transport the most demanding food and beverages.It will not be oxidized and contaminated, and the air tightness is better than that of a rubber tube. The glass-smooth cavity helps prevent particles from accumulating and facilitates cleaning.

Category:

Function and Feature

•  Thermoplastic rubber, a mixture of PVC and plasticizers.
•  Soft, colorless and transparent, hardness 55, poor breathability, UV grade A, ozone grade B.
•  Temperature range is -50 to 74 degrees Celsius.
•  Sterilization methods: Ethylene oxide, high-temperature high-pressure
•  FDA 21 CFR 175.300 certification.

Tygon S3 E-3603 Specifications

Tubing Material Tubing No. ID×OD×Wall(mm) Standard Package(m)








E-3603










 0.19×0.9 0.19×1.99×0.9 30
0.25×0.9 0.25×2.05×0.9 30
0.38×0.9 0.38×2.18×0.9 30
0.44×0.9 0.44×2.24×0.9 30
0.51×0.9 0.51×2.31×0.9 30
0.64×0.9 0.64×2.44×0.9 30
0.76×0.85 0.76×2.46×0.85 30
0.89×0.85 0.89×2.59×0.85 30
1.02×0.85 1.02×2.72×0.85 30
1.14×0.85 1.14×2.84×0.85 30
1.42×0.85 1.42×3.12×0.85 30
1.52×0.85 1.52×3.22×0.85 30
1.65×0.85 1.65×3.35×0.85 30
1.85×0.85 1.85×3.55×0.85 30
2.06×0.85 2.06×3.76×0.85 30
2.29×0.85 2.29×3.99×0.85 30
2.54×0.85 2.54×4.24×0.85 30
2.79×0.85 2.79×4.49×0.85 30
3.2×0.8 3.2×4.8×0.8 15
14# 1.6×4.8×1.6 15

Applications:
Suitable for the transfer of moderate acid and base liquids, this tube is used for physicochemical analytical instruments and can withstand almost all commonly used inorganic chemicals in the laboratory. It can be used as a condenser, incubator, air tube, drainage tube, peristaltic pump tube, and other laboratory tubes.
