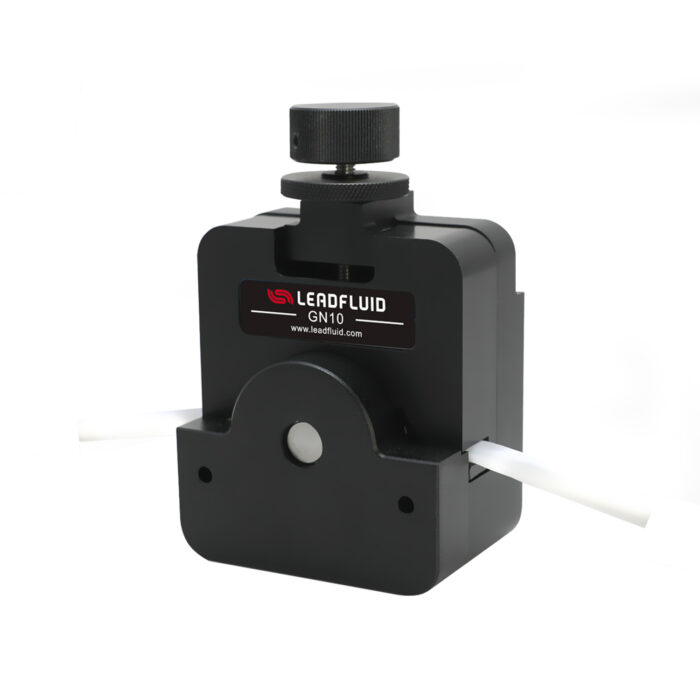

GN10 High-Pressure Corrosion-Resistant Peristaltic Pump Head

GN10 high pressure corrosion resistance peristaltic pump head suitable for PTFE tube, excellent chemical resistance. Easy and quick tube installation , lower running noisecompact and
beautiful appearance.

Flow: ≤65mL/min

GN10 high pressure corrosion resistance pump head suitable for PTFE tube, excellent chemical resistance, suitable for strong acids, strong bases and various organic solvents ,especially suitable for small flow transmission of liquids that cannot be transmitted by ordinary peristaltic pumps.
Using aluminum alloy and POM material, excellent mechanical properties.
Adjustable pressure tube clearance, locking structure design, the max adaptive outlet pressure is 0.68Mpa.
Easy and quick tube installation , lower running noisecompact and beautiful appearance.

Flow Parameter

The above flow data wer e obtained from the tests using a silicone tube to tr ansfer pure water under normal temperature and pressure conditions in the Leif labor atory. This data is f or reference only.

Specification

Speed Range
<300rpm
Max Flow
65mL/min
Tube
2.48×0.76mm \ 4.48×0.76mm(PTFE)
Channel
1
Roller
6
Pressure tube structure
Adjustable pressure tube clearance
Transmission pressure
≤0.68MPa
Suction stroke
Not higher than 2 meters
Temperature
Temperature 0~40℃, humidity<80%
Dimension
83×140×65mm
Weight
0.92kg

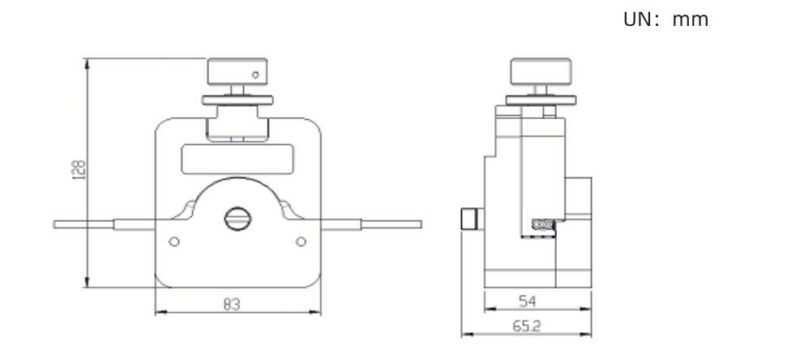

Dimension

Tube Life Comparison Table

Tube
Life (100RPM)
PTFE
500H

Notes:
The above data are all test results obtained by Lead Fluid laboratory under normal
temperature and pressure for the transmission of pure water, which are for reference
only; the actual service life may be affected by specific factors such as pressure,
temperature, medium characteristics, tube batch and wall thickness; for specific
problems, please contact Lead Fluid engineers to get better tec hnical support.
Statement:The final explanation right of above information belongs to Lead Fluid.
