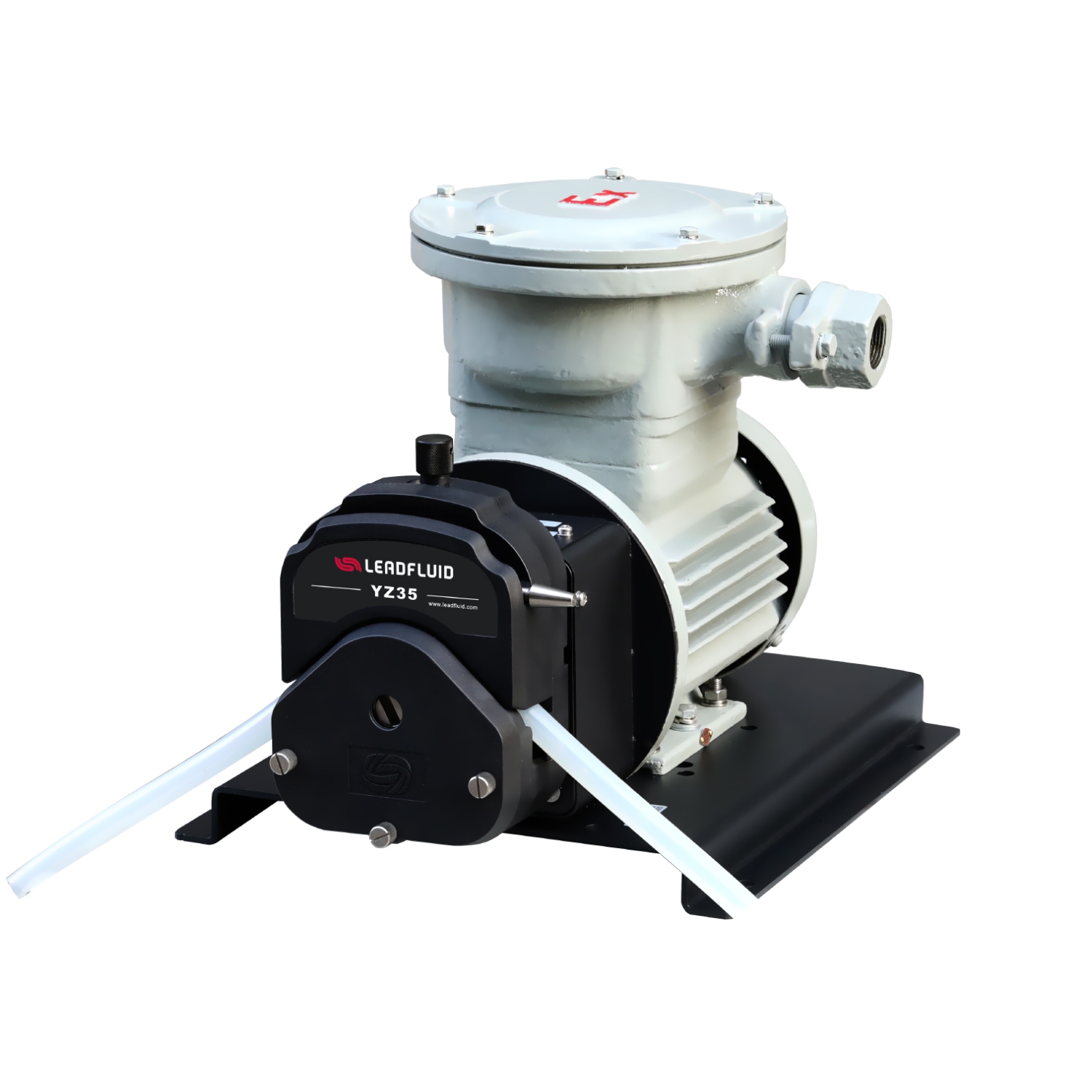

FG601S-A3 Explosion-proof Peristaltic Pump

AC Explosion-proof Motor Peristaltic Pump FG601S-A3380V

Max: 2 Channels
SKU: FG601S-A3 Category:

Description

Function and Feature
• Industrial grade AC frequency conversion explosion-proof motor (ExdIIBT4), with special pump head, safe and reliable.
• External frequency conversion control, with functions such as adjust speed, start-stop, reversible direction, analog adjust speed, RS485 communication.
• Stepless speed, speed range 72rpm~600rpm, speed resolution 2rpm.
•  Split design, the driver is separated from the frequency conversion, suitable for a variety of working environment.
•  Suitable for high flow rate pump head.
•  IP55, suitable for complex working environment.
•  The standard frequency conversion is not explosion-proof and cannot be placed in a flammable and explosive environment.

Remark:

1. Industrial grade explosion-proof frequency conversion is optional .
2. Protective shell can be installed.
3. Customizable all-in-one model.

Technical Parameters

  • Flow range 1000~13000ml/min
  • Speed range: 72~600rpm
  • Speed resolution: 0.1HZ(2rpm)
  • Pump head: YZ35
  •  Adjust speed: Frenquency converter steppless speed (standard frequency converter motor without connection cable)
  • Control function: Adjust speed, start/stop, reversible direction, analog speed control, RS485 communication
  • Accuracy: <±3%
  • Power supply : Three phase 380 v, 50Hz
  • Power consumption: 0.55KW
  • Working environment: Temperature 0℃~40℃, relative humidity<80%
  •  Casing Dimensions: (LxWxH)473*350*332
  •  Anti-explosion Grade: ExdIIBT4
  •  IP Grade: IP55 (only drive)
  •  Weight: 37Kg

FG601S-A3 Peristaltic pump applicable pump head, tubing and flow rate:

Drive model
Pump head
Channel
Tube
Flow rate(ml/min)

FG601S-A3

YZ35
1~2
73#82#
1000~13000

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

Dimension
