Lead Fluid DMD25-T Pump Head – The Optimal Solution for High-Precision Filling Production Lines

  • by

These issues loom like mountains in front of manufacturing companies, especially in the pharmaceutical industry.

In the rapidly evolving landscape of industrial manufacturing and scientific exploration, the precision and stability of fluid transfer have become unavoidable core challenges across many industries. This is especially true in high-precision filling sectors such as pharmaceuticals, cosmetics, and fine chemicals, where even minor flow fluctuations can lead to diminished product quality and potentially jeopardize user safety and trust.

As a result, the market urgently needs an innovative peristaltic pump head that can ensure precise fluid transfer while significantly reducing pulsation, thereby ensuring the continuous and stable operation of production lines, enhancing product quality, and boosting market competitiveness.

Breakthroughs of the Lead Fluid DMD25-T Pump Head

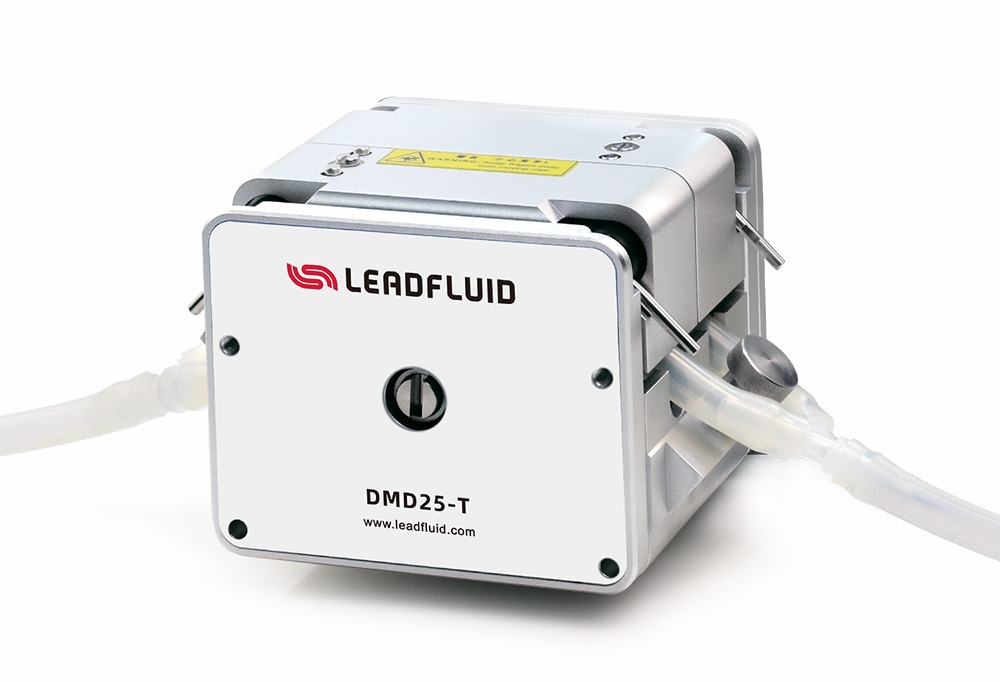

Lead Fluid DMD25-T Pump Head, with its unique design, meets the stringent requirements for high precision and high flow rates with low pulsation.

1.Low Pulsation Design for Precise Control
The DMD25-T features a phase compensation angle and a pressure relief structure, significantly reducing pulsation during fluid transfer and ensuring flow stability throughout the delivery process. This greatly enhances product qualification rates, especially in the pharmaceutical industry, where such precision helps minimize the waste of valuable raw materials.

2.Low Shear, Clean and Contaminant-Free
With a low shear force design, the DMD25-T effectively protects the integrity of fluid components. Additionally, its fully enclosed tubing ensures that there is no contact with contaminants during the entire transfer and filling process, further enhancing product purity and safety.

3.Extended Hose Life and Reduced Maintenance Costs
Equipped with high-quality imported spring materials and professionally calibrated, the DMD25-T significantly extends hose lifespan. Compared to standard pump heads, it maintains stable performance over prolonged use, reducing hose replacement frequency, lowering maintenance costs, and enhancing operational continuity.

4.Patented Design for Automatic Hose Centering, Stability, and Efficiency
The automatic hose centering structure of the DMD25-T has been granted an international invention patent (Patent No: US011319945/EP3674549). This design ensures that the pump tube remains in the optimal position during each installation, preventing errors caused by tube misalignment and resulting in more stable operation, thereby further enhancing production line efficiency.

Data Display

Pulsation Compensation Principle Diagram

Pulsation Curve Simulation Diagram

The DMD25-T features A+B dual tubes. Under the same operating conditions, we compare the pulsation curves of the mixed flow rate in the dual tubes with the pulsation curve of the same flow rate in a single tube.

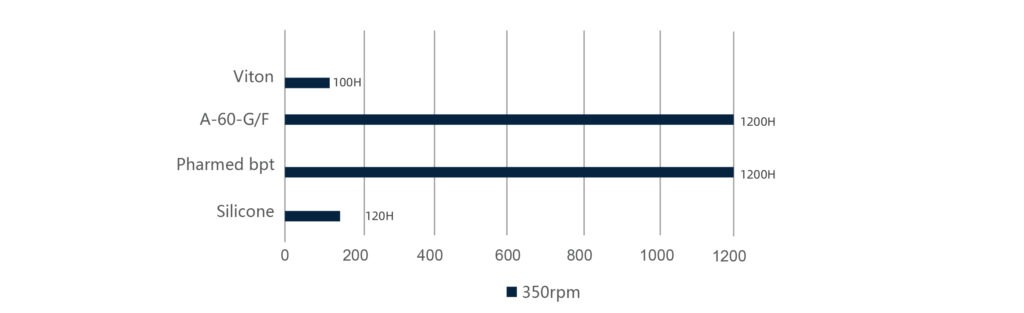

Tube Lifespan Comparison Table

The above data are all test results obtained by Lead Fluid laboratory under normal temperature and  pressure for the transmission of pure water, which are for reference only; the actual service life may  be affected by specific factors such as pressure, temperature, medium characteristics, tube batch  and wall thickness; for specific problems, please contact Lead Fluid engineers to get better technical support.

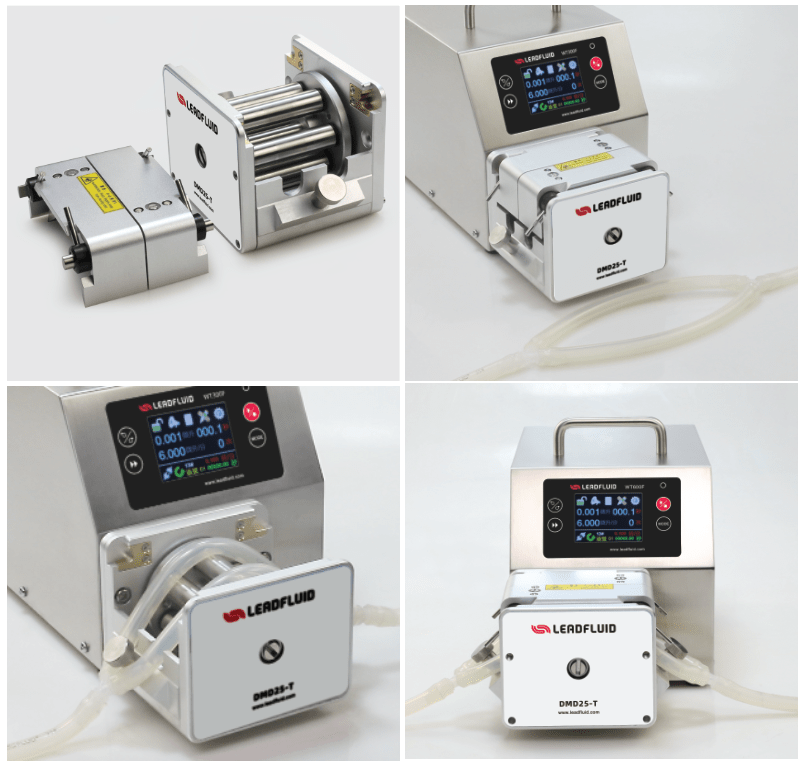

Tube Installation

Applications

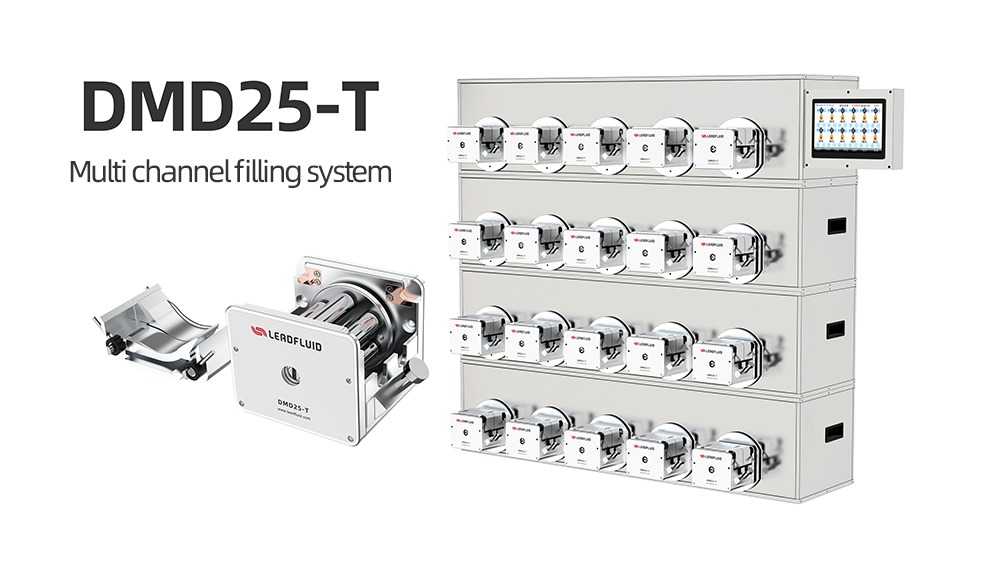

The Lead Fluid DMD25-T Pump Head, with its exceptional design, precise flow control, and durability, is the preferred solution for high-precision filling production lines. It significantly enhances production efficiency, qualification rates, and cost control, delivering notable benefits to businesses.
