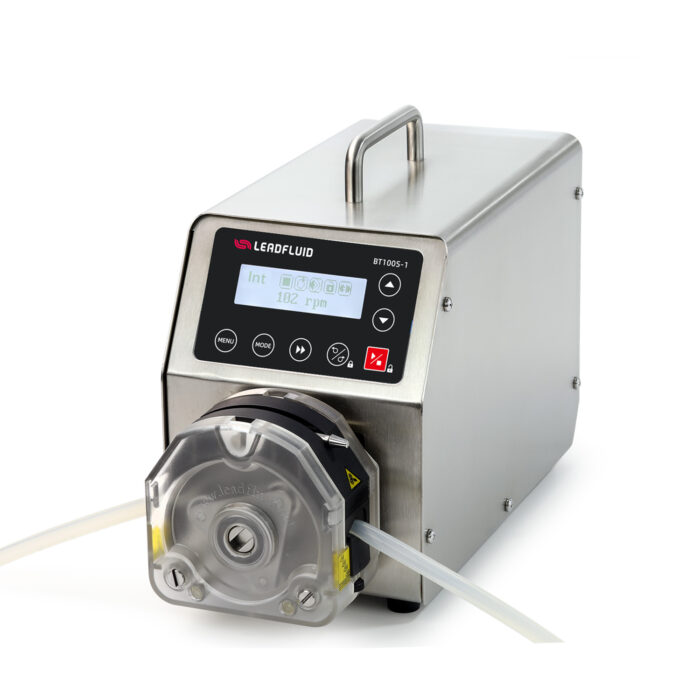

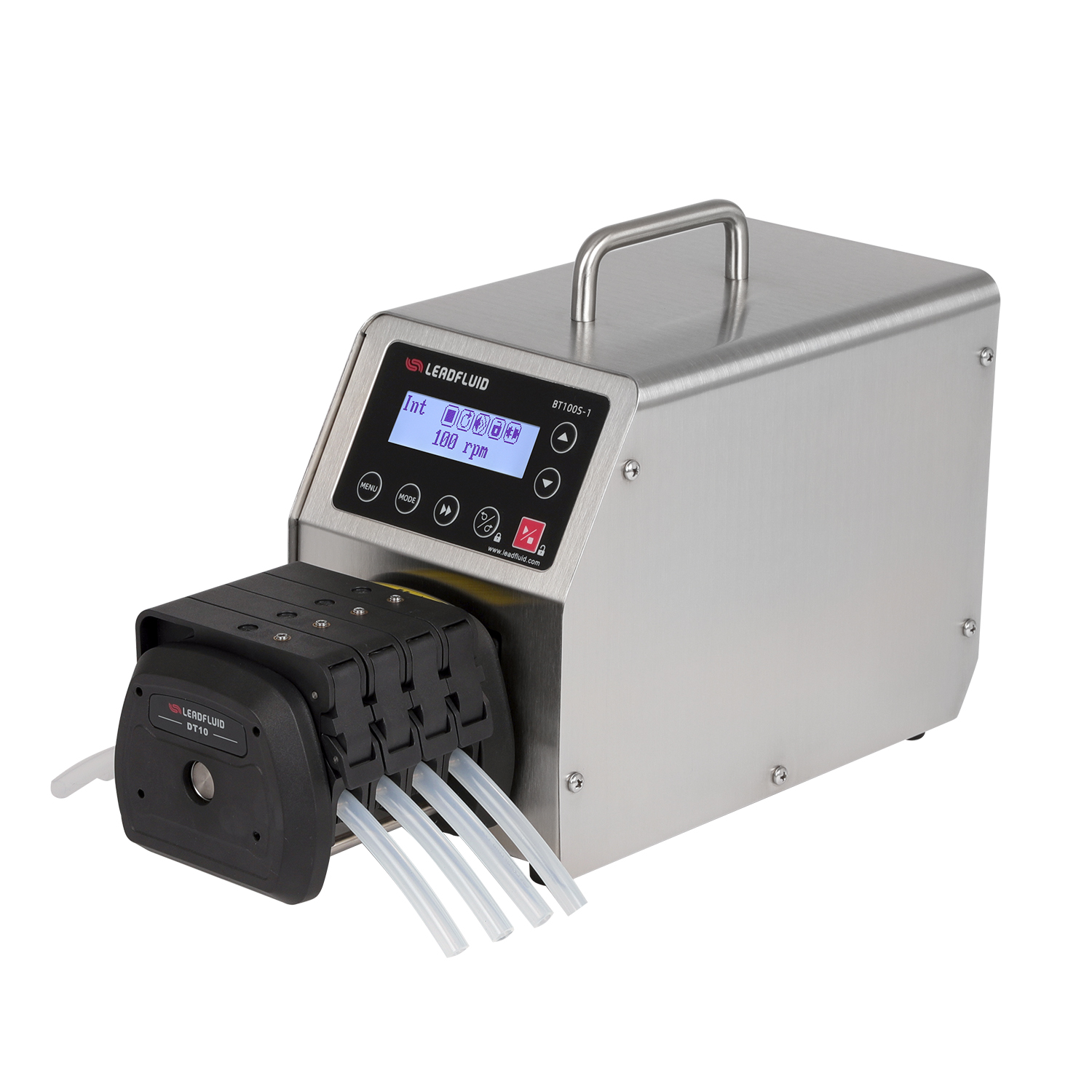

BT100S-1 Basic Variable Speed Peristaltic Pump

BT100S-1 basic variable speed peristaltic pump provides flow range from 0.0001 to 1500 mL/min with variable pump heads and tubings. It has not only basic functions such as reversible direction, start/stop, full speed (for fast cleaning), adjustable speed, but also dispensing function to easily repeat liquid dispensing by time or volume. With RS485 MODBUS interface, the pump is easy to be controlled by external device, such as computer, human machine interface or PLC.

Flow: 0.0001-1500ml/min
Max: 24 Channels
Warranty: 3 years for the peristaltic pump drive

Description

Functions and Features

  • Four digits LED indicator displays working speed.
  • Four-figure digital LED indicator displays working speed.
  • LF-LED-OS software system
  • LED indicator displays the reversible direction, internal control, external control, foot switch and other working mode.
  • Start/stop, reversible direction, full speed, adjust speed, state memory (power down memory).
  • Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
  • Large torque, can drive multi-channels and various types of pump heads.
  • Super anti-interference feature, wide input voltage range, acceptable for complex power environment.
  • External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator, external analog adjusts the rotate speed.
  • RS485 interface, MODBUS protocol is available, easy to connect other equipment.
  • It can be equipped with foot switch, pulse damper, leak detector and other accessories .

Specifications

  • Flow range: 0.0001-720 mL/min
  • Speed range: 0.1-150 rpm
  • Speed resolution (rpm): 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution
  • Speed accuracy: 0.5%
  • Power supply: AC100-240V,50Hz/60Hz
  • Power consumption: < 40W
  • External control: Input level 5V, 12V (standard), 24V (optional). External control analog 0-5V (standard); 0-10V, 4-20mA (optional)
  • Communication interface: RS485 communication interface, MODBUS protocol is available
  • Operating condition: Temperature 0-40°C; Relative humidity <80%
  • IP grade: IP31

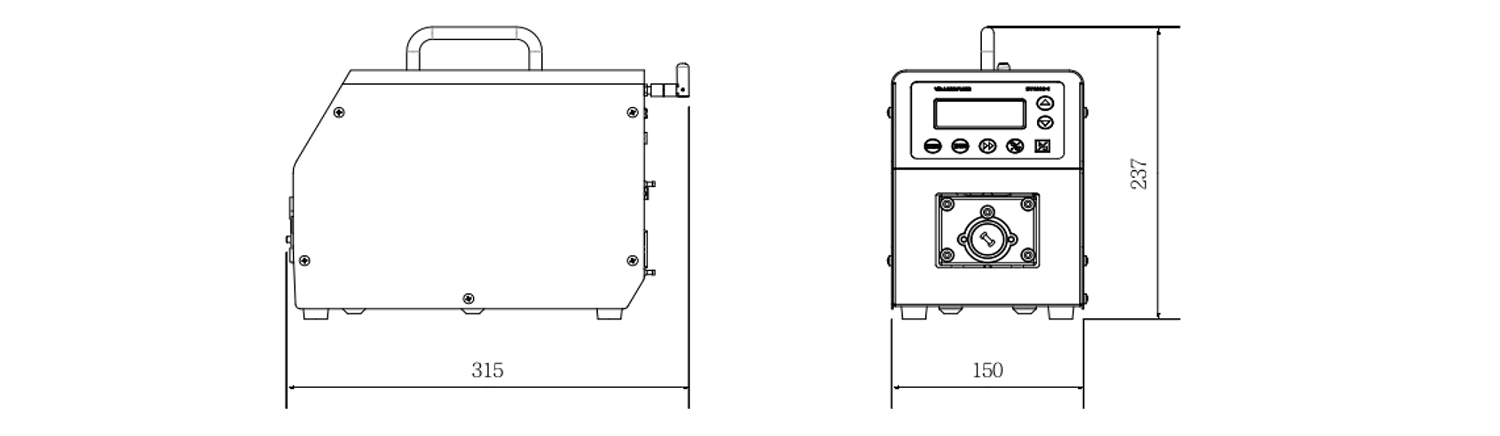

  • Dimensions (L x W x H): 278 x 150 x 237 mm (10.94 x 5.9 x 9.33 inch)
  • Weight: 4.7 kg (10.36 lbs)

BT100S-1 Applicable Pump Heads and Tubings, Flow Parameters

Drive typePump headCh       Tubing size (mm)Flow rate per channel (mL/min)

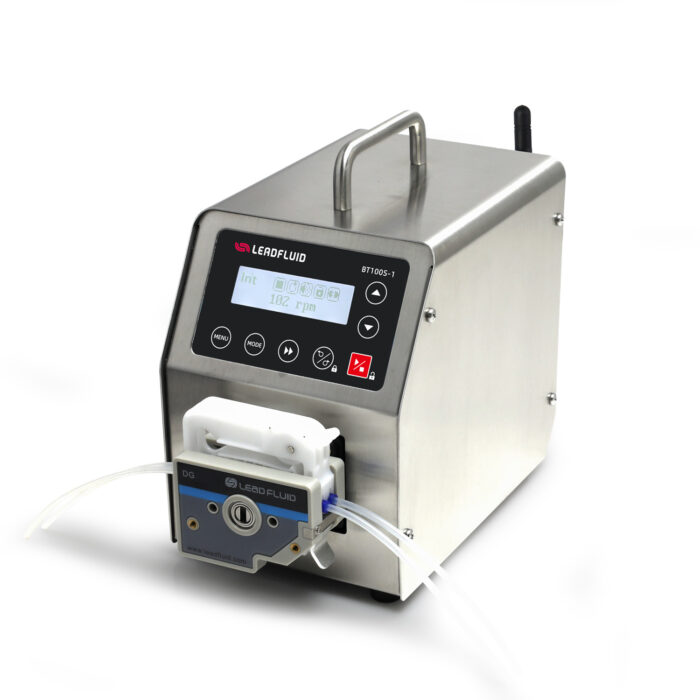

BT100S-1DG6-8 (6rollers)8     Wall:0.8~1, ID:≤3.17                  0.0002-49
DG10-8 (10rollers)8     Wall:0.8~1, ID:≤3.17                  0.0001-41

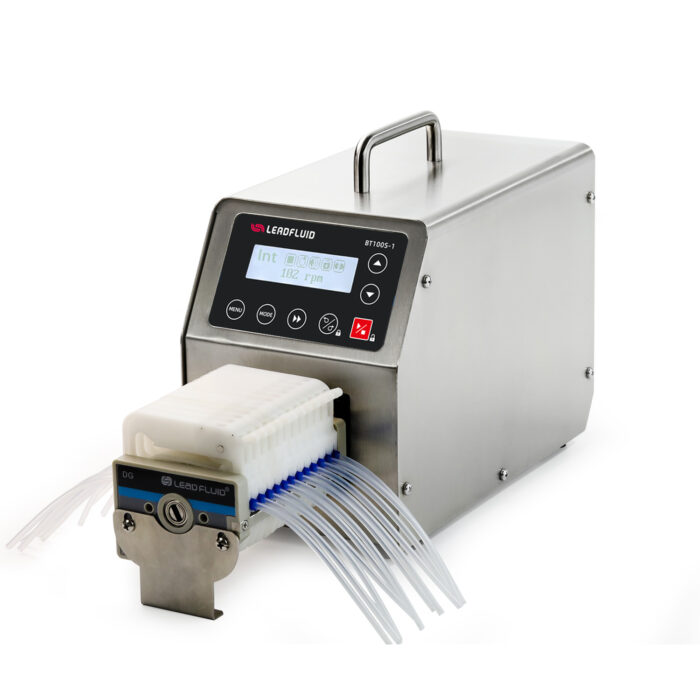

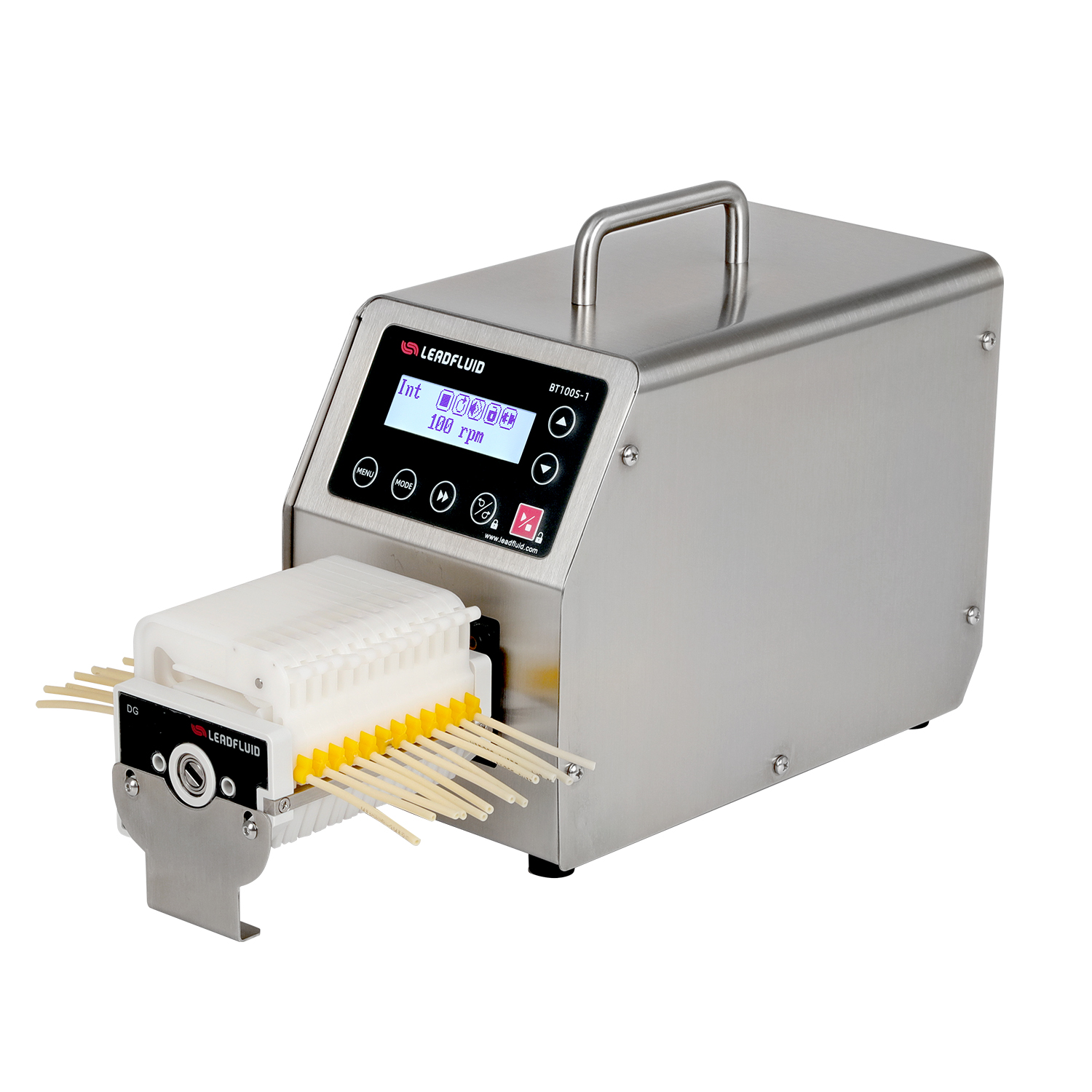

DG6-12 (6rollers)12     Wall:0.8~1, ID:≤3.17                  0.0002-49
DG10-12 (10rollers)12     Wall:0.8~1, ID:≤3.17                  0.0001-41

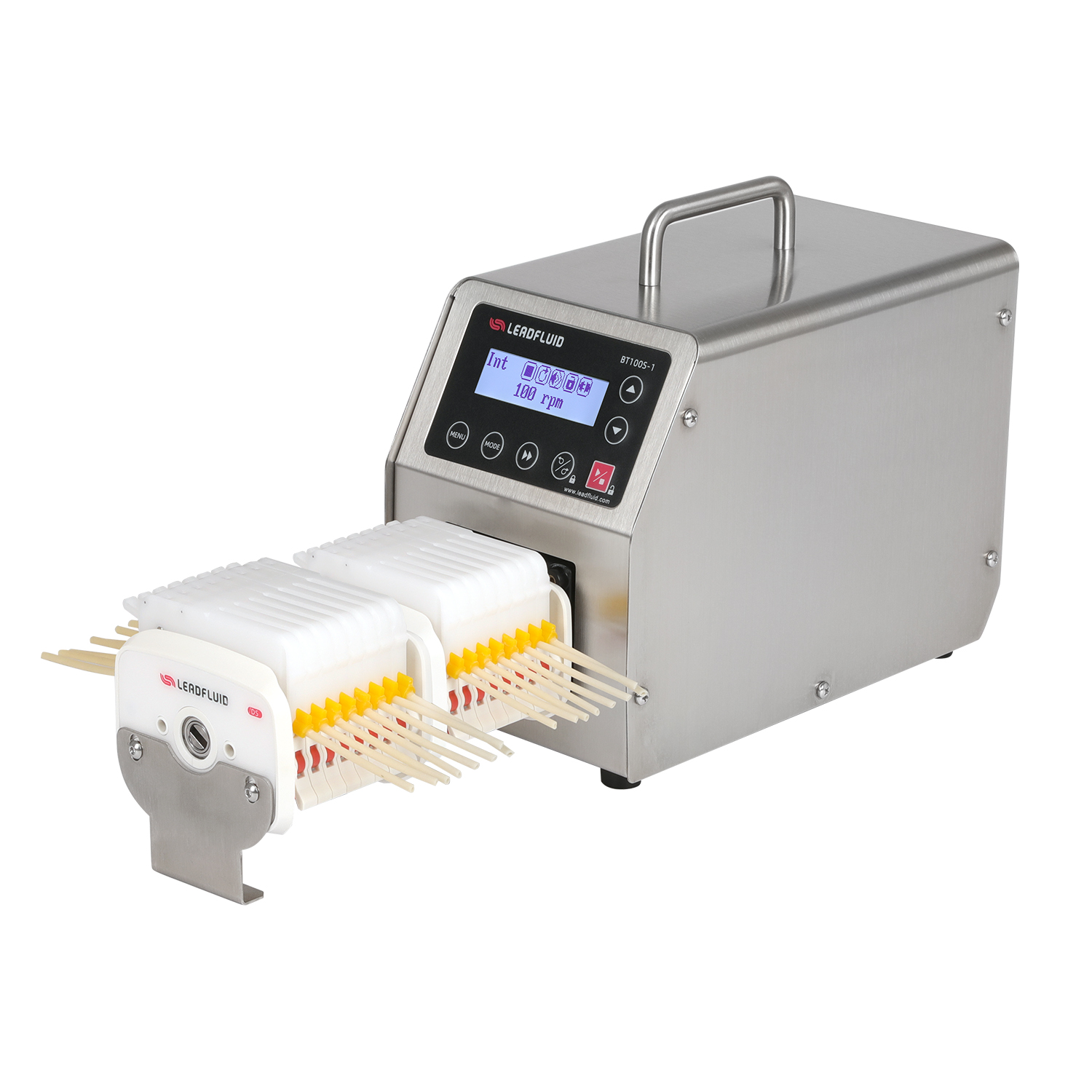

2×DG6-8(6 rollers)16     Wall:0.8~1, ID:≤3.17                  0.0002-49
2×DG10-8(10 rollers)16     Wall:0.8~1, ID:≤3.17                  0.0001-41
2×DG6-12(6 rollers)24     Wall:0.8~1, ID:≤3.17                  0.0002-49
2×DG10-12(10 rollers)24     Wall:0.8~1, ID:≤3.17                  0.0001-41

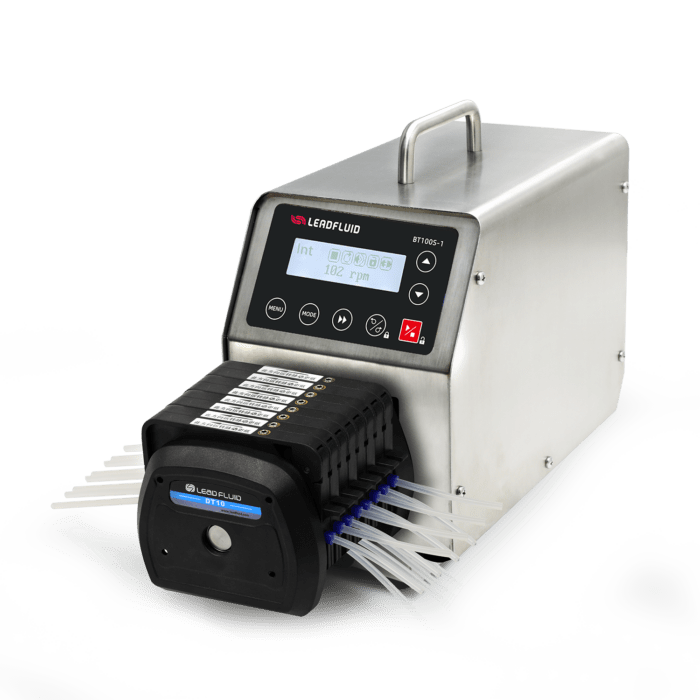

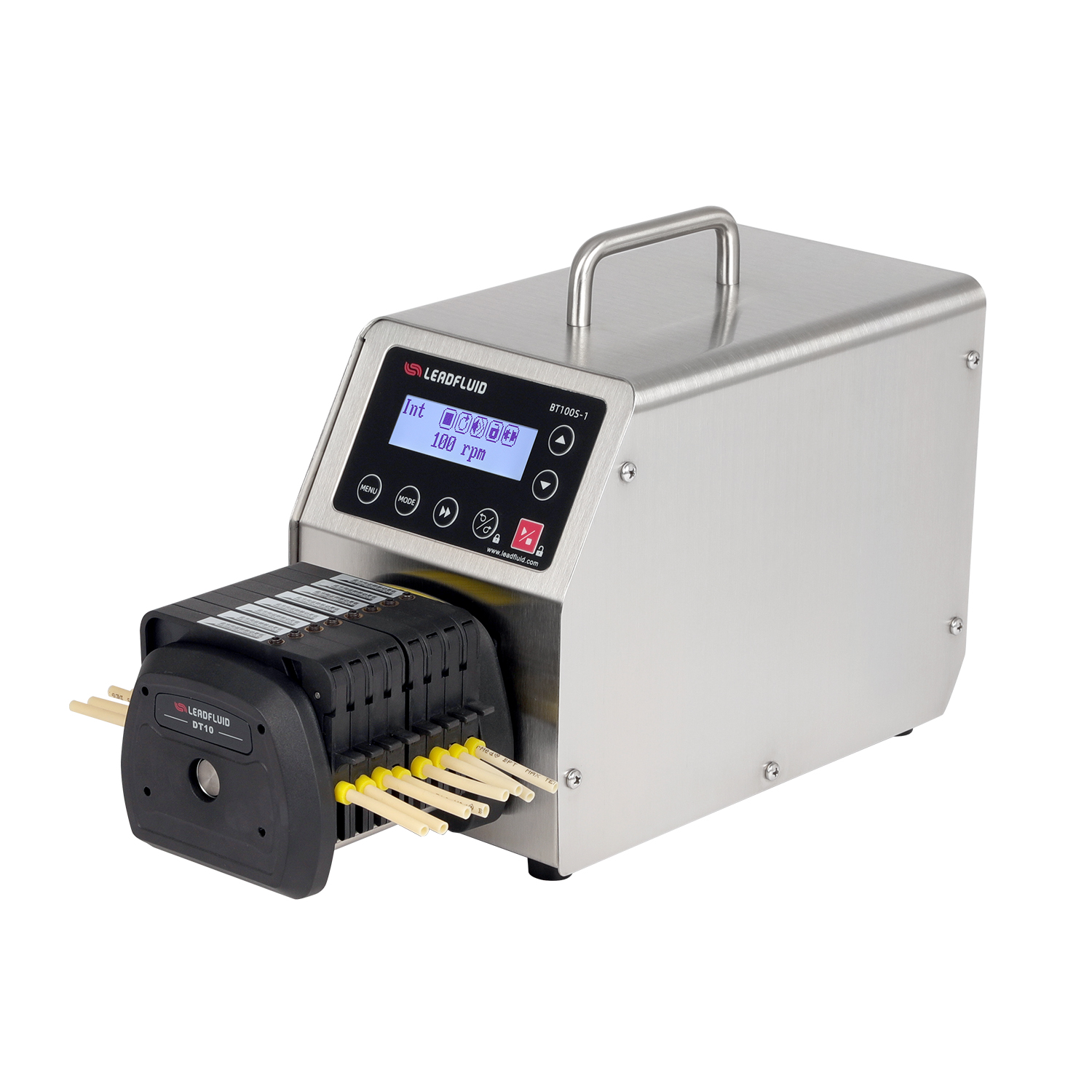

DT10-888     Wall:0.8~1, ID:≤3.17                  0.0002-82

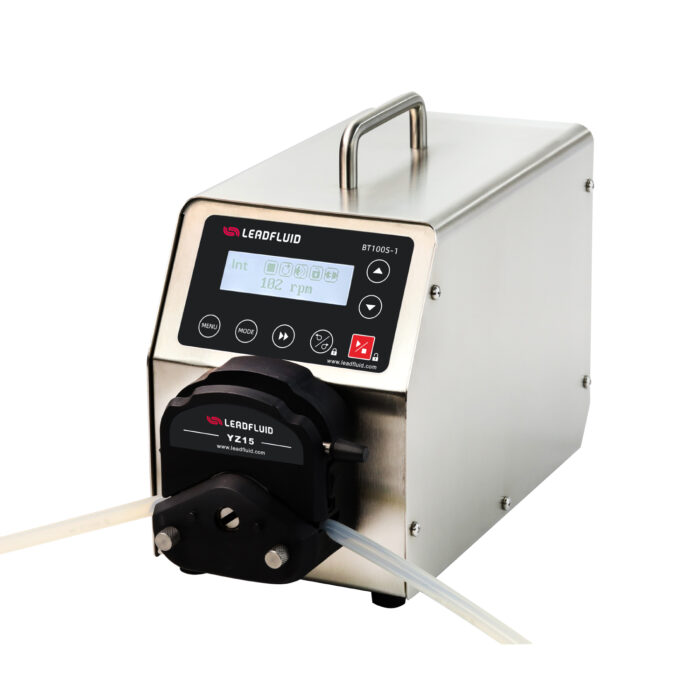

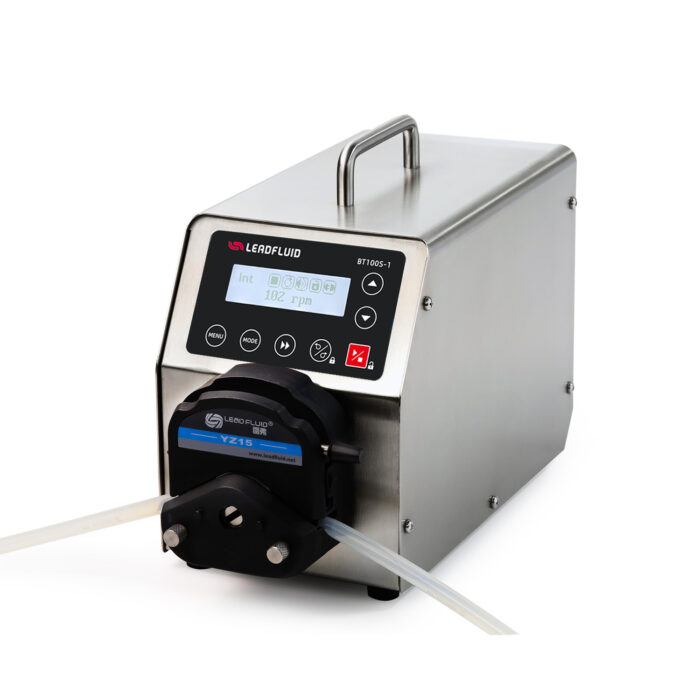

YZ151     13# 14# 16# 19# 25# 17#18#                  0.006-570
2 x YZ152     13# 14# 16# 19# 25# 17#18#                  0.006-570

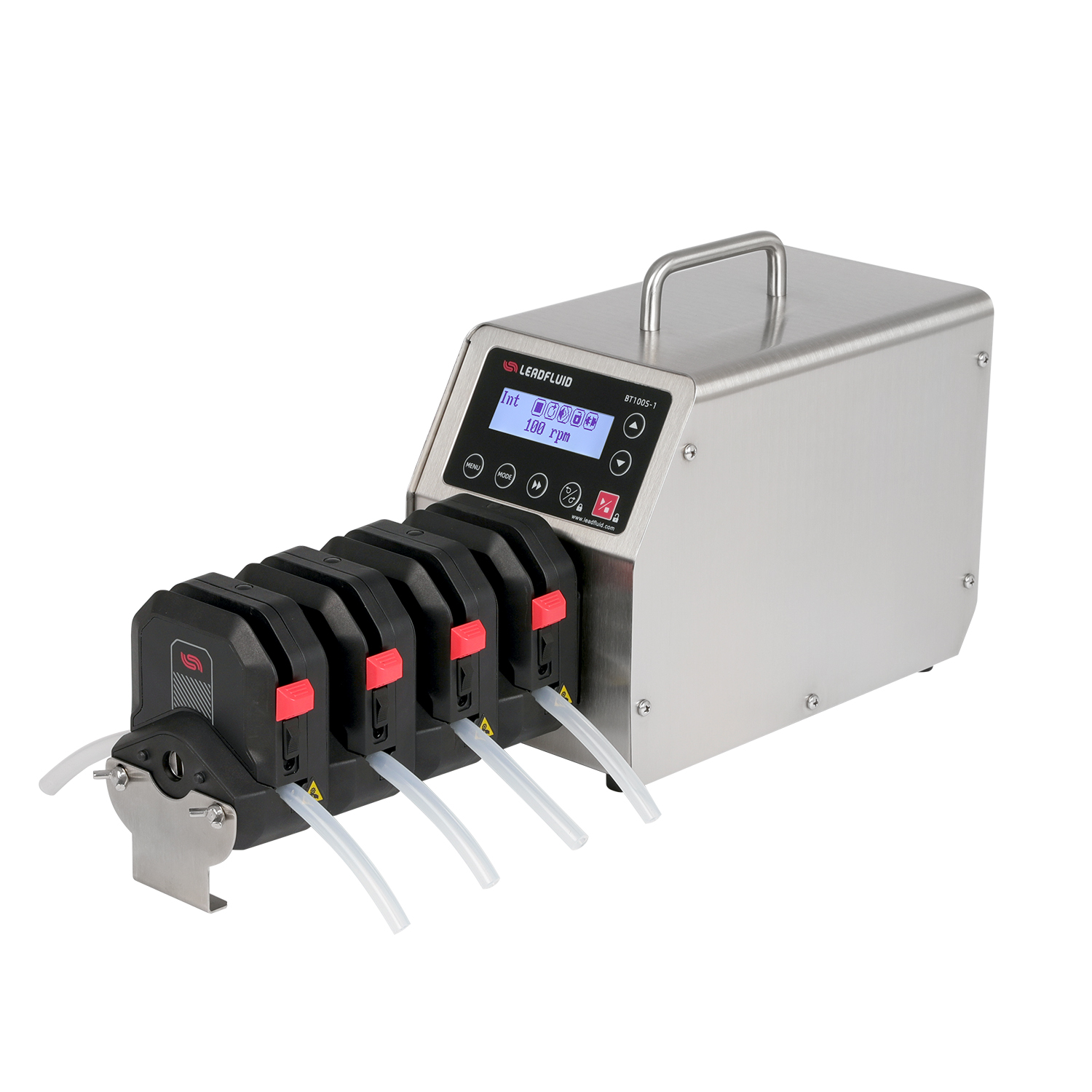

4 x YZ154     13# 14# 16# 19# 25# 17#18#                  0.006-570

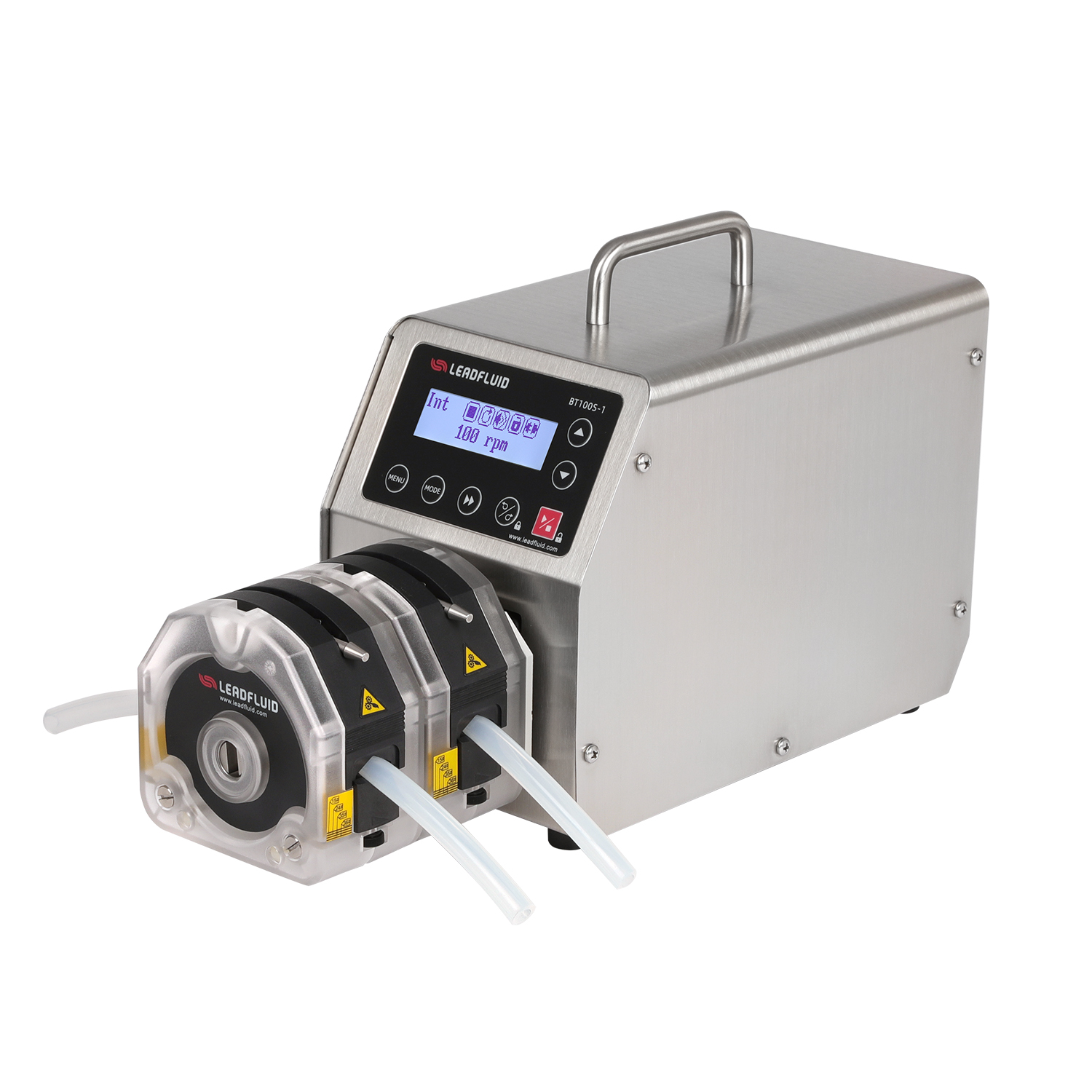

KZ25-PC1     15# 24# 35# 36#                0.25-1500

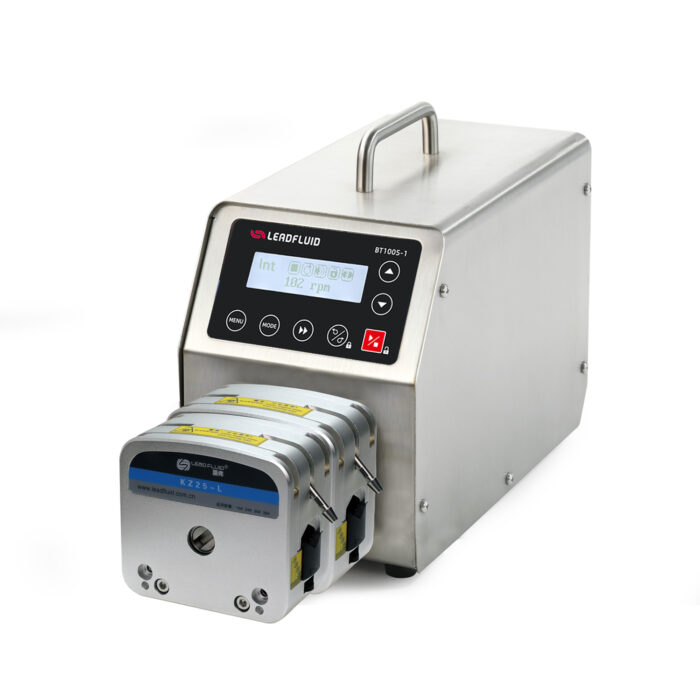

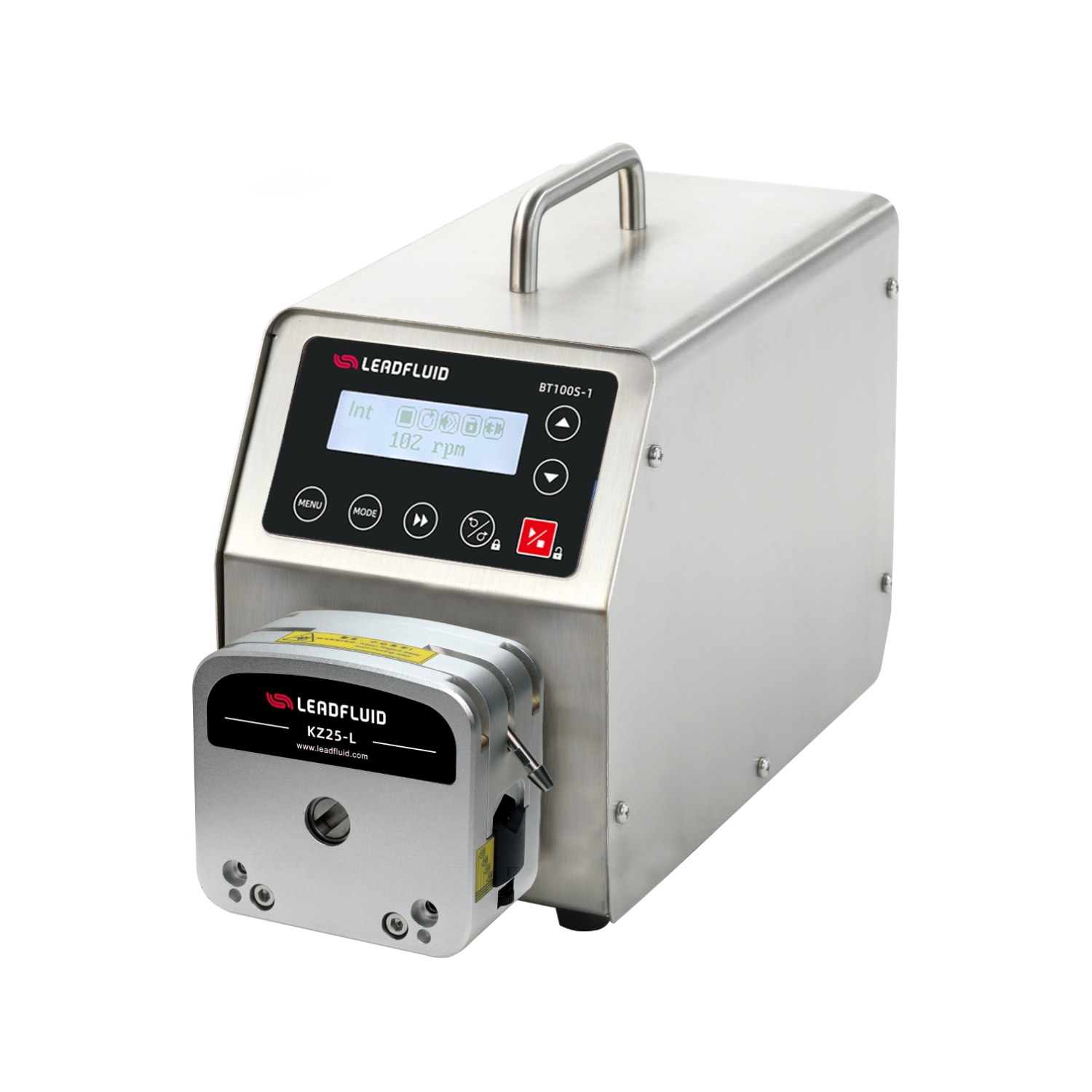

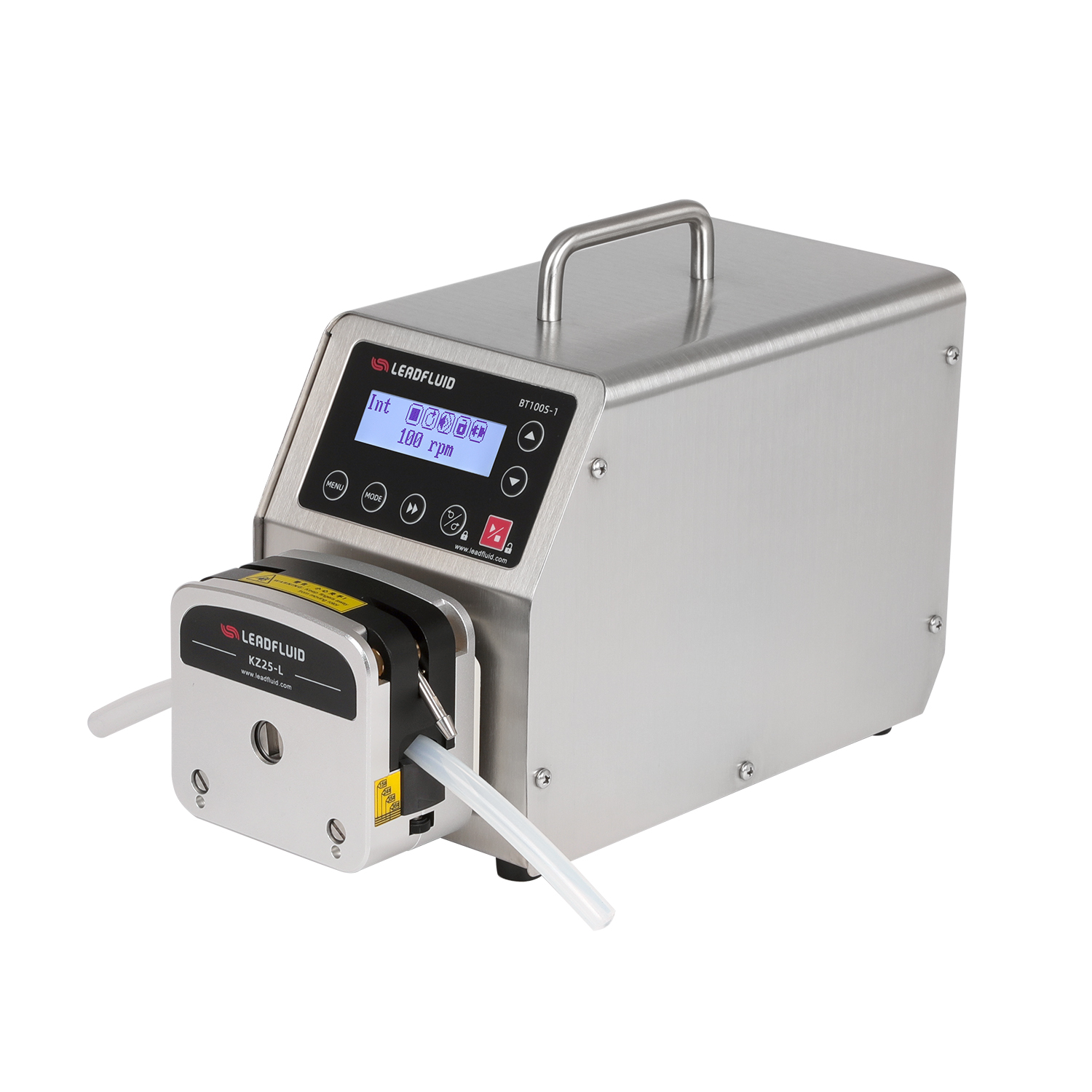

 KZ25-L1     15# 24# 35# 36#                0.25-1500
DT15-444     19# 16# 25# 17#                  0.07-560
YT251     15# 24# 35# 36#                 0.16-720

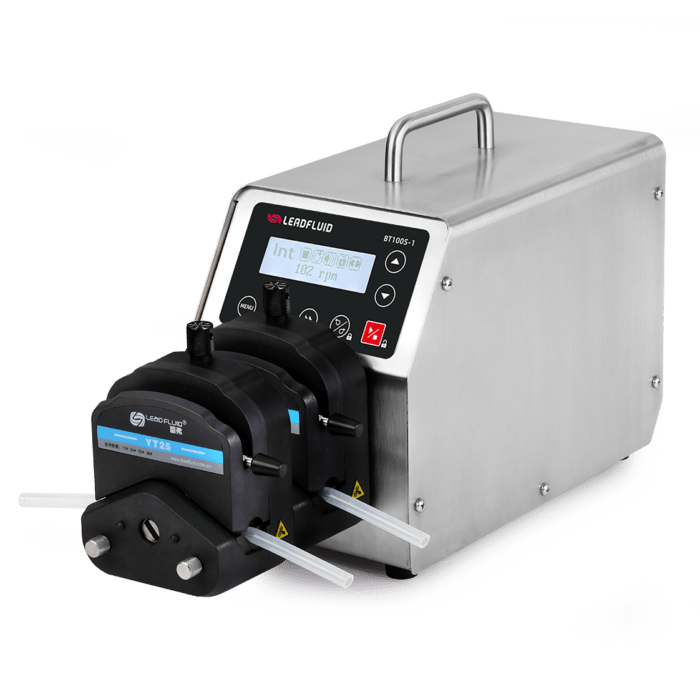

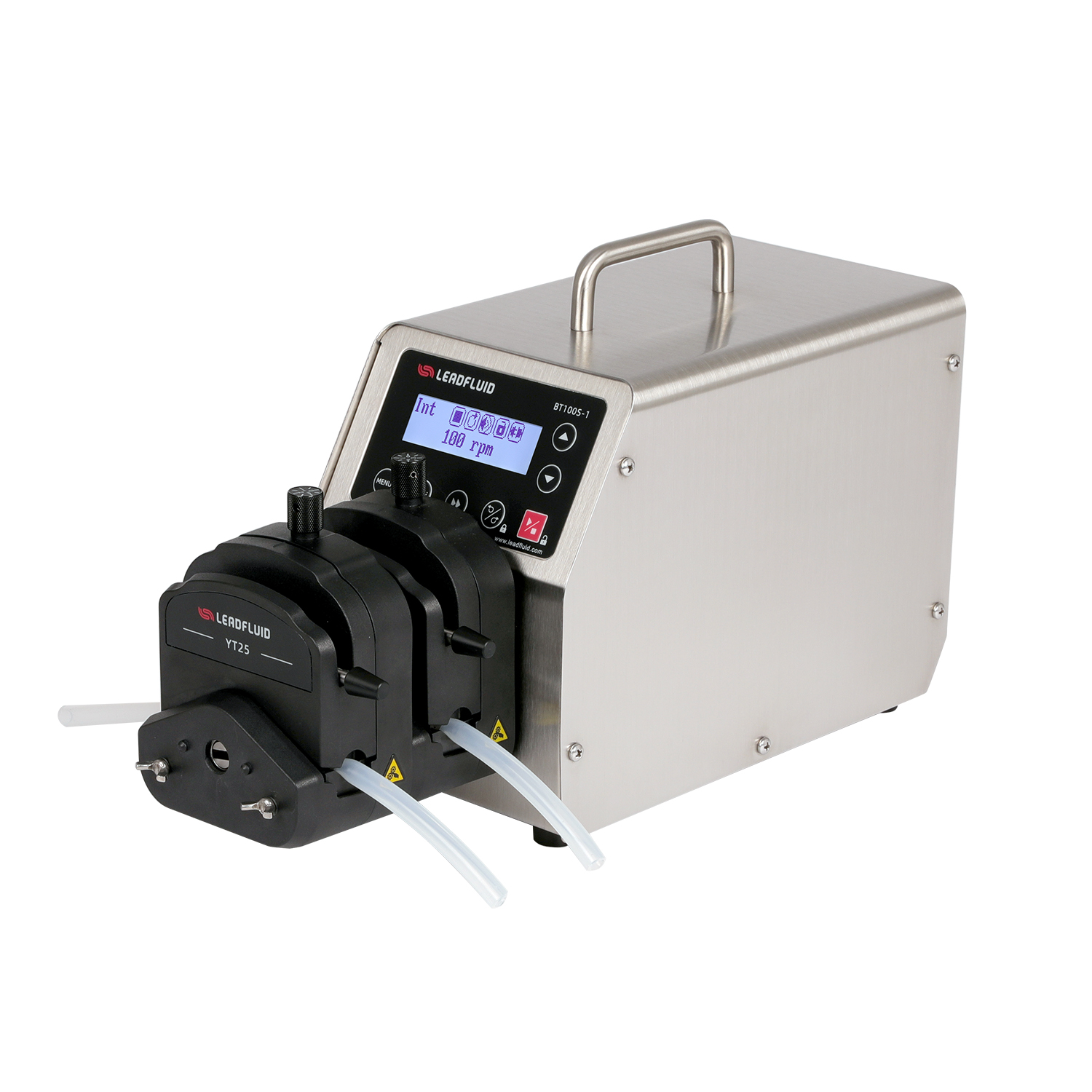

2 x YT252     15# 24# 35# 36#                 0.16-720
4 x YT254     15# 24# 35# 36#                 0.16-720

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
