Features
• LF-LCD-OS Software System, High Definition LCD screen, Chinese and English switching, simple parameter setting, intuitive status display.
• High quality large torque brushless servo motor drive, precise speed, wide range, stable operation, can achieve high precision flow transmission.
• Industrial-grade membrane key operation, simple and convenient, strong durability.
• LF-EasyChange universal design, high torque output, can be installed with multiple KZ25 pump heads, KZ25-L pump heads and GN10 pump heads.
• Start/stop, reversible direction, full speed, adjust speed, state memory (power-down-memory).
• Parameters setting such as running time, interval time, and number of cycles to meet the needs of timing, liquid packaging, flow testing, etc.
• Speed deceleration and back suction functions, which can effectively prevent liquid dripping when the machine stops.
• Key lock function to prevent misoperation.
• The pump can be remotely operated through the Lead Fluid APP software, such as start-stop, speed regulation, timing operation, etc., and has monitoring functions such as shutdown alarm and pipe replacement reminder (optional).
• The pump shell is made of stainless steel 304 material, which effectively prevents the corrosion of various organic solvents and is easy to clean.
• Internal double-deck isolation structure, provide special protection for the circuit system makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment .
• RS485 communication interface, MODBUS protocol is available, easy to connect other equipments.
• Accept various external signal control to start and stop, forward and reverse and speed adjustment, optical coupler isolation.
• Supports the output of working status signals such as start-stop, forward-reverse, and current speed.
• It can be equipped with an external thermal printer (optional) to print the running parameters in real time.
• Supports accessories such as foot switch, pulse damper, leak detector, etc.
Technical Parameter
Flow range: 0.005～6600mL/min
Speed range: 0.1～600rpm
Speed resolution: 0.1rpm（speed≤100rpm）,1rpm（speed＞100rpm）
Speed accuracy: ＜±0.5%
Power supply: AC 180-264V 50Hz/60Hz（(Standard),AC 90-132V 50Hz/60Hz(Optional)
Power consumption: <150W
External control: External control analog 0-5V，0-10V,4-20mA External control start and stop,
External control input level 5V,12V,24V
Communication interface: RS485 communication interface, MODBUS protocol is available.
Working environment: Temperature 0 ～ 40℃, relative humidity＜80%
IP grade: IP31
Dimension (L×W×H): 318mm×185mm×230mm
Driver weight: 5.9kg
WT600S(new) Applicable Pump Head and Tube, Flow Parameters
| Drive Type | Pump Head | Channel | Tube | Single Channel Flow Rate (mL/min) |
| WT600S | YZ15/YZ15T | 1,2,4 | 13#14#19#16#25#17#18# | 0.005～2562 |

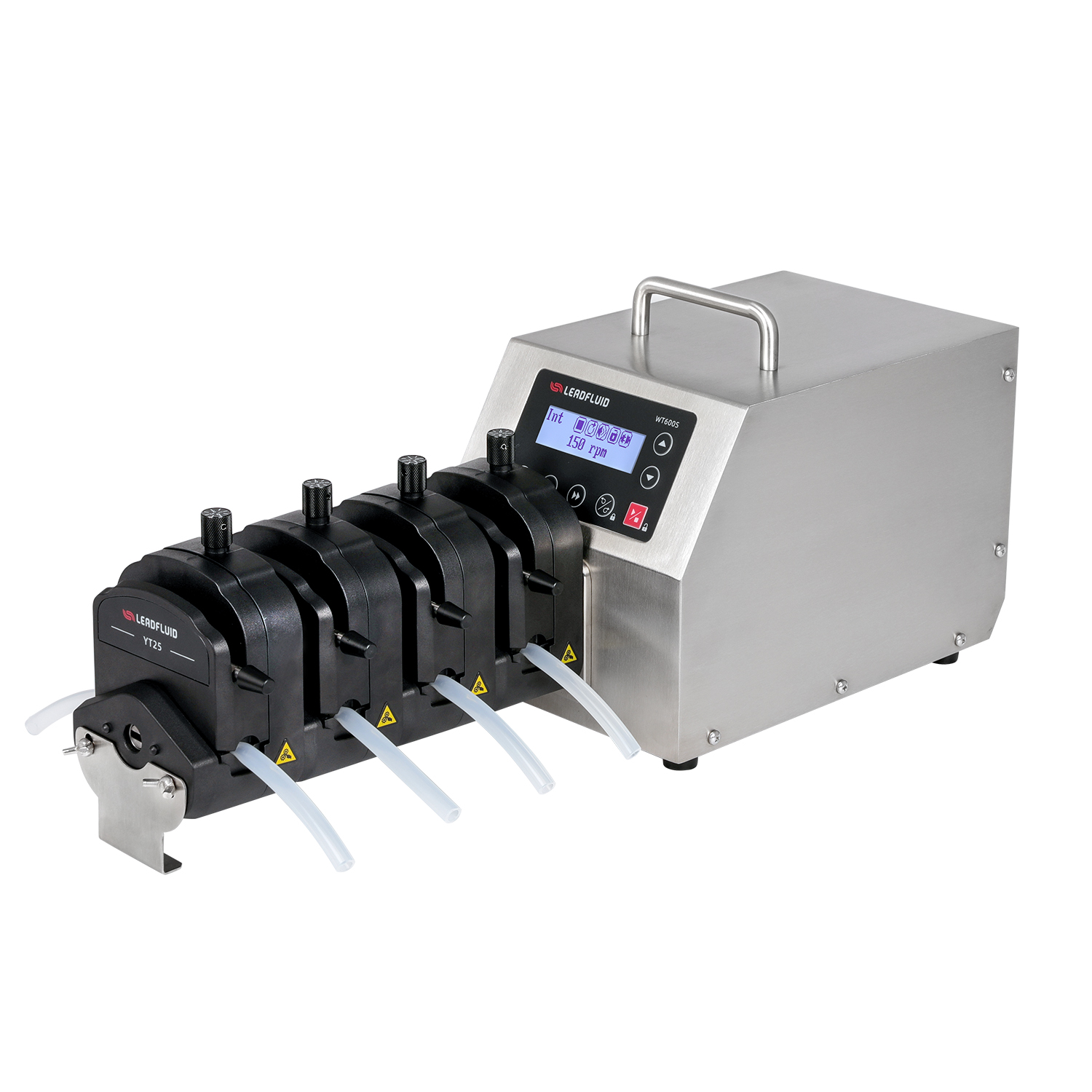

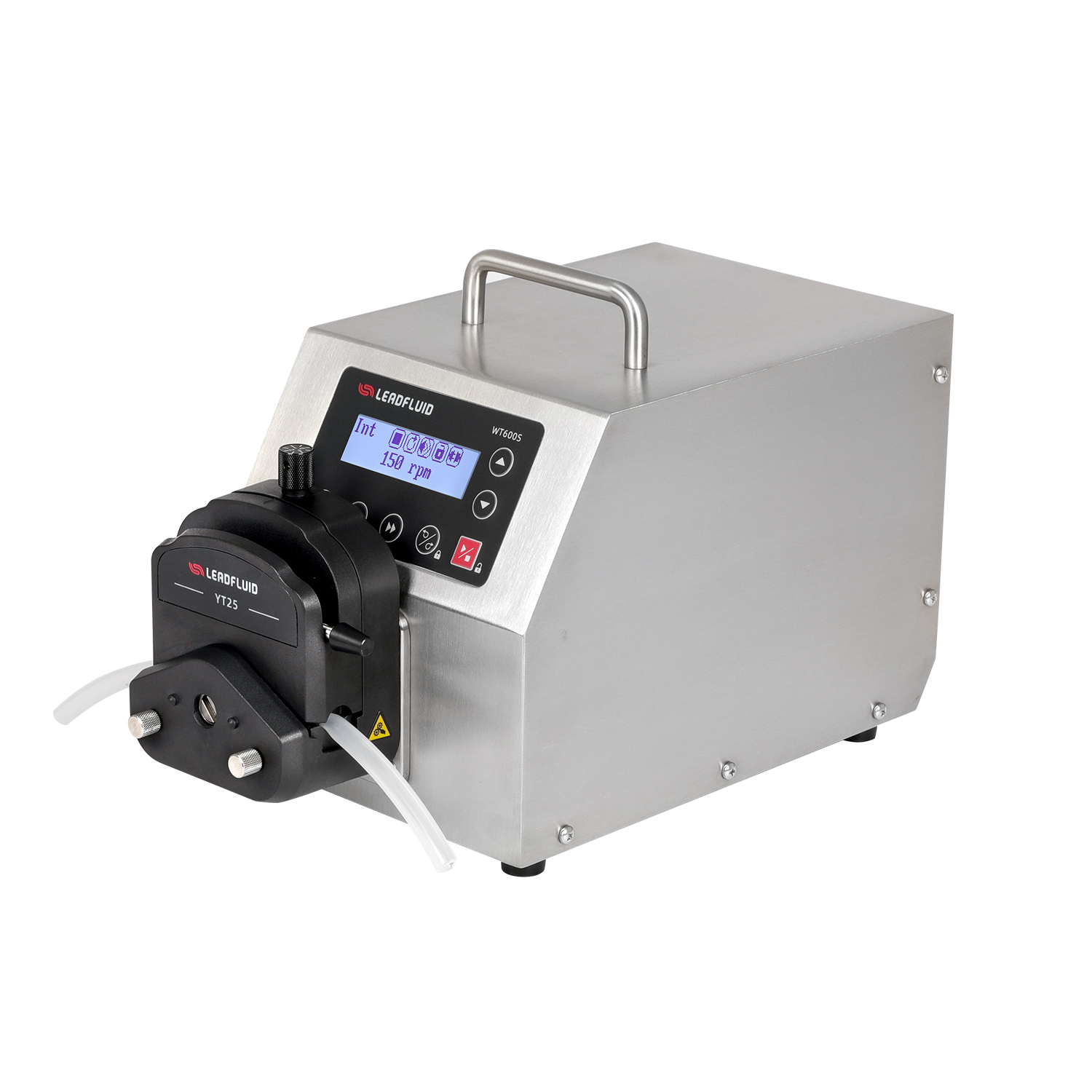

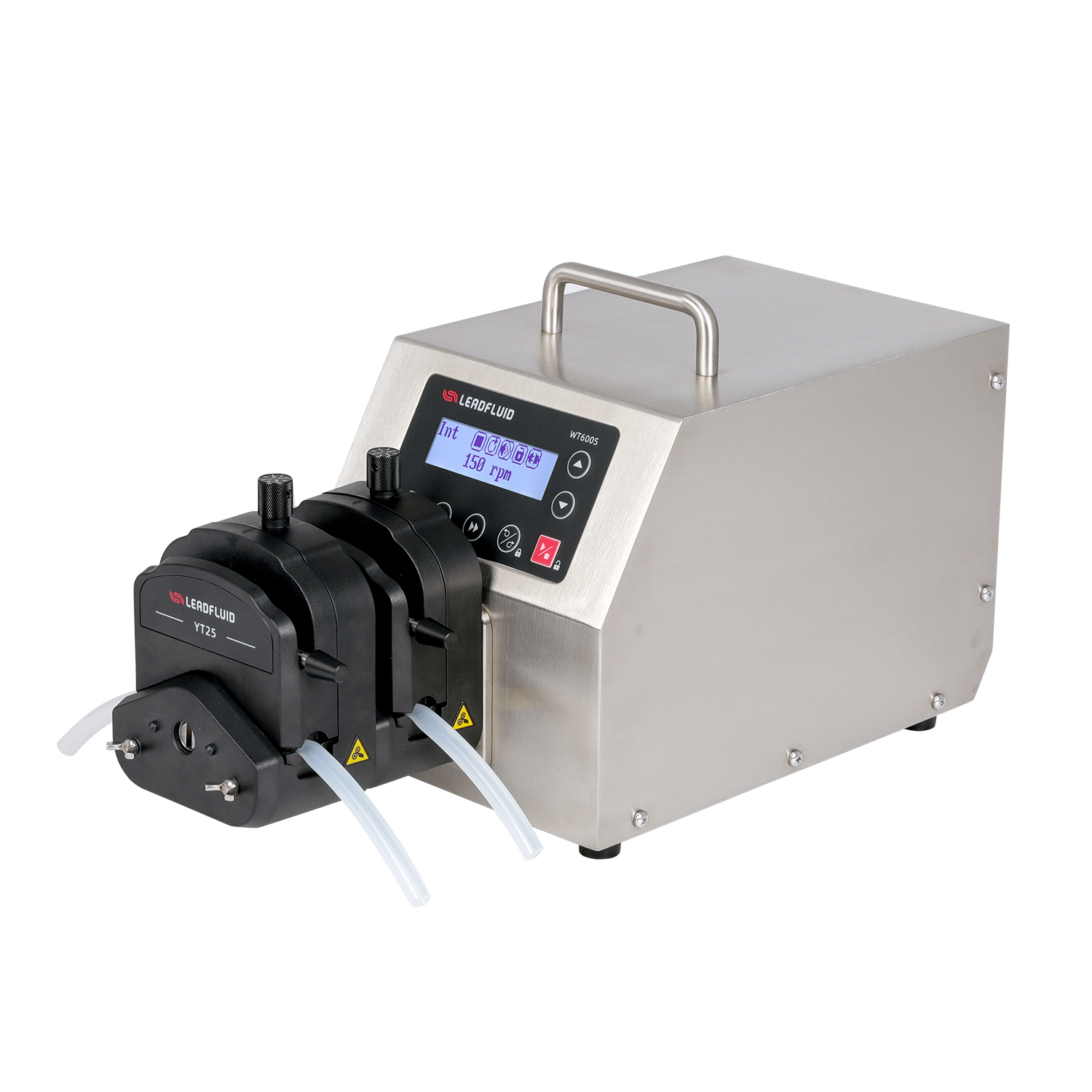

| YT25 | 1,2,4 | 114#116#15#24#35#36# | 0.024～3000 | |

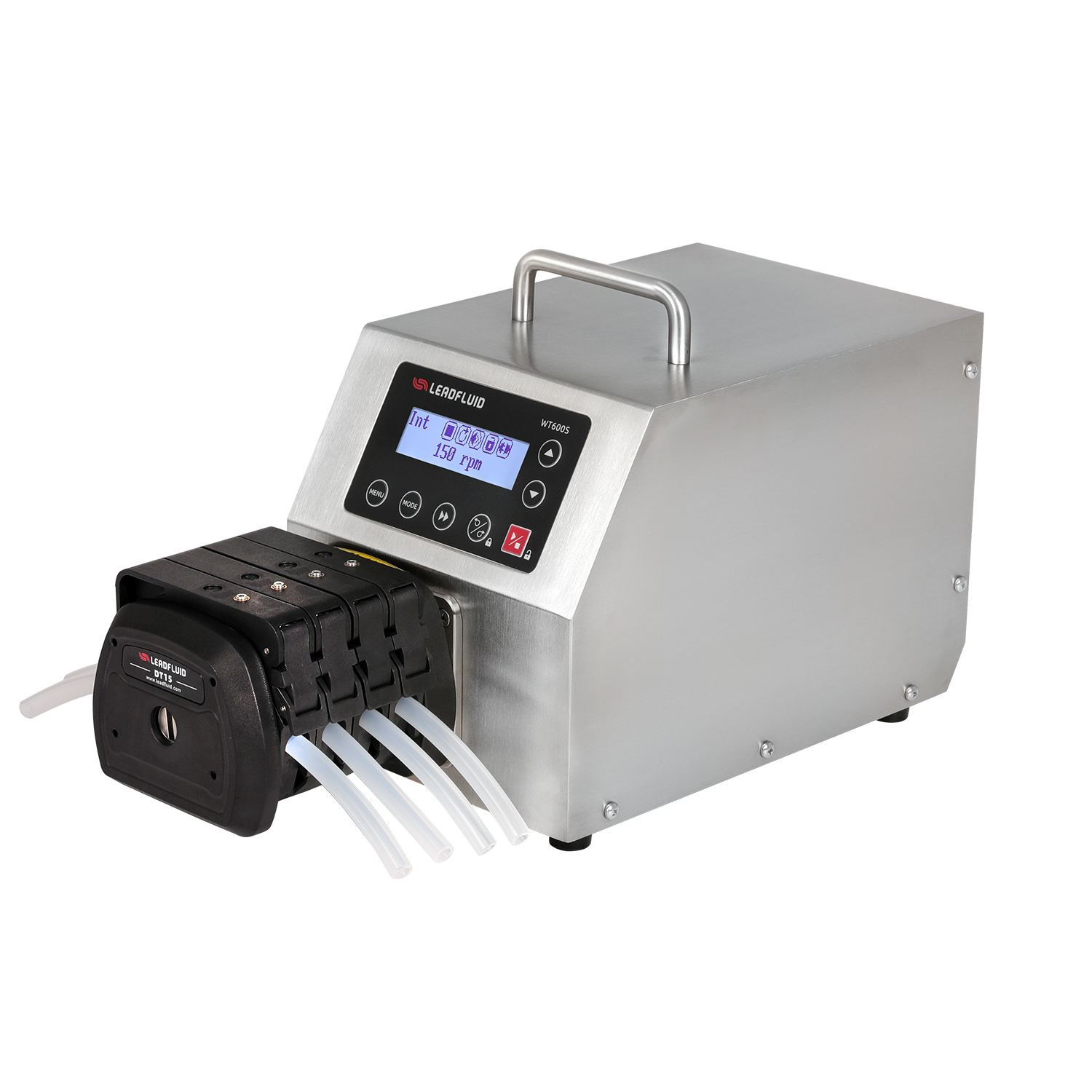

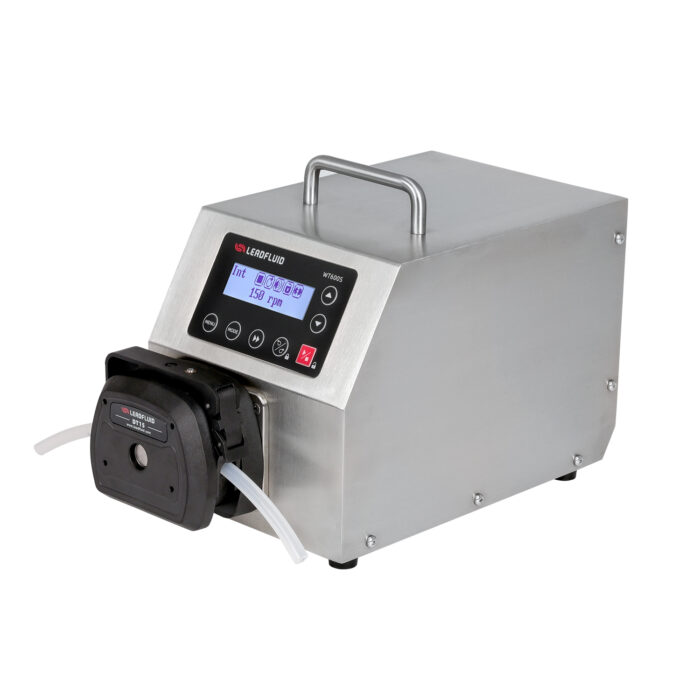

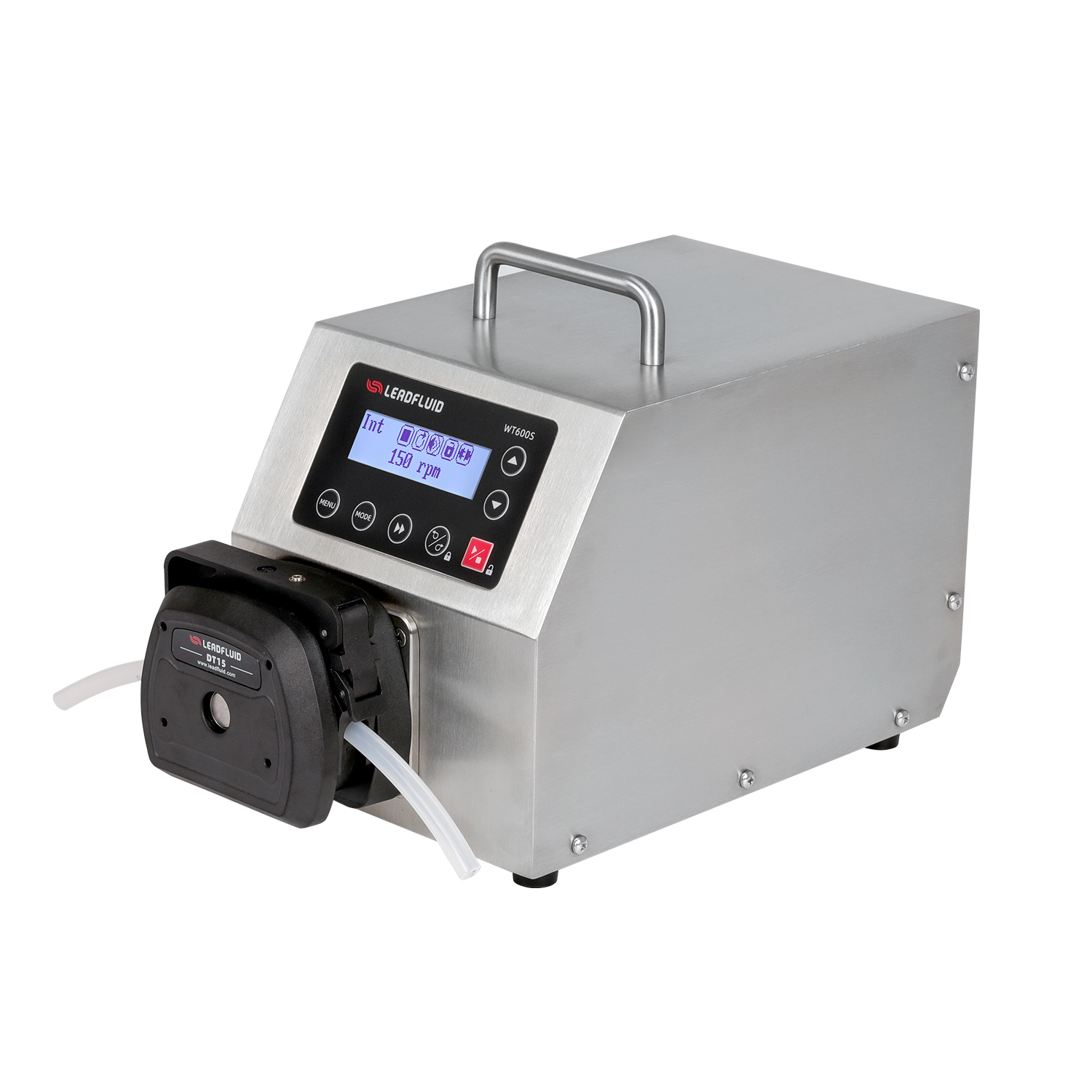

| DT15-24/44 | 2,4 | 19#16#25#17# | 0.067～2240 | |

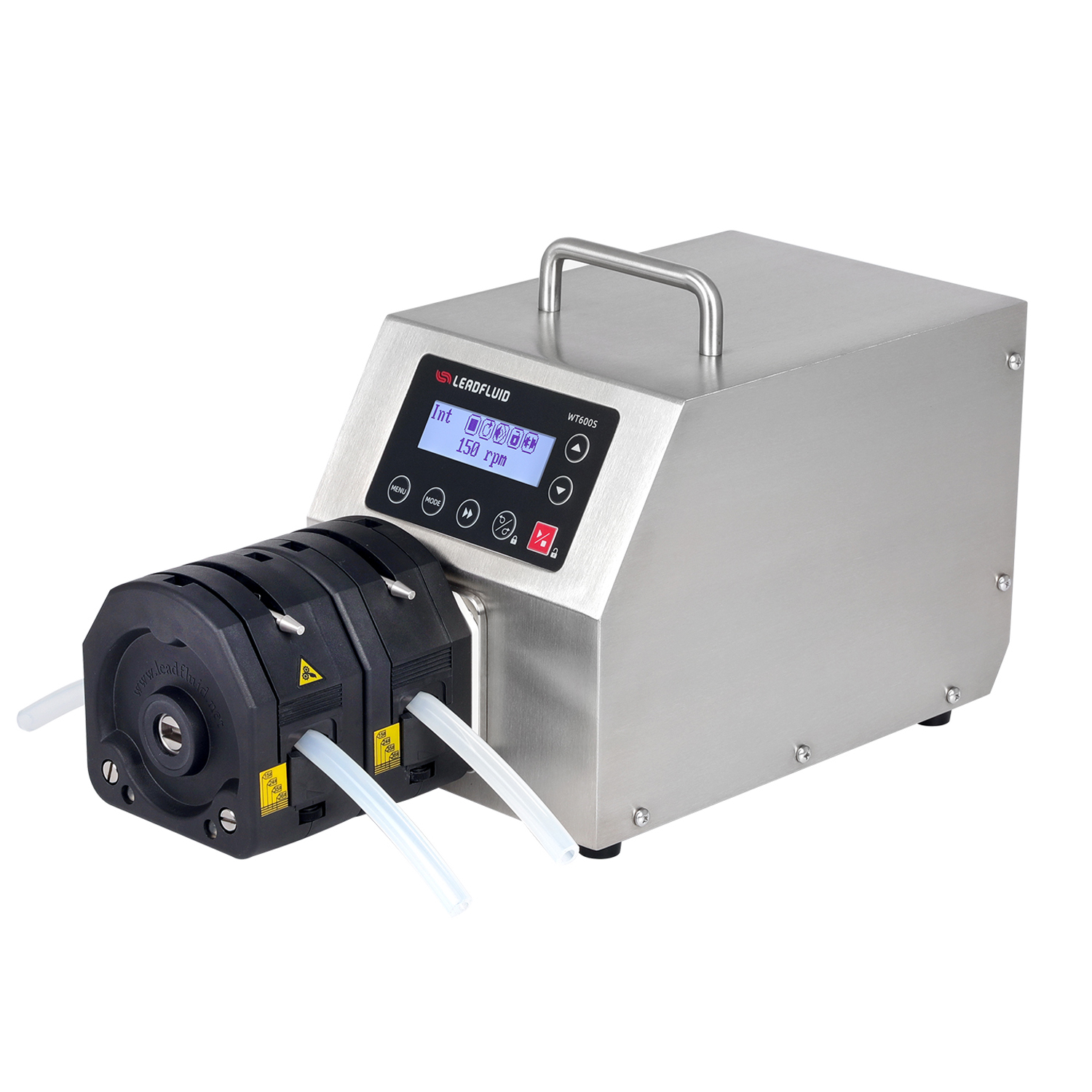

| KZ25 | 1,2 | 15#24#35#36# | 0.31～6600 | |

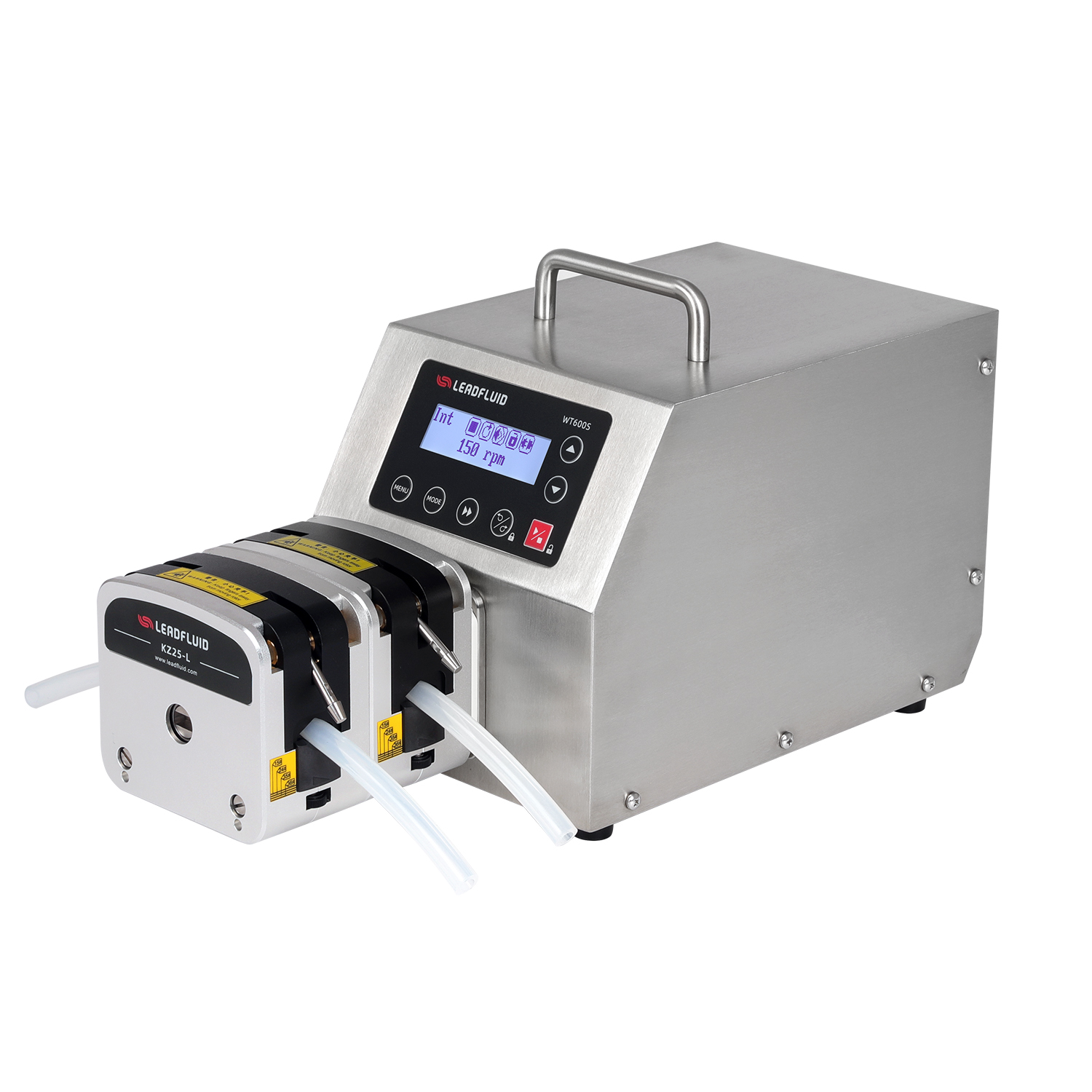

| KZ25-L | 1 | 15#24#35#36# | 0.31～6600 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure,
in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.
Dimension
unit: mm
