Functions and Features
• Rotary encoder controls running speed, reversible direction, start/stop, full speed, easy to operate.
• LF-LED-OS software system, figure digital displays speed and working status.
• Large torque brushless motor drive, more power, free maintenance.
• 304 stainless steel housing, easy to clean, effectively prevent the corrosion of organic solvents.
• Timing running, easy dispensing function.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• External control controls start/stop, reversible direction, optically coupled isolator., 5V, 12V, 24V input level optional.
• External analog control speed.
Specifications
- Flow range: 0.4～13.2L/min
- Speed range: 30～600rpm
- Speed resolution: 1rpm
- Speed accuracy: ＜±3%
- External control: External control input level 5V,12V(Standard),24V (Optional), External control analog 0-5V(Standard)，0-10V, 4-20mA (Optional)
- Communication interface: RS485 communication interface, MODBUS protocol is available,DB15 external control interface
- Power supply: AC100～240V，50Hz/60Hz
- Power consumption: ＜300W
- Working environment: Temperature 0 ～ 40℃, relative humidity＜80%
- IP grade: IP31
- Dimension (L×W×H): 356×232×224mm
- Driver weight: 11 kg
WG600S Applicable Pump Heads and Tubings, Flow Parameters
| Drive type | Pump head | Channel | Tubing size (mm) | Flow rate (L/min) per channel |

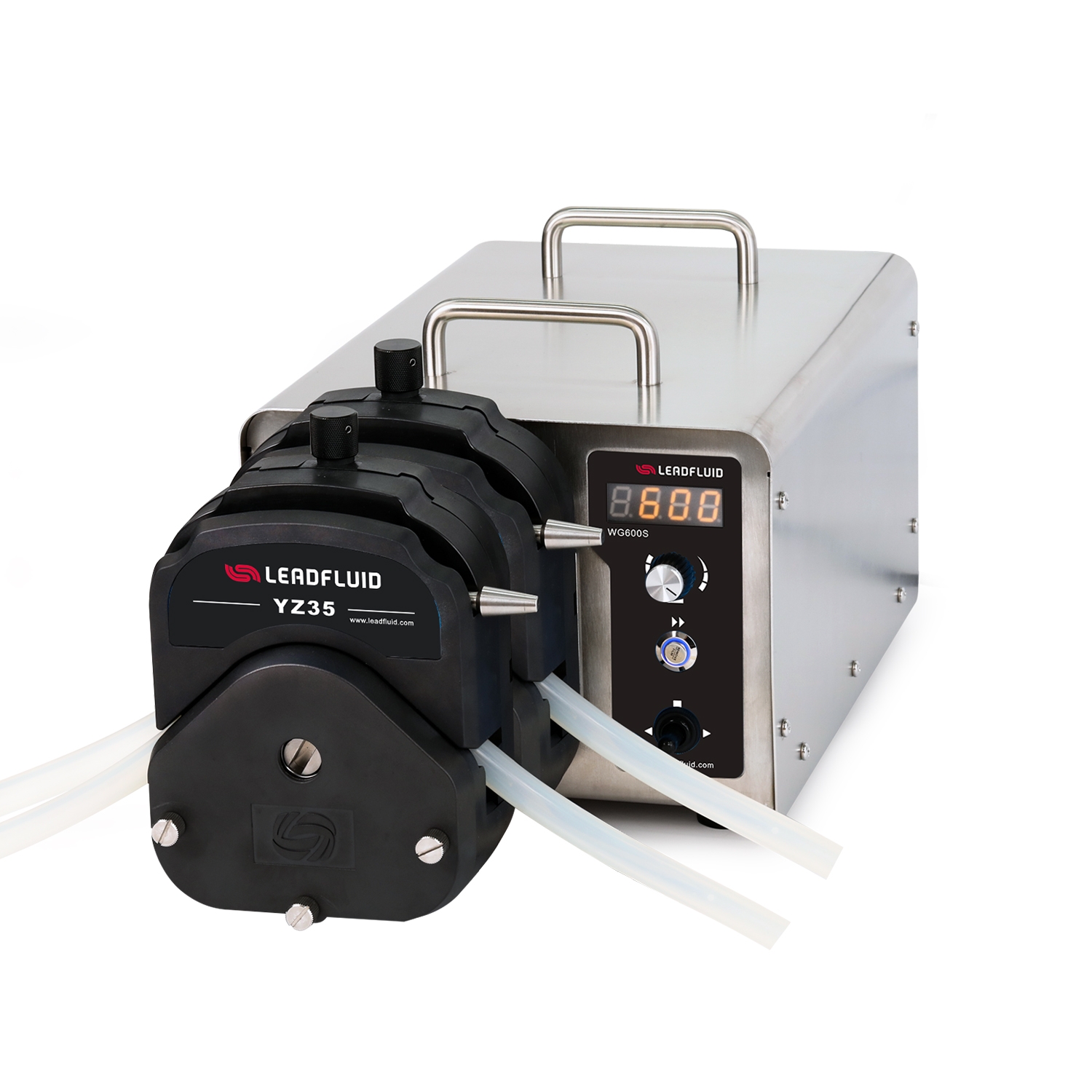

| WG600S | YZ35 | 1,2 | 73#82# | 0.4～13.2 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
Dimension(mm)
Statement：The final explanation right of above information belongs to Lead Fluid.
