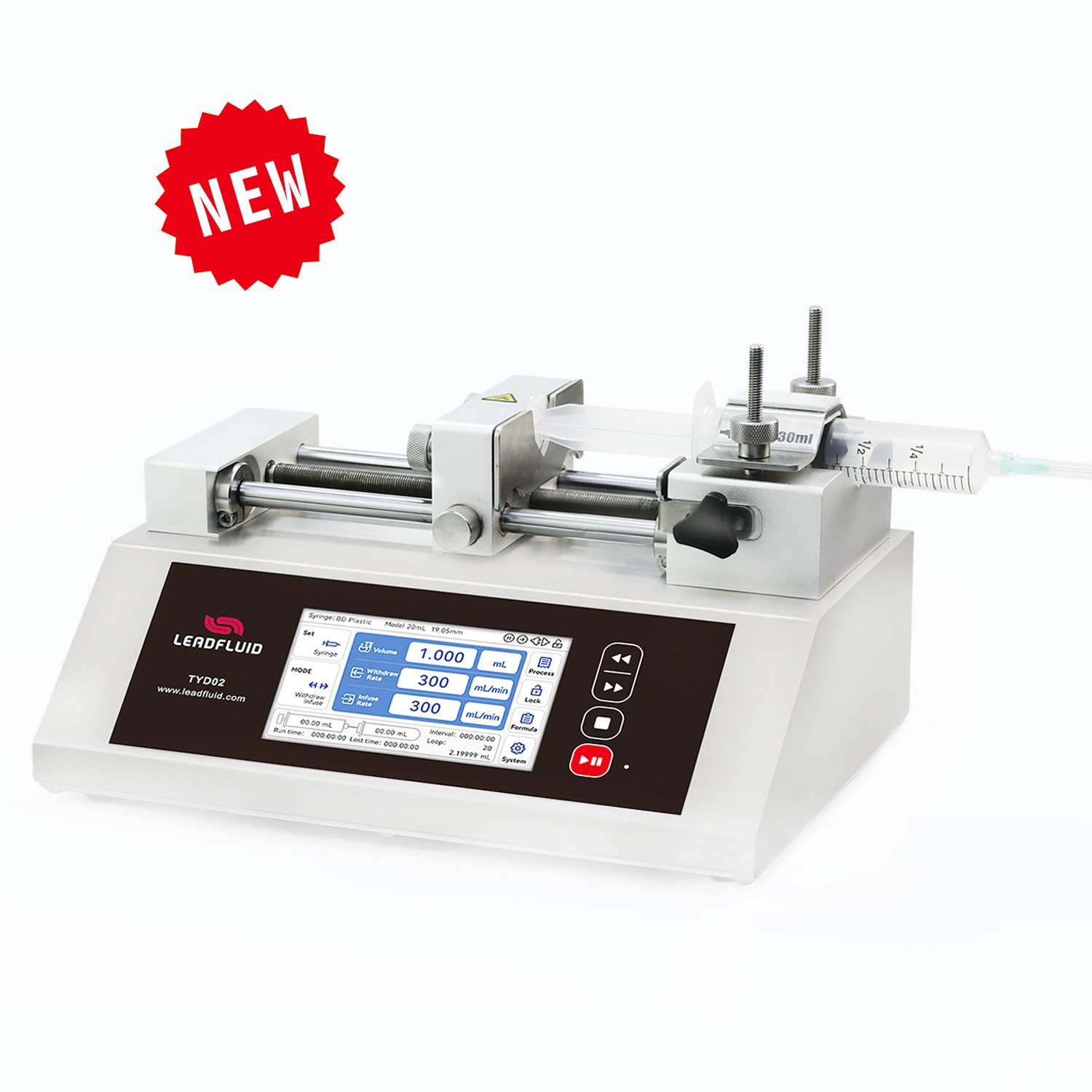

Feature

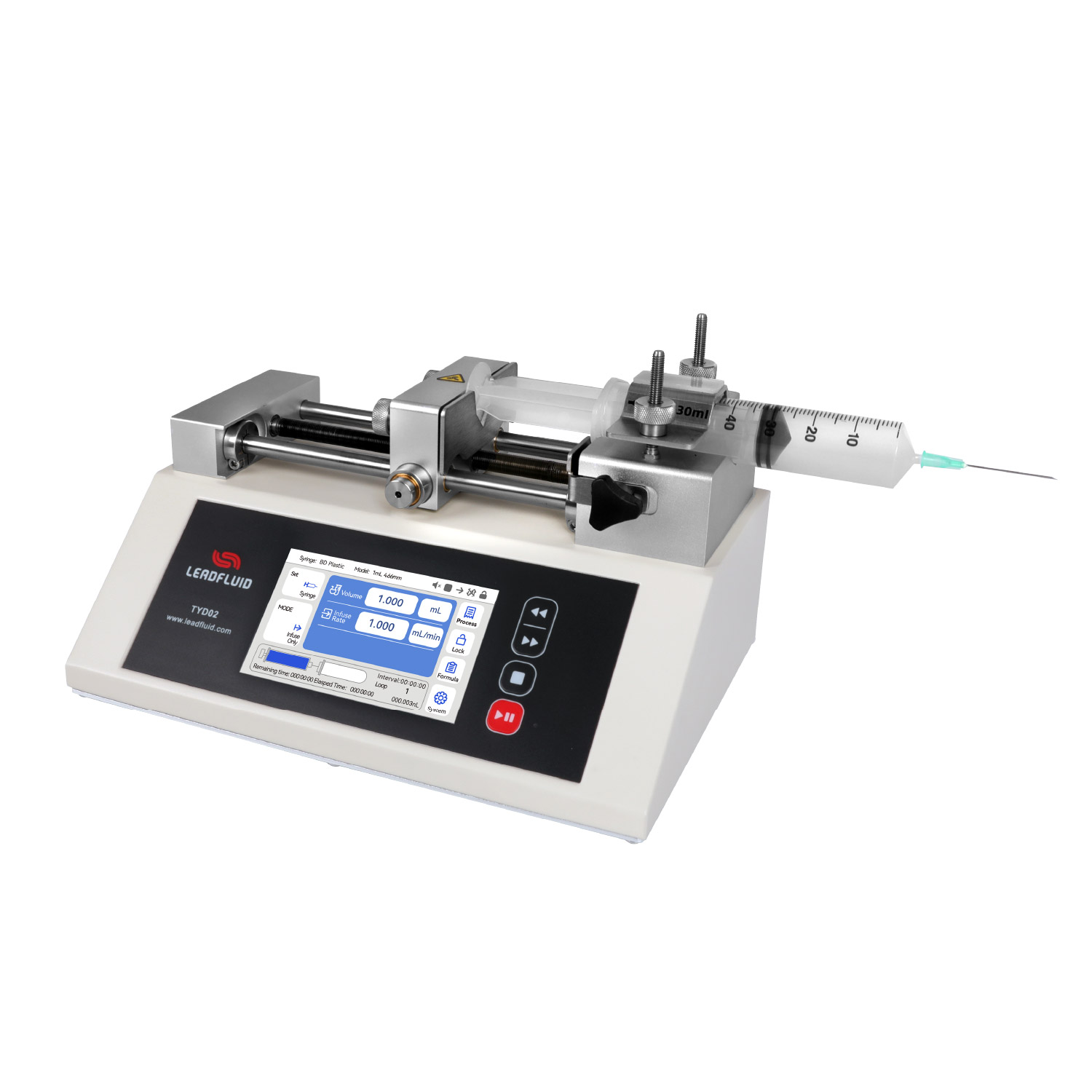

•Display and Operation
5-inch high resolution color LCD touch screen, convenient operation.
Support screen lock, key mute operation.
Button with indicator light,clearly working state.
•Multiple Working Modes and Syringes Support
Built-in multiple syringe manufacturers and specifications, while supporting customized syringes, making them more flexible and diverse.
Including five working modes, including infuse and withdraw, to meet different experimental operation requirements.
•High Precision Control and Safety Protection
Pre store multiple sets of data, meet high-precision control requirements
Syringe protection and traffic jam alarm function to ensure the safety and reliability of the experimental process.
•Communication and External Control
RS485 communication, support the MODBUS protocol, makes communication and remote control more convenient.
External control signal controls Start and Stop, Direction, Physical isolation of External Control Signals.
• Applicability and Convenience
Made of plastic housing, suitable for various experimental environments.
Support wide range of power input, making it more flexible and easy to use.
Multiple convenient designs, such as screen lock and button mute, make the experimental process smoother and more efficient.
Technical Parameter
Work mode: Infuse, withdrawal, pre-infuse followed by withdrawal, pre-withdrawal followed by infuse, continuous circulation
Channel: 1
Maximum stroke: 140mm
Stroke resolution: 0.156um/ustep
Linear velocity: 1um/min ~50mm/min
Syringe size: 10uL~140mL
Flow range: 0.184nL/min~173.718mL/min
Max rated linear force: >16kgf
Thrust regulation: 25%～100%, adjustable
Stroke Control Accuracy: Error±0.35% (when working stroke >30% of whole stroke)
Flow calibration: Through the calibration procedure to obtain more accurate fluid volume
Display: 5-inch color LCD screen display and transfusion volume, residual fluid volume, flow ,operation direction , syringe specification, etc. Animation display operation
Operation method: Mask key + touch screen operation
Power-off memory: Storing the running parameters automatically
Other function: Pause and stop, the sound tip, the lock parameters, fast forward and retreat quickly ,display brightness adjustment
State signal output: 1 road start-stop status ,1 road direction status
Control signal input: 1 road startup and stop status ,1 road directional signal
Communication interface: RS485 communication interface, MODBUS protocol,Wi-Fi function(optional)
Dimension mm(L×W×H): 290×208×187.5
Weight: 4.95kg
Power supply: AC100～240V，50/60Hz
Working environment: Temperature 5～40℃, relative humidity＜80%
IP grade: IP31
Syringe selection: Built-in main manufacturers, the main model syringe to choose.Can use custom syringe, direct input syringe size and diameter
LCD Screen
Reference Table of Syringe Specifications and Flow Rate
| Syringe size | Syringe ID (mm) | Min flow rate(nL/min) | Max flow rate(mL/min) |
| 10µL | 0.485mm | 184.00pL/min | 27.711µL/min |
| 25µL | 0.729mm | 417.00pL/min | 62.608µL/min |
| 50µL | 1.03mm | 833.00pL/min | 124.984µL/min |
| 100µL | 1.457mm | 1.667nL/min | 250.092µL/min |
| 250µL | 2.304mm | 4.169nL/min | 625.383µL/min |
| 500µL | 3.256mm | 8.326nL/min | 1.248mL/min |
| 1000 µL | 4.608mm | 16.676nL/min | 2.501mL/min |
| 1mL | 4.699mm | 17.342nL/min | 2.60mL/min |
| 3mL | 8.585mm | 57.885nL/min | 8.682mL/min |
| 5mL | 11.989mm | 112.890nL/min | 16.933mL/min |
| 10mL | 14.427mm | 163.469nL/min | 24.520mL/min |
| 20mL | 19.05mm | 285.027nL/min | 42.754mL/min |
| 30mL | 21.59mm | 366.090nL/min | 54.913mL/min |
| 50mL | 28.998mm | 555.459nL/min | 83.318mL/min |
| 60mL | 28.998mm | 555.459nL/min | 83.318mL/min |
| 100mL | 35.7mm | 1000.982nL/min | 150.147mL/min |
| 140mL | 38.4mm | 1158.117nL/min | 173.718mL/min |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure,in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.
