Feature
•New Design
Whole machine lightweight, injection-molded shell, stronger anti-static capability, sleek and beautiful appearance.

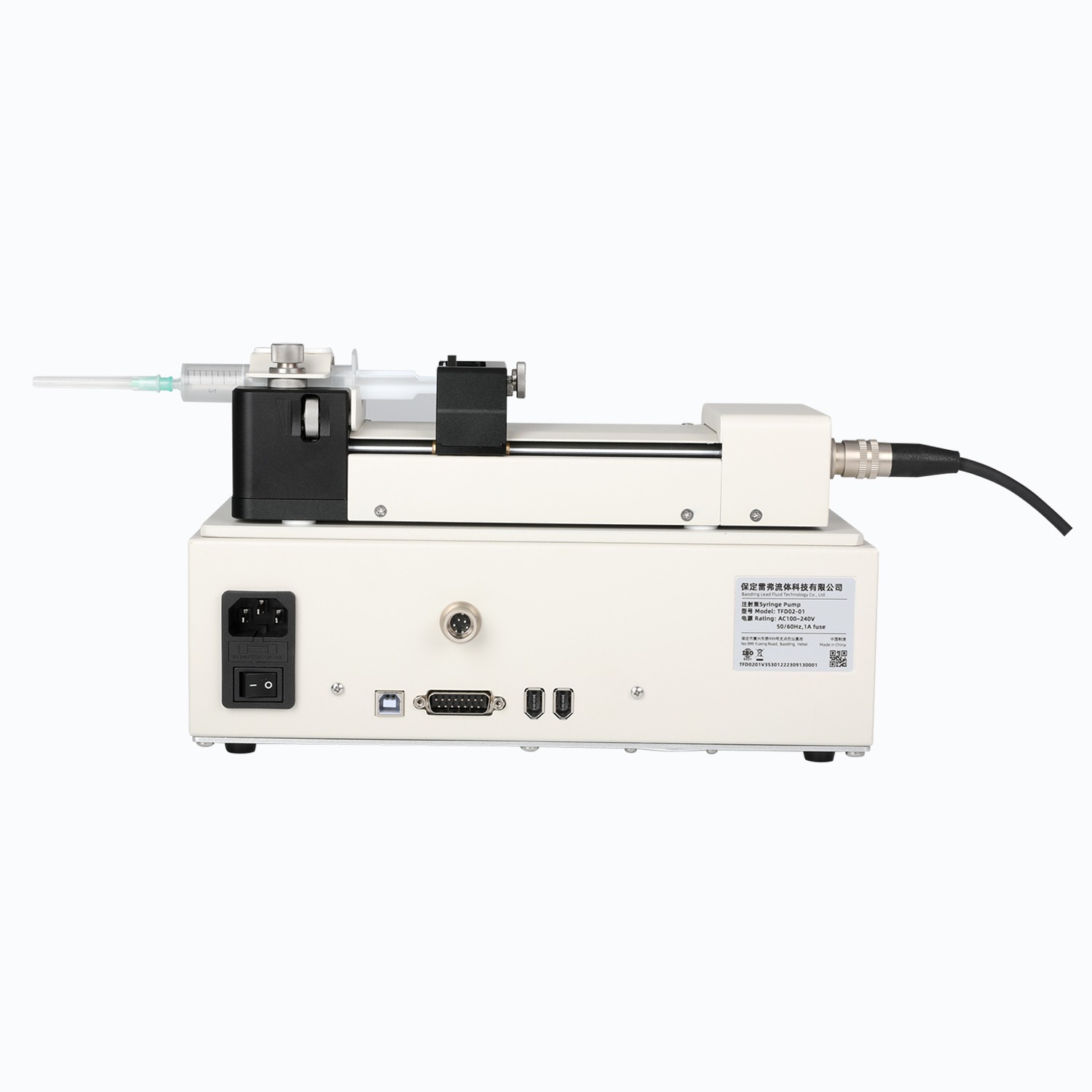

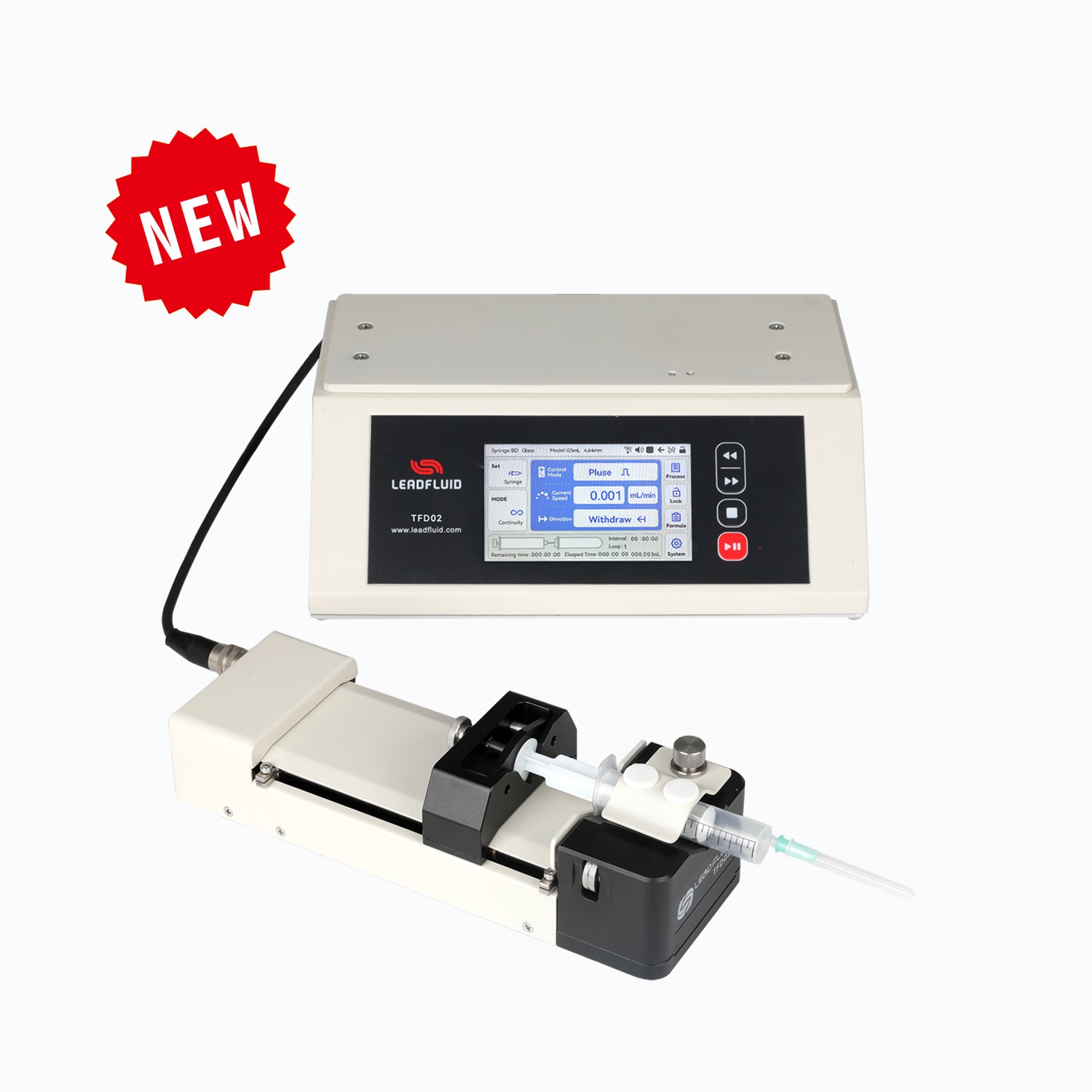

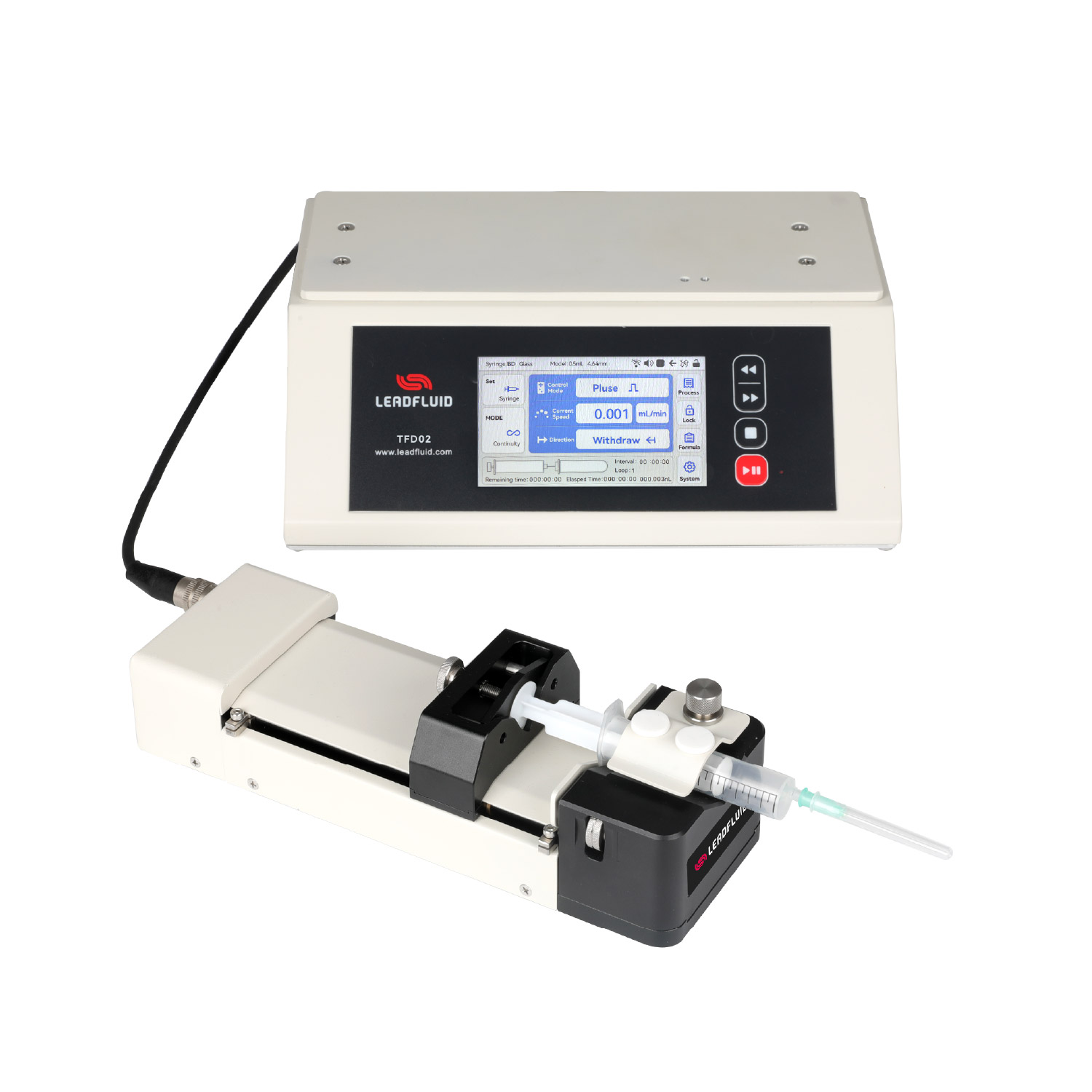

Controller and execution unit are designed separately, easy to disassemble, and convenient for joint use with other instruments and equipment (such as brain stereotactic locator).
•New Interface

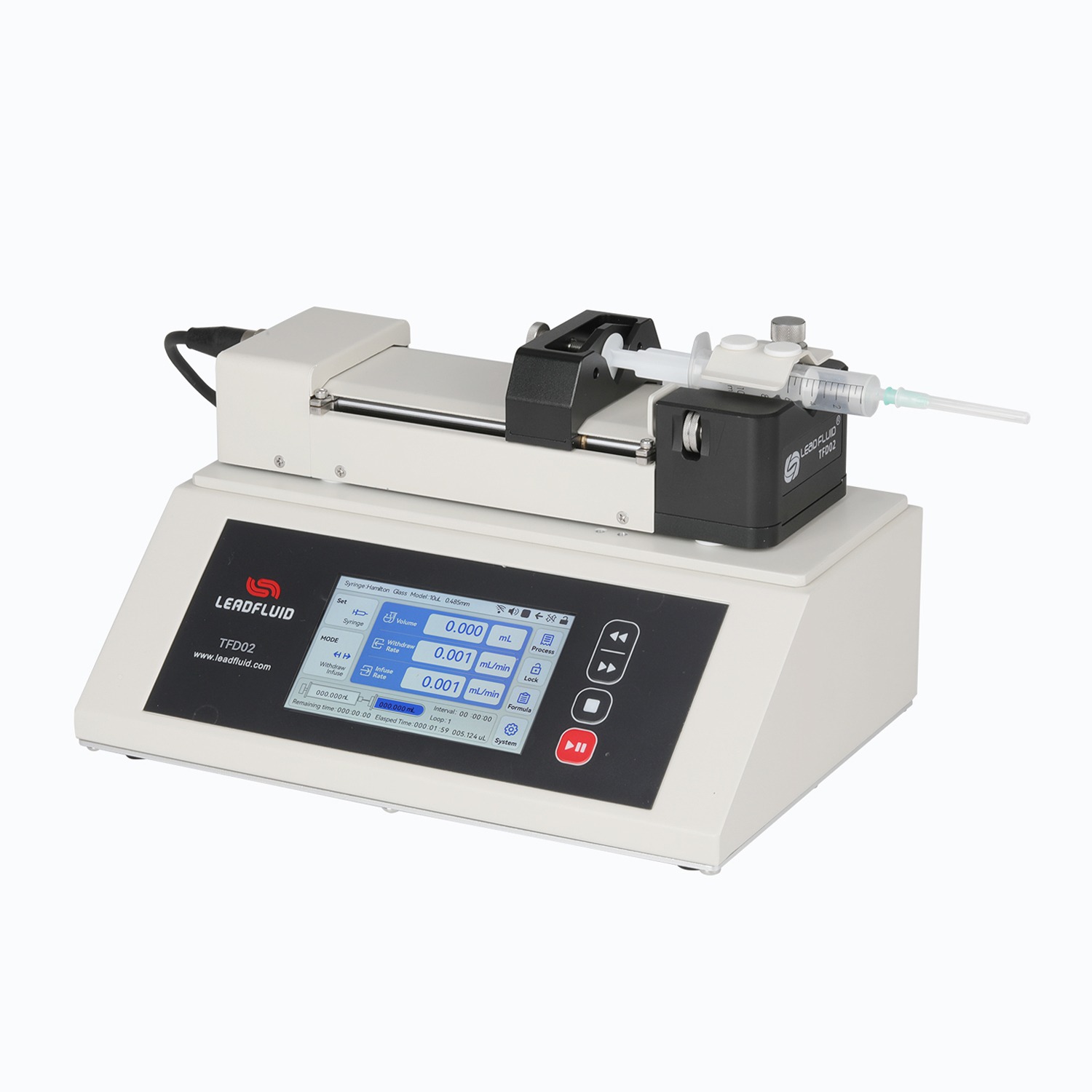

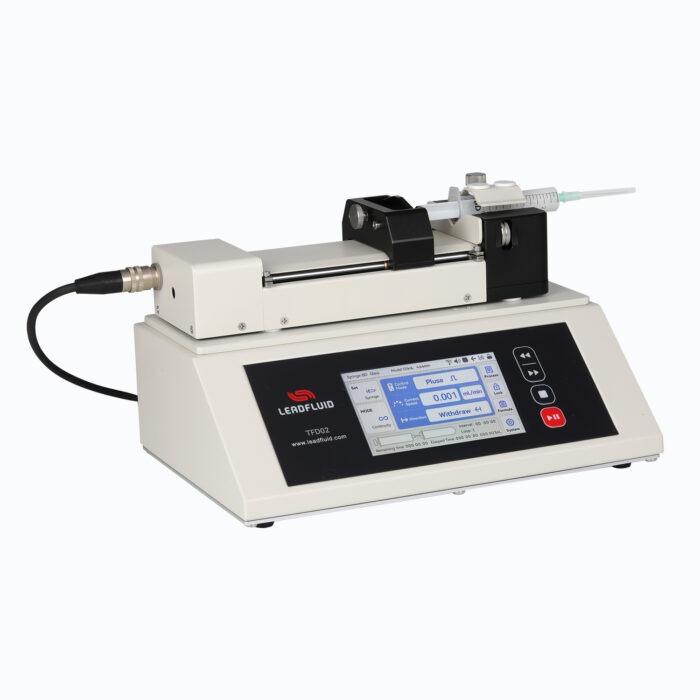

The 5-inch high-resolution color LCD touchscreen provides a more intuitive and clear interface, featuring the LF-Touch-OS software system for stable and reliable operation.
New interface for a simpler and fresh look, with comfortable color schemes, optimized layout, and emphasis on user-friendly functionality resentation from the user’s perspective.
•Improved Operation Convenience
Easily switch between speed and time units to meet the requirements of different experimental scenarios. Supports both horizontal and vertical screen orientations, optimizing display in limited workspace. Flow calibration is more precise and straightforward, enhancing operational efficiency and accuracy.
•Improved Safety
Added password function to prevent unauthorized personnel from modifying parameters, strengthening the security of experimental data.
•Precision casting and high-precision control
Excellent control system and precise mechanical structure, with a travel control accuracy error less than ±0.35%.
Strong anti-electromagnetic interference performance, capable of continuous stable operation under high-voltage electrostatic fields.
•Compatible with various syringes
Built-in various syringe manufacturers and specifications,while also supporting custom syringes for increased flexibility and diversity.
•Automatic control system
Forms an automated control system with computers, PLC, single-chip microcomputers, etc.
Optional Wi-Fi control function can be equipped, allowing remote control of the pump through the Lead Fluid app.
Technical Parameter
Working mode: Infuse,withdraw,infuse /withdraw,withdraw/infuse,continuous mode.,etc
Channel number: 1
Flow range: 0.184nL/min(10uL) – 83.318mL/min(60mL)
Maximum stroke: 110mm
Stroke resolution: 0.156μm/ustep
Linear velocity: 1μm/min –150mm/min
Stroke control accuracy: Error±0.35% (when working stroke >30% of whole stroke)
Linear thrust: > 10Kgf, adjustable
Syringe size: 10uL-60mL
Display: 5-inch high-resolution color LCD touch screen
Operation method: Mask key + touch screen operation
States signal output: Start/stop states and direction states
Control signal input: Start/stop states and direction states
Wattage: <30W
Dimensions of driver: 290*205.2*101.5mm
Dimensions of execution unit: 266*86*76mm
Weight (controller+execution unit): 1.495kg+1.8kg
Applicable power supply: AC 100-240V 50Hz/60Hz
Degree of protection: IP31
Degree of pollution: 2
Working environment: Temperature 5- 40°C, relative humidity<80%
Reference Table of Syringe Specifications and Flow Rate
| Syringe size | Syringe ID (mm) | Min flow rate(nL/min) | Max flow rate(mL/min) |
| 0.5µL | 0.103mm | 8.000pL/min | 1.249µL/min |
| 1µL | 0.146mm | 16.000pL/min | 2.511µL/min |
| 2 µL | 0.206mm | 33.000pL/min | 4.999µL/min |
| 5 µL | 0.343mm | 83.000pL/min | 12.497µL/min |
| 10µL | 0.485mm | 184.00pL/min | 27.711µL/min |
| 25µL | 0.729mm | 417.00pL/min | 62.608µL/min |
| 50µL | 1.03mm | 833.00pL/min | 124.984µL/min |
| 100µL | 1.457mm | 1.667nL/min | 250.092µL/min |
| 250µL | 2.304mm | 4.169nL/min | 625.383µL/min |
| 500µL | 3.256mm | 8.326nL/min | 1.248mL/min |
| 1000 µL | 4.608mm | 16.676nL/min | 2.501mL/min |
| 1mL | 4.699mm | 17.342nL/min | 2.601mL/min |
| 3mL | 8.585mm | 57.885nL/min | 8.682mL/min |
| 5mL | 11.989mm | 112.890nL/min | 16.933mL/min |
| 10mL | 14.427mm | 163.469nL/min | 24.520mL/min |
| 20mL | 19.05mm | 285.027nL/min | 42.754mL/min |
| 30mL | 21.59mm | 366.090nL/min | 54.913mL/min |
| 50mL | 26.594mm | 555.459nL/min | 83.318mL/min |
| 60mL | 26.594mm | 555.459nL/min | 83.318mL/min |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure,in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.
