Introduction

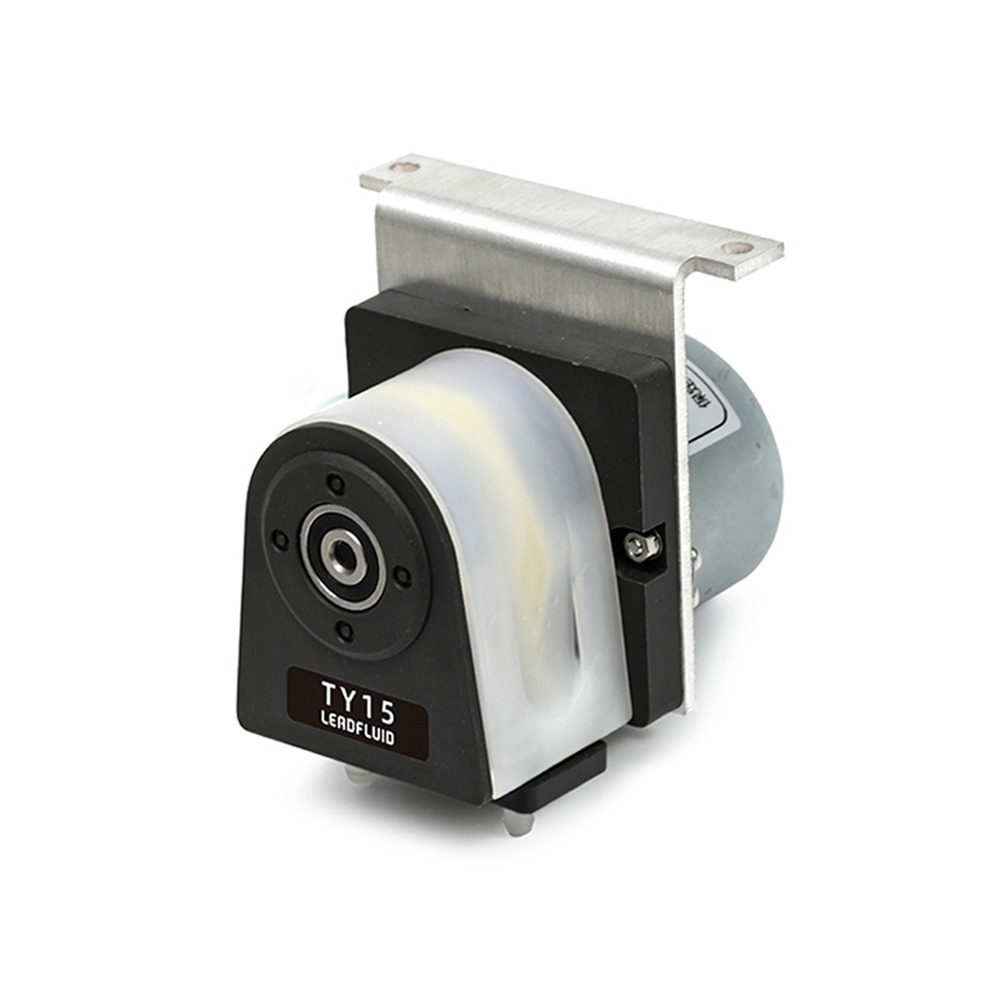

• The TY15 spring easy-install pump head adopts a quick-install design, flexible upward pressure structure, and a spring roller structure, making the tube installation easy and fast.
• Small size, compact structure, beautiful appearance.
• Long tube life.
• Customization of other motors (stepper motor, AC synchronous motor, AC reduction motor, DC reduction motor) according to requirements.
• Low operating noise.
• Good mechanical properties, anti-pollution.
• Suitable for small to medium flows.
• Suitable for online monitoring of COD and CEMS.
• It is convenient for ODM to be used together with equipment, instruments and laboratories.
Parameters
Motor Type: 50 synchronous motor
Fixed Speed: 10rpm
Channel Number: 1
Number of Rollers: 2 rollers
Rotation Direction: Clockwise/Counterclockwise rotation
Type of Tube: Silicone tube, Pharmed, A-60-G
Method of Tube Installation: Tubing connectors
Pressure Tube Type: Fixed clearance
Pump Head Shell Material: IXEF
Pump Head Roller Material: PET+PPS
Pump Head Pressure Block Material: PVDF
Pump Head Roller Shaft Material: S30408 stainless steel
Pump Head Life: ≥1000h
Noise: ≤60dB (test environment noise ≤40dB, test product and noise meter horizontal distance of 1 meter)
Weight: 0.417kg (excluding tube)
Dimensions: (L*W*H) 89.5mm*80mm*86mm
Wattage: ≤1W
Working Environment: Temperature 0- 40°C, relative humidity<80% RH
Storage Environment: Ambient temperature of -40 ~ +50 °C, relative humidity of not more than 95% of the clean and well-ventilated environment, the air shall not contain corrosive, flammable gases, oil mist, dust.
Suitable Tube Model and Flow Rate Reference
Silicone tube（wall thickness1.6mm)
| Suitable Tube | 13# | 14# | 19# | 16# | 25# |
| Tube ID (mm) | 0.8 | 1.6 | 2.4 | 3.1 | 4.8 |
| Maximum Flow (mL/min) | 0.5 | 1.7 | 4 | 7.5 | 14 |
The above data is obtained from the test of purified water with a Lead Fluid tube under normal and pressure conditions in the laboratory. This data is for reference only.
Due to pressure in actual use, temperature, medium characteristics, tube material and other specific factors, the specific situation needs to consult our engineers.
Product Structure & Usage Method
Product Structure
Component Name and Function
1. Tube: silicone, Pharmed or A-60-G.
2. Tubing Connectors: Fix the tube.
3. Roller Body: Squeeze the tube with the upper pressure block.
4. Spindle: Drive roller body.
5. Body: Support the upper pressure block and roller body.
6. Upper Pressure Block Lock: Fix the upper pressure block.
7. Motor Mounting Plate: The pump head is connected to the motor.
8. Motor: Provides power.
9. Upper Pressure Block: Squeeze the tube with the roller body.
Usage Method
Disassembly of TY15 Pump Head
Step 1: Push the upper pressure block lock with your finger as
indicated by the arrow to open the upper pressure block.
Step 2: Press and hold the concave point on both sides and
move up to open as shown in Fig. 3 to remove the serial
number 1 “Upper Pressure Block”.
Step 3: Remove the tube connectors as in Figure 4.
Install TY15 Pump Head
Reverse the order of disassembly.
Dimension
unit: mm
