ZN90 Pulse Damper

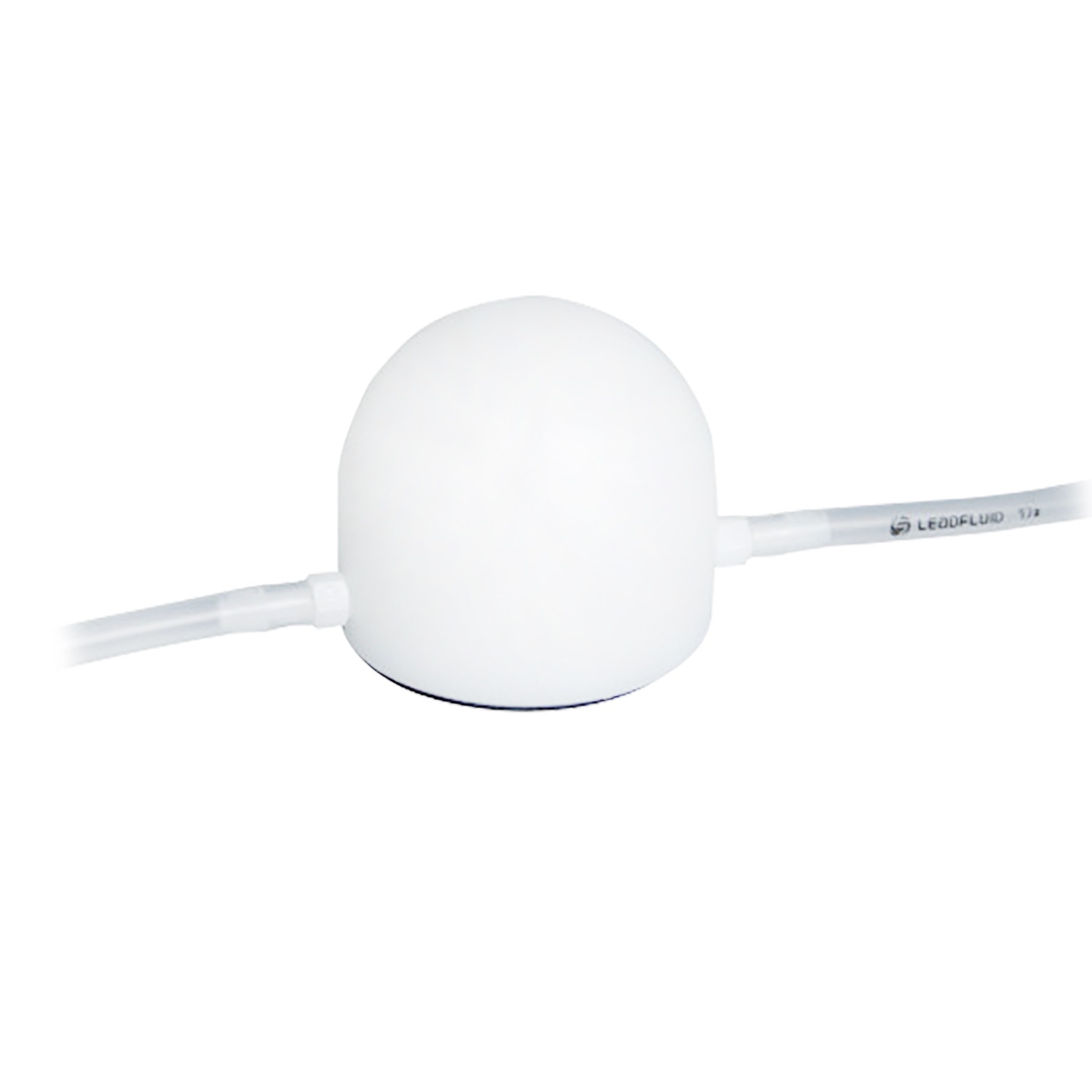

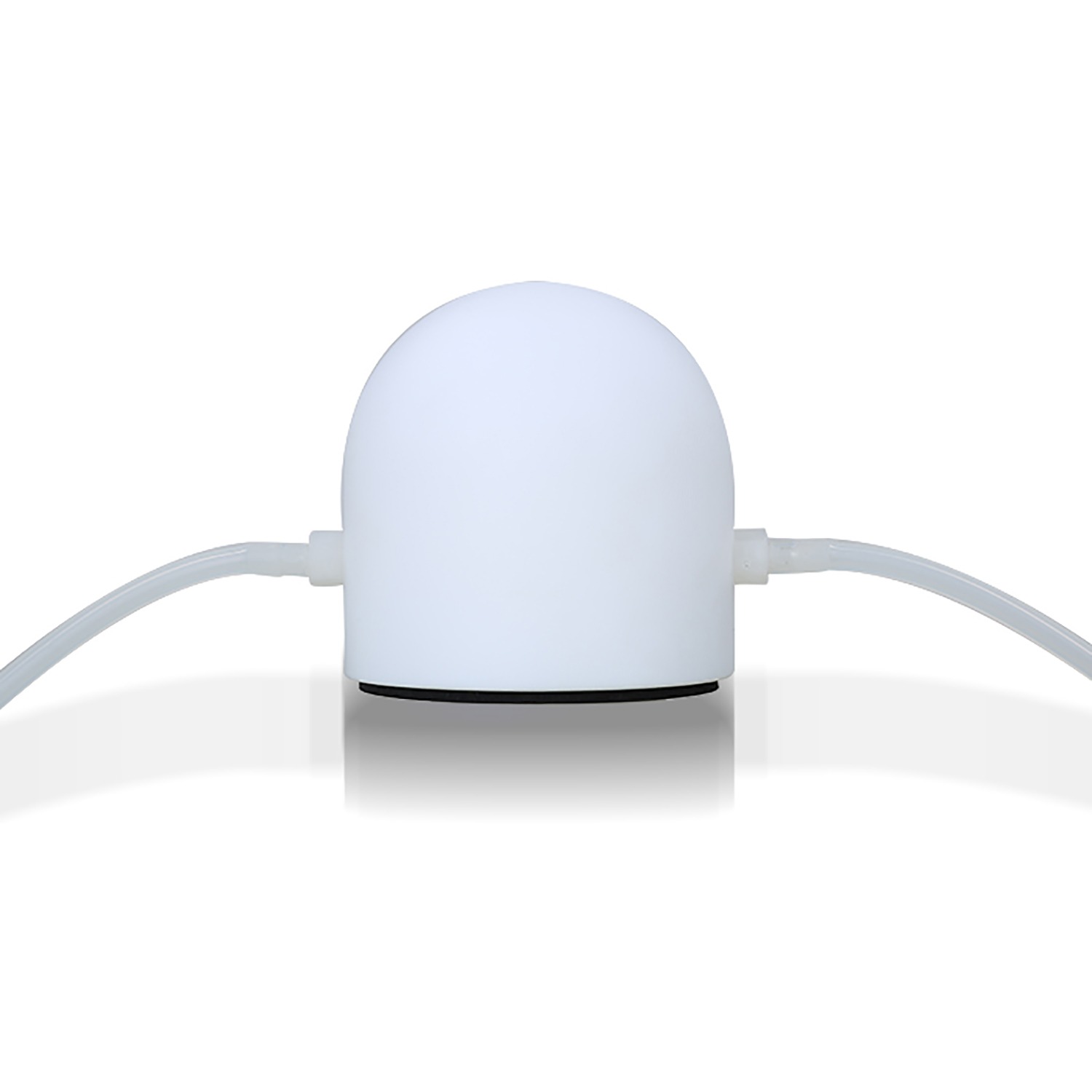

Lead Fluid ZN90 pulse damper is a damper developed for the characteristics of peristaltic pumps, is a pressurized container, the container is divided into two upper chamber is a gas. Due to the compressibility of the gas and the instantaneous absorption of the pulse, the system can obtain a stable flow and pressure and slow down the pulsation of the tubeline.

SKU: Pulse damper Category:

Technical Parameter

Model ZN90-PE ZN90-PTFE
Tube material silicone,pharmed,PVC,Viton,A-60-G/F
Tube ID 1.6-9.6mm
Connect External tread-Pagoda
Volume 180mL
Max pressure 0.3Mpa
Dimension 90×90×90mm
Shell material PE PTFE
Sealing material EPDM FFKM
Temperature 0 ~ 40℃  0 ~ 80℃
Temperature change <5℃/min  <5℃/min
Weight 220g 510g
