Function and Feature
• Thermoplastic elastomer, a mixture of PVC and USP mineral oil.
• Opaque black, hardness 61, UV grade A, ozone grade B.
• Temperature range: -59 to 135 degrees Celsius.
• High-temperature high-pressure sterilization (repeated sterilization does not affect lifespan)

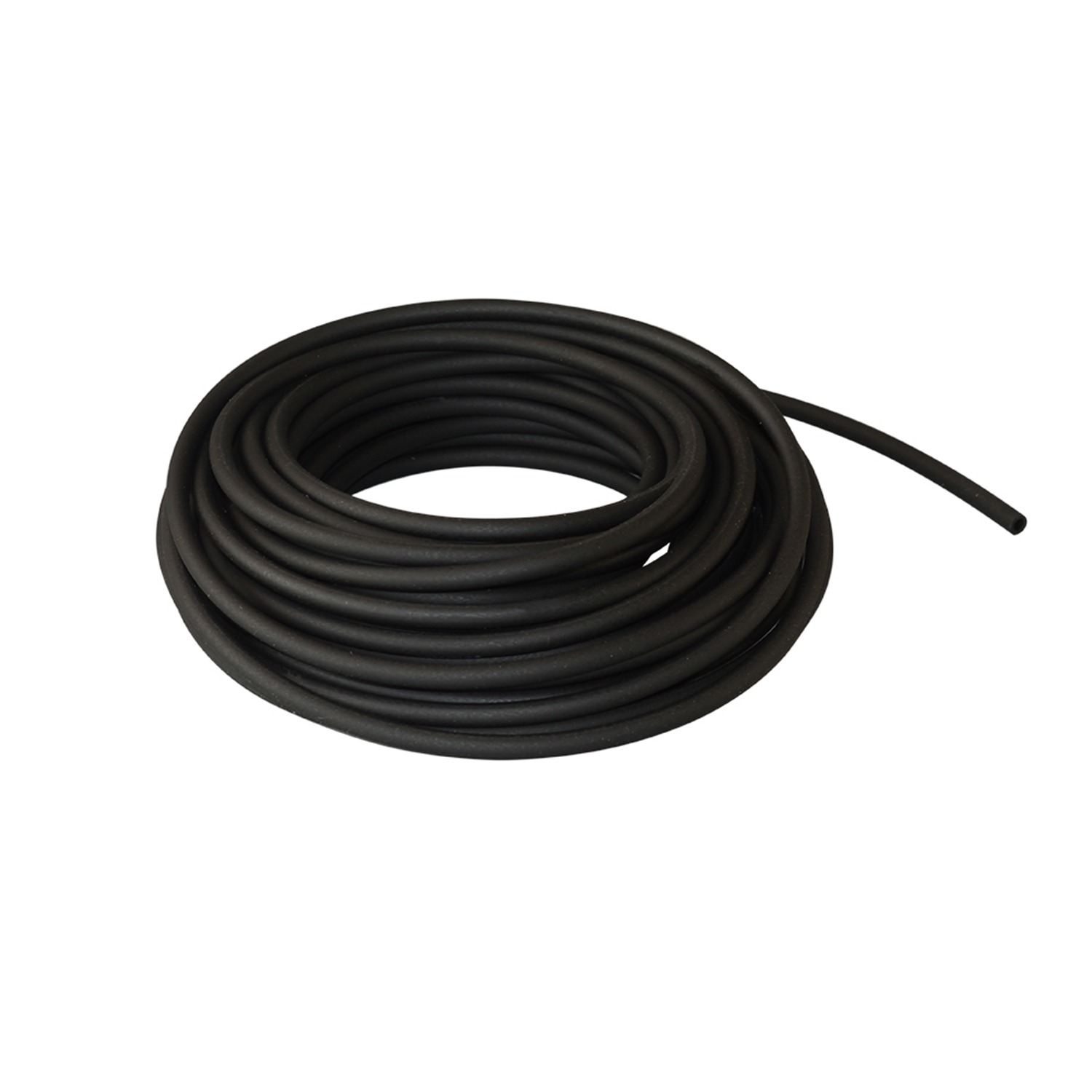

Tygon A-60-G Specifications
| Tubing Material | Tubing No. | ID (mm) | Wall Thickness(mm) | ID×OD×Wall(mm) | Standard Package(m) |
| A-60-G | 14# | 1.6 | 1.6 | 1.6×4.8×1.6 | 15 |
| 16# | 3.2 | 1.6 | 3.2×6.4×1.6 | 15 | |
| 25# | 4.8 | 1.6 | 4.8×8×1.6 | 15 | |
| 15# | 4.8 | 2.4 | 4.8×9.6×2.4 | 15 | |
| 17# | 6.4 | 1.6 | 6.4×9.6×1.6 | 15 | |
| 24# | 6.4 | 2.4 | 6.4×11.1×2.4 | 15 | |
| 18# | 7.9 | 1.6 | 7.9×11.1×1.6 | 15 | |
| 35# | 7.9 | 2.4 | 7.9×12.7×2.4 | 15 | |
| 36# | 9.6 | 2.4 | 9.6×14.4×2.4 | 15 | |
| 73# | 9.6 | 3.2 | 9.6×16×3.2 | 15 | |
| 82# | 12.7 | 3.2 | 12.7×19.1×3.2 | 15 |
Applications:
Industrial grade, resistant to moderate acids and bases, inks, and long-term peristaltic pump fluid transfer.
