Functions and Features
• Industrial grade AC frequency conversion explosion-proof motor (ExdIIBT4), with special pump head, safe and reliable.
•External frequency conversion control, with functions such as adjust speed, start-stop, reversible direction,analog adjust speed, RS485 communication.
•Pump head roller adopts planetary gear transmission structure, strong power.
•The roller rotates with power to roll and rub with the tube to extend the life of tube.
•Open the cover to stop the pump function to ensure the safety of the operator.
•Elastic pressure tube structure extends pump tube life.
•Stepless speed, speed range 34.5rpm～345rpm, speed resolution 0.77rpm.
•Split design, the driver is separated from the frequency conversion, suitable for a variety of working environment.
•Large torque design, stable operation, max flow is 33l/min.
•IP55 high protection grade, suitable for complex working environmen.
•The standard frequency conversion is not explosion-proof and cannot be placed in a flammable and explosive environment.
Remark:
1. Industrial grade explosion-proof frequency conversion is optional.
2. Customizable all-in-one model.
Specifications
Pump Head: PL48
Flow range: 0.6～33L/min
Speed range: 34.5～350rpm
Speed resolution: 0.1HZ(corresponding speed 0.77rpm)
Adjust speed: Frenquency converter steppless speed （standard frequency converter motor without connection cable）
Control function: Adjust speed, start/stop, reversible direction, analog speed control, RS485 communication
Speed accuracy: ＜±3%
Power supply: 3 phase 380V 50Hz
Power consumption: 400W
Working condition: Temperature 0 ～ 40℃, relative humidity＜80%
Anti-explosion grade: ExdIIBT4
IP grade: IP55(motor)
Dimension (L×W×H): 460×330×413mm
Weight: 49Kg

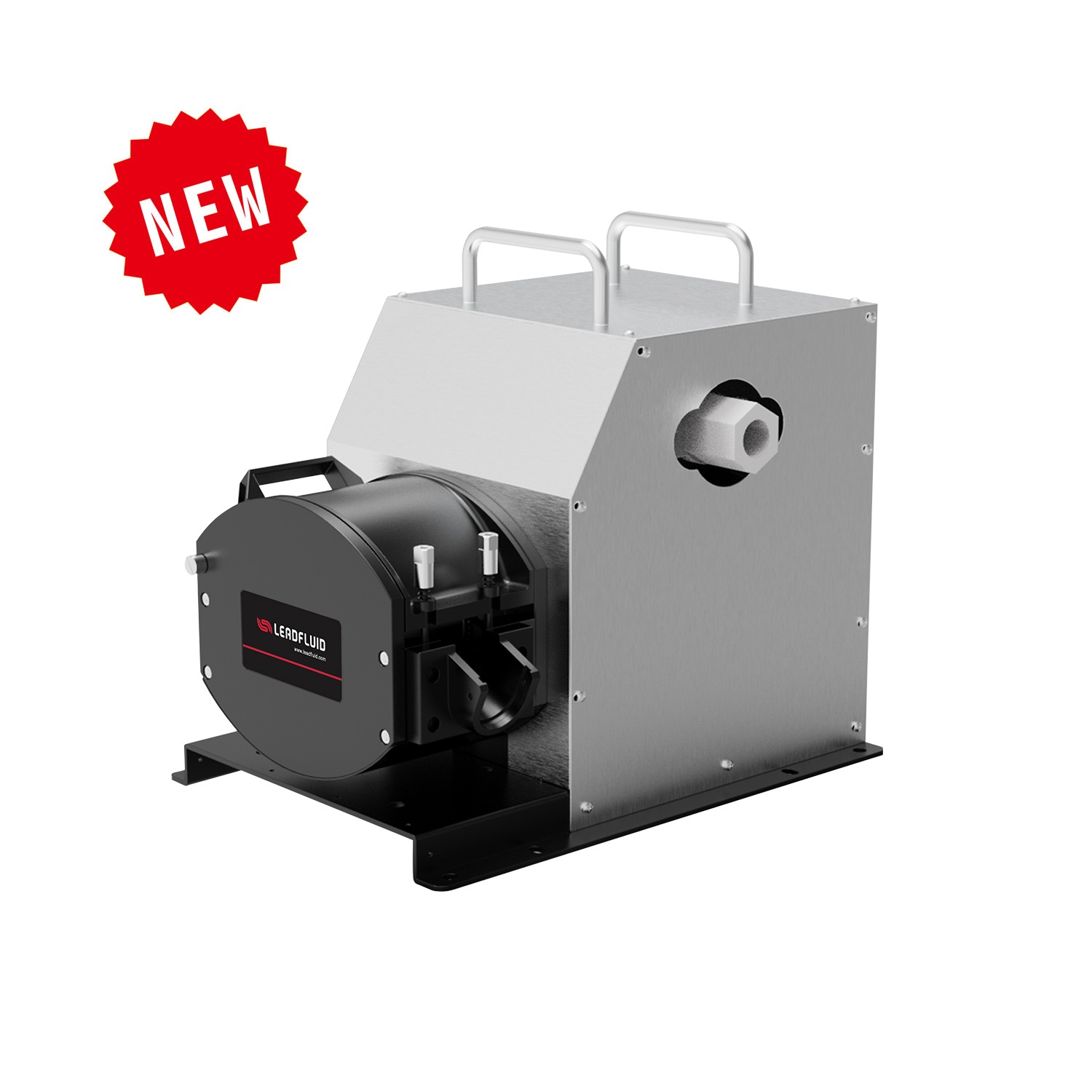

FP300S-A3 Suitable Pump Heads and Tubing, Flow parameters
| Drive Type | Pump Head | Channel | Tube | Single Channel Flow Rate(mL/min) |
| FP300S-A3 | PL48 | 1 | 88# 92# 193# 191# | 600～33000 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure,in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.
Dimension(mm)
