Functions and Features
•The golden ratio design combined with a sleek blue shell presents a streamlined, technological aesthetic. The ergonomic design ensures comfortable and effective operation.
•The 5-inch LCD screen offers a wide viewing angle, providing clear visibility from any perspective.
•Setting parameters is simple, and displacement adjustments are more efficient.
•With Lead Fluid’s patented calibration algorithm, it conserves three times the original liquid and boosts efficiency by threefold.
•The three-level permission management system is particularly suitable for pharmaceutical factories and other industrial environments.
•No rewiring needed, easily switch between different analog types.
•Offers multiple communication modes, including network communication.
•With 400w power, it can cascade up to 10 pump heads
•Designed for wide voltage ranges, suitable for 110-240V.
Specifications
Explosion proof level: Ex db IIC T4 Gb Ex tb IIIC T130℃ Db
Explosion proof standard: GB/T 3836.1-2021 GB/T 3836.2-2021 GB/T 3836.31-2021
Flow range: 0.005-3000mL/min
Speed range: 0.1-600rpm
Speed resolution: 0.1 rpm
Speed accuracy: ＜±0.2%
Display: 5 inch industrial grade color LCD screen
Operation: Explosion proof button with 8 keys
Working mode: Flow mode, volume dispensing mode, time dispensing mode, external control mode, programming mode
Delay start time: 1S-999H
Scheduled Working Time: 1S-999H
Working time: 0.1-99.99S/M/H
Dispensing volume: 0.001-9999L
Dispensing time: 0-999, 0 means circle
Dispensing interval time: 0.1-999S/M/H
Suction angle: 0-720°
External control signal input: (1) Start/Stop: External control input level (5~24V), (2) Forward/Reverse: External control input level (5~24V), (3) Speed Regulation: Analog 0~5V, 0~10V, 4~20mA can be set.
External control signal output: (1) Start/Stop: Level Signal (following input voltage), (2) Forward/Reverse: Level Signal (following input voltage), (3)Analogue output 0~5V
Communication interface: RS485，RS232，Ethernet support Modbus protocol, Profibus extension (optional)
Power supply: AC 100-240V 50Hz-60Hz
Working environment: Temperature 0 ～ 40℃, relative humidity＜80%
Shell material: Aluminium alloy
Power consumption: 400w
IP grade: IP66
Driver dimension(L×W×H): 306*265* 288mm
Weight: 35kg(pump head included)
EF903 Suitable Pump Heads and Tubings, Flow Parameters
| Pump Drive | Pump Head | Channel | Speed | Tube Material | Tube | Max Flow(mL/min) |

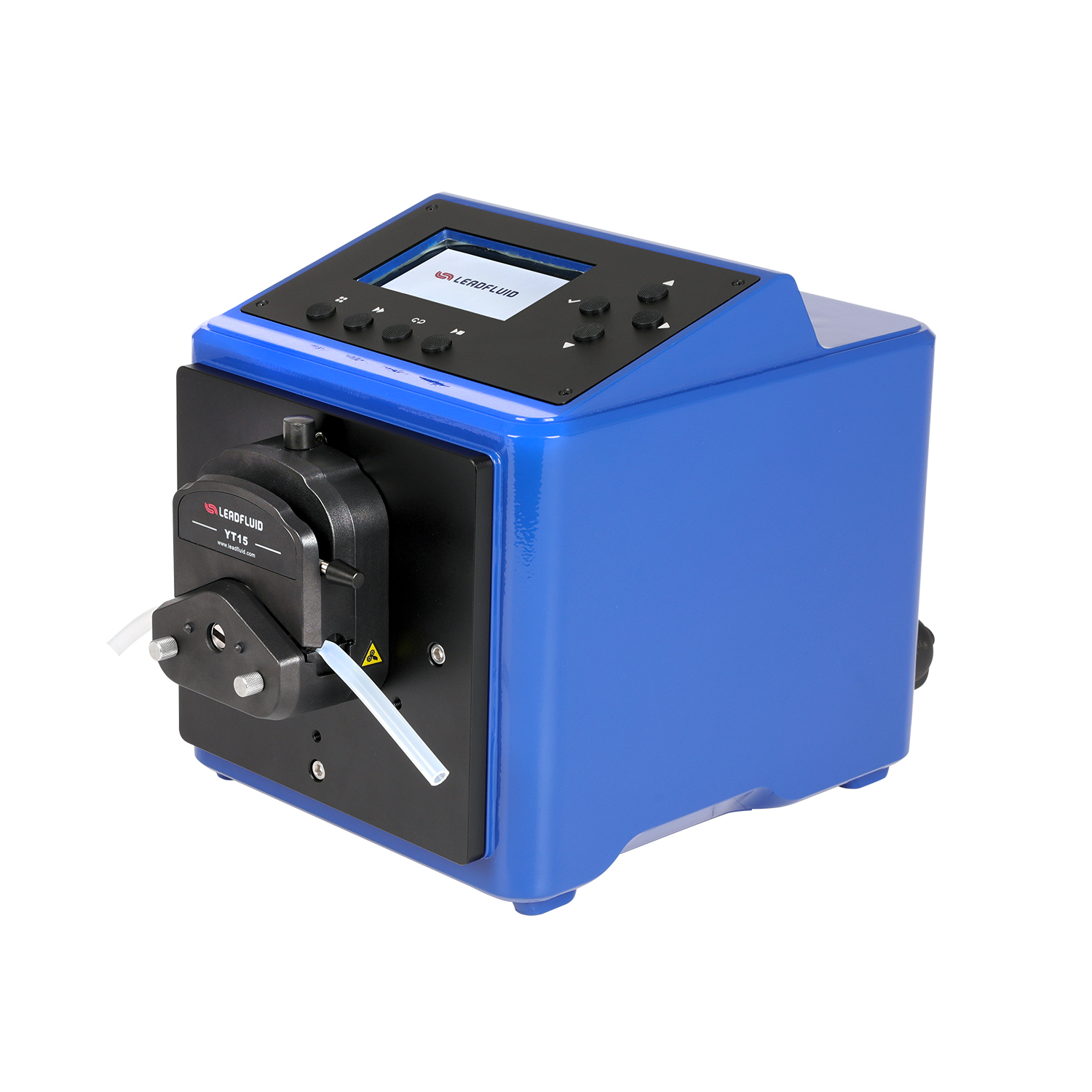

| EF903 | YT15 | 1-10 | 0.1-600 | All | 13# 14# 19# 16# 25# 17# 18# | 0.006~2700mL/min |

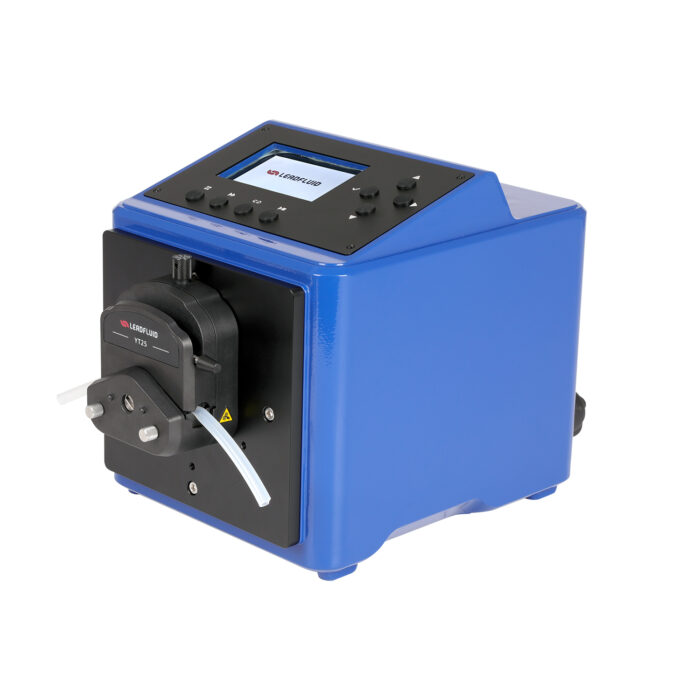

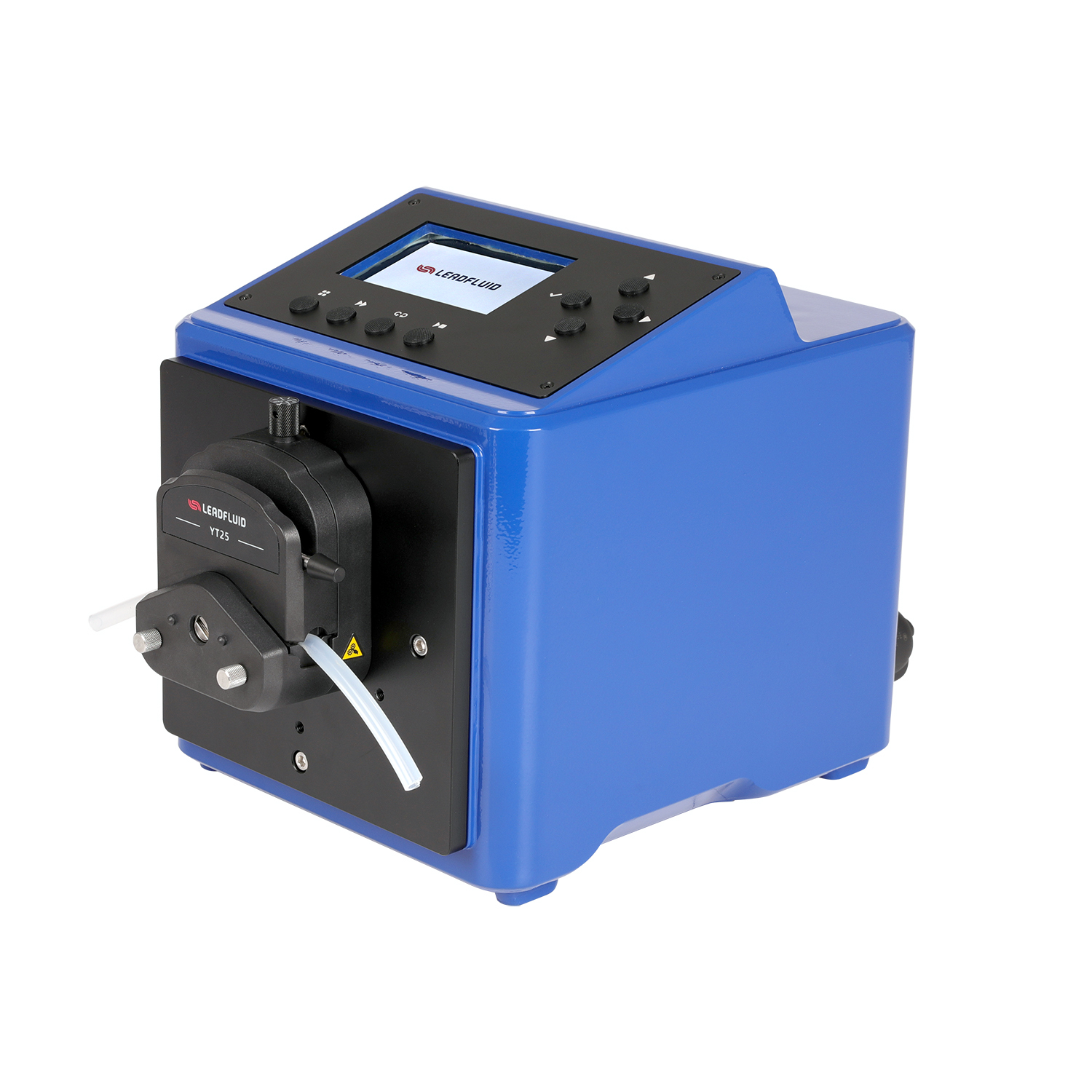

| YT25 | 15# 24# 35# 36# | 0.17~3000mL/min | ||||

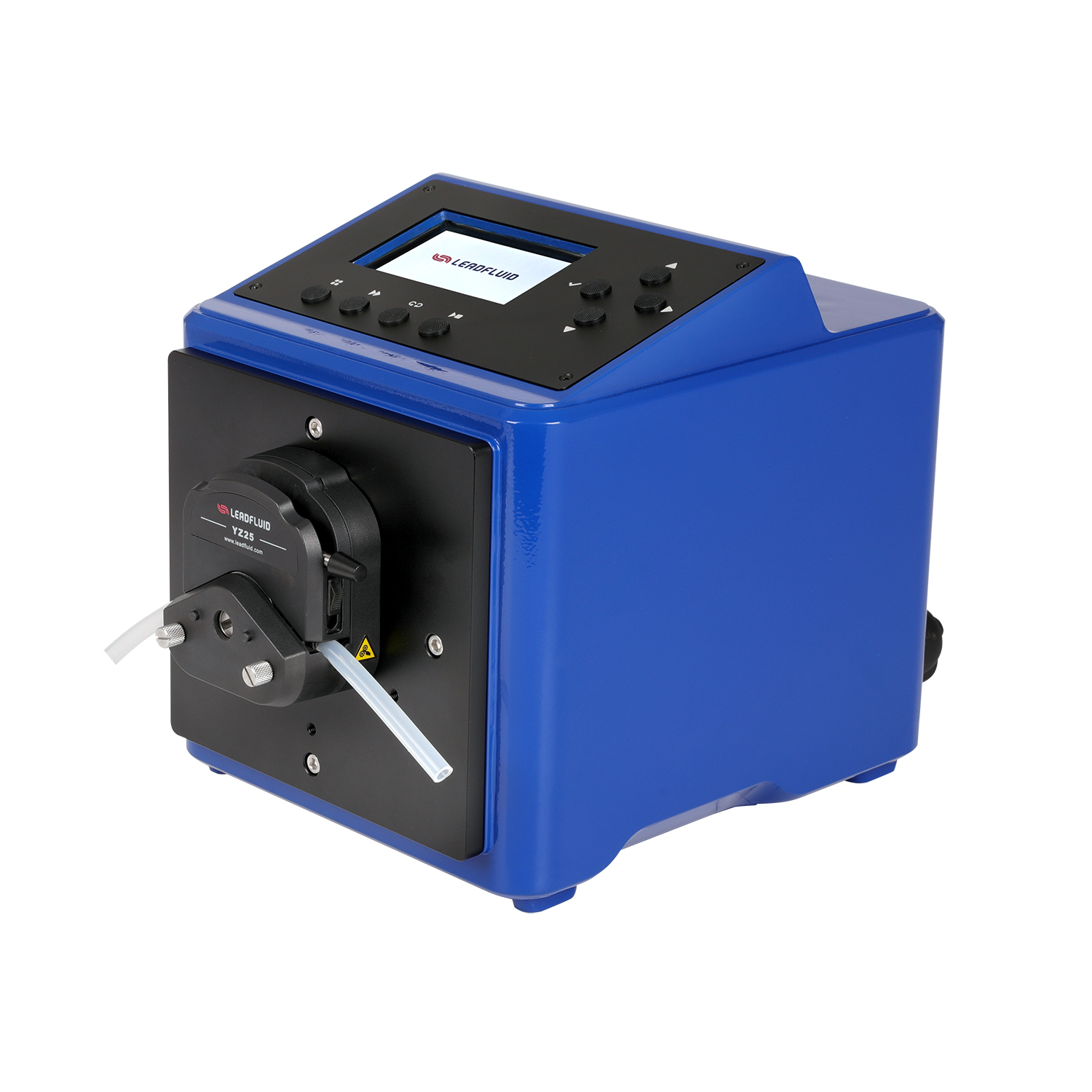

| YZ25 | 15# 24# | 0.17~1700mL/min | ||||

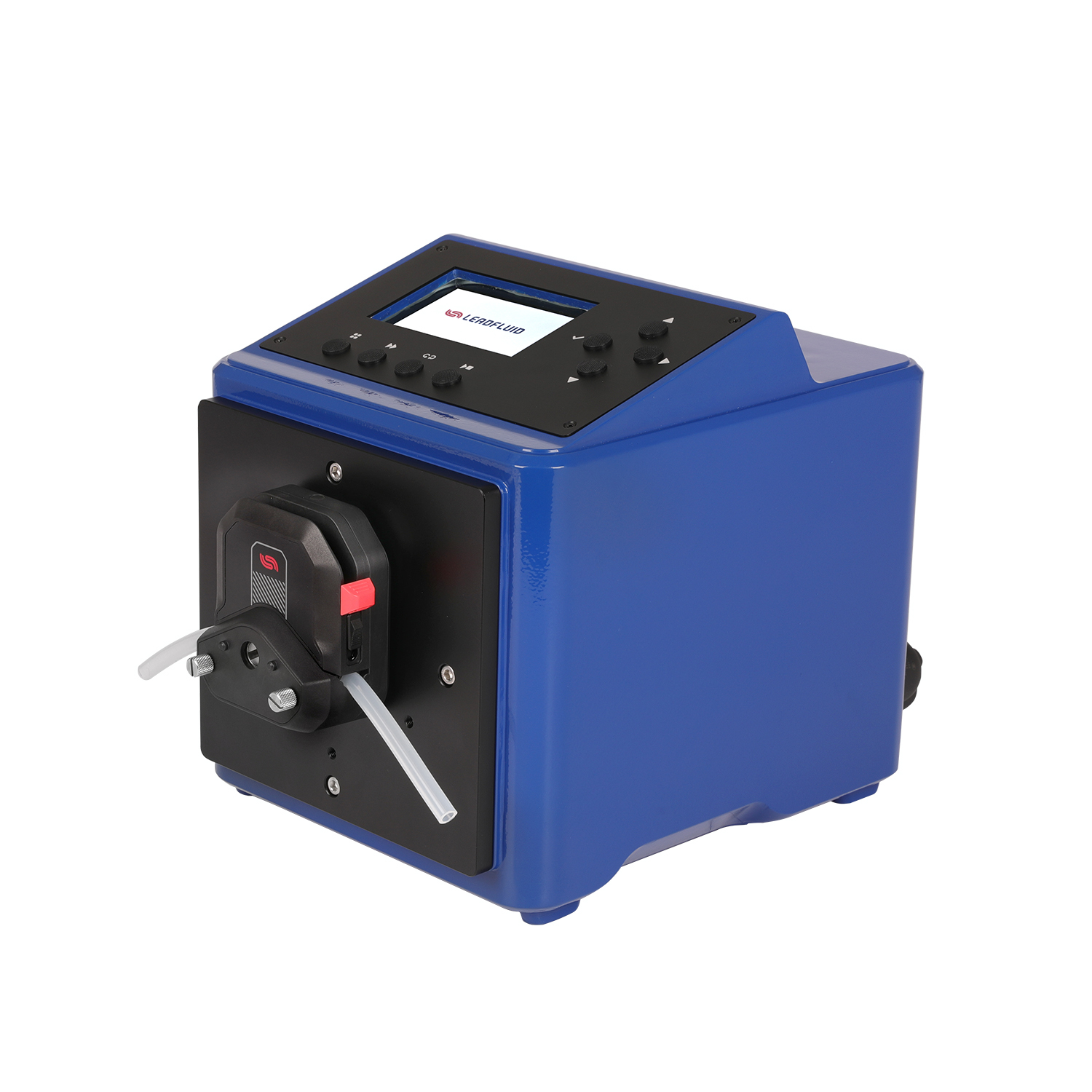

| YZ15T | 13# 14# 19# 16# 25# 17# 18# | 0.005~2500mL/min |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.

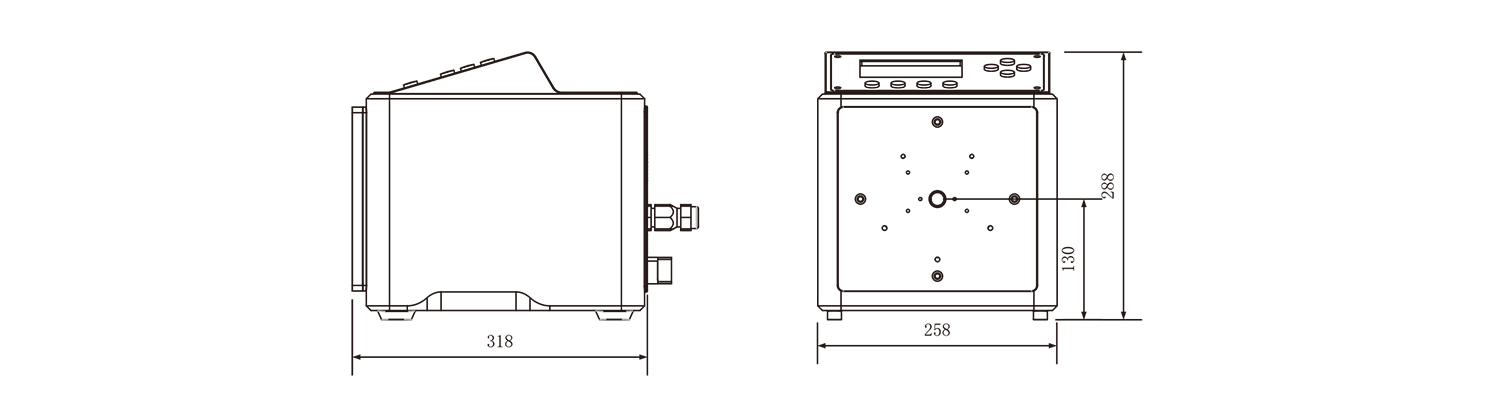

Dimension(mm)
Applications
Application fields: Biopharmaceuticals, Petrochemical, Mining, Printing and Dyeing Industry, Food Industry and More.
Typical applications: Coating and Granulation, Flammable Liquid Filling, Chemical Synthesis Reactions,Petroleum Refining, etc.
