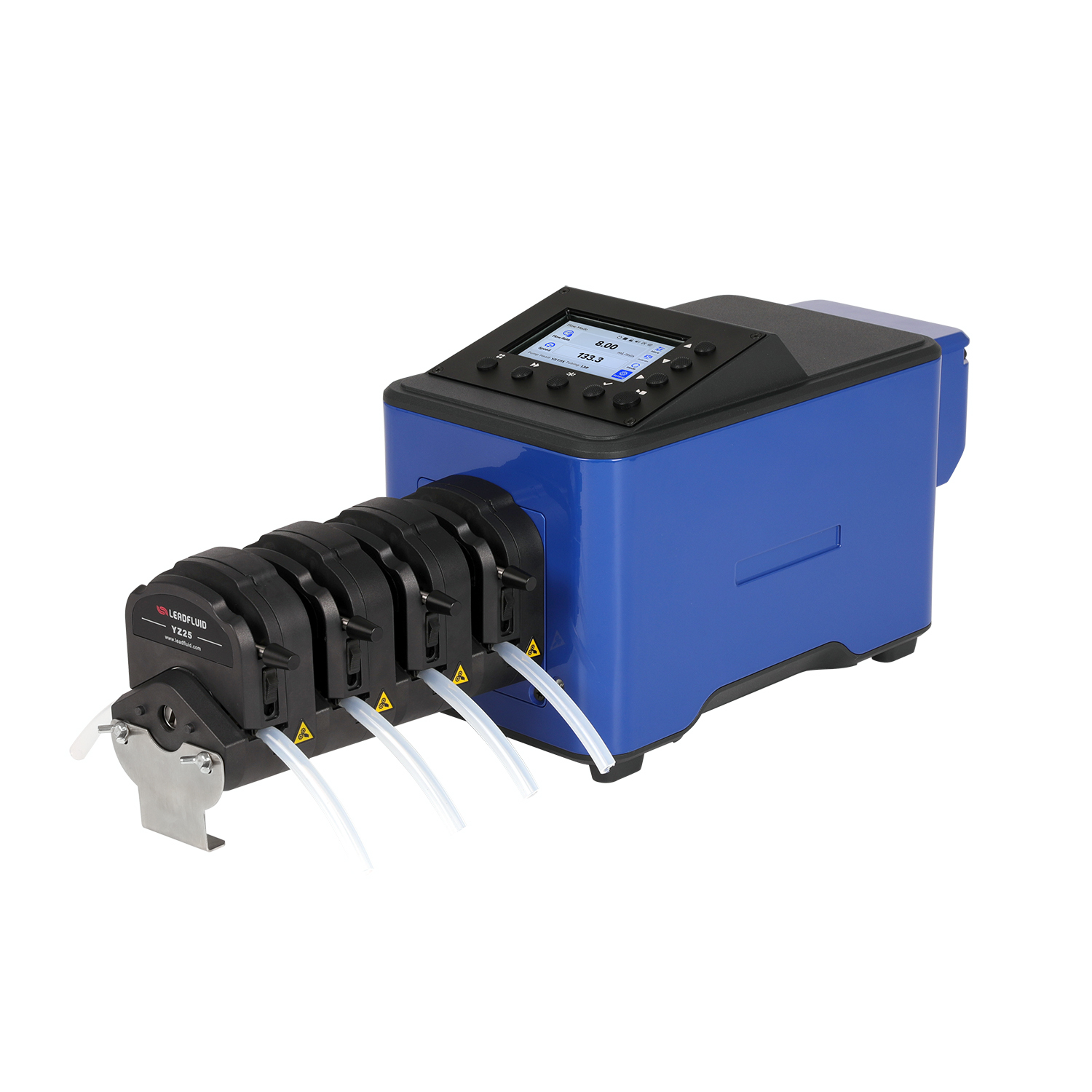

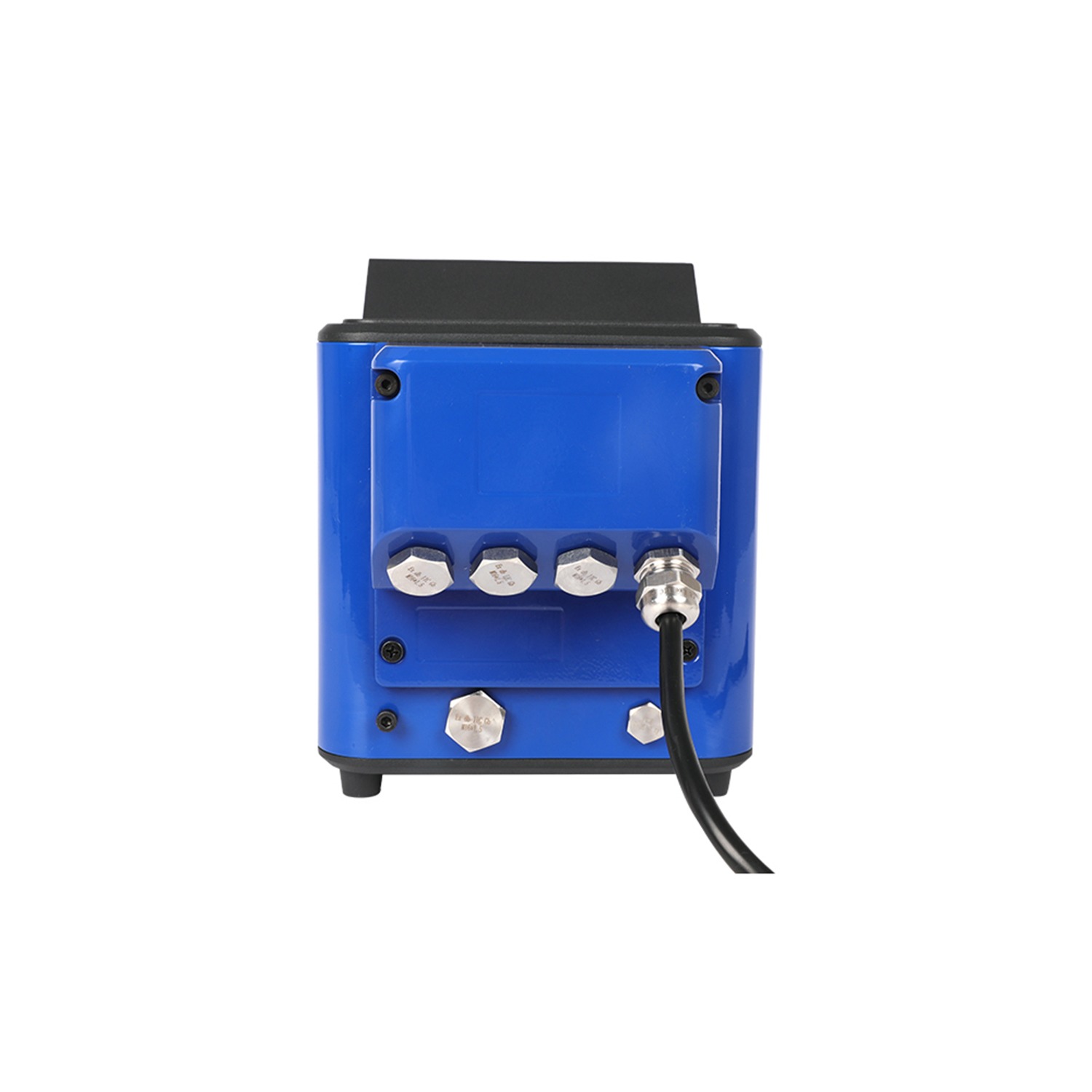

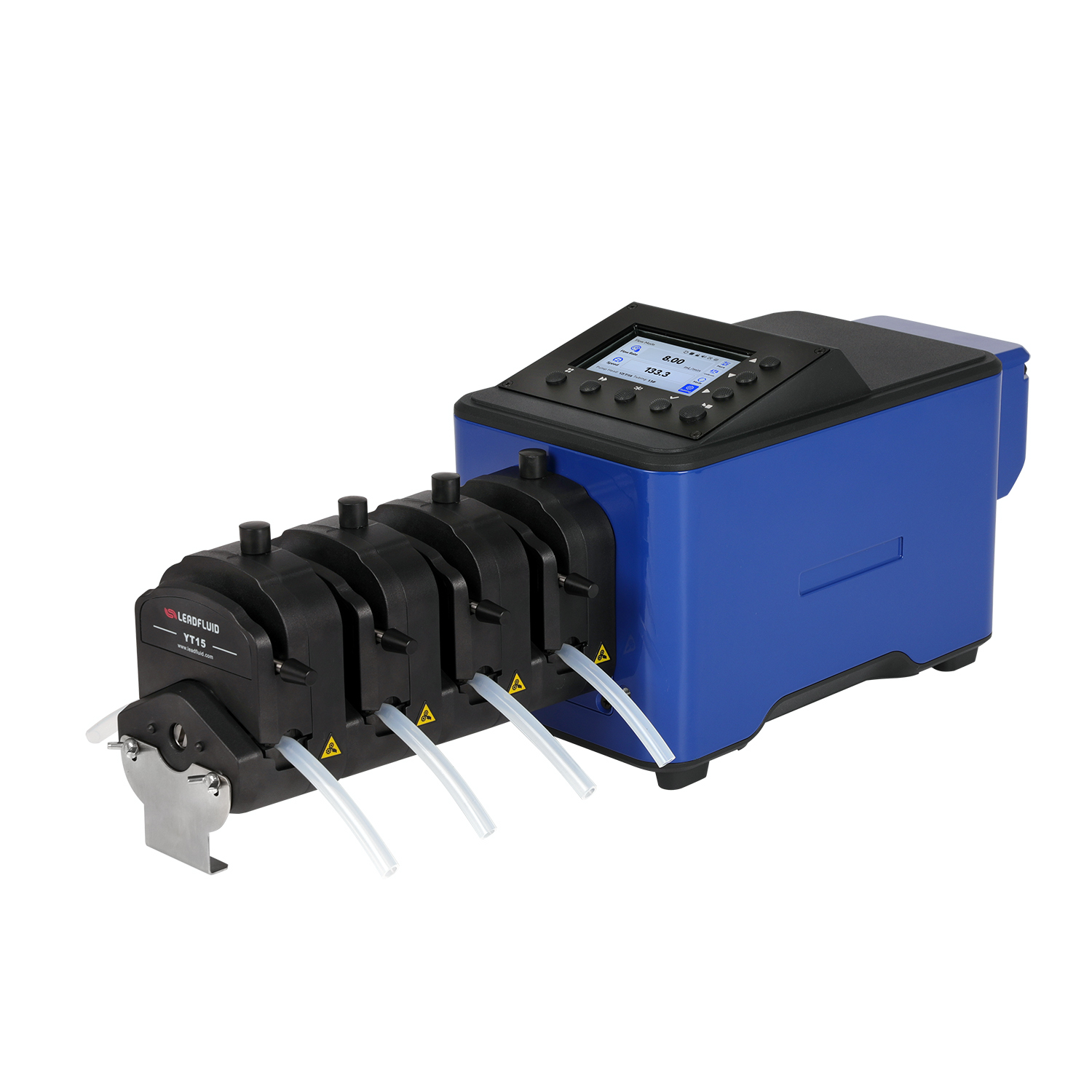

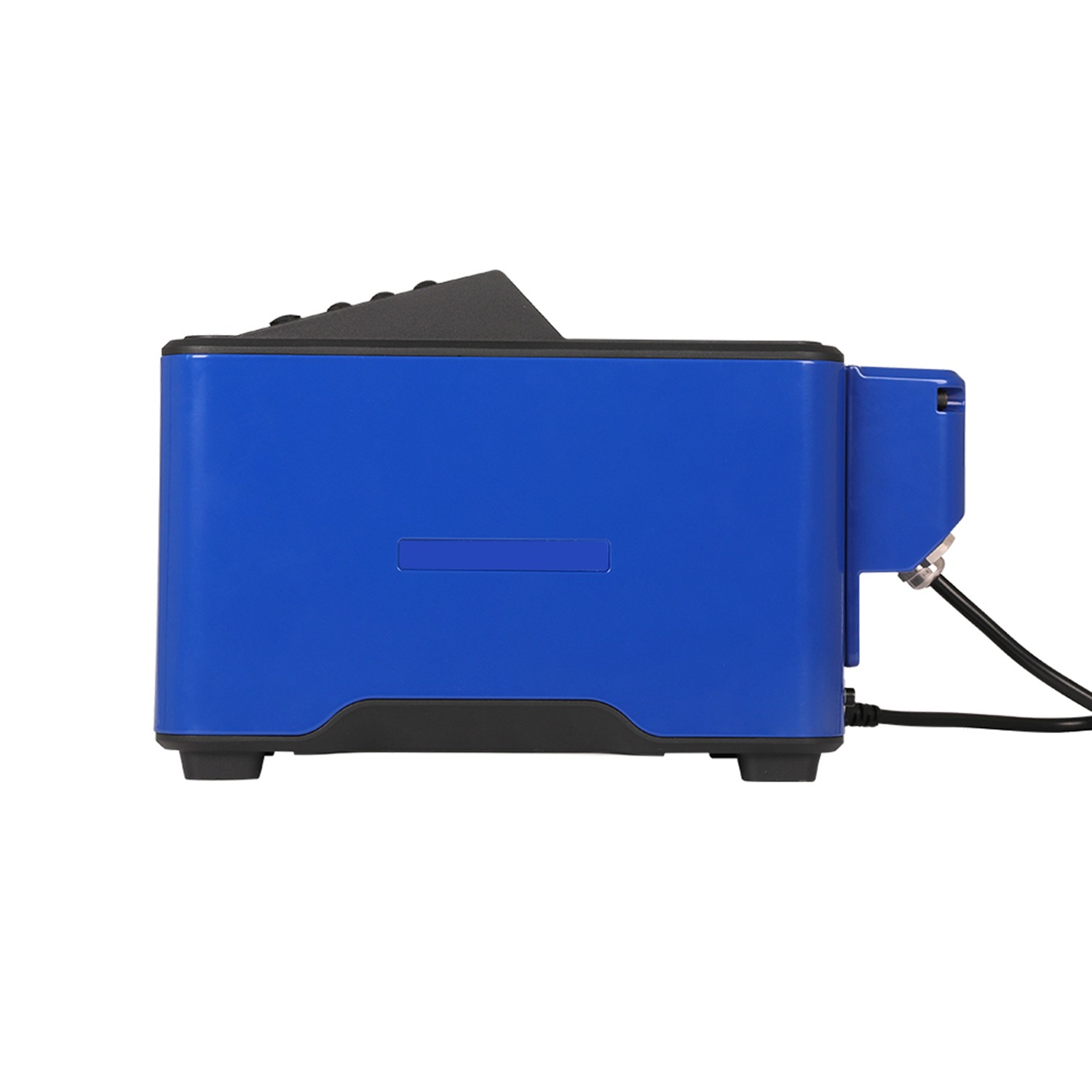

Functions and Features
• Minimalist design: Easy to clean, no dead corners, compliant with GMP regulations.
• Compact size, powerful energy: Integrated small explosion-proof drive, aluminium alloy shell, high strength.
• 4.3-inch screen, wide viewing angle: Clear display from all angles.
• Explosion-proof buttons: Explosion-proof, dust-proof, waterproof, multiple protections for enhanced safety.
• IP66 protection for the entire unit: Specifically designed for industrial environments.
• Four working modes: Offers flow mode, volume dispensing mode, time dispensing mode, and external control mode for flexible adaptation
to various scenarios.
• Smart connectivity, collaborative operation: Supports RS485 communication, network communication, compatible with Modbus protocol.
• Three-level user permission management: Secure protection against unauthorized parameter changes.
• Selected top-tier brand materials: Quality assured through meticulous selection of materials from top brands.
• Patented calibration method: Shortens calibration time by three times compared to conventional methods, reduces liquid usage by three times.
Specifications
Explosion proof level: Ex tb IIIC T130℃ Db
Explosion proof standard: GB/T 3836.1-2021 GB/T 3836.31-2021
Flow range: 1800mL/min
Speed range: 0.1-360rpm
Speed resolution: 0.1 rpm
Speed accuracy: <±0.2%
Display: 4.3 inch industrial grade color LCD screen
Operation: Explosion proof button with 8 keys
Working mode: Flow mode, volume dispensing mode, time dispensing mode, external control mode
Delay start time: 1S-999H
Scheduled Working Time: 1S-999H
Working time: 0.01-99.99S/M/H
Dispensing volume: 0.1ul-9999L
Dispensing time: 0-9999，0 means circle
Dispensing interval time: 0.1-999.9S/M/H
Suction angle: 0-720
External control signal input: (1) Start/Stop: External control input level (5~24V), (2) Forward/Reverse: External control input level (5~24V), (3) Speed Regulation: Analog 0~5V, 0~10V, 4~20mA can be set.
External control signal output: (1) Start/Stop: Level Signal (following input voltage), (2) Forward/Reverse: Level Signal (following input voltage), (3)Analogue output 0~5V
Communication interface: RS485，RS232，Ethernet support Modbus protocol
Power supply: AC 100-240V 50Hz-60Hz
Power consumption: <180W
Working environment: Temperature 0 ～ 40℃, relative humidity＜80%
Shell material: Aluminum
IP grade: IP66
Driver dimension(L×W×H): 363*180* 230mm

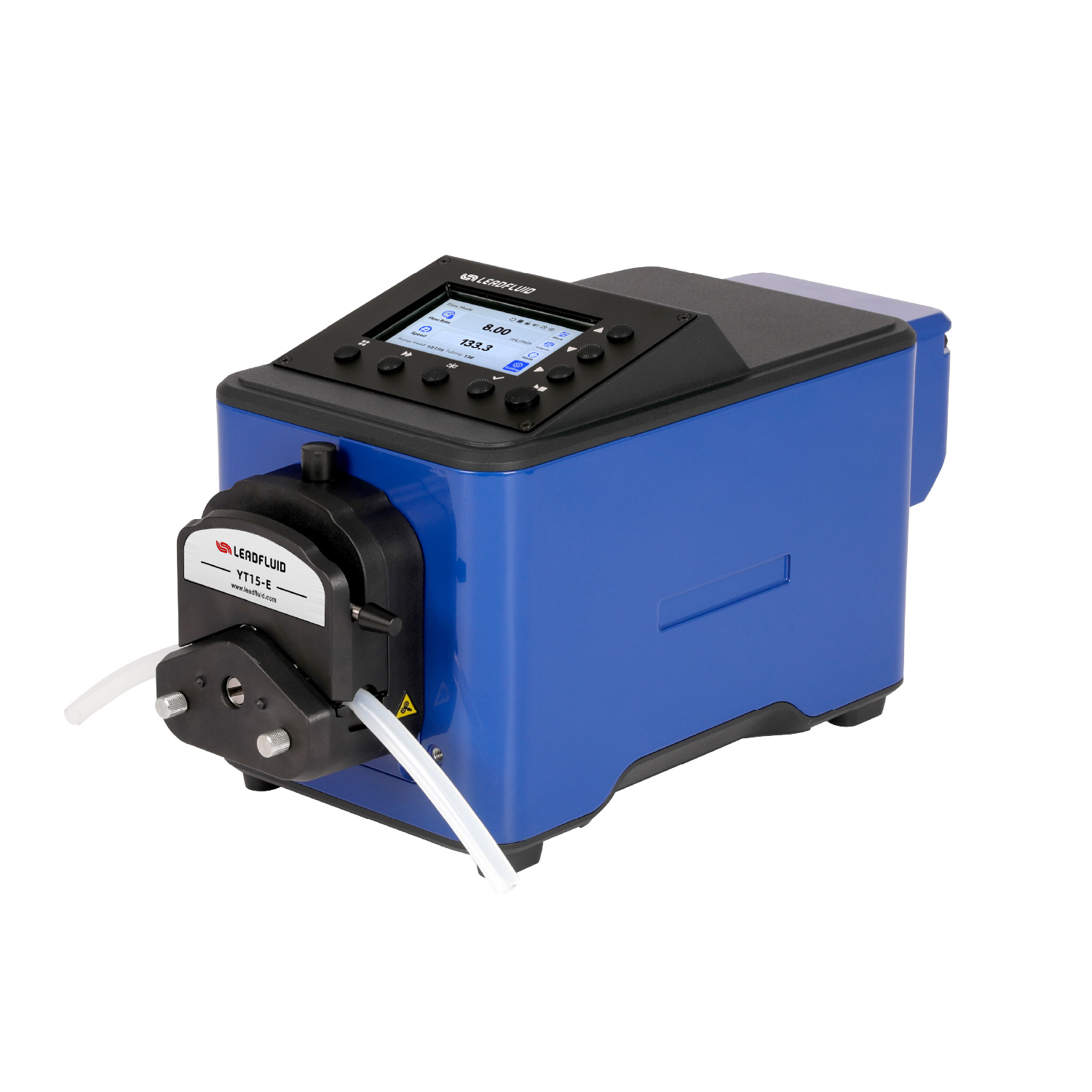

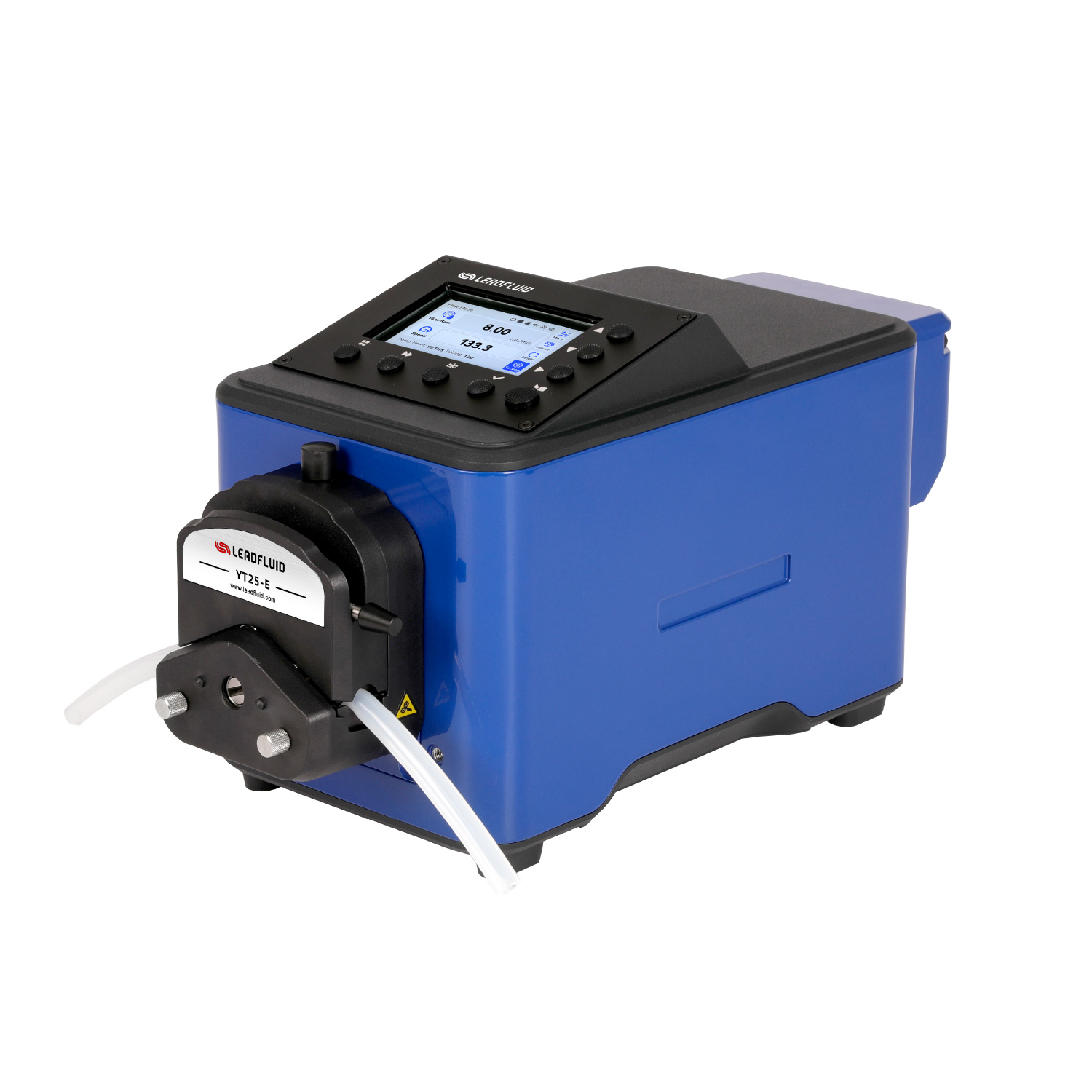

EF803 Suitable Pump Heads and Tubing, Flow parameters

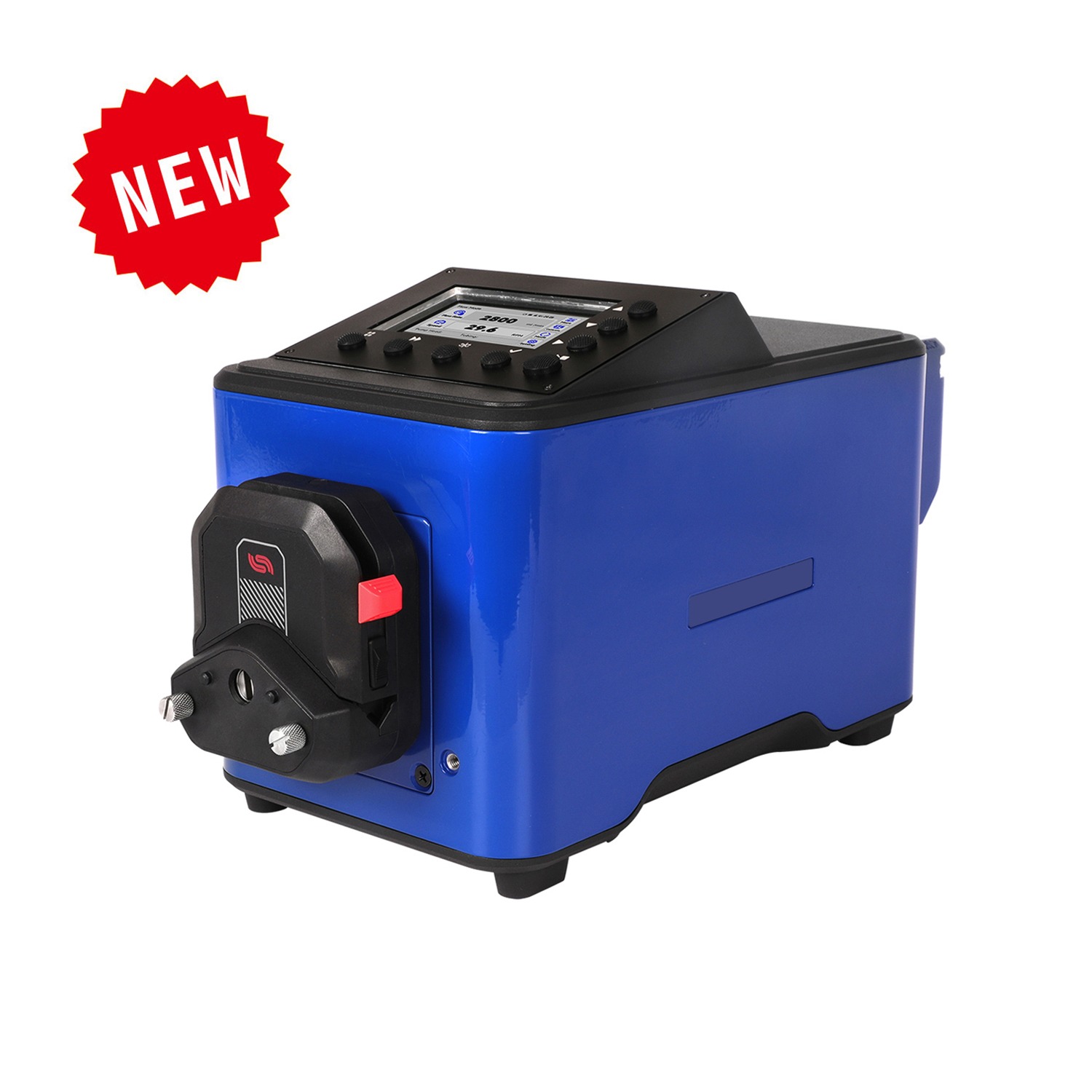

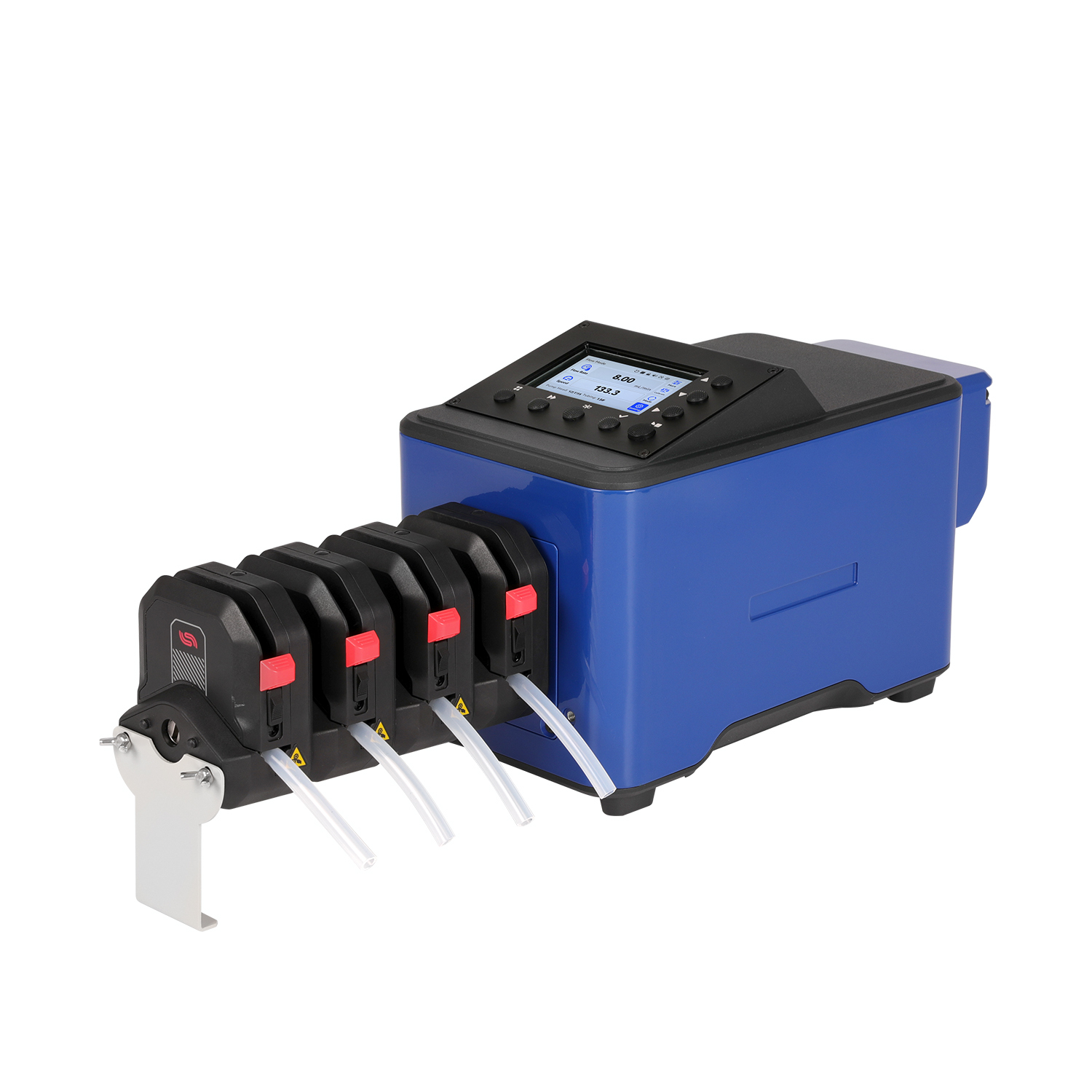

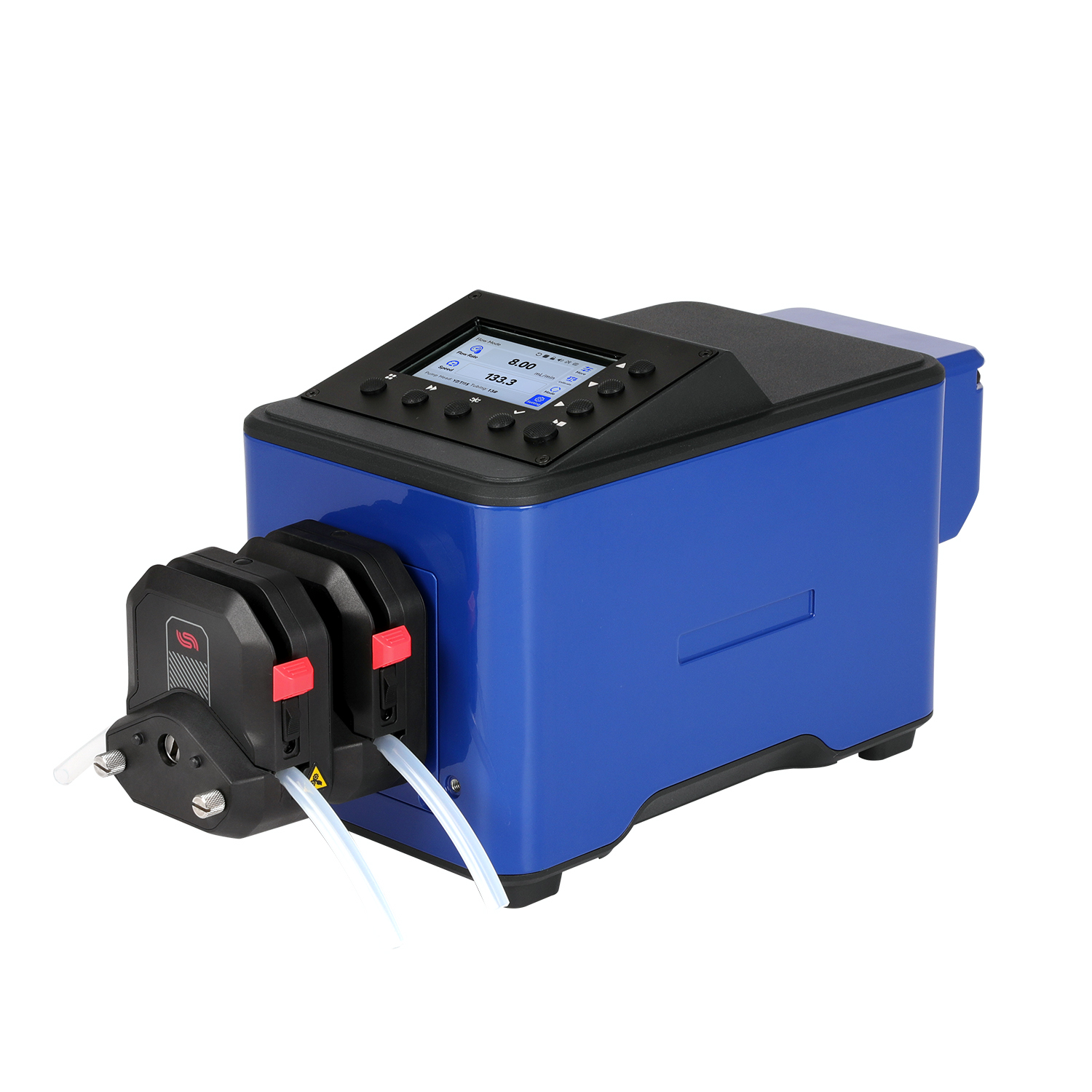

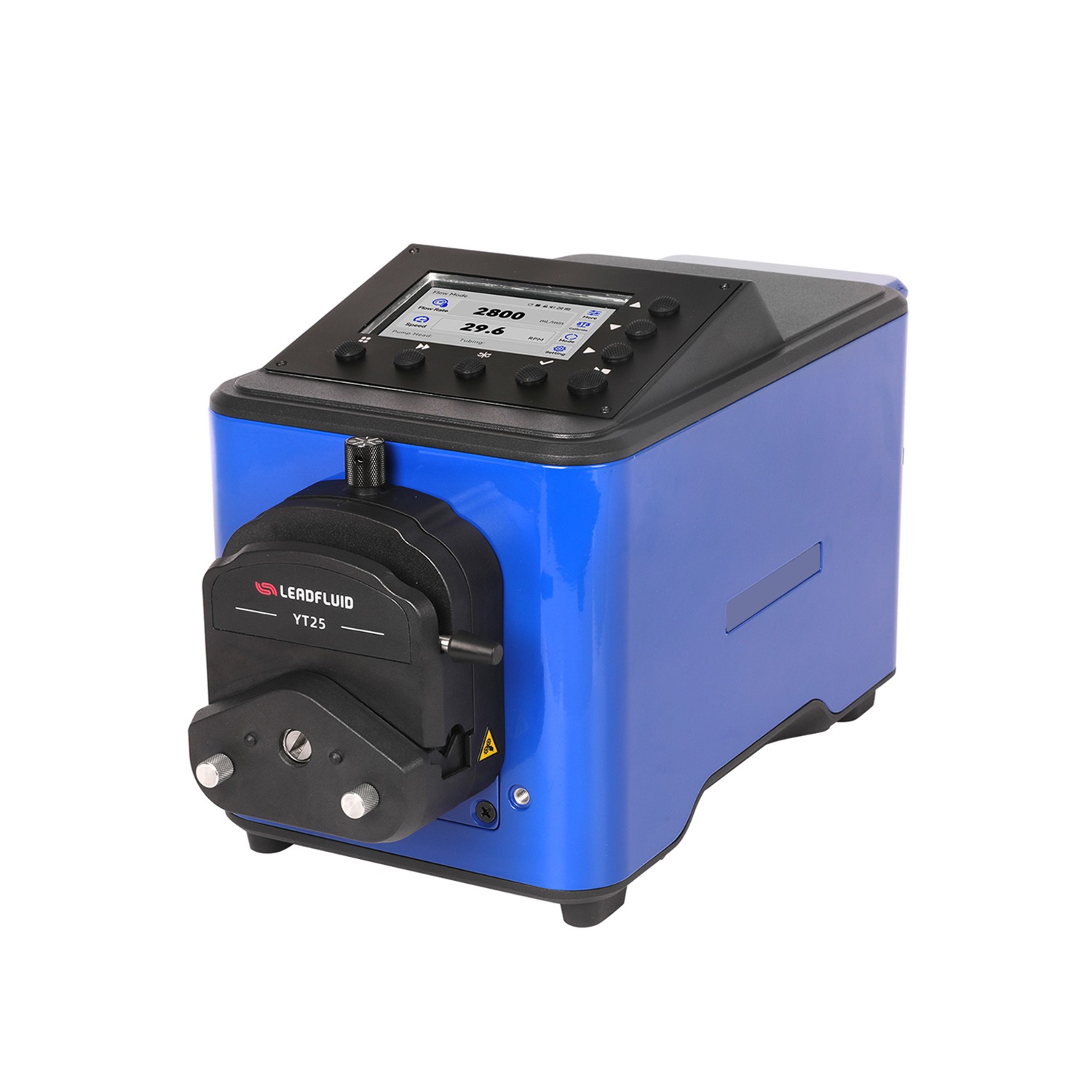

| Pump Head | Channels | Max Speed | Tube Material | Tube Model | Max Flow（mL/min） |
| EF803-YZ15T | 1,2,4 | 360rpm | All series | 13# 14# 19# 16# 25# 17# 18# | 1620mL/min |
| EF803-YT25 | 1,2 | 360rpm | All series | 15# 24# 35# 36# | 1800mL/min |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.
Dimension(mm)
