Feature
• Compliance with Industry Standards, Reducing Risks
GMP Compliance: Made of stainless steel with a simple design that has no dead corners, effectively preventing cross-contamination.
3Q Certification: Supports validation documentation and automatically records operation logs to ensure compliance.
• Intelligent Operation, Easy Management
Formula Management: Supports USB import/export with customizable naming (including Chinese) to enhance production efficiency.
Video Guidance: Intuitive operating instructions to help new users get started quickly.
Filling Count and Interval Settings: Flexible configuration to meet semi-automatic production needs.
• Stable and Efficient, Precise Filling
Online Fine-Tuning: Allows quick adjustments to filling errors to ensure accurate filling.
Supports Connection to Weighing Platforms: Automatic calibration, eliminating tedious debugging, and quickly entering production.
Flexible Channel Settings: Independent control for single channels or one-key copying to other channels to easily accommodate
multi-batch production needs.
• Modular Design, Easy Maintenance
Quick Replacement: Channel modules can be easily assembled and disassembled, reducing downtime.
Aviation Connectors: Stable connections with standardized external control lines, ensuring long-term stable operation of the equipment.
• Flexible Expansion, Supporting Future Capacity Upgrades
32 Channel Compatibility: Adapts to complex processes and supports capacity expansion.
Separate Control: Can be suspended or laid flat, with flexible layout to easily adapt to different production spaces.
Technical parameters
Flow range: 0.005~3000mL/min
Filling range: 0.01~9999.99mL
Speed range: 0.1~600rpm
Speed resolution: 0.1rpm
Speed accuracy error: ＜±0.2%
Number of channels: 3/4/5 channels, Supports up to 32-channel cascading
Filling time: 0.01S-9999.99S
Pause time: 0.01S-9999.99S
Loop count: 1-999999(0 for infinite cycles)
Direction control: Freely adjustable bi-directional rotation
External control signal: Start signal input (dry contact); Distributed signal output (open-drain with weak pull-up)
Power voltage: 100-240VAC
Display: 7-inch HD color touchscreen
Operating environment: Ambient temperature 0~40℃, relative humidity <80%
Shell material: Stainless steel shell
Dimensions(L×W×H): Three channels 550mm×183mmx260mm
Four channels 705mm×183mmx260mm
Five channels 855mmx183mmx260mm
Controller Dimensions: 227.2mmx163.6mmx49.6mm
IP Grade: IP31
Weight: 13.69kg(3channels); 17.4kg(4channels); 20.98kg(5channels)

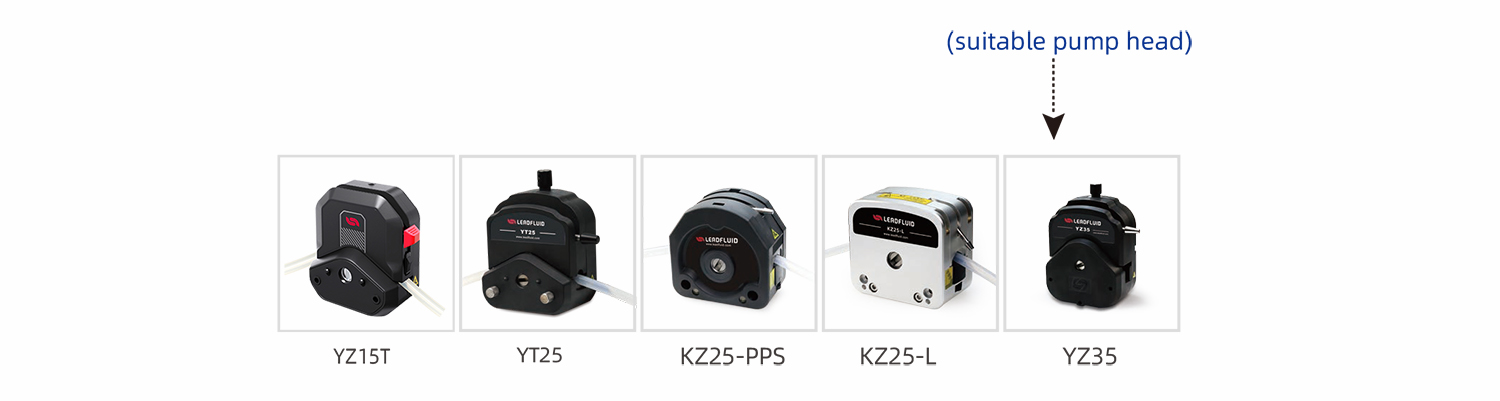

Filling Application Reference Table
| Drive Type | Pump Head | Pump Head Cascade Channel | Tube | Speed (rpm) | Filling Accuracy | Single Channel Flow Rate (mL/min) |
| DS600 Series | YZ15/YZ15T | 3 | 13#14#19#16#25#17#18# | 500 | ±1% | 0.005~2562 |
| YZ25 | 3 | 15#24# | 500 | ±1% | 0.17~1750 | |
| YT15 | 3 | 13#14#19#16#25#17#18# | 500 | ±1% | 0.006~2700 | |
| YT25 | 3 | 15#24#35#36# | 500 | ±1% | 0.18~3000 | |
| DMD15 | 3 | 13#14#19#16#25# | 500 | ±1% | 0.1~2070 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

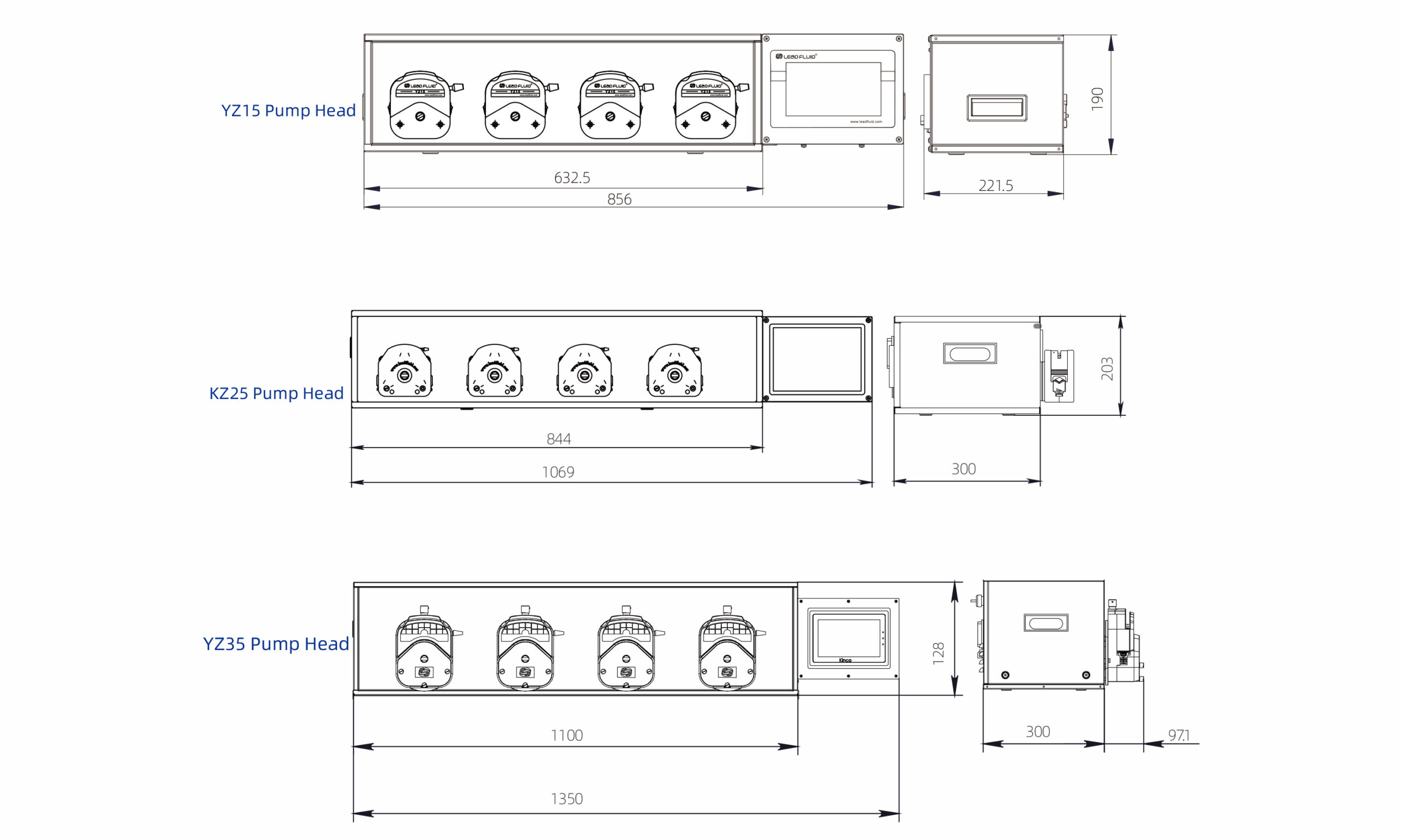

Dimension (mm)
Three Pump Head Filling System

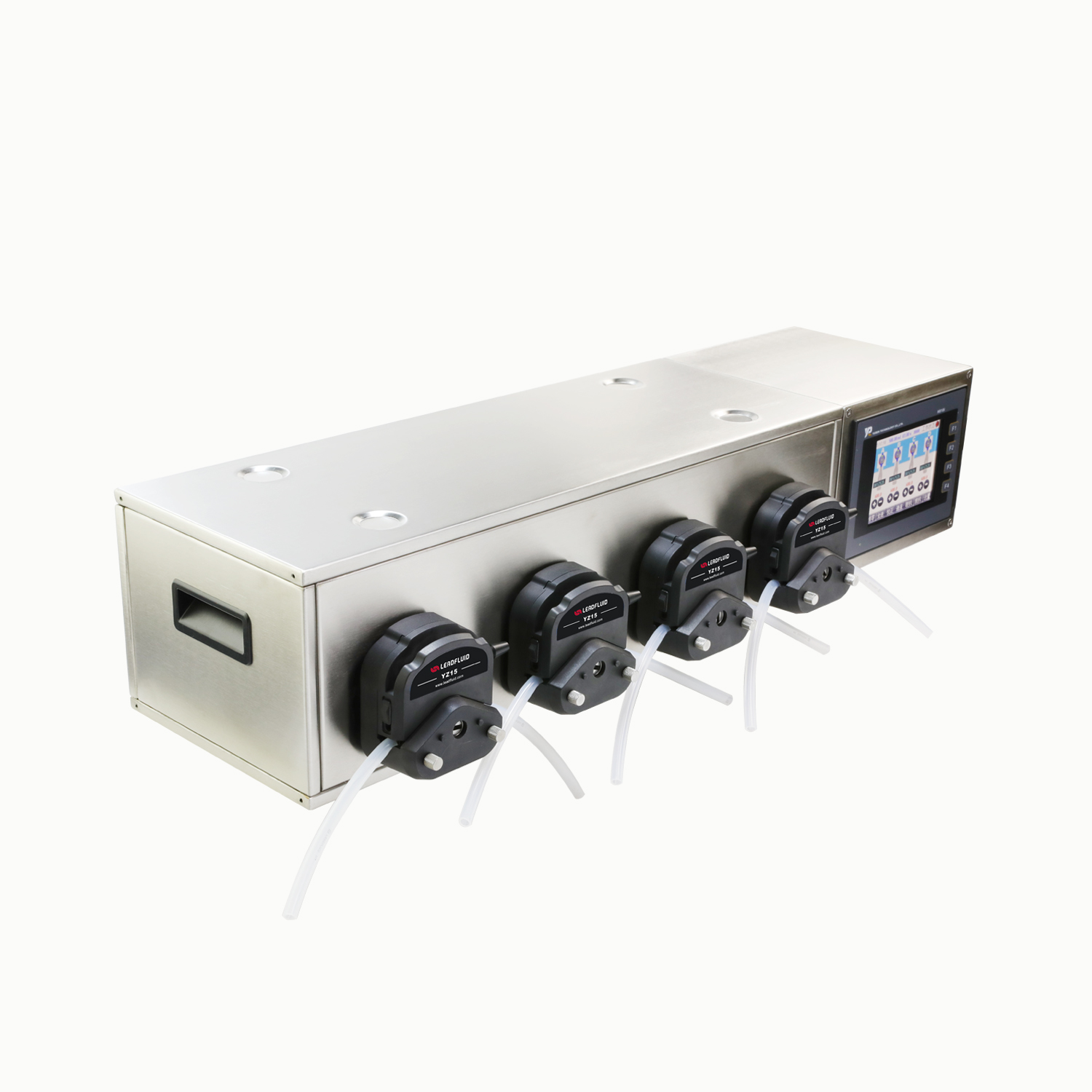

Four Pump Head Filling System
Application Fields:
Biopharmaceuticals, Food, Chemical, and other sectors
Typical Applications:
Lyophilized powder production filling lines, Oral liquid filling lines, Disinfectant filling lines
Statement: The final explanation right of above information belongs to Lead Fluid.
