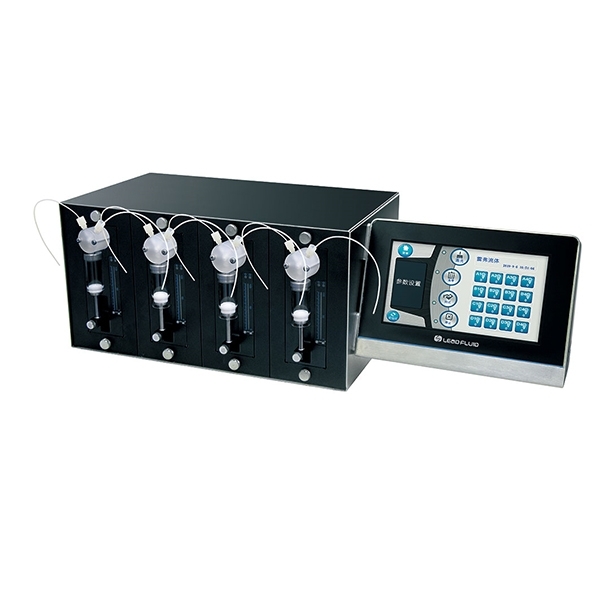

DF30-G Series Micro Syringe Pump Dispensing System

Lead Fluid DF30-G series are suitable for 10μl~5ml, high-precision dispensing of aqueous liquids. Manual operation and automatic control modes ,cooperate with automatic filling production line.

DF30-G micro syringe pump dispensing system has the characteristics of simple operation, high precision and strong reliability. It is widely used in the filling of various diagnostic reagents, drug research and development, genome and proteomics research.

Function

7 inch color touch screen, simple operation, .
It can support 1-15 channels working at the same time, independent control of each channel.
With pretreatment functions such as filling and cleaning.
High repeat accuracy, no need for multiple calibration.
5 groups of parameters can be stored and customized for easy to choose.
No consumables, greatly saving maintenance costs.
Manual operation (with Footswitch) and supporting automated production line.

     Main Interface

Parameters

Filling Volume
10μl~5ml(>30% of syringe capacity)
Volume Error
0.0001~24Erro≤1%(rated stroke)
Reliablility Error
CV≤0.05%(rated stroke, 25℃ deionized water , 1ml syringe)
Rated Stroke
30mm
Dispensing Time
1.2 S~100 Min(rated stroke)
Withdraw Time
1.2 S~100 Min(rated stroke)
Pause Time
0.1~999 S
Working Times
Single running signal
Wetted Material
Borosilicate glass, PTFE, PCTFE
Syringe Fitting
1/4-28 inner thread fitting
Syringe Size
25μl~5ml
Running Signal
24V level signal input, high level effective(Synchronized control of each channel)
Lack bottle stop
24V level signal input, high level effective(Individual control of each channel)
Dimension
540×235×170mm(4 Channels)
Shell Material
SS304
Power supply
AC100~240V,50/60Hz,200W
Environment
Temperature15℃~40℃,Relative humidity<80%
Weight
10KG(4 Channels)

Dispensing Precision ( 25℃, deionized water )

Volume
Filling time
Withdraw time
Volume erro
CV
Syringe size
Diameter mm
10μl
0.5S
0.8S
3.0%
2.0%
25μl
1.0×1.6
30μl
0.5S
0.8S
2.0%
1.0%
100μl
1.0×1.6
50μl
0.8S
1.0S
1.0%
0.2%
100μl
1.0×1.6
100μl
0.5S
1.0S
1.0%
0.2%
250μl
1.0×1.6
300μl
0.5S
1.0S
1.2%
0.5%
1000μl
1.0×1.6
500μl
0.8S
1.0S
1.0%
0.1%
1000μl
1.0×1.6
1000μl
1S
1S
1.0%
0.1%
2.5ml
1.5×3.2
3000μl
2S
2S
1.0%
0.1%
5ml
1.5×3.2
5000μl
3S
4S
1.0%
0.05%
5ml
1.5×3.2

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
