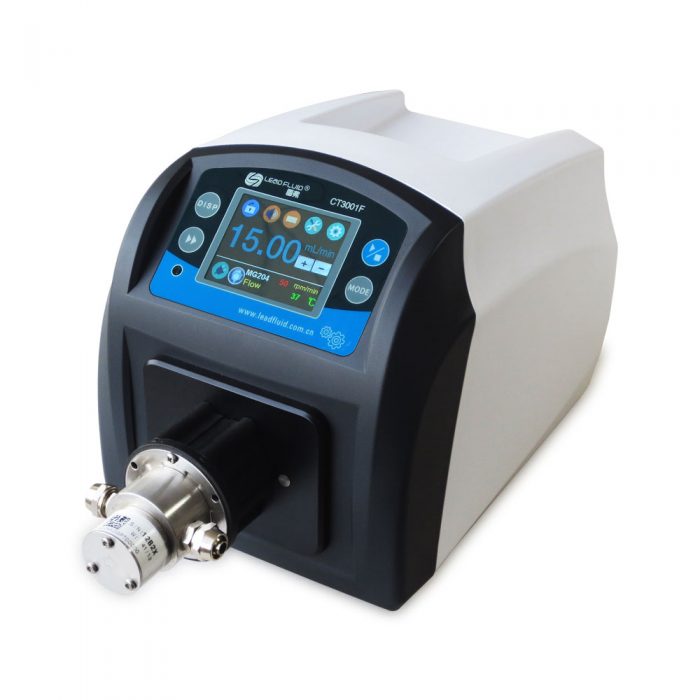

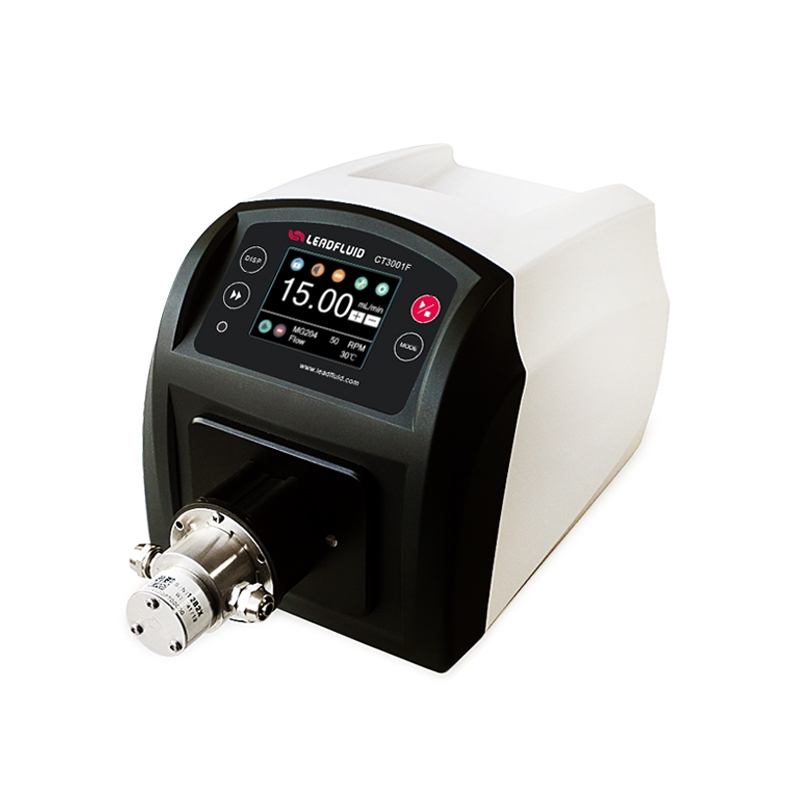

Function and Feature
• Can install various pump heads.
• Suitable for transmission more viscous, high pressure liquid.
• No pulsation transmission, low noise.
• The magnetic coupling is designed, easy to maintain.
• Brushless servo drive, high efficiency, high ac curacy, maintenance-free.
• Color LCD display, touch screen operation.
• LF-Touch-OS software system.
• Flow display and control.
• A variety of work mode.
• Flow calibration wizard, ensure the ac curacy of fluid volume.
• Intelligent temperature control function.
• External control signal control, physical isolation, analog control.
• RS485 communication, support MODBUS pr otocol.
• Wide range of power input, adapted to different environment.
Technical Parameters
• Flow range: 15~2700 mL/min
• Speed range: 50~3000rpm
• Speed resolution: 1rpm
• Working mode: Flow rate mode,time dispensing,volume dispensing,copy dispensing
• Dispensing time: 0.1～999S
• Transport limitation of liquid particles: Particles ID≤10μm（recommended pre-filter）
• Transmission liquid viscous: ≤200cSt
• Analog input signal: 0～5V (Standard),0～10V,4～20mA (Optional)
• Speed output signal: 0～5V
• External control signal: 5V,12V(Standard),24V (Optional)
• Communication: RS485 communication，MODBUS protocol
• Working environment: Working temperature 0～40℃, relative humidity＜80%
• Power supply: AC100-240V，50/60Hz
• Power consumption: <50W
• IP grade: IP31
• Dimension(L×W×H): 293×180×198mm
• Shell material: Plastic shell
• Weight: 3.5kg
Applicable Pump Head and Tube, Flow
| Drive Type | Drive Type | Gear Material | Speed Range(rpm) | Transfer Pressure(Mpa) | Flow Range(mL/min) |
| CT3001F | MG204XD0PT00000 | PEEK | 50～3000 | ≤0.8 | 15～900 |
| MG209XD0PT00000 | ≤0.8 | 30～1800 | |||
| MG213XD0PT00000 | ≤0.3 | 45～2700 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
Dimension(mm)
Statement：The final explanation right of above information belongs to Lead Fluid.
