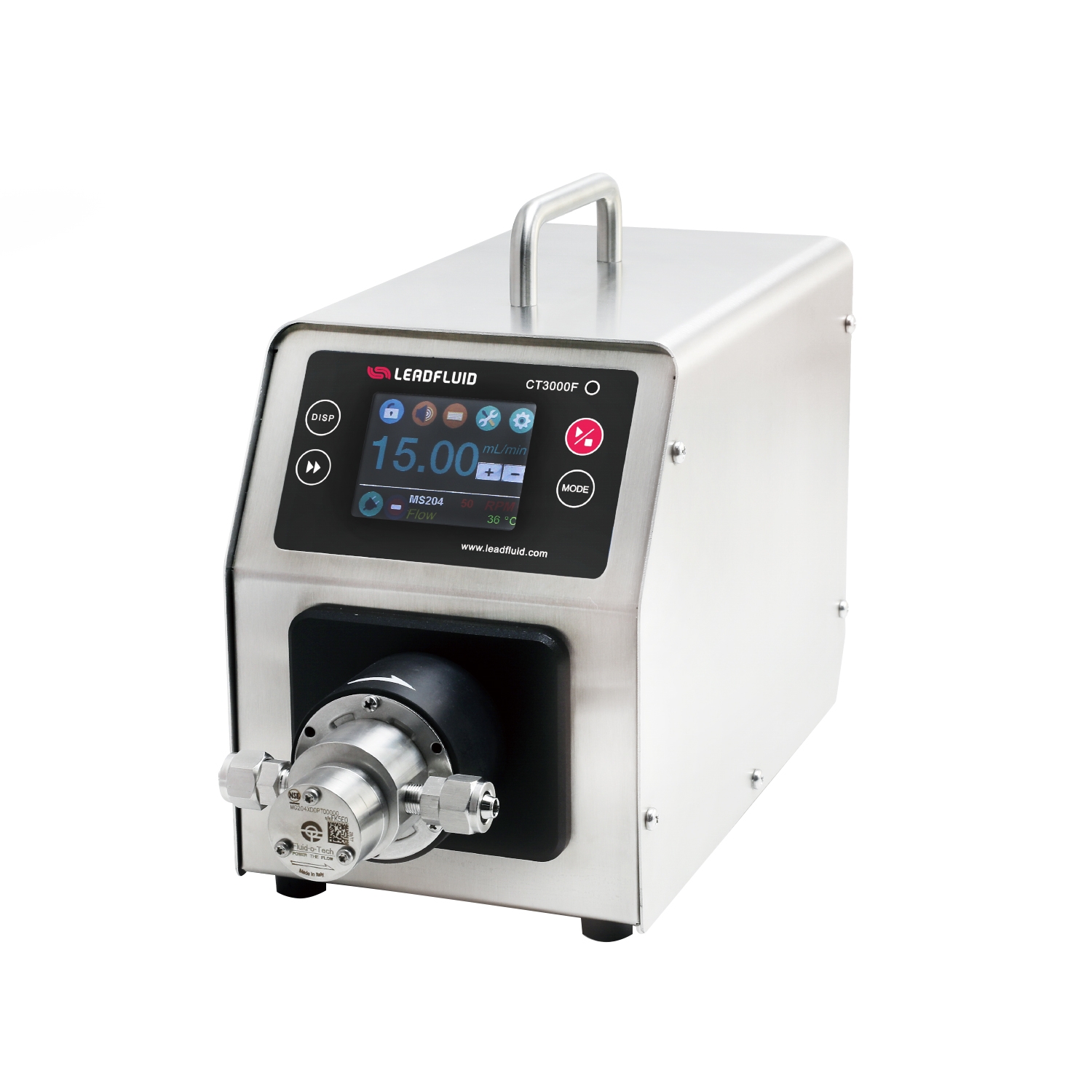

CT3000F Micro Gear Pump

Product introduction

CT3000F is a high performance, low noise of micro gear pump, brushless servo motor, stainless steel, magnetic drive pump can be realized without pulsation, constant velocity of the fluid flow control.Drives using stainless steel house, color LCD display, touch screen operation, can be easily set parameters.A variety of work mode, flow display, and are suitable for all kinds of experimental areas.A variety of external control way, convenient use together with other devices, more the MODBUS protocol communication, simplify the difficulty of system development.

   CT3000F work speed 50-3000 rpm/min, speed resolution 1rpm

Flow: 15-2700 mL/min
Max: 1 Channel
SKU: CT3000F Category:

Description

Function and Feature
 • It can be installed a variety of pump heads
•  This pump is suitable for transmission more viscous, high pressure liquid
•  No pulse transmission, low noise
•  Magnetic coupling is designed, easy to maintain
•  Brushless servo drive, high efficiency, no maintenance
•  Choose color LCD display, touch screen operation
•   Display and control the flow rate,
•   It has a variety of working mode
•   Flow calibration wizard, ensure the accuracy of fluid volume
•   Intelligent temperature control function
•   External control signal control, physical isolation, analog control
•   RS485 communication, support the MODBUS protocol
•   Stainless steel house.
•   Wide range power input, adapted to different environment

CT 3000F technical parameters

Main function

Pump headMS204,MS209,MS213
Functionskeypad to control start-stop, direction, speed, memory (power lost memory);Foot switch control, external start-stop and external control direction,with physical isolation,input level 5 v / 12 v / 24 v input is optional;0 to 5 v / 0 to 10 v / 4-20 mA speed optional; flow mode,fluid volume distribution mode, time distribution mode, copy distribution mode.
CommunicationRS485,Support Modbus communication protocol
DisplayColor LCD display
DirectionUnidirectional

Main performance

Flow range15-2700 mL/min
Speed range50-3000 rpm/min
Speed resolution1rpm/min,accuracy:0.5%
Time dispensing0.1-999 secpmds
Pause time0.1-999.9 seconds
Dispensing times0-999S
Ajusting waykeypad and touch screen operation
Display mode65565 Color LCD
power supplyAC 100-240V 50Hz/60Hz
Consumption<150W
work environmentEnvironment 0 -40℃ ,humidity <80%
dimension size320*150* 237mm
Drive weight5.5kg
IP standardIP31

» CT 3000F suitable pump head

Pump headGear materalPressure (MPa)Flow range (mL/min)Liquid temperature℃
MS204XD0PT00000PEEK≤1.415-900-45-120
MS209XD0PT00000PEEK≤0.930-1800-45-120
MS213XD0PT00000PEEK≤0.845-2700-45-120

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
