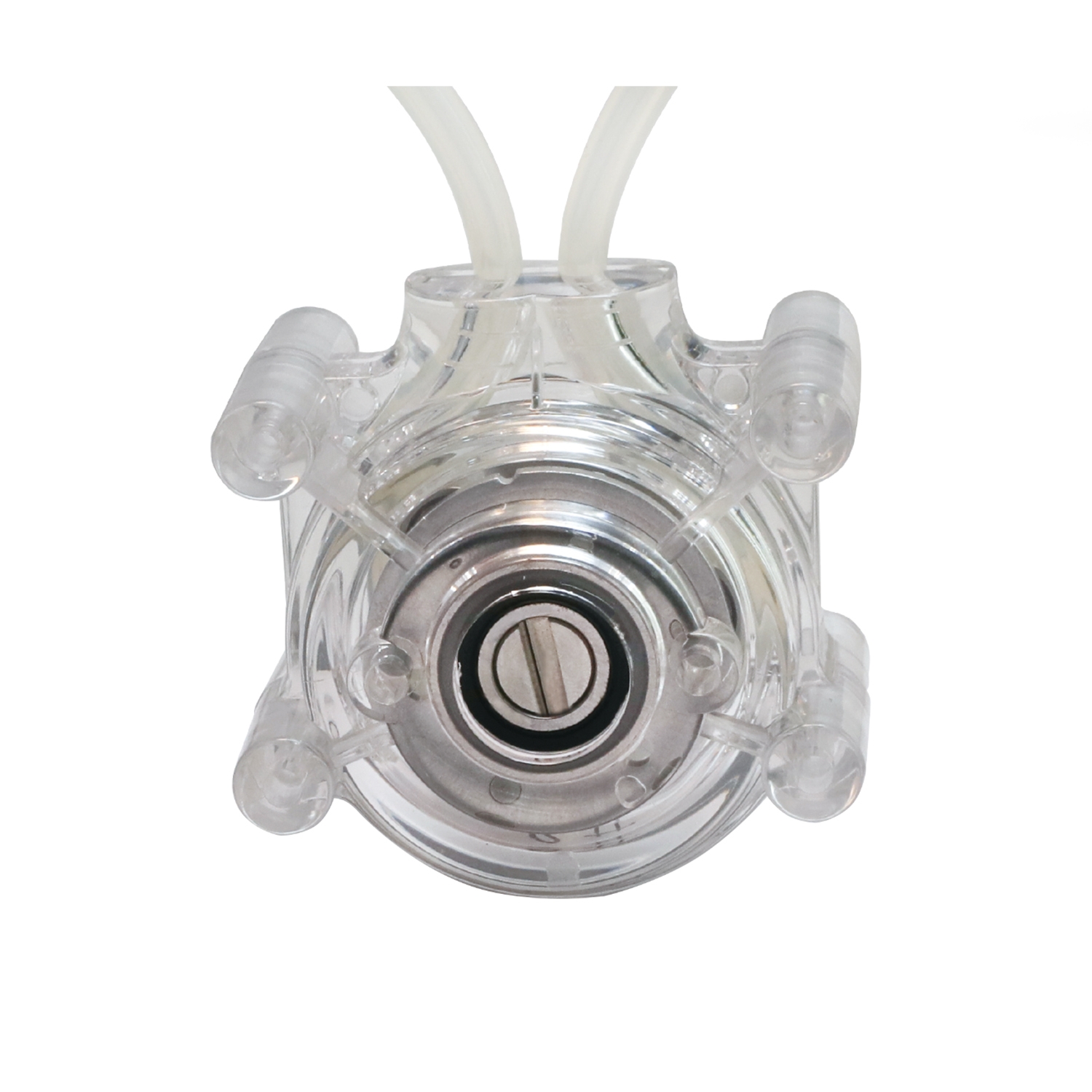

BZ Peristaltic Pump Head

■ Lead Fluid BZ series pump head max flow rate 2100 mL/min, can be cascade multiple pump heads.
■ The ingenious pressure tube structure ensures very low transmission pulsation without increasing the roller,highest transmission accuracy and repeatability.
■ Each type of pump head corresponds to a special one size tube. It has better performance and longer service life than general pump head.
■ The shell material can be PC or PPS, the PC is transparent and easy to observe the internal operation of the pump head, PPS is better chemical res istance.
■ The roller adopts 304SS, can work long time with high speed.
■ Support two kinds of tube fixed way the whole tube and built-in t ube connector, strong applicability.
■ Classic design, stable structure, high cost performance，It can be widely used in various small and medium-sized instruments and e quipment.

Flow: 0.0033~2100mL/min
SKU: BZ25 Category: Tag:

BZ15Pump Head:BZ15-13#（suitable for 13# tube）
BZ15-14#（suitable for 14# tube）
BZ15-19#（suitable for 19# tube）

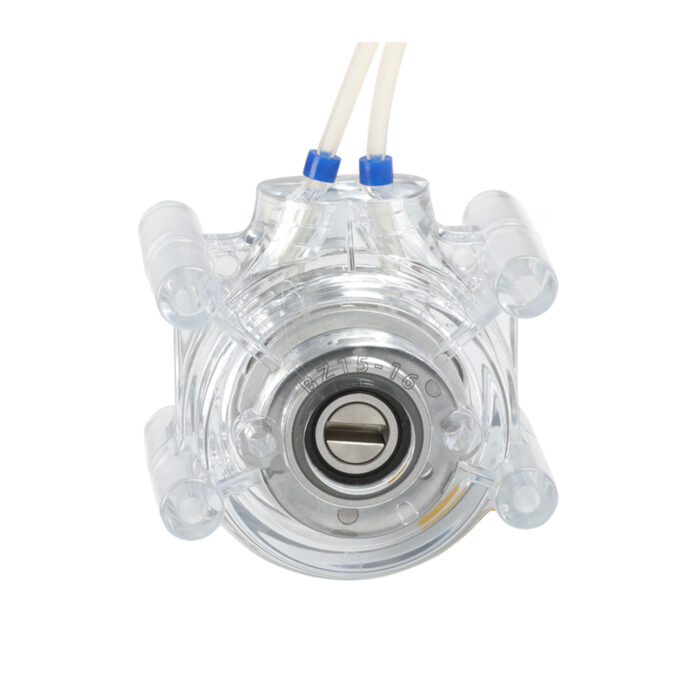

BZ15-16#（suitable for 16# tube）
BZ15-25#（suitable for 25# tube）
BZ15-17#（suitable for 17# tube）
BZ15-18#（suitable for 18# tube）

BZ25Pump Head:BZ25-15#（suitable for 15# tube）
BZ25-24#（suitable for 24# tube）

Flow Parameters BZ15

Tube material: Silicone,Pharmed,Viton,Norprene.etc. Wall thickness 1.6mm

ID(mm) 0.8 1.6 2.4 3.1 4.8 6.4 7.9
Tube 13# 14# 19# 16# 25# 17# 18#
mL/rpm 0.033 0.18 0.43 0.67 1.7 3.0 3.5
mL/min( continuous working max 100rpm) 20 110 260 400 1020 1800 2100

Flow Parameters BZ25

Tube material: Silicone,Pharmed,Viton.etc. Wall thickness 2.4mm

ID(mm) 4.8 6.4
Tube 15# 24#
mL/rpm 1.8 2.6
mL/min( continuous working max 100rpm) 1056 1560

The above flow data wer e obtained from the tests using a silicone tube to tr ansfer pure water under normal temperature and pressure conditions in the Leif labor atory. This data is f or reference only.

Pump Head Specification

•Flow Range: 0.0033~2100ml/min
•Speed Range: 0.1~600rpm/min
• Shell Material: PPS\PC
• Roller material: SS304
• Roller: 3
•Tubing method: Tube connector built-in\The whole tube
•Clearance adjustment: Fixed clearance

•Motor: Stepper motor\DC gear motor\AC gear motor

Dimension (mm) (BZ15)



Dimension (mm) (BZ15)

Dimension (mm) (BZ25)


Tube Life Comparison Table

Notes：
For longer tube life, use thick tubes and low rotational speeds ; If a large flow rate is required, use a thick tube and high speed; Fo r higher accuracy, use thin tubes and medium to high speeds; For higher suction lift and back pressure, use thinner thick walled tubes and lower rotational speeds.

Statement：The final explanation right of above information belongs to Lead Fluid.
