Introduction
• Suitable for various kinds of pump head.
• Small size, compact structure, beautiful appearance.
• Low operating noise.
• Suitable for high-speed continuous operation.
Parameters
Motor Type: 57 stepper motor
Voltage: DC24V-DC40V
Wattage: <65W
Speed Range: ≤600rpm
Adaptable Pump Head: YZ15,YZ15T,YZ25, DT10, DT15, YT25, YT15, BZ15, BZ25, DG6, DG10, DS6, DS6, DS10,
Rotation Direction: Clockwise/Counterclockwise rotation
Pump Head Bracket Material: ABS-D1200 plastic
Mounting Plate Material: Q235A carbon steel
Pump Head Life: ≥6000h
Noise: <60dB (test environment noise ≤40dB, test product and noise meter horizontal distance of 1 meter)
Weight: 2797g (without pump head)
Dimensions: (L×W×H) 191*120*161（mm）
Static Torque: 1.29N·M
Working Environment: Temperature 0- 40°C, relative humidity<80% RH
Storage Environment: Ambient temperature of -20 ~ +50 °C, relative humidity of not more than 95% of the clean and well-ventilated environment, the air shall not contain corrosive, flammable gases, oil mist, dust.
Tube Model and Flow Rate Reference
Flow Rate Table (Example YZ15, other pump heads refer to the pump head tube flow rate table, unit: mL/min)
| Material of Tube | Suitable Tube | 1rpm Flow Rate | 30rpm Flow Rate | 100rpm Flow Rate | 350rpm Flow Rate | 600rpm Flow Rate |
| Silicone tube | 13# | 0.05 | 1.50 | 5.00 | 18.00 | 30.00 |
| 14# | 0.20 | 6.00 | 20.00 | 70.00 | 120.00 | |
| 19# | 0.50 | 15.00 | 50.00 | 175.00 | 300.00 | |
| 16# | 0.80 | 24.00 | 80.00 | 280.00 | 480.00 | |
| 25# | 1.90 | 57.00 | 190.00 | 665.00 | 1140.00 | |
| 17# | 3.00 | 90.00 | 300.00 | 1050.00 | 1800.00 | |
| 18# | 4.30 | 128.00 | 427.00 | 1495.00 | 2562.00 |
The above data is obtained from the test of purified water with a Lead Fluid tube under normal and pressure conditions in the laboratory. This data is for reference only.
Due to pressure in actual use, temperature, medium characteristics, tube material and other specific factors, the specific situation needs to consult our engineers.
Product Structure & Usage Method

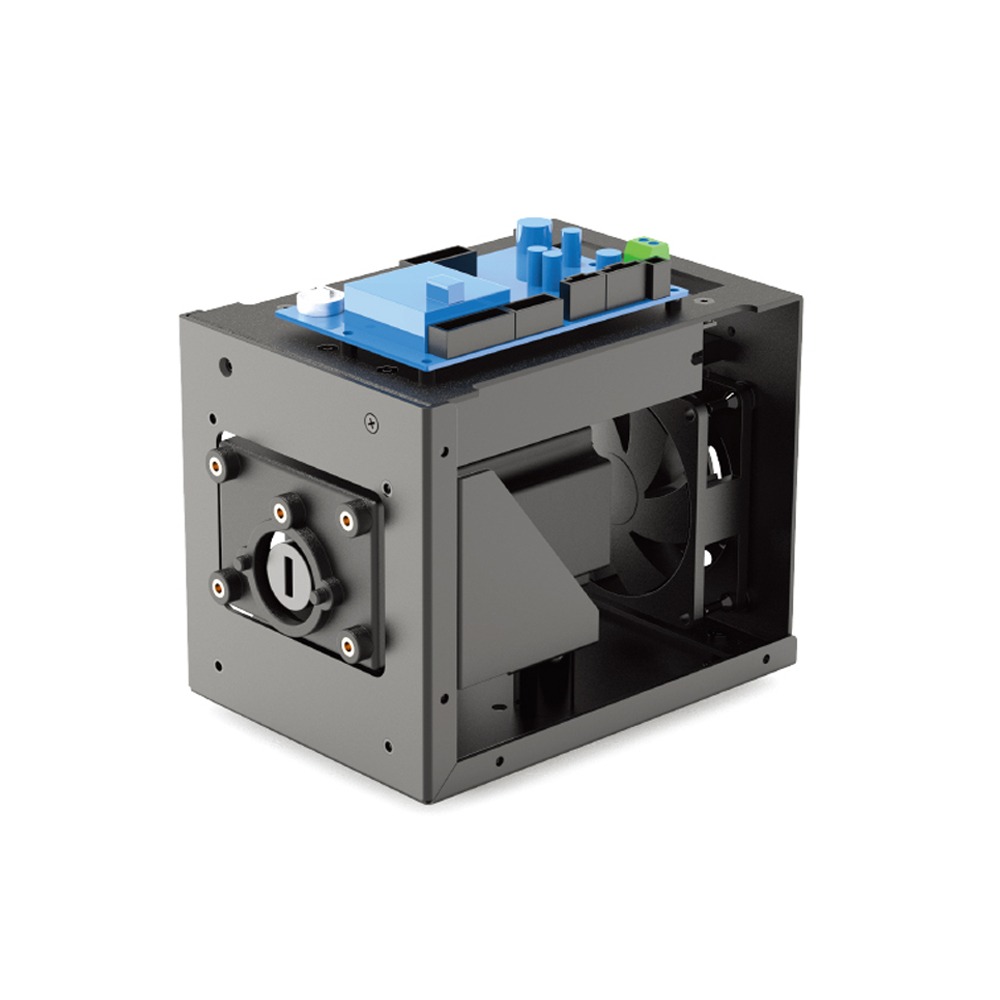

Product Structure
Component Name and Function
1.Pump Head Bracket: Connects the product and pump head.
2.Mounting Plate: Connects the motor to the pump head bracket and allows
the product to be installed on other devices.
3.Power Supply Terminal: Connect to DC power supply to power the product.
4.DB15 External Control Interface: External analog control and RS485 communication.
Usage Method
Pump head Installation
Take 2 screws of the corresponding pump head and connect them through the mounting holes 1 and 2 of the pump head with the
threaded holes 1 and 2 of the product pump head bracket (YZ15 pump head example).
Dimension
unit: mm
