>>>TSD01-01 Two-way push-pull Style Laboratory Syringe Pump

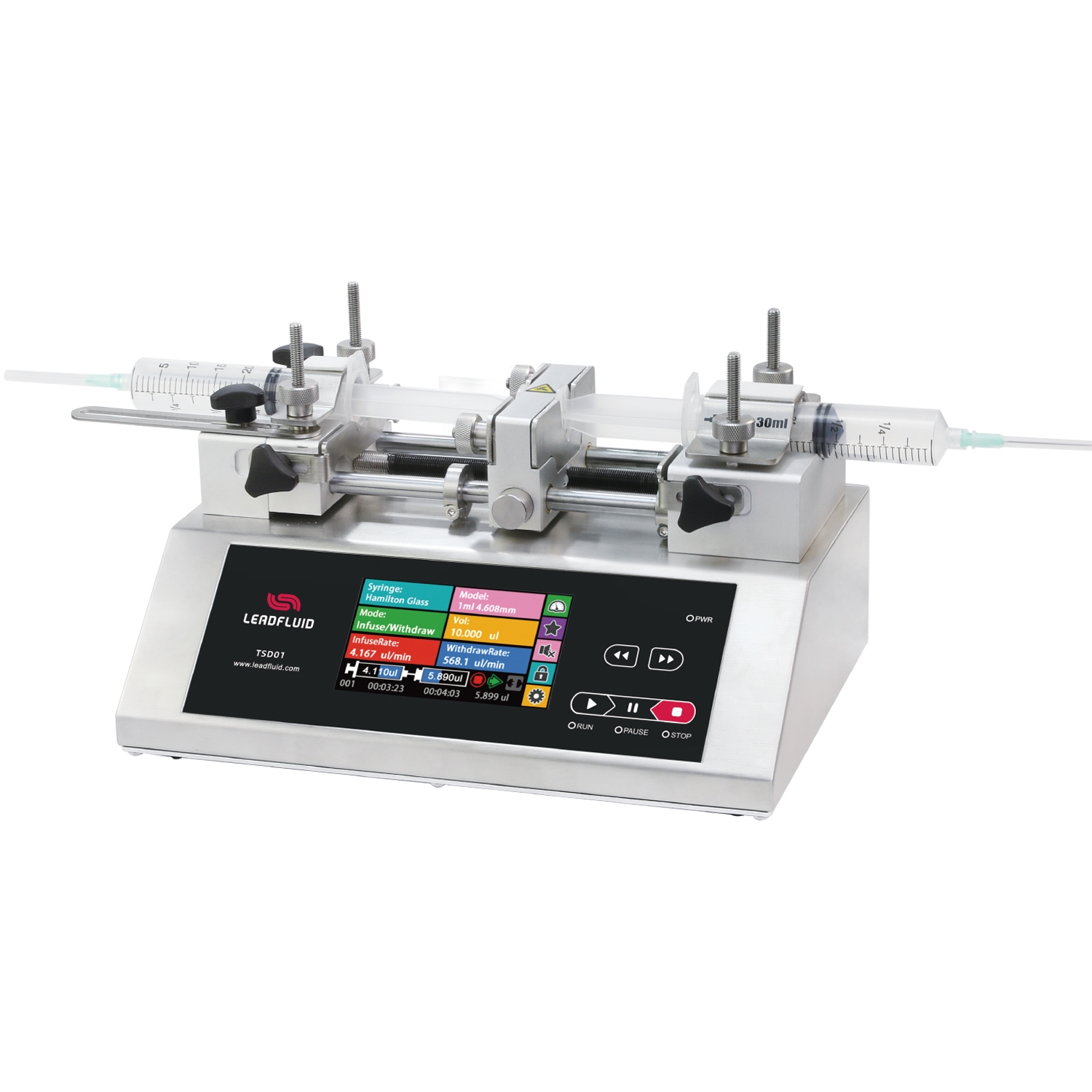

TSD01-01 Two-way push-pull Style Laboratory Syringe Pump

Product introduction

TSD01-01 is a small flow, high precision, can be continuous transmission liquid syringe pump;Durable mechanical transmission design, long life and good reliability.High resolution color LCD, touch screen is convenient fast set parameters, multiple light clear confirmed its working state;And support for multiple syringe to choose, to meet the requirements of different experimental flow and high precision control, and protection agencies and alarm mechanism.Support injection extraction and so on five kinds of working mode.Built-in RS – 485 communication, support the MODBUS protocol, full metal shell, wide range power input, adapt to various occasions.

  • Flow: 10 ul -140 mL
  • Max: 2 Channels
SKU: TSD01-01 Category:

Description

Function and Feature
 •  It can assemble two  syringe, through several tube-line connection, realize continuous transmission liquid;
•  A variety of working mode choice;
•  Color touch screen, LCD display, convenient and quick operation;
•  Support screen lock, key mute operation;
•  With lights, buttons, clearly working state;
•  Support a variety of standard syringe, customize syringe;
•  High precision control;
•  Syringe protection and traffic jam alarm;
•  RS485 communication, support the MODBUS protocol;
•  External signal control start-stop and direction;
•  A wide range of power input;
•  Full metal shell.

Technical  Parameters:
•  Syringe size: 10 ul – 140 ml;
•  Work mode: infusion, withdraw, infusion/withdraw, withdraw/infusion, continuous mode;
•  Channel number: 2;
•  Stroke of pump: 140 mm;
•  pusher advance per microstep: 0.156 um/ustep;
•  linear speed: 1 um/min – 150 um/min;
•  Linear resolution: 1 um/min;
•  Linear travel accuracy: error <± 0.35% (>30% of pump stroke);
•  Linear force: maximum rated: > 20KGF;
•  Thrust regulation: 1-100% arbitrary adjustable.
•  Syringe selection: built-in main manufacturers, the main model syringe to choose;Can use custom syringe, direct input syringe size& diameter;
•  Flow calibration: through the calibration procedure to obtain more accurate fluid volume;
•  Display: 4.3 -inch color LCD, 480 * 272 resolution, color 65 k;With screen display and transfusion volume, quantity of liquid, flow, operation direction, syringe specification, etc.;Animation display operation status;
•  Operation mode: touch screen + button;
•  Power-off memory:  storing the running parameters automatically.;
•  Other features: pause and stop;The sound tip;The lock parameters;Fast forward and retreat quickly;
•  State signal output: 1 road stop state, 1 state road direction;
•  Control signal input: 1 way down along the priming, 1 way down along the trigger to stop;
•  communication interface: RS485, MODBUS protocol;
•  Applicable power: AC90-264 – v / 20 w;
•  working temperature: 5 to 40 ℃;
•  Relative humidity: < 80% RH;
•  Dimension: 290 * 205 * 141 mm
•   Weight: 4.4 kg

Model selection(Flow rate =Linear rate×Syringe inner sectional area)

Syringe size Syringe ID(mm) Min. flow rate (ul/min) Mix .flow rate(ml/min)
10μl 0.485 0.184 0.027
25μl 0.729 0.417 0.626
50μl 1.03 0.833 0.125
100μl 1.457 1.667 0.250
250μl 2.304 4.169 0.625
500μl 3.256 8.326 1.248
1ml 4.699 17.342 2.601
5ml 11.989 112.890 16.933
10ml 14.427 163.169 24.754
20ml 19.05 285.027 42.754
30ml 21.59 366.090 54.913
60ml 26.594 555.459 83.318
